How to reopen a PS Raw file?

  • August 18, 2017
  • 4 replies
  • 4704 views

Ok, first time here so thank in advance. So using LR I merged three images into a panoramic which produced a new DNG pano, this I had left the constrain image box unticked so as to give me the whole image with the white space around. I then open this file in PS and by cutting/pasting and transforming I was able to fill in missing sky and foreground allowing me to make a fuller crop than I would have had. I go to save and DNG is not an option, so I saved the file as Photoshop raw, however this file opens as an 8bit greyscale snowstorm, or if I choose the 16 or 32 bit option it tells me the specified image is larger than file.

So the question is what is Photoshop raw and is there a way to open it? Thanks....R

title modified by : Pierre Courtejoie

    This topic has been closed for replies.

    4 replies

    PECourtejoie
    Community Expert
    PECourtejoieCommunity Expert
    Community Expert
    August 22, 2017

    Hello!

    You cannot save it to a DNG, as you edited the pixels, it is not a camera raw file anymore.

    I would recommend to save in a format that keeps the layers intact: you could save it as a PSD, limited to 2GBs, or a Tiff, 4GBs, or a PSB, for huge Photoshop files. Then, to share it online, save it as a jpeg.

    R
    Robert LawlerAuthor
    Participant
    August 22, 2017

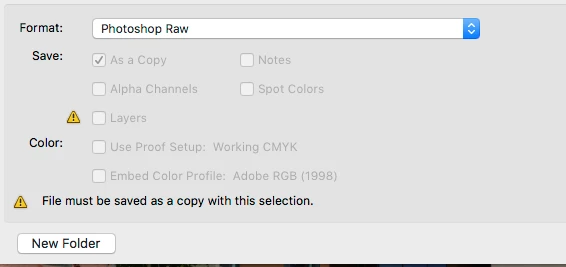

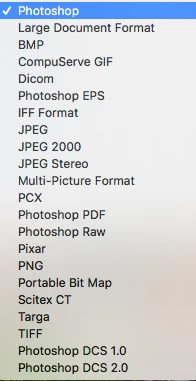

    Thank you for the answers so far, unfortunately I think I haven't given enough information of what the problem is, so here goes. I created a merged panoramic of 4 images in LR which created the pano-dng file. This I opened in PS and made some adjustments cloning into the white space which I had intentionally kept to allow me to add to the image. So far so good. I go to save the maximum info I can and was fooled into thinking 'photoshop raw' would be a file retaining more info than a tiff [dng is not available at this stage]. So the save box looks like this.

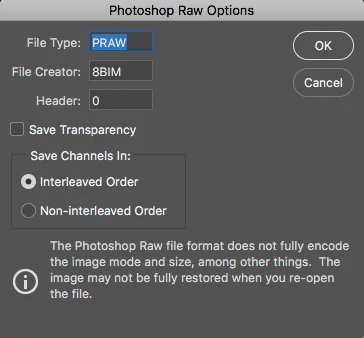

    So the saved file is now in the chosen folder and I accidentally didn't save the amended file in another format. When I then go to open it I get this option..

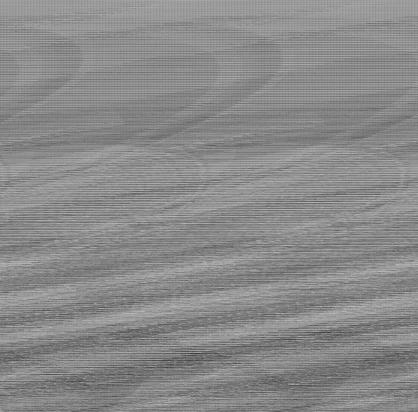

    If I OK this option the file opens like this...

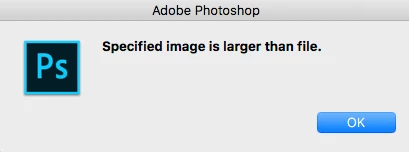

    If I instead click the 16 or 32 bit options I get this...

    So the question I have is, is there a way of opening this file or is it dead in the water? Then my question would be why have a file format that you can save to but can't read, is it not meant for image files or some such. Many thanks....

    PECourtejoie
    Community Expert
    PECourtejoieCommunity Expert
    Community Expert
    August 22, 2017

    Hello, unless you know the specifics of your file, it might be difficult to retrieve it... BUT, I'd select 3 channels on the open window, as you had an RVB image, and check interleaved, as it was checked on the save window. IMHO photoshop raw should be disabled by default with a way to re-enable it for the few users that need it. There is a warning information in the save dialog box...

    Abambo
    Community Expert
    AbamboCommunity Expert
    Community Expert
    August 20, 2017

    You should probably use TIFF file format. At least tht is what I use for my Photoshop edits and back to LR. Works fine. Photoshop itself does not work with RAW files and uses a helper program to open them. I supose it was much easier for Adobe to integrate the (at the time) new technology into Photoshop.

    ABAMBO | Hard- and Software Engineer | Photographer
      Per Berntsen
      Community Expert
      Per BerntsenCommunity Expert
      Community Expert
      August 19, 2017

      From the Photoshop user manual - File formats in Adobe Photoshop

      The Photoshop Raw format is a flexible file format for transferring images between applications and computer platforms. This format supports CMYK, RGB, and grayscale images with alpha channels, and multichannel and Lab images without alpha channels. Documents saved in the Photoshop Raw format can be of any pixel or file size, but they cannot contain layers.

      So this has nothing to do with raw files from digital cameras, which Photoshop cannot save. Only digital cameras can save raw files.

      The only exception I know of is Lightroom CC (and I suppose Camera Raw 9.x), that create DNG files from merged files. (Panorama and HDR)

      Photoshop itself cannot open raw files, so when you send raw files to Photoshop for editing, a new file is created, based on the raw file, and you have to save it as a regular (rendered) file. I suggest using Tiff or PSD. You can set up preferences for file format, bit depth and color space in the External editing tab in LR's preferences.

      If you have Lightroom CC, there's an option called Boundary warp that you can use to remove white space from panoramas which lets you work with the raw data, and might save you the trip to Photoshop.

      (this feature is not present in Lightroom 6)

      Nancy OShea
      Community Expert
      Nancy OSheaCommunity Expert
      Community Expert
      August 18, 2017

      Do you mean Adobe Camera Raw (ACR)?

      Nancy O'Shea— Product User & Community Expert
