I can't select individual points on a shape layer in Photoshop CC

  • April 16, 2015
  • 5 replies
  • 17813 views

When I have a shape layer selected as my current layer and switch to the path or direct selection tools, I am unable to select individual points. Is there a difference between a Live Shape and a path shape? I have accidentally had an alert pop up asking if I am ok with a Live Shape converting to a path but I am unable to recreate it on purpose.

This topic has been closed for replies.

5 replies

Inspiring
January 24, 2020

I have the same issue, in 2020. Sometimes a shape layer simply does not allow one to select the anchor points - it's the craziest thing - it simply does not repsond to being clicked with the direct selection tool, white or black. What I've found works - facepalm - is to close the document, open it again, click on the layer and then suddenly the path and anchor points are available again.

Participant
June 18, 2020

This is a stupid bug by Adobe. They keep screwing with their own products despite the fact they are bloodsucking their users with a super expensive suscription plan.



SOLUTION: Select the pen tool and click the path (it will create a new node, but just delete or undo), then select the white arrow again and you'll be able to select the nodes.



bramt93407132
Participant
October 21, 2022

This is definitely a bug.

I'm encountering the same issue in Photoshop CC, in a document that was functioning fine for the last 5 days (using lots of shapes, and manipulating all the individual points)... then, suddenly, the same issue with having unselectable points.

The "fix" in my case: zoom out, reorient document direction... points and selectability returns.

This is a very inconvenient bug, considering the ability to rotate the canvas and zoom in/out is critical for me to get the shapes correctly arranged.

There may be other "fixes" to the same issue — but if canvas orientation is messing with this function, then it's not on the User to troubleshoot.

Frustrating time suck, which is burning income when you're on the clock.

Participant
February 1, 2019

I had the same problem in Illustrator CC: went to View/Show Edges. that displays the individual points.

Hugh Betcha
Legend
May 11, 2018

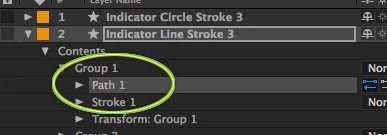

I think I figured it out through trial & error:  to select only 1 node of a line (a line being 'node-line-node'), you have to dig deep into the hierarchy, and select 'Path 1' as an example - that allows easy node moving - now I can make lines any length and join them visually.

Silkrooster
Legend
May 11, 2018

That image looks more like After Effects than Photoshop. That could cause the confusion.

Silkrooster
Legend
April 17, 2015

When you edit a live shape, it must be converted to a normal shape object. The only way to select points is to use the direct selection tool.

Trevor.Dennis
Community Expert
Community Expert
April 17, 2015

Silkrooster wrote:

When you edit a live shape, it must be converted to a normal shape object. The only way to select points is to use the direct selection tool.

Yes, but as soon as you select and move a point, it becomes a normal shape object. That is unless you can avoid skewing the shape, in which case the Live Shape properties panel will still be visible.

So if you make a rectangle with rounded corners, and use the Direct selection tool to drag over all four upper points, and drag them perfectly up or down without any side movement, the object remains a Live Shape.

Trevor.Dennis
Community Expert
Community Expert
April 17, 2015

It's a bit of a black art when you start:

  1. Lets say you have created a live shape layer, or a work path — the process is the same either way.
  2. Hit the 'a' key to select the Path selection tool (black arrow) or Direct selection tool (white arrow).
  3. If you have the black arrow, and click on your shape/path and move the cursor, the entire thing moves and you start to get annoyed.  Everyone has done this ;-)
  4. Hold down the Ctrl (Cmd) key, and the black arrow will change to the more useful white arrow. Click outside the shape/path to unselect everything.  Now drag a widow over a small area, and just that point will be selected. You can now drag that point.

To give yourself more control, select the Pen tool.  You can switch to the white arrow at any time using the Ctrl (Cmd) key.  If you select a single point, and want to change it from a curve to corner point, hold down the Alt (Opt) key and click it.  If going from corner to curve, hold down the Alt (opt) key, and click and drag.

asmcleodAuthor
Participant
April 17, 2015

Thanks,  Trevor.Dennis. That is how it worked in CS6 but now in CC for some reason I am unable to select a shape with neither direct selection or the path selection tool. It simply does not show the anchor points. I am not sure if it is a bug or what. Is there an method to convert live shapes to normal shapes as Silkrooster‌ suggested?

Silkrooster
Legend
April 17, 2015

There is no method. Take a look at the points and see if the are all solid or hollow. If they are all solid try clicking off the object to deselect it they try and select a point.
