Question

Layered PDF into Layered PSD

  • December 21, 2017
  • 2 replies
  • 9621 views

Hello everyone,

This is probably expert question.

What is the best way how to achieve this result. I am researching this for a quite a while now.

Now I do it manually

Is there any preflight option I am missing or something else ?

kind regards,

TP

    This topic has been closed for replies.

    2 replies

    Theresa J
    Community Expert
    Theresa JCommunity Expert
    Community Expert
    February 7, 2018

    I'm not sure I completely understand your workflow, but here's what I think you are trying to do.

    1. create a layered illustration with auto cad

    2. save the auto cad as a layered PDF

    3. Open the PDF in Photoshop and retain the layers?

    The only way that I know to open a layered PDF as layers in Photoshop is when the file was created in Photoshop to start with, and saved as a PDF with layers. I am pretty certain you can't do this with your current workflow.

    Have you tried copy and paste from auto cad to Photoshop? You could copy and paste each layer separately.

    Or have you tried opening the PDF in Illustrator?

    Why do you want to open the PDF in Photoshop anyway? Auto cad creates vector art. Photoshop is primarily a bitmap editor. Illustrator seems like a better match.

      T
      theodorp87077972Author
      Known Participant
      February 8, 2018

      Thank you Therese for your Response.

      Yes, You are right. In large picture of my workflow. I am trying to get my layered architectural drawing from Autocad into the photoshop with same layers. Thank you, for clearing that up.

      Have you tried copy and paste from auto cad to Photoshop?

      Nice out of the box thinking. Upon your suggestion i have tried and found out that there is some very old command for postscript export sadly I wasn't able to make it work the way I desire.

      Or have you tried opening the PDF in Illustrator?

      I had It opens in one layer and the geometry is all messed up.

      Why do you want to open the PDF in Photoshop anyway? Auto cad creates vector art. Photoshop is primarily a bitmap editor. Illustrator seems like a better match.

      So It makes this workflow twice as fast at minimum.

      Architecture plan render by photoshop - YouTube

      Thank you all for your answers so far.

      You can also use pdf I have provided, for your tests.

      https://www.dropbox.com/s/jyz9dpw8mze4vo8/file.pdf?dl=0

      kind regards,

      Theodor

      Stephen Marsh
      Community Expert
      Stephen MarshCommunity Expert
      Community Expert
      February 8, 2018

      How many layers are in an average CAD file?

      mcsousah
      mcsousah
      Participating Frequently
      December 21, 2017

      Hi theodorp87077972

      I think the question is not clear enough?

      I couldn't find any difference between these two files or previews.

      The existed file is already has the transparency because there is any fill layer for the background, but the Adobe Acrobat view the transparency as "White background" while the Photoshop is viewing the transparent layer.

      please, correct me if you have different point.

      Thanks,

      wael

      T
      theodorp87077972Author
      Known Participant
      December 21, 2017

      Yes you are right I wasn't clear enough.

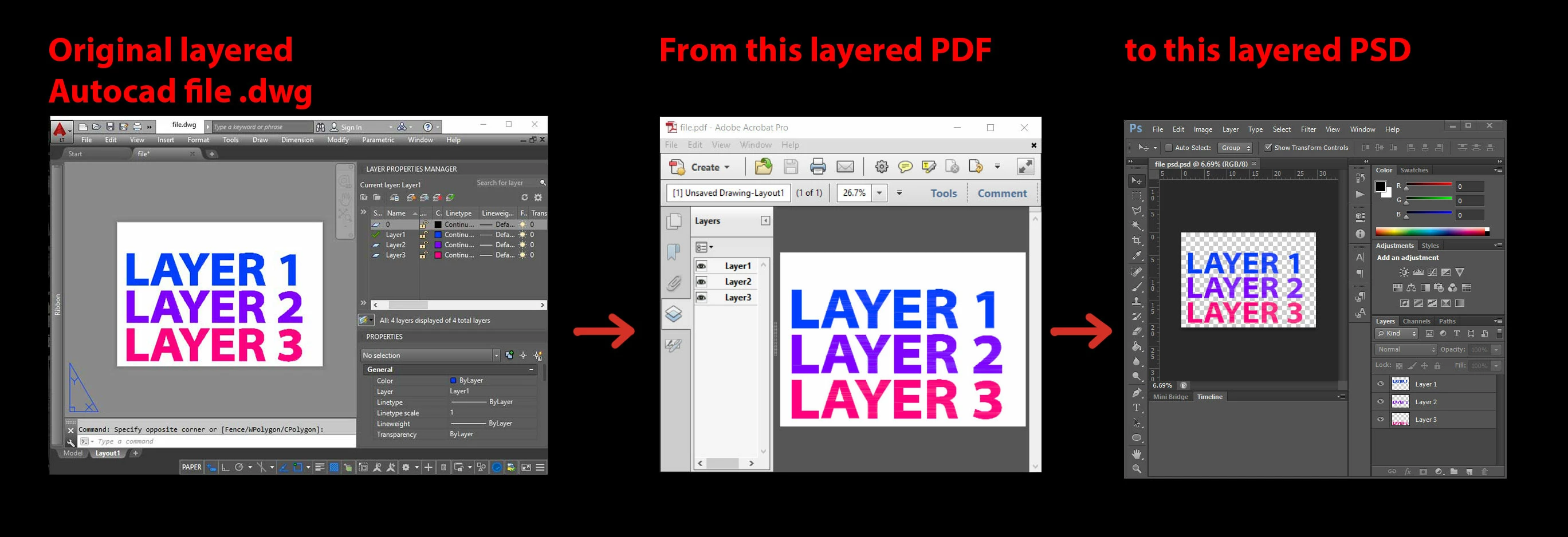

      The picture represents what i want to achieve but cannot.

      Here is my layered pdf from autocad.

      https://www.dropbox.com/s/jyz9dpw8mze4vo8/file.pdf?dl=0

      And I want to be able to open layered pdf from autocad as a layered psd in Photoshop.

      regards,

      TP

      ~graffiti
      ~graffiti
      Legend
      December 21, 2017

      You may consider asking either in the Acrobat forum (this one is for the free Reader) or the Photoshop forum. You'll get more people with experience in this.
