low quality printing - photoshop

  • May 25, 2021
  • 2 replies
  • 849 views

hi

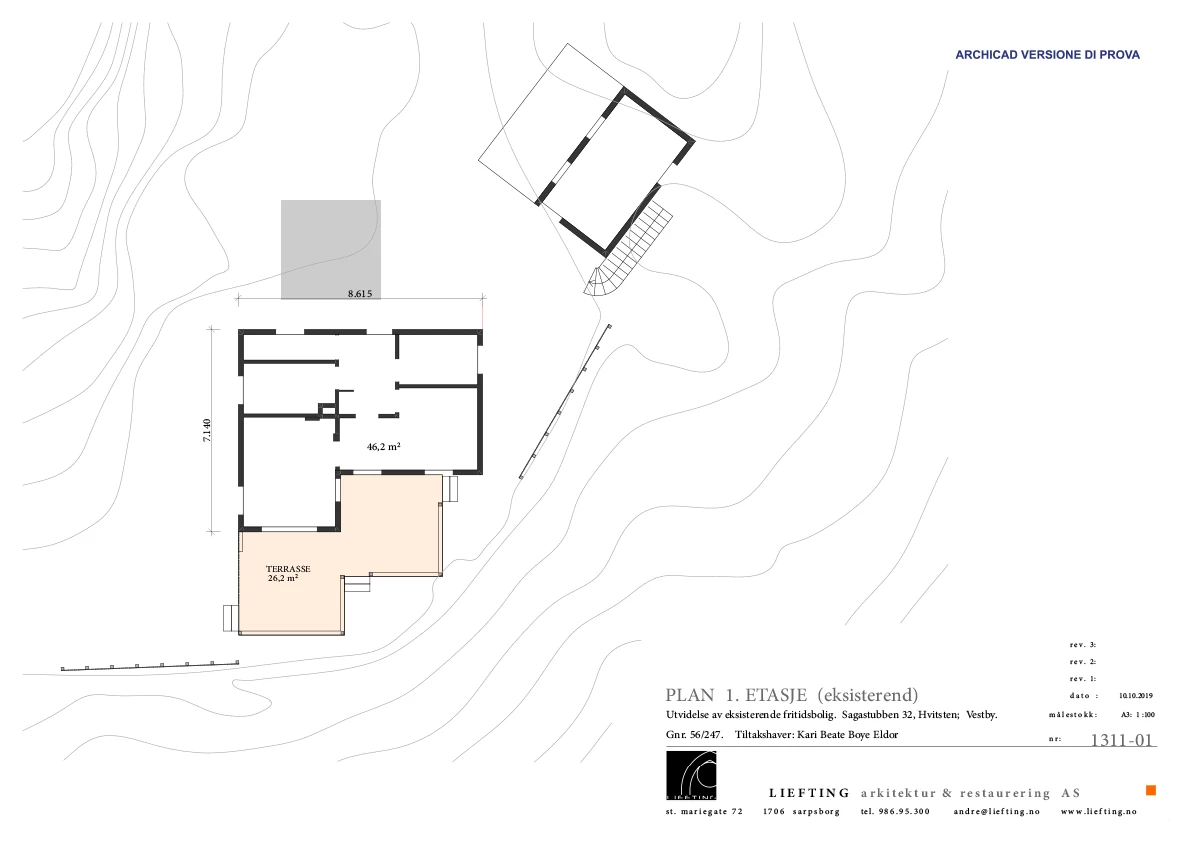

I imported a plant made in Archicad in Photoshop, modified it and created the final plant in A3 format.

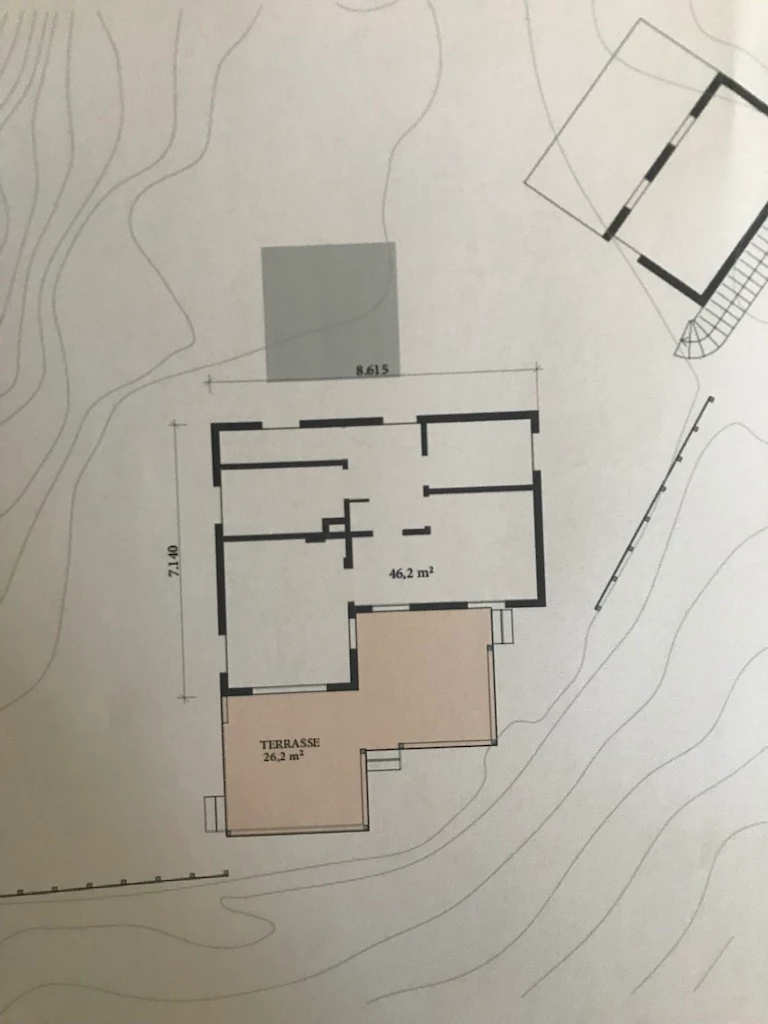

I tried to print directly from Photoshop, from pdf and png but the print quality is always low and the edges are not well defined.



I attach all the files here.





How can I improve the quality?

Thanks so much

This topic has been closed for replies.

2 replies

T
Test Screen Name
Legend
May 25, 2021

Photoshop is a difficult choice for editing CAD work because you're degrading vectors to raster. You may have to do this, but you need to take charge of the math, and pick suitable image size. Don't just drift along accepting defaults, take control at every step. A3 will be an enormous slow file if done right. I haven't looked at your files but it seems right: you made a file suitable for printing at 3x4 inches (75x100mm) only.

E
ERIKA0D4CAuthor
Participant
May 25, 2021

ok, so I have to set an higher resolution?

josephlavine
Community Expert
josephlavineCommunity Expert
Community Expert
May 25, 2021

How large are you trying to print the image? In reviewing the PSD file it appears to be rather small and based on a typical 300ppi resolution for printing you'd be roughly 3x4 inches.

warmly/j

E
ERIKA0D4CAuthor
Participant
May 25, 2021

I printed it in A3 format
