Please help me,

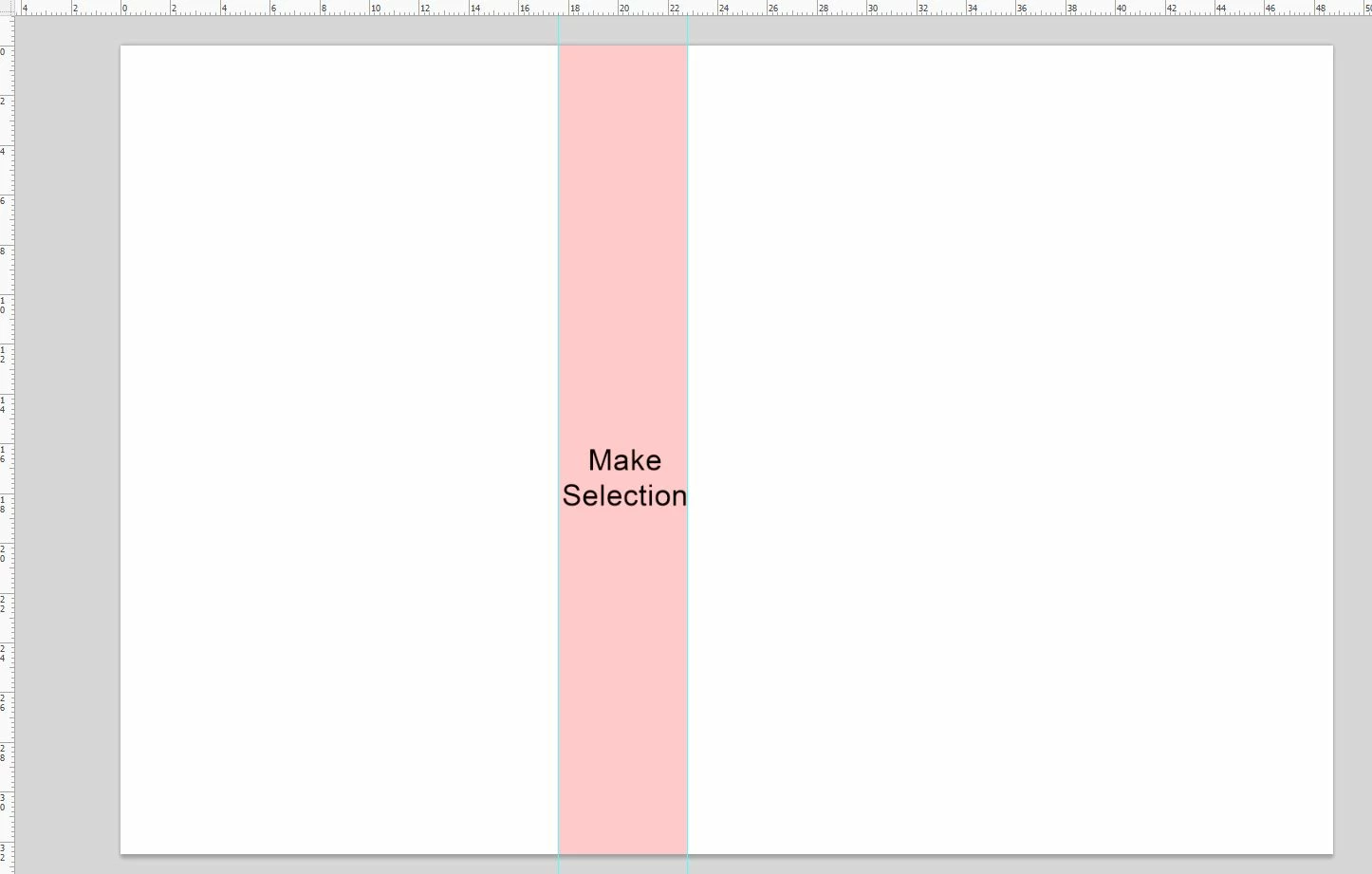

I want make selection from two guides existing. Then remove the guides.

Thanks for so much!

This topic has been closed for replies.
Correct answer Tom Winkelmann

Based on Paul Riggotts script:

Re: Is this possible to draw square selection between two Guides...?

#target photoshop
app.bringToFront();
main();
function main(){
if(app.version.match(/\d+/) < 12) return;
if(!documents.length) return;
var doc = activeDocument;
var guides = doc.guides;
if(guides.length != 2) return;
if(guides[0].direction != guides[1].direction) return;
var startRulerUnits = preferences.rulerUnits;
preferences.rulerUnits = Units.PIXELS;
var SB = new Array();
if(guides[0].direction == Direction.HORIZONTAL && guides[1].direction == Direction.HORIZONTAL){
var vertDistance = doc.guides[1].coordinate.value - doc.guides[0].coordinate.value;
SB[0] = 0;
SB[1] = doc.guides[0].coordinate.value;
SB[2] =  doc.width;
SB[3] = doc.guides[1].coordinate.value;
    }
if(guides[0].direction == Direction.VERTICAL && guides[1].direction == Direction.VERTICAL){
var horzDistance = doc.guides[1].coordinate.value - doc.guides[0].coordinate.value;
SB[0] = doc.guides[0].coordinate.value;
SB[1] = 0;
SB[2] = doc.guides[1].coordinate.value;
SB[3] = doc.height;
    }
activeDocument.selection.select([[SB[0],SB[1]],[SB[2],SB[1]],[SB[2],SB[3]],[SB[0],SB[3]]], SelectionType.REPLACE, 0, false);
doc.guides.removeAll();
app.preferences.rulerUnits = startRulerUnits;
};

1 reply

Tom Winkelmann
Tom WinkelmannCorrect answer
Inspiring
October 18, 2018

Based on Paul Riggotts script:

Re: Is this possible to draw square selection between two Guides...?

#target photoshop
app.bringToFront();
main();
function main(){
if(app.version.match(/\d+/) < 12) return;
if(!documents.length) return;
var doc = activeDocument;
var guides = doc.guides;
if(guides.length != 2) return;
if(guides[0].direction != guides[1].direction) return;
var startRulerUnits = preferences.rulerUnits;
preferences.rulerUnits = Units.PIXELS;
var SB = new Array();
if(guides[0].direction == Direction.HORIZONTAL && guides[1].direction == Direction.HORIZONTAL){
var vertDistance = doc.guides[1].coordinate.value - doc.guides[0].coordinate.value;
SB[0] = 0;
SB[1] = doc.guides[0].coordinate.value;
SB[2] =  doc.width;
SB[3] = doc.guides[1].coordinate.value;
    }
if(guides[0].direction == Direction.VERTICAL && guides[1].direction == Direction.VERTICAL){
var horzDistance = doc.guides[1].coordinate.value - doc.guides[0].coordinate.value;
SB[0] = doc.guides[0].coordinate.value;
SB[1] = 0;
SB[2] = doc.guides[1].coordinate.value;
SB[3] = doc.height;
    }
activeDocument.selection.select([[SB[0],SB[1]],[SB[2],SB[1]],[SB[2],SB[3]],[SB[0],SB[3]]], SelectionType.REPLACE, 0, false);
doc.guides.removeAll();
app.preferences.rulerUnits = startRulerUnits;
};
    A
    ANCHINGOAuthor
    Known Participant
    October 18, 2018

    Hey bro,

    possible help me more one?

    i want auto create guide at point mouse.

    Is this feasible?

    Thank in advance

    Tom Winkelmann
    Tom Winkelmann
    Inspiring
    October 18, 2018

    Hmm - you can use the color sampler tool

    #target photoshop
    var orig_ruler_units = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.PIXELS;
    for (var i=0,len=app.activeDocument.colorSamplers.length;i<len;i++) {
      var cs = app.activeDocument.colorSamplers;
    activeDocument.guides.add(Direction.HORIZONTAL, cs.position[1].value)
    activeDocument.guides.add(Direction.VERTICAL, cs.position[0].value)
    };
    // activeDocument.colorSamplers.removeAll();
    app.preferences.rulerUnits = orig_ruler_units;
