Participant

Answered

making "lined paper" (evenly spaced lines)

Forum|Forum|6 years ago
July 20, 2019
5 replies
26338 views

I am new to photoshop and want to make lined paper. (evenly spaced lines) I open a new doc- then make a new layer. First I make an even line with the line tool. Then I Control J to make several copies. I select the last layer and control T to transform. When I left click to drag on line to bring it down to the bottom so I can redistribute lines after- it just makes a huge filled in rectangle shape. Even when I skip the copies and just try to free transform the line to make an exact copy it makes a filled in rectangle shape. I hope this question makes sense.Thanks for any help.

This topic has been closed for replies.

Correct answer Nancy OShea

Go to File > New
Document type: Custom

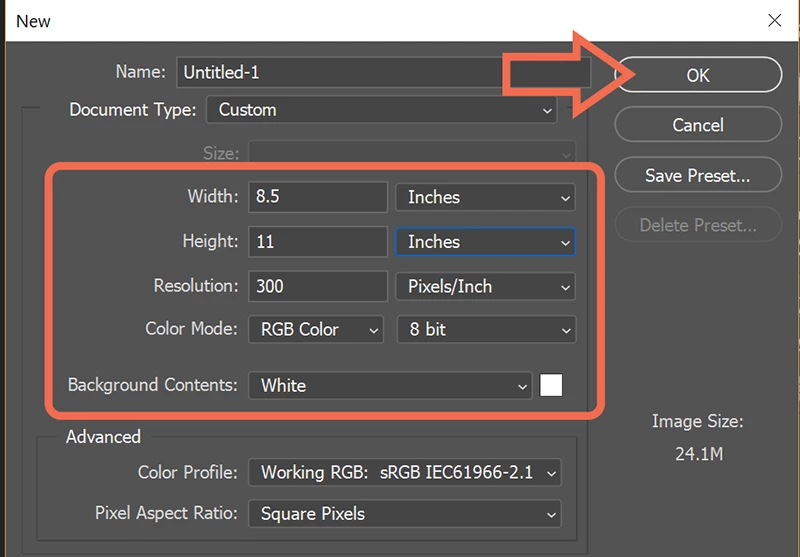

See screenshot for values and hit OK.
Unlock the background layer by double-clicking & hit OK

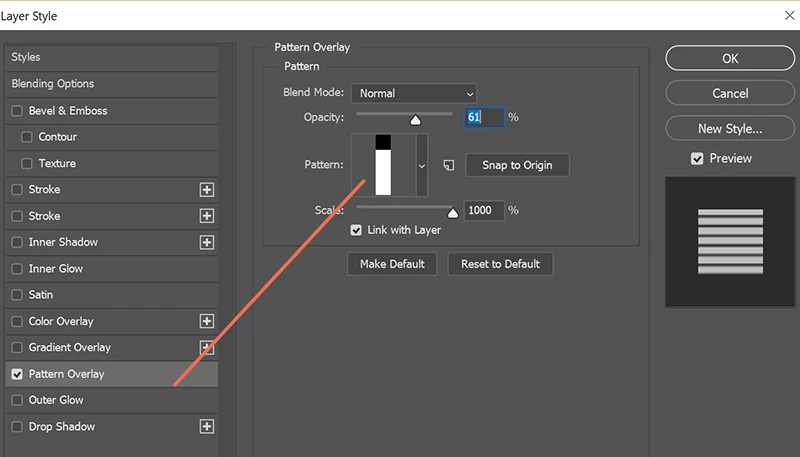

Double click on Layer 0 and add a Pattern Overlay.

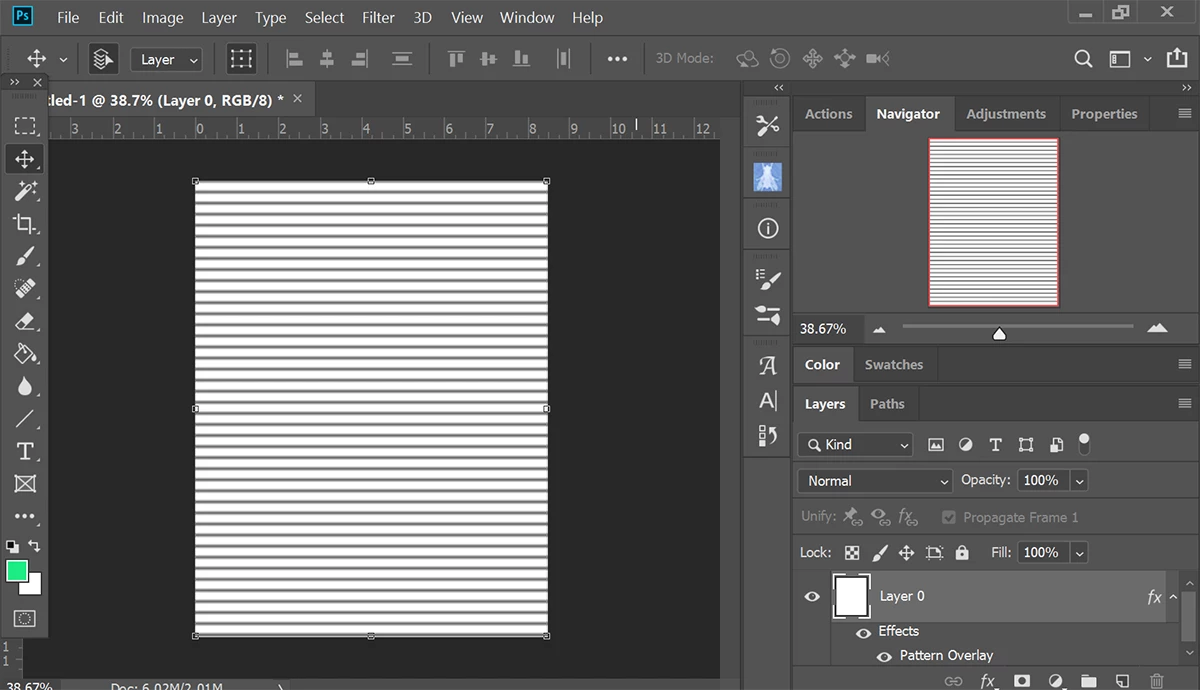

In this example, I used a horizontal line pattern and adjusted the scale to fit my page.

Stephen Marsh

Community Expert

There are technical considerations when it comes to printing consistent thickness/colour lines, however, that is another discussion!

J

JW6595Author

Participant

Thanks for all your help!

S

sarapia777

Inspiring

I had this same issue a while back. I found the various instructions kind of confusing so what I ended up doing was taking a picture of a piece of lined paper and inserting it into my document, adjusting the color and opacity as desired. That's what worked for me.

Norman Sanders

Legend

1. Open a new file of appropriate size to hold the finished Image and add a transparent layer.

2. Use the Line tool to draw the line. Pixels in the Options bar

3. Select the line using the Rectangular Marquee tool.

4. Hold down Cmd+Opt+Shift and choose Edit > Free Transform. Be sure to release the mouse before releasing the keyboard keys.

5. Hold down the Shift key for alignment and drag the framed line down. Do not use the center mark in the image when dragging. Then key Return. The second image willl display marching ants.

6. Hold down Cmd+Opt+Shift and strike the T key repeatedly. Each time you do, another duplicate will appear, following the spacing you designated.

7. Select > Deselect to remove the marching ants. Job done.

Note that all of the duplicate images appear on one layer.

jane-e

Community Expert

Hi JW6595

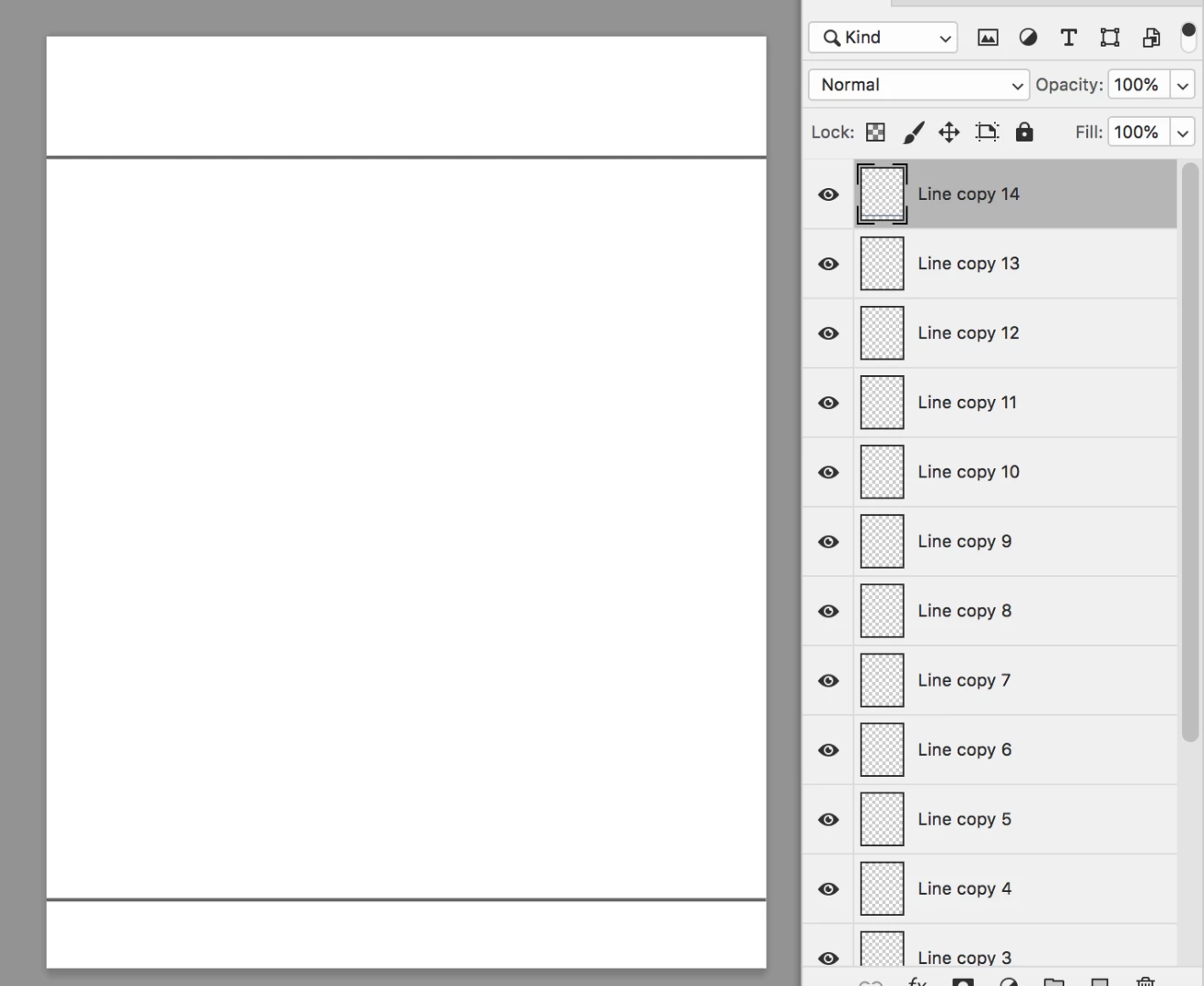

I would put those lines on separate layers because these projects always need editing.

Draw a line with the line tool and Shift. I set the mode to Pixels, but you could use Shape.
Cmd+J to duplicate the layer for as many lines as you need.
With the Move tool, move one line down to the bottom. Use Shift to constrain.

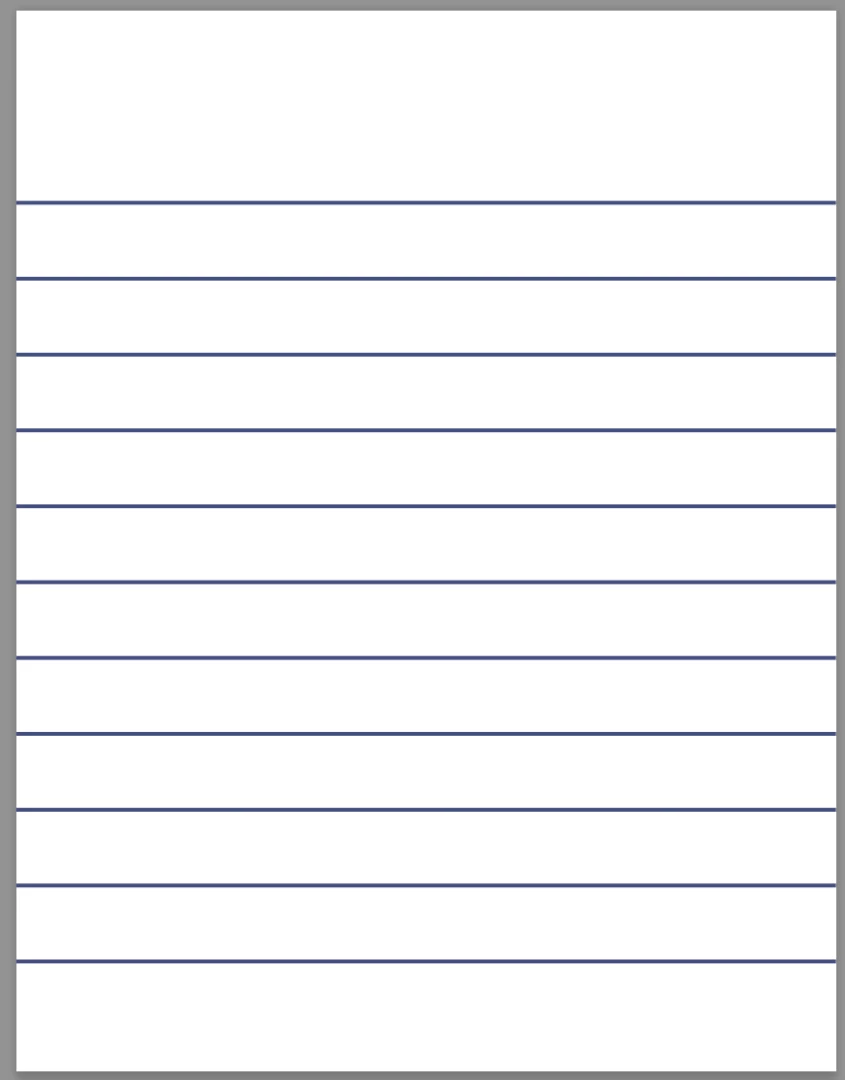

Multiple select all the layers with lines (use Shift), then click the ellipses in the options bar for the Move tool and Distribute Vertical Centers to space equally between the top and bottom lines.
The reason I like this method is that it's flexible when you need to move the top and bottom lines or add/delete lines.

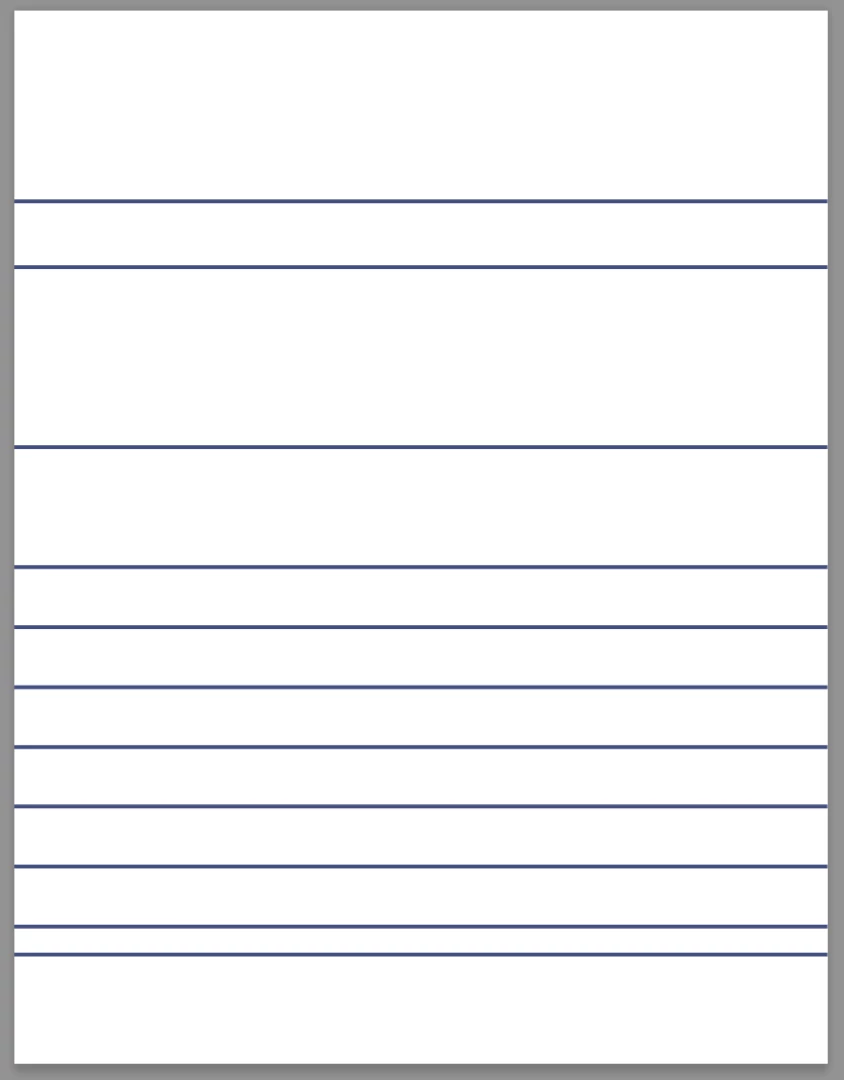

Here I've deleted three lines and adjusted the top and bottom lines. All I need to do is select the layers and distribute again.

~ Jane

Nancy OShea

Correct answer

Community Expert

Go to File > New
Document type: Custom
See screenshot for values and hit OK.
Unlock the background layer by double-clicking & hit OK
Double click on Layer 0 and add a Pattern Overlay.
In this example, I used a horizontal line pattern and adjusted the scale to fit my page.

Nancy O'Shea— Product User & Community Expert

Trevor.Dennis

Community Expert

I like Nancy's solution best. I would not have thought to use the single Dot pattern to make lines, but it obviously works.

There is not a horizontal line pattern among the default sets, so I quickly made one. Note, that if you have the background layer turned on when defining the pattern, it will make black lines on white on the same layer.

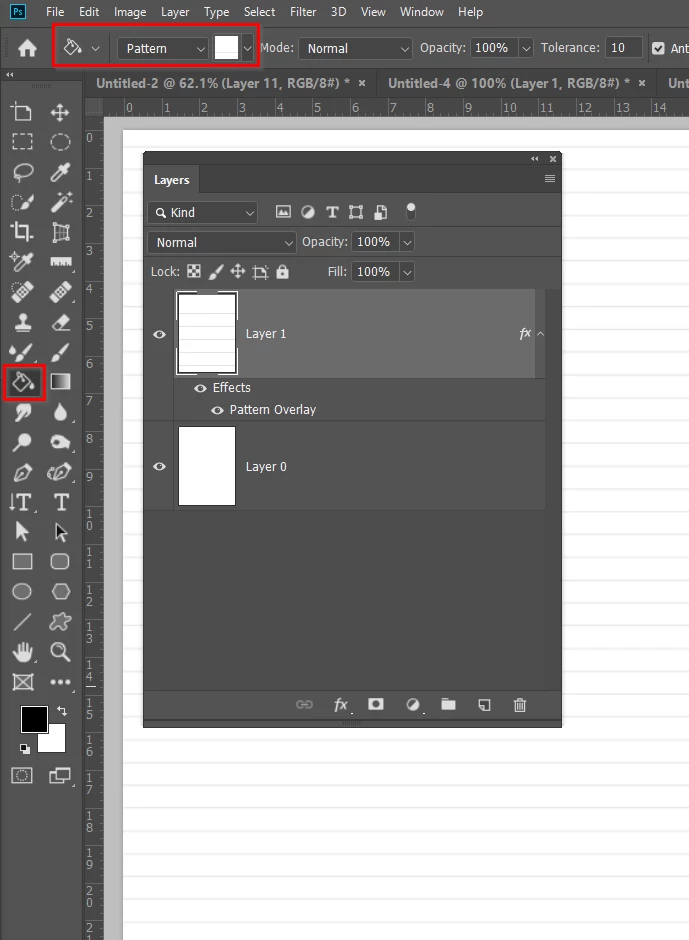

Something I have just learned is that if you adjust the pattern scale in Layer Styles, it will retain that scale if you then use the Paint Bucket tool set to Pattern to apply the pattern, but it does so as a Layer Style. It's not a tool I tend top use, but it's interesting all the same.
