Question

Mottled effect to undo monotony of a uniform colour...how ?

  • December 31, 2016
  • 1 reply
  • 5656 views

Hi,

CS6.

Looking at some artwork for aircraft skins for flight sims, what would be otherwise a perfectly uniform artifical looking area of colour has had a subtle mottled weathered look applied, like the clouds on a 10/10 cloudy day.

How best can this be achieved on a colour dumped with alt backspace from the colour palette into a layer ?

Ideally an ability to drag sliders to alter size of the mottle, variation in shades, introduction of a second similar colour maybe, etc.

On a side note, I also often need to add in the 'noise' we see when photographing a uniform colour and zooming in on it, as adding a colour to a photo edit, looks false, until the existing 'noise' is matched. A different method no doubt but again how is it done ?

Merlin

    This topic has been closed for replies.

    1 reply

    Trevor.Dennis
    Community Expert
    Community Expert
    December 31, 2016

    Hi Merlin

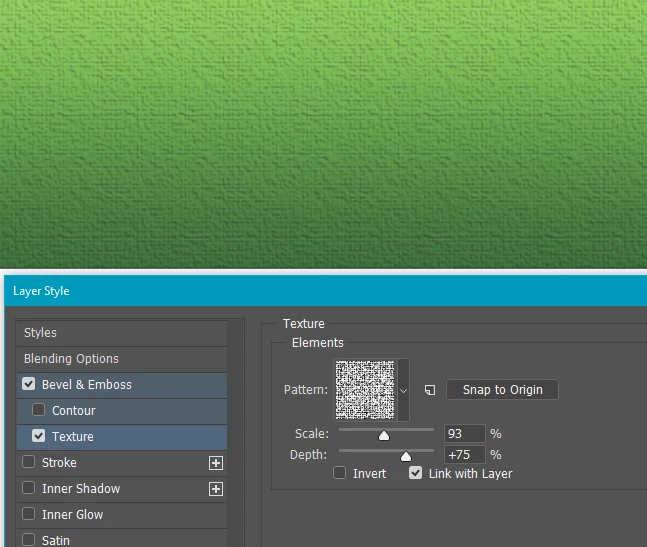

    Layer Style > Bevel & Emboss > Texture does what you describe.  You can adjust the scale and depth and chose from a vast array of different textures.  It is also non destructive.  The down side is that you can't transform the texture for perspective.

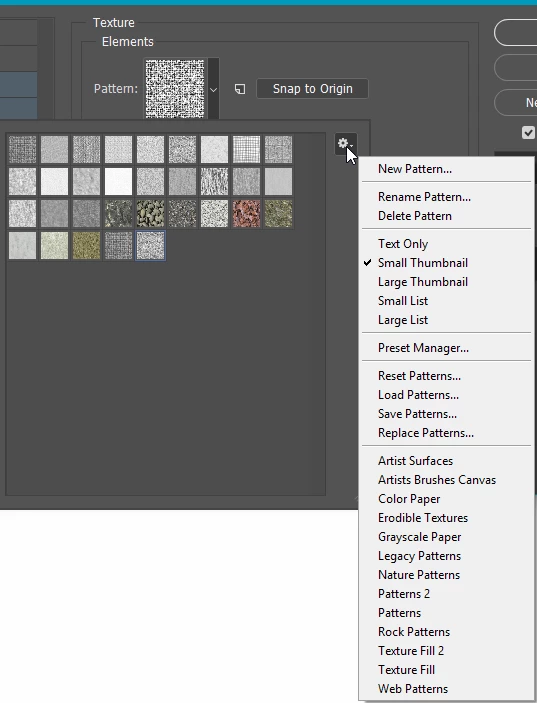

    From the drop down, click on the little cog icon to load additional textures.  These are are all what come as standard.

    postrophe
    Inspiring
    December 31, 2016

    Hi Trevor

    mottled  : spotted, speckled, dappled, stained, splotchy.

    I dont think a Texture + Bevel & Emboss is right for a Jet Plane. ??

    Maybe adding some "stain" with a brush ??

    Pierre

    postrophe
    Inspiring
    December 31, 2016

    Or perhaps some irregular shapes filled in with gradients of different values?


    Hi

    For a large file, a layer of "Render > Difference Clouds" with some blending and a Mask could do it too.

    I think the Op is working on a "flat" image file that would be use as a texture in a 3D software or a flight simulator like X-Plane.

    I did some "skin" modifications years ago for my Dad "X-Plane", planes. As he always said : "Fly Blue Upside Down".

    Pierre
