Photoshop Basic 3D Animation Won't Render to Video?

Forum|Forum|9 years ago
November 21, 2016
7 replies
9052 views

Hi there,

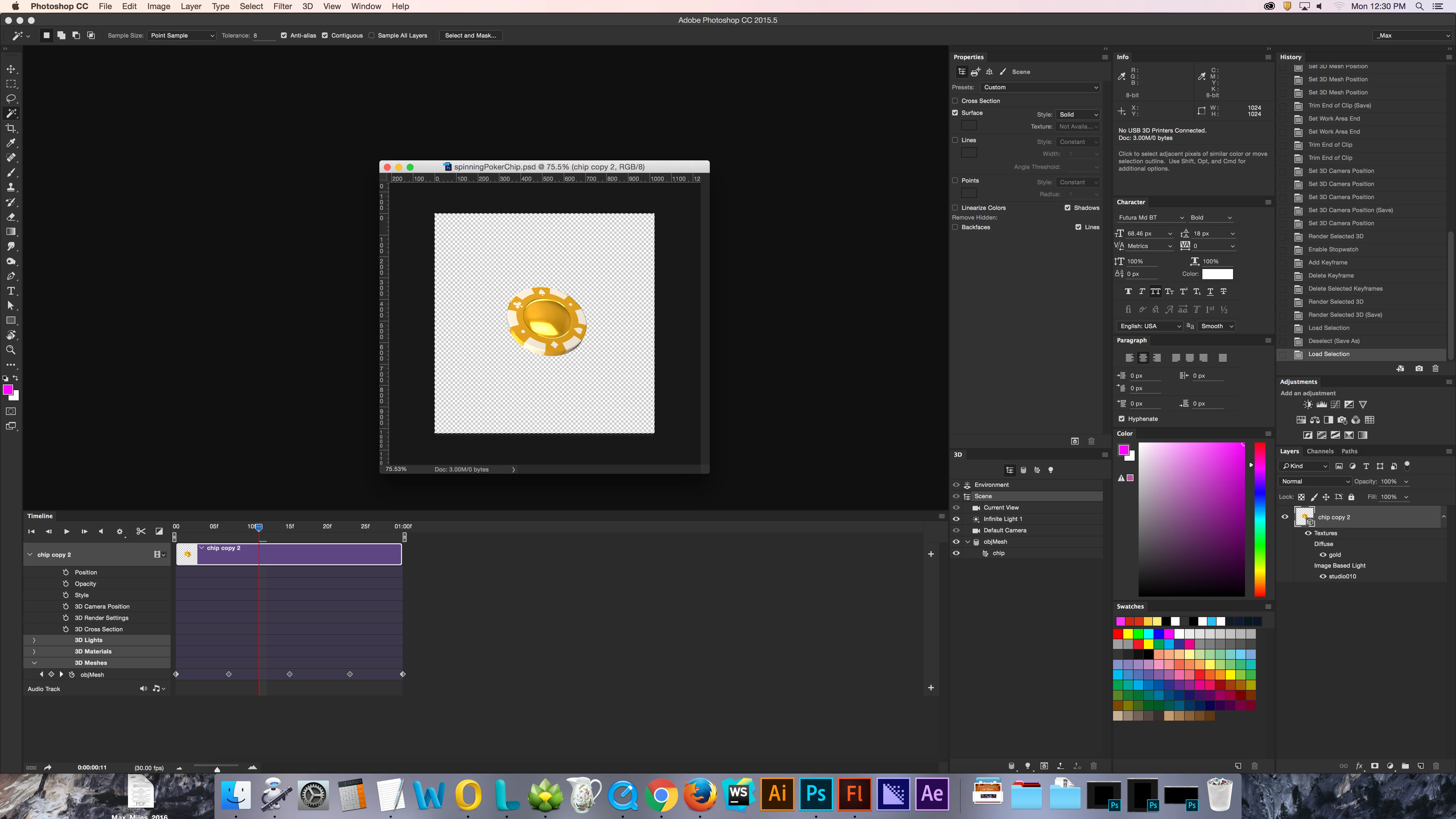

I'm following tutorials where people are building video timelines with 3D objects, rotating them and such. Everything works great except when I export the 1 second of the rotating 3D object it doesn't work. It just sits there.

I'm following to a tee what the tutorials are doing including base rendering settings and Photoshop is not picking up my 3D Mesh keyframes in the video timeline for rotation

I've tried a variety of options but nothing works.

Anybody run into this problem? It would be really cool to render animating 3D objects.

Thanks!

macOS

This topic has been closed for replies.

C

Charles-Arthur5EF5

Participant

I had the same problem, and followed the instructions of @davescm and it worked.
But i also realize you dont have save/ close and redo the keyframes, I just had to select all my keyframes before rendering, and then render, and it worked fine !

davescm

Community Expert

In theory you shouldn't have to Save and reopen. However, it is a lot quicker to identify a lost key frame issue that way than waiting until every frame has rendered.

Dave

Equifruit - Madison

Participant

I had the same issue but noticed that my video was an FPS error. Try matching the frames per second on your export settings as the error. (The error should shoe in brackets and in red)

J

jpino2048

Participant

Hello everyone,

I am working on a Mac, 16GRam, Quad core i7, nothing fancy on the graphics card.

I am working in Photoshop CC 2018.

I have a 3D object with lighting and texture and such, and I have keyframes in place to rotate the object.

All is well until I try and render it as a video, it seems by reading above that there is no way to render an object that is rotating?

I have successfully rendered a video with my camera moving around the object.

Thanks for any help.

j

davescm

Community Expert

Have you tried what I wrote in post 11 ?

Set your keyframes - save the file. Close the file and re-open - check the keyframes are still set (if not enable them) - Render the video.

Dave

T

techinst1

Participant

I had the same issue as everyone else with a animation working in the video timeline but nothing except camera movement rending in the video. Tried Dave's solution of saving, closing and opening file then redoing the animation (keyframes were cleared out on reopen so had to redo) and then Exporting the video. It worked. Now my students don't think I am insane. Appreciate it Dave!

mgsHD

Participant

I have the same issue - GIF works but not image sequence or media encoder.... those just export a non animated image....nothing is moving.

JJMack

Community Expert

Which version of Photoshop this thread was started two years ago? Can screen capture of photoshop with your Frame animation or video animation timeline visible? Are you using Windows or OSX?

JJMack

Trevor.Dennis

Community Expert

How long did you leave it to do its thing? I'm just thinking that even 1 second of video is going to need 25 frames rendered, and that is going to take a bit of time.

davescm

Community Expert

Hi Trevor

If you go for the "quick and dirty" render 3D in timeline then straight to GIF then it doesn't take long but, as in my example above can be somewhat jaggy. To get the full smooth effect, using Render Video and fully rendering every frame , does, like you say , take some time . You do though get an Exporting Image Sequence progress box, as well as the normal render "Time Remaining" progress for each frame, so you get an idea how long it will take.

Dave

Trevor.Dennis

Community Expert

davescm wrote:
Hi Trevor
If you go for the "quick and dirty" render 3D in timeline then straight to GIF then it doesn't take long but, as in my example above can be somewhat jaggy. To get the full smooth effect, using Render Video and fully rendering every frame , does, like you say , take some time . You do though get an Exporting Image Sequence progress box, as well as the normal render "Time Remaining" progress for each frame, so you get an idea how long it will take.
Dave

Thanks Dave. I am currently two thirds through Deke McClelland's Intro to Photoshop 3D on Lynda.com and enjoying it, but I suspect I am going to need to obsess using the 3D engine for some time to be able to remember it all. I hadn't even thought in terms of animating 3D objects, and that sounds pretty damn exciting. At the same time, I paused my digital portrait project to learn 3D for the earrings, and I am kind of keen to get back to it. There's never enough time.

Soupking it's super easy to put screen shots here. Just copy the screen to clipboard and paste to this thread with Ctrl v (Cmd v). If you are running Windows you have the Snipping Tool, but if you do this a lot, then get Greenshot which is what some of us use. Or just use the Print SCRN key if you have a full keyboard. Don't downres your screen shot. Adobe can afford the bandwidth.

JJMack

Community Expert

Supply pertinent information for quicker answers

The more information you supply about your situation, the better equipped other community members will be to answer. Consider including the following in your question:
Adobe product and version number
Operating system and version number
The full text of any error message(s)
What you were doing when the problem occurred
Screenshots of the problem
Computer hardware, such as CPU; GPU; amount of RAM
Save the documemt as a PSD upload it and Post a link;
Describe what you actually tried
Post a link to the tutorial you could not follow etc.

JJMack

davescm

Community Expert

Which stage does it stop working and what version of Photoshop are you using?

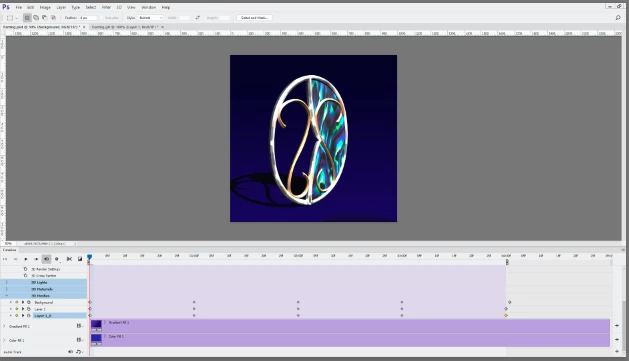

After moving your object and creating key frames, can you play your animation from the timeline before exporting ?

If yes to the above, exactly how did you export? The quick and dirty version below just used File - Export - Save for web legacy to save as a GIF, ensuring the animation options were set

A smoother (i.e. less jagged) version would be obtained by first using File -Export -Render Video set to Photoshop Image Sequence then importing the files as an image sequence then exporting again as a GIF as above, but that can take a while to render.

Dave

A

Anonymous

Well, I tried Render to Video a number of ways. I'm using Photoshop CC. I used Animation frames within the 3D object. Normal 2D layers will export fine, but the 3D attributes only animate in the work area, they don't render. The chip just sits still. It plays fine in the timeline but that's it. I can get it to make an animated GIF (THANKS FOR THE SUGGESTION!!) but the straight to video render doesn't work, not sure what I'm missing to make that step happen as it just spits out a 1 frame sequence for 30 frames (or looks like it).

Thanks for reading!

davescm

Community Expert

Can you show a snapshot of the Render Video dialogue box ?

Ensure the range is set to Work Area (which should be your total frames)

Note If your final aim is a GIF - then change from Adobe Media Encoder to Photoshop Image sequence - ensure the range is set to Work Area and 3D quality to Ray Traced Final. It will spit out a separate file for each frame. Once all those have been rendered go to File - Open As and tick Image Sequence to import the video and then save as final GIF.

Dave
