Photoshop CS6 Brush Lag

Forum|Forum|13 years ago
August 13, 2012
5 replies
44471 views

I've tried several fixes for this including disabling CL, changing cache settings, and reducing drawing mode from adavanced to basic. Nothing is working.

These are my specs..

Adobe Photoshop Version: 13.0 (13.0 20120315.r.428 2012/03/15:21:00:00) x64

Operating System: Windows 7 64-bit

Version: 6.1

System architecture: AMD CPU Family:15, Model:10, Stepping:0 with MMX, SSE Integer, SSE FP, SSE2, SSE3

Physical processor count: 6

Processor speed: 2693 MHz

Built-in memory: 6143 MB

Free memory: 4351 MB

Memory available to Photoshop: 5374 MB

Memory used by Photoshop: 83 %

Image tile size: 132K

Image cache levels: 4

OpenGL Drawing: Enabled.

OpenGL Drawing Mode: Basic

OpenGL Allow Normal Mode: True.

OpenGL Allow Advanced Mode: True.

OpenGL Allow Old GPUs: Not Detected.

Video Card Vendor: ATI Technologies Inc.

Video Card Renderer: ATI Radeon HD 5800 Series

Display: 1

Display Bounds:= top: 0, left: 0, bottom: 1050, right: 1680

Video Card Number: 1

Video Card: ATI Radeon HD 5800 Series

OpenCL Version:

Driver Version: 8.980.0.0

Driver Date: 20120611000000.000000-000

Video Card Driver: aticfx64.dll,aticfx64.dll,aticfx64.dll,aticfx32,aticfx32,aticfx32,atiumd64.dll,atidxx64.dll,atidxx64.dll,atiumdag,atidxx32,atidxx32,atiumdva,atiumd6a.cap,atitmm64.dll

Video Mode: 1680 x 1050 x 4294967296 colors

Video Card Caption: ATI Radeon HD 5800 Series

Video Card Memory: 1024 MB

Video Rect Texture Size: 16384

Photoshop scratch has async I/O enabled

Scratch volume(s):

C:\, 919.2G, 807.9G free

Another option suggested I disabled GL but the advanced interface did not have the open GL option visible in the same location as the guide.

I did not have brush lag until I started using the air brush. I did increase canvas size and make the file much larger but the lag did not happen until after I switched brush types. It is possible that I did not notice the lag until I switched.

This topic has been closed for replies.

M

mrskipm

Participant

mine is also not working, I have tried a lot of different things suggested on here and other places but it seems that it still lags and it messes up when i'm trying to draw and it has to load and I have to wait to see what I drew. Is there anything else that I could try to fix this problem?

Trevor.Dennis

Community Expert

mrskipm wrote
mine is also not working, I have tried a lot of different things suggested on here and other places but it seems that it still lags and it messes up when i'm trying to draw and it has to load and I have to wait to see what I drew. Is there anything else that I could try to fix this problem?

Would you start a new thread please. Tell us:

Photoshop version?

Operating system?

If you are using a tablet and if yes, which one?

Does the lag happen with both mouse and tablet (if you are using tablet)?

What the image and brush size are in pixels, that cause the lag, and try to explain how bad it is.

Lastly open Photoshop and go Help > System Info > Copy and paste to this thread with Ctrl v.

Thanks

J

joew24147237

Participant

I FOUND A FIX!!!!

go to edit-preferences-performance-NOW UNTICK USE GRAPHICS PROCESSOR

E

EcnaEcna

Participant

I'm going to necro this super old thread because it's the top result for "photoshop brush lag" in google. An artist I work with had a lot of brush lag when the GPU was enabled. He has recent drivers. He has a super fast computer, so it shouldn't be laggy. Disabling the GPU stuff helped a lot, but didn't solve the problem. He works in 4000x4000 pixel canvases. When he zooms in the problem is less pronounced.

Ultimately I found that some of his brushes were unaffected. I narrowed the affected brushes down to ones with the "Dual Brush" option enabled, and all of them had 1% spacing. Increasing the spacing on the Dual Brush setting removed the brush lag.

Hope other people find this useful! That much input delay is disgusting!

P

Phresh Images

Participant

I'm having the same problem and came across this youtube video that seems to help (but doesnt solve the problem): Solution to Adobe Photoshop CC Brush Lag Bug - YouTube

In the brush preset, increase spacing to greater than 2% (say 11%) and that does help

Noel Carboni

Legend

How big is the canvas (in pixels horizontally x vertically)?

What mode and data depth (e.g., RGB, CMYK, grayscale; 8 bits/channel, 16 bits, etc.)?

How big is the brush in pixels?

What brush is selected?

You mentioned the airbrush option enabled. What are the other settings?

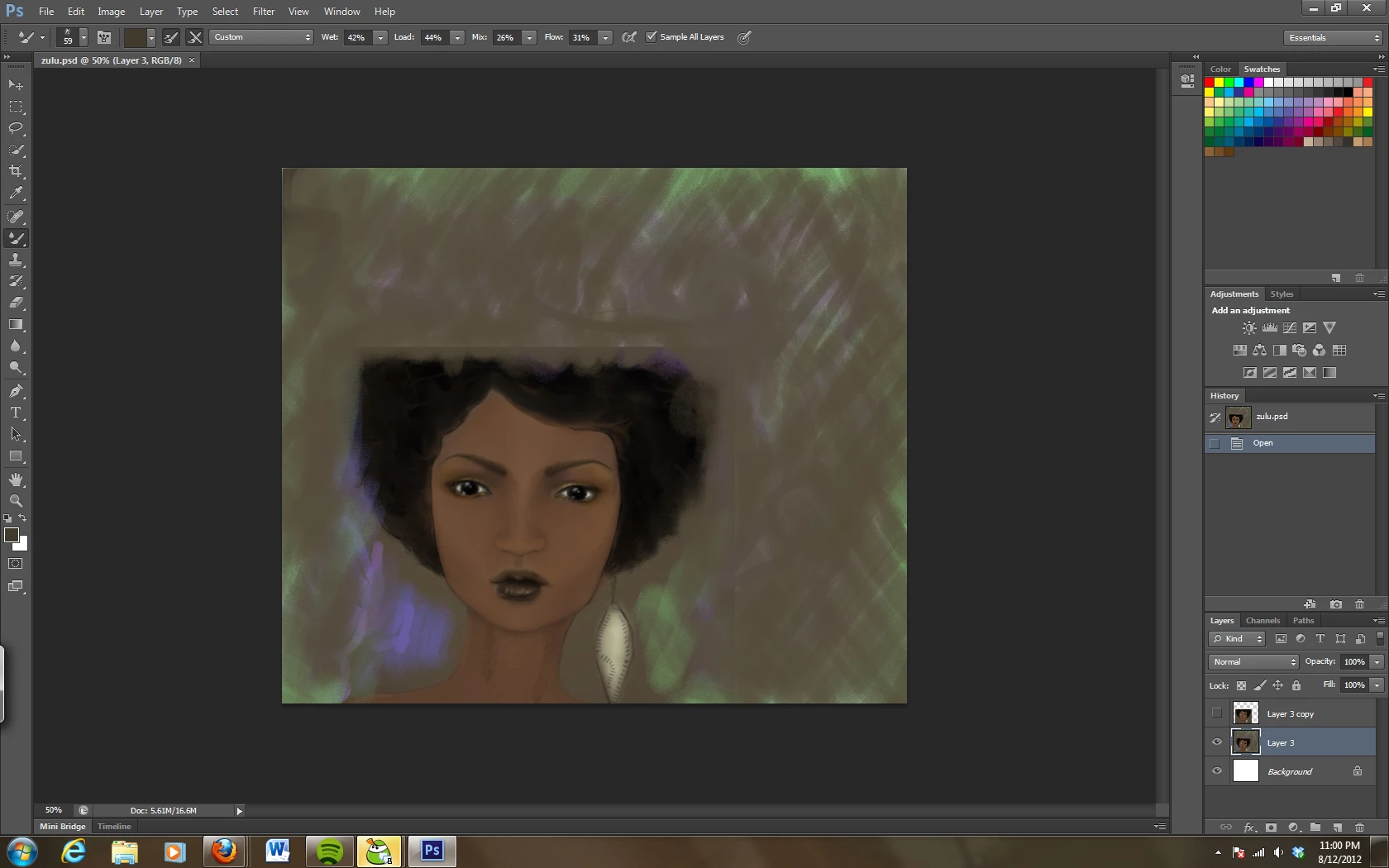

Ideally, a screenshot showing the whole desktop environment when you're brushing will be helpful.

Can you quantify the lag? As in, "I click in the upper-left corner of the image, then shift-click in the lower-right corner, and it takes the brush x.y seconds to stroke across the image." Be as accurate as you can; a 0.5 second lag is way different than a 5 second lag.

Be aware that very large brushes have to manipulate a huge number of pixels and can slow things down.

-Noel

A

Anonymous

horizontally 1512 vertically 1296

I didnt have airbrushing enabled. I was using the "airbrush." I think it was airbrush low density grainy at quite a large setting as I was working on blocking in a background color change. I believe in the area of 100 pixels. I also switched to one of the spatter brushes shortly after, similar in size. When I use the shift click option I approximate the lag from top left corner to bottom right corner is 4 seconds. It is quite a lot of lag. In photoshop CS5 my computer ran very large images without issue regardless of brush size. In fact I've done larger images by multiple times...several thousand pixels.
