Photoshop - How to use the Shapes Line Tool?

Forum|Forum|6 years ago
November 21, 2019
4 replies
418 views
True confession! I have never successfully used the line tool in shapes in Photoshop. This should be so simple, but for the life of me I cannot edit the thickness, color or length. In fact.. I can hardly see a line that I draw. Help!!! Thank you!! MCCP
How to
This topic has been closed for replies.
jane-e
Community Expert
Here's a third way:

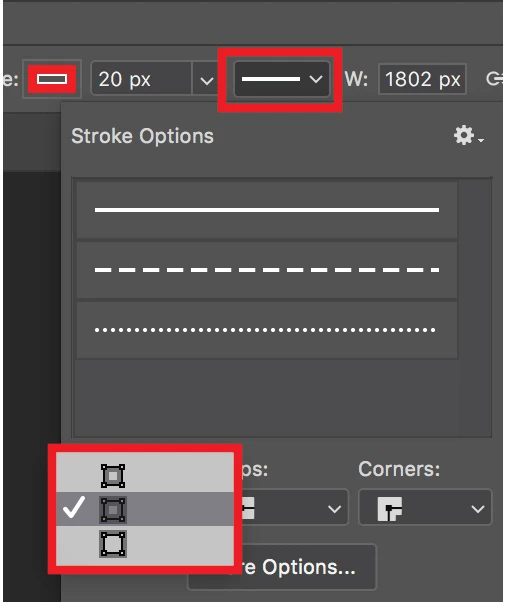

With your line selected, click the "Set Shape Stroke Style" dropdown in the options bar. In the Align section (lower left), change the alignment from Inside to Center or Outside. Now change the stroke width (which you are calling "thickness") in the box to the left where this screen shot says "20 px". The color box is to the left of the stroke width box.
~ Jane
Nancy OShea
Community Expert

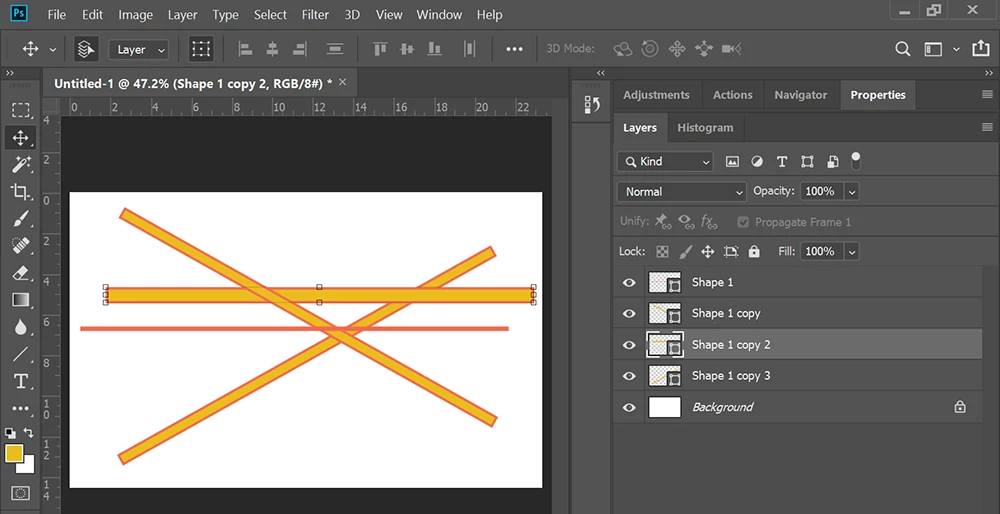

To make it straight, hold down the Shift key while drawing your line.
With move tool selected, drag handles up or down to adjust girth.
Use free transform (Ctrl +T) to rotate, scale, etc...
Nancy O'Shea— Product User & Community Expert
Chuck Uebele
Community Expert
If you want to edit an existing line or arrow, you can use my script:
#target photoshop

//copyright 2017 Chuck Uebele, all rights reserved
//Use at your own risk.

var xmlFile = new File(Folder.desktop+'/ArrowPrefs.xml');
var xmlPref

if(xmlFile.exists){
    xmlPref = readXMLFile (xmlFile)
    //alert(xmlPref.prefs.lines.children().length())
    //alert(xmlPref.prefs.lines.children()[0].@preset)
    }
else{xmlPref = new XML('<root><prefs><lines/><arrows/></prefs>')};


//varables for lines and points
var run = true;
var lineType;
var origLineWidth;
var lineAngTan1;//from first point to oppsite side of line
var lineAngTan2;//From oppsite side of line to first point
var lineLengthAng;
var lineLength;
var lineMid1;//mid width on line from first point
var lineMid2;//mid width on line from oppsite end of line
var newWidth = 20
var ptTemp1
var ptTemp2
var ptTemp3
var ptTemp4
var dropLst = new Array()
var prefsDrop

var headIntersect1;
var headIntersect2;
//-----------
var arrowLength;
var arrowWidth;
var arrowEndsMid;
var arrowConcave;
var arrowConcaveFactor;
var arrowLengthFactor;
var arrowWidthFactor;
/////////////////

app.preferences.rulerUnits = Units.PIXELS;
try{
    var doc = activeDocument
    var sLay = doc.activeLayer
    var sLayName = sLay.name + ' Shape Path'
    var cPath = doc.pathItems.getByName(sLayName)
    var ptArray = new Array();
    var ptNewArray = new Array();
    var idPath;


//var numAnchors = cPath.subPathItems[0].pathPoints.length;
recordAnchors (cPath);
var numAnchors = ptArray.length;
    }
catch(e){
    run = false;
    var numAnchors=0
    }


switch(numAnchors){
    case 4:
        lineType = 'Normal Line'
        origLineWidth = lineL (ptArray[0][0], ptArray[0][1], ptArray[1][0], ptArray[1][1]);
        lineAngTan1 = getAng (ptArray[0][0], ptArray[0][1], ptArray[1][0], ptArray[1][1]);
        lineAngTan2 = getAng (ptArray[1][0], ptArray[1][1], ptArray[0][0], ptArray[0][1]);
        lineMid1 = [(ptArray[0][0] + ptArray[1][0])/2,(ptArray[0][1] + ptArray[1][1])/2 ];
        lineMid2 = [(ptArray[2][0] + ptArray[3][0])/2,(ptArray[2][1] + ptArray[3][1])/2 ];

        ui ();

        ptNewArray[0] = newPt (lineMid1[0],lineMid1[1], newWidth/2, lineAngTan1);
        ptNewArray[3] = newPt (lineMid2[0],lineMid2[1], newWidth/2, lineAngTan1);
        ptNewArray[1] = newPt (lineMid1[0],lineMid1[1], newWidth/2, lineAngTan2);
        ptNewArray[2] = newPt (lineMid2[0],lineMid2[1], newWidth/2, lineAngTan2);


        break;
    case 7:
        if(Math.round (getAng (ptArray[0][0], ptArray[0][1], ptArray[6][0], ptArray[6][1]))==Math.round (getAng (ptArray[1][0], ptArray[1][1], ptArray[2][0], ptArray[2][1]))){
            //alert('end')
            lineType = 'Single Arrow End';
            origLineWidth = lineL (ptArray[0][0], ptArray[0][1], ptArray[1][0], ptArray[1][1]);
            lineAngTan1 = getAng (ptArray[0][0], ptArray[0][1], ptArray[1][0], ptArray[1][1]);
            lineAngTan2 = getAng (ptArray[1][0], ptArray[1][1], ptArray[0][0], ptArray[0][1]);
            lineMid1 = [(ptArray[1][0] + ptArray[0][0])/2,(ptArray[1][1] + ptArray[0][1])/2 ];
            lineMid2 = [(ptArray[2][0] + ptArray[6][0])/2,(ptArray[2][1] + ptArray[6][1])/2 ];
            arrowEndsMid = [(ptArray[3][0] + ptArray[5][0])/2,(ptArray[3][1] + ptArray[5][1])/2 ];
            arrowLength = lineL (ptArray[4][0], ptArray[4][1], arrowEndsMid[0], arrowEndsMid[1]);
            arrowWidth = lineL (ptArray[5][0], ptArray[5][1], ptArray[3][0], ptArray[3][1]);
            arrowConcaveFactor = getConcaveFactor (ptArray[6][0], ptArray[6][1], ptArray[0][0], ptArray[0][1], ptArray[4][0], ptArray[4][1], ptArray[5][0], ptArray[5][1], ptArray[3][0], ptArray[3][1]);
            arrowLengthFactor = Math.round((arrowLength/origLineWidth)*100);
            arrowWidthFactor = Math.round((arrowWidth/origLineWidth)*100);
            lineLengthAng = getAng (arrowEndsMid[0], arrowEndsMid[1],ptArray[4][0], ptArray[4][1]);
            //////////////////////////////////////
            ui ()
            //New points
            arrowEndsMid = newPt (ptArray[4][0], ptArray[4][1], newWidth*arrowLengthFactor*.01, lineLengthAng);
            ptNewArray[5] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan1);
            ptNewArray[3] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan2);
            ptNewArray[1] = newPt (lineMid1[0], lineMid1[1], newWidth/2, lineAngTan2);
            ptNewArray[0] = newPt (lineMid1[0], lineMid1[1], newWidth/2, lineAngTan1);
            ptTemp1 = newPt (lineMid2[0], lineMid2[1], newWidth/2, lineAngTan1);
            ptTemp2 = newPt (lineMid2[0], lineMid2[1], newWidth/2, lineAngTan2);
            headIntersect1= getIntersect (ptTemp1[0], ptTemp1[1], ptNewArray[0][0], ptNewArray[0][1], ptArray[4][0], ptArray[4][1], ptNewArray[5][0], ptNewArray[5][1]);
            headIntersect2= getIntersect (ptTemp2[0], ptTemp2[1], ptNewArray[1][0], ptNewArray[1][1], ptArray[4][0], ptArray[4][1], ptNewArray[3][0], ptNewArray[3][1]);
            ptTemp3 = getIntersect (ptTemp1[0], ptTemp1[1], ptNewArray[0][0], ptNewArray[0][1], ptNewArray[5][0], ptNewArray[5][1], ptNewArray[3][0], ptNewArray[3][1]);
            ptTemp4 = getIntersect (ptTemp2[0], ptTemp2[1], ptNewArray[1][0], ptNewArray[1][1], ptNewArray[5][0], ptNewArray[5][1], ptNewArray[3][0], ptNewArray[3][1]);
            arrowConcave = lineL (headIntersect1[0], headIntersect1[1], ptTemp3[0], ptTemp3[1])*arrowConcaveFactor*.01;
            ptNewArray[6] = newPt (ptTemp3[0], ptTemp3[1], -arrowConcave, lineLengthAng);
            ptNewArray[2] = newPt (ptTemp4[0], ptTemp4[1], -arrowConcave, lineLengthAng);
            }
        else{
            //alert('beginning')
            lineType = 'Single Arrow Start';
            origLineWidth = lineL (ptArray[0][0], ptArray[0][1], ptArray[4][0], ptArray[4][1]);
            lineAngTan1 = getAng (ptArray[0][0], ptArray[0][1], ptArray[4][0], ptArray[4][1]);
            lineAngTan2 = getAng (ptArray[4][0], ptArray[4][1], ptArray[0][0], ptArray[0][1]);
            lineMid1 = [(ptArray[4][0] + ptArray[0][0])/2,(ptArray[4][1] + ptArray[0][1])/2 ];
            lineMid2 = [(ptArray[5][0] + ptArray[6][0])/2,(ptArray[5][1] + ptArray[6][1])/2 ];
            arrowEndsMid = [(ptArray[1][0] + ptArray[3][0])/2,(ptArray[1][1] + ptArray[3][1])/2 ]
            arrowLength = lineL (ptArray[2][0], ptArray[2][1], arrowEndsMid[0], arrowEndsMid[1]);
            arrowWidth = lineL (ptArray[1][0], ptArray[1][1], ptArray[3][0], ptArray[3][1]);
            arrowConcaveFactor = getConcaveFactor (ptArray[0][0], ptArray[0][1], ptArray[6][0], ptArray[6][1], ptArray[2][0], ptArray[2][1], ptArray[1][0], ptArray[1][1], ptArray[3][0], ptArray[3][1])
            arrowLengthFactor = Math.round((arrowLength/origLineWidth)*100);
            arrowWidthFactor = Math.round((arrowWidth/origLineWidth)*100);
            lineLengthAng = getAng (arrowEndsMid[0], arrowEndsMid[1],ptArray[2][0], ptArray[2][1]);

            //////////////////////////////////////
            ui ()
            //New points
            arrowEndsMid = newPt (ptArray[2][0], ptArray[2][1], newWidth*arrowLengthFactor*.01, lineLengthAng);
            ptNewArray[1] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan1);
            ptNewArray[3] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan2);
            ptNewArray[5] = newPt (lineMid2[0], lineMid2[1], newWidth/2, lineAngTan2);
            ptNewArray[6] = newPt (lineMid2[0], lineMid2[1], newWidth/2, lineAngTan1);
            ptTemp1 = newPt (lineMid1[0], lineMid1[1], newWidth/2, lineAngTan1);
            ptTemp2 = newPt (lineMid1[0], lineMid1[1], newWidth/2, lineAngTan2);
            headIntersect1= getIntersect (ptTemp1[0], ptTemp1[1], ptNewArray[6][0], ptNewArray[6][1], ptArray[2][0], ptArray[2][1], ptNewArray[1][0], ptNewArray[1][1])
            headIntersect2= getIntersect (ptTemp2[0], ptTemp2[1], ptNewArray[5][0], ptNewArray[5][1], ptArray[2][0], ptArray[2][1], ptNewArray[3][0], ptNewArray[3][1])
            ptTemp3 = getIntersect (ptTemp1[0], ptTemp1[1], ptNewArray[6][0], ptNewArray[6][1], ptNewArray[1][0], ptNewArray[1][1], ptNewArray[3][0], ptNewArray[3][1])
            ptTemp4 = getIntersect (ptTemp2[0], ptTemp2[1], ptNewArray[5][0], ptNewArray[5][1], ptNewArray[1][0], ptNewArray[1][1], ptNewArray[3][0], ptNewArray[3][1])
            arrowConcave = lineL (headIntersect1[0], headIntersect1[1], ptTemp3[0], ptTemp3[1])*arrowConcaveFactor*.01;
            ptNewArray[0] = newPt (ptTemp3[0], ptTemp3[1], -arrowConcave, lineLengthAng);
            ptNewArray[4] = newPt (ptTemp4[0], ptTemp4[1], -arrowConcave, lineLengthAng);
            }

        break;
    case 10:
            lineType = 'Double Arrow';
            origLineWidth = lineL (ptArray[0][0], ptArray[0][1], ptArray[4][0], ptArray[4][1]);
            lineAngTan1 = getAng (ptArray[0][0], ptArray[0][1], ptArray[4][0], ptArray[4][1]);
            lineAngTan2 = getAng (ptArray[4][0], ptArray[4][1], ptArray[0][0], ptArray[0][1]);
            arrowEndsMid = [(ptArray[1][0] + ptArray[3][0])/2,(ptArray[1][1] + ptArray[3][1])/2 ];
            arrowLength = lineL (ptArray[2][0], ptArray[2][1], arrowEndsMid[0], arrowEndsMid[1]);
            arrowWidth = lineL (ptArray[1][0], ptArray[1][1], ptArray[3][0], ptArray[3][1]);
            arrowConcaveFactor = getConcaveFactor (ptArray[0][0], ptArray[0][1], ptArray[9][0], ptArray[9][1], ptArray[2][0], ptArray[2][1], ptArray[1][0], ptArray[1][1], ptArray[3][0], ptArray[3][1]);
            arrowLengthFactor = Math.round((arrowLength/origLineWidth)*100);
            arrowWidthFactor = Math.round((arrowWidth/origLineWidth)*100);
            lineLengthAng = getAng (ptArray[7][0], ptArray[7][1],ptArray[2][0], ptArray[2][1]);
            /////////////////////////////////////////////
            ui ()
            //new points
            arrowEndsMid = newPt (ptArray[2][0], ptArray[2][1], newWidth*arrowLengthFactor*.01, lineLengthAng);
            ptNewArray[1] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan1);
            ptNewArray[3] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan2);
            arrowEndsMid = newPt (ptArray[7][0], ptArray[7][1], -newWidth*arrowLengthFactor*.01, lineLengthAng);
            ptNewArray[8] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan1);
            ptNewArray[6] = newPt (arrowEndsMid[0], arrowEndsMid[1], (newWidth*arrowWidthFactor *.01)/2, lineAngTan2);
            ptTemp1 = newPt (ptArray[2][0], ptArray[2][1], newWidth/2, lineAngTan1);
            var ptTemp1a = newPt (ptArray[7][0], ptArray[7][1], newWidth/2, lineAngTan1);
            ptTemp2 = newPt (ptArray[2][0], ptArray[2][1], newWidth/2, lineAngTan2);
            var ptTemp2a = newPt (ptArray[7][0], ptArray[7][1], newWidth/2, lineAngTan2);

            headIntersect1= getIntersect (ptTemp1[0], ptTemp1[1], ptTemp1a[0], ptTemp1a[1], ptArray[2][0], ptArray[2][1], ptNewArray[1][0], ptNewArray[1][1]);
            headIntersect2= getIntersect (ptTemp2[0], ptTemp2[1], ptTemp2a[0], ptTemp2a[1], ptArray[2][0], ptArray[2][1], ptNewArray[3][0], ptNewArray[3][1]);
            var headIntersect3= getIntersect (ptTemp1[0], ptTemp1[1], ptTemp1a[0], ptTemp1a[1], ptArray[7][0], ptArray[7][1], ptNewArray[8][0], ptNewArray[8][1]);
            var headIntersect4= getIntersect (ptTemp2[0], ptTemp2[1], ptTemp2a[0], ptTemp2a[1], ptArray[7][0], ptArray[7][1], ptNewArray[6][0], ptNewArray[6][1]);
            ptTemp3 = getIntersect (ptTemp1[0], ptTemp1[1], ptTemp1a[0], ptTemp1a[1], ptNewArray[1][0], ptNewArray[1][1], ptNewArray[3][0], ptNewArray[3][1]);
            var ptTemp3a = getIntersect (ptTemp2[0], ptTemp2[1], ptTemp2a[0], ptTemp2a[1], ptNewArray[1][0], ptNewArray[1][1], ptNewArray[3][0], ptNewArray[3][1]);
            ptTemp4 = getIntersect (ptTemp1[0], ptTemp1[1], ptTemp1a[0], ptTemp1a[1], ptNewArray[6][0], ptNewArray[6][1], ptNewArray[8][0], ptNewArray[8][1]);
            var ptTemp4a = getIntersect (ptTemp2[0], ptTemp2[1], ptTemp2a[0], ptTemp2a[1], ptNewArray[6][0], ptNewArray[6][1], ptNewArray[8][0], ptNewArray[8][1]);

           arrowConcave = lineL (headIntersect1[0], headIntersect1[1], ptTemp3[0], ptTemp3[1])*arrowConcaveFactor*.01;
           ptNewArray[0] = newPt (ptTemp3[0], ptTemp3[1], -arrowConcave, lineLengthAng);
           ptNewArray[4] = newPt (ptTemp3a[0], ptTemp3a[1], -arrowConcave, lineLengthAng);

           ptNewArray[9] = newPt (ptTemp4[0], ptTemp4[1], arrowConcave, lineLengthAng);
           ptNewArray[5] = newPt (ptTemp4a[0], ptTemp4a[1], arrowConcave, lineLengthAng);

        break;
        default:
        run = false;
        alert("The layer selected didn't match the criteria for a line or arrow")
    }//end switch

if(run){
    var myPathInfo = mkNewPathInfo ();
    deltPath ();
    var tempPath = app.activeDocument.pathItems.add( 'temp', myPathInfo);
    selPath ();
    doc.activeLayer = sLay;
    mkPath ()
    tempPath.remove();
    }

////////////////////////////////////
function ui(){
    var dlg = new Window('dialog','Edit Line Tool Line');
        dlg.alignChildren = ['left','top'];
            dlg.lType = dlg.add('statictext',undefined,lineType);
            dlg.wGp = dlg.add('group');
                dlg.wGp.alignChildren = ['left','top'];
                dlg.wGp.sTxts = dlg.wGp.add('statictext',undefined,'Line Width');
                dlg.wGp.eTxt = dlg.wGp.add('edittext',undefined,Math.round(origLineWidth));
                    dlg.wGp.eTxt.size = [50,12];
                dlg.wGp.sTxte = dlg.wGp.add('statictext',undefined,'px');

            if(lineType!='Normal Line'){
                for(var i=0;i<xmlPref.prefs.arrows.children().length();i++){
                    dropLst[i]= xmlPref.prefs.arrows.children()[i].@preset
                    }
                }
            else{
                for(var i=0;i<xmlPref.prefs.lines.children().length();i++){
                    dropLst[i]= xmlPref.prefs.lines.children()[i].@preset
                    }
                }
            if(lineType!='Normal Line'){
                dlg.aLgp = dlg.add('group');
                    dlg.aLgp.alignChildren = ['left','top'];
                    dlg.aLgp.sTxts = dlg.aLgp.add('statictext',undefined,'Arrow Length');
                    dlg.aLgp.ALen = dlg.aLgp.add('edittext',undefined,arrowLengthFactor);
                        dlg.aLgp.ALen.size = [50,12];
                    dlg.aLgp.sTxte = dlg.aLgp.add('statictext',undefined,'%');

                dlg.aWgp = dlg.add('group');
                    dlg.aWgp.alignChildren = ['left','top'];
                    dlg.aWgp.sTxts = dlg.aWgp.add('statictext',undefined,'Arrow Width');
                    dlg.aWgp.AWid = dlg.aWgp.add('edittext',undefined,arrowWidthFactor);
                        dlg.aWgp.AWid.size = [50,12];
                    dlg.aWgp.sTxte = dlg.aWgp.add('statictext',undefined,'%');

                dlg.aConGp = dlg.add('group');
                    dlg.aConGp.alignChildren = ['left','top'];
                    dlg.aConGp.sTxts = dlg.aConGp.add('statictext',undefined,'Arrow Concave');
                    dlg.aConGp.ACon = dlg.aConGp.add('edittext',undefined,arrowConcaveFactor);
                        dlg.aConGp.ACon.size = [50,12];
                    dlg.aConGp.sTxte = dlg.aConGp.add('statictext',undefined,'%');
                }

            dlg.btnGp = dlg.add('group');
            dlg.btnGp.okay = dlg.btnGp.add('button',undefined,'Okay');
            dlg.btnGp.cancel = dlg.btnGp.add('button',undefined,'Cancel');

        dlg.prefsPn = dlg.add('panel',undefined,'Preferences');
            dlg.prefsPn.alignChildren = ['left','top'];
            dlg.prefsPn.save = dlg.prefsPn.add('button',undefined,'Save Preference');
            dlg.prefsPn.del = dlg.prefsPn.add('button',undefined,'Delete Preference');

            prefsDrop = dlg.prefsPn.add('dropdownlist',undefined,dropLst);
            prefsDrop.title = 'Load Preferences';
            prefsDrop.size = [300,25];

        prefsDrop.onChange = function(){
            if(lineType!='Normal Line'){
                dlg.wGp.eTxt.text = xmlPref.prefs.arrows.children()[parseInt(prefsDrop.selection)].width
                dlg.aLgp.ALen.text = xmlPref.prefs.arrows.children()[parseInt(prefsDrop.selection)].leng
                dlg.aWgp.AWid.text = xmlPref.prefs.arrows.children()[parseInt(prefsDrop.selection)].aWidth
                dlg.aConGp.ACon.text = xmlPref.prefs.arrows.children()[parseInt(prefsDrop.selection)].concave
                }
            else{
                dlg.wGp.eTxt.text = xmlPref.prefs.lines.children()[parseInt(prefsDrop.selection)].width
                }
            };

        dlg.wGp.eTxt.onChange = function(){
            textToNum (1, 1000, dlg.wGp.eTxt, origLineWidth);
            }
        if(lineType!='Normal Line'){
            dlg.aLgp.ALen.onChange = function(){
                textToNum (1, 10000, dlg.aLgp.ALen, arrowLengthFactor);
                }

            dlg.aWgp.AWid.onChange = function(){
                textToNum (1, 10000, dlg.aWgp.AWid, arrowWidthFactor);
                }

            dlg.aWgp.AWid.onChange = function(){
                textToNum (-50, 50, dlg.aConGp.ACon, arrowConcaveFactor);
                }
        }//end if

            dlg.prefsPn.save.onClick = function(){
                savePrefs ();

                }

            dlg.prefsPn.del.onClick = function(){
                if(prefsDrop.selection != null){
                    var selc = parseInt(prefsDrop.selection);
                    prefsDrop.remove(selc);
                    if(lineType!='Normal Line'){
                        delete xmlPref.prefs.arrows.children()[selc];
                        }
                    else{
                        delete xmlPref.prefs.lines.children()[selc];
                        }
                    writeXMLFile (xmlFile, xmlPref)
                    }

                }

        dlg.btnGp.okay.onClick = function(){
            dlg.close();
            newWidth = parseInt (dlg.wGp.eTxt.text);
                if(lineType!='Normal Line'){
                arrowLengthFactor = parseInt (dlg.aLgp.ALen.text);
                arrowWidthFactor = parseInt (dlg.aWgp.AWid.text);
                arrowConcaveFactor = parseInt (dlg.aConGp.ACon.text);
                }
            }

        dlg.btnGp.cancel.onClick = function(){
            run = false;
            dlg.close()
            }
//==================
function savePrefs(){
    var newName = prompt ('Enter New Profile Name', '', 'Save Preferences');
    var prefGood = true;
    for(var i=0;i<prefsDrop.items.length;i++){
        if(prefsDrop.items[i].text == newName){
            newName = prompt ('That preset exists\nPlease choose a unique name','', 'Save Preferences' );
            i=0
            }
        }
        prefsDrop.add('item',newName)
        if(lineType=='Normal Line'){
            xmlPref.prefs.lines.appendChild (XML('<line preset="'+ newName+ '"><width>'+dlg.wGp.eTxt.text+'</width></line>'));
            }
        else{
            xmlPref.prefs.arrows.appendChild (XML('<arrow preset="'+ newName+ '"><width>'+dlg.wGp.eTxt.text+'</width><leng>'+dlg.aLgp.ALen.text+'</leng><aWidth>'+dlg.aWgp.AWid.text+'</aWidth><concave>'+dlg.aConGp.ACon.text+'</concave></arrow>'));
            }
        writeXMLFile (xmlFile, xmlPref)

    }

//=====================
    dlg.show();
    }

function textToNum(sMin,sMax,e,def){
    def=Math.round (def)
	var sHold = def;
			if(isNaN(parseInt(e.text))){
			alert('"' + e.text + '" is not a number\nEnter a value between ' + sMin + '-' + sMax );
			e.text = def};
            else{
                sHold = parseInt(e.text)
			if(sHold < sMin){
				rangeAlert();
				sHold = sMin;
				};
			if(sHold > sMax){
				rangeAlert();
				sHold = sMax;
				};
			e.text = sHold;
            }
	function rangeAlert(){alert('Number range must be between ' + sMin + '-' + sMax)};
};//end function textToNum

function getConcaveFactor(x1,y1,x2,y2, x3, y3, x4, y4, x5, y5){//1 & 2 =  shaft pt 1 &2; 3 & 4 = arrow length line; 5 = tail point opp side
    var ptAH = getIntersect (x1, y1, x2, y2, x3, y3, x4, y4);//intersection of shaft with sides of arrowhead
    //mkDot (ptAH)
    var ptTail = getIntersect (x1, y1, x2, y2, x4, y4, x5, y5);//Intersection of arrow tip ends cross shaft
    var conTotalLen = lineL (x1, y1, ptAH[0], ptAH[1]);//gets total length to see if the concave goes in toward the arrowhead or out (-)
    var conFullLen =  lineL (ptTail[0], ptTail[1], ptAH[0], ptAH[1]);//length of arrow from end tips to intersection with shaft
    var conF = lineL (x1, y1, ptTail[0], ptTail[1])/conFullLen
    if(conTotalLen>conFullLen){conF*=-1}
    return Math.round(conF*100)
    }

function getIntersect(x1,y1,x2,y2, x3, y3, x4, y4){
    var slope1 = (y1-y2)/(x1-x2);
    var bIntersect1 = y1-(slope1*x1)
    var slope2 = (y3-y4)/(x3-x4);
    var bIntersect2 = y3-(slope2*x3)
    var xNew ;
    var yNew;
    if(bIntersect1=='-Infinity'||bIntersect1=='Infinity'){
        xNew=x1;
        yNew = slope2*xNew + bIntersect2;
        }
    else if(bIntersect2=='-Infinity'||bIntersect2=='Infinity'){
        xNew = x3;
        yNew = slope1*xNew + bIntersect1;
        }
    else{
        xNew= (-(bIntersect1-bIntersect2))/(slope1-slope2);
        yNew = slope1*xNew + bIntersect1
        }


    return [xNew,yNew]
    }

function recordAnchors(pathObj){
    ptArray = new Array();
    for(var i=0;i<pathObj.subPathItems[0].pathPoints.length;i++){
        ptNewArray [i] = ptArray[i] = pathObj.subPathItems[0].pathPoints[i].anchor;
        }//end loop
    }//end function

function mkNewPathInfo(){
    var pathArray = new Array();
    var piArray = new Array();
    for(var i=0;i<ptNewArray.length;i++){
         piArray[i] = new PathPointInfo;
         piArray[i].kind = cPath.subPathItems[0].pathPoints[i].kind;
         piArray[i].anchor = ptNewArray[i];
         piArray[i].leftDirection = ptNewArray[i];
         piArray[i].rightDirection = ptNewArray[i];
        }//end loop
    pathArray[0] = new SubPathInfo();
    pathArray[0].operation = cPath.subPathItems[0].operation;
    pathArray[0].closed = cPath.subPathItems[0].closed;
    pathArray[0].entireSubPath = piArray;
    return pathArray;
    };//end function

/////////////////////
    function extractSubPathInfo(pathObj,oldPoint,newPoint){
        var pathArray = new Array();
        var pl = pathObj.subPathItems.length;
        for(var s=0;s<pl;s++){
            var pArray = new Array();
              for(var i=0;i<pathObj.subPathItems[s].pathPoints.length;i++){
                 pArray[i] = new PathPointInfo;
                 pArray[i].kind = pathObj.subPathItems[s].pathPoints[i].kind;
             if(pathObj.subPathItems[s].pathPoints[i].anchor[0]==oldPoint[0] &&
                   pathObj.subPathItems[s].pathPoints[i].anchor[1]==oldPoint[1]){
                pArray[i].anchor = newPoint;
                pArray[i].leftDirection = newPoint;
                pArray[i].rightDirection = newPoint;
             }else{
                pArray[i].anchor = pathObj.subPathItems[s].pathPoints[i].anchor;
                pArray[i].leftDirection = pathObj.subPathItems[s].pathPoints[i].leftDirection;
                pArray[i].rightDirection = pathObj.subPathItems[s].pathPoints[i].rightDirection;
             }
              };
            pathArray[pathArray.length] = new Array();
            pathArray[pathArray.length - 1] = new SubPathInfo();
            pathArray[pathArray.length - 1].operation = pathObj.subPathItems[s].operation;
            pathArray[pathArray.length - 1].closed = pathObj.subPathItems[s].closed;
            pathArray[pathArray.length - 1].entireSubPath = pArray;
        };
        return pathArray;
    };

    function deltPath(){
        var idDlt = charIDToTypeID( "Dlt " );
        var desc2 = new ActionDescriptor();
        var idnull = charIDToTypeID( "null" );
            var ref1 = new ActionReference();
            idPath = charIDToTypeID( "Path" );
            var idvectorMask = stringIDToTypeID( "vectorMask" );
            ref1.putEnumerated( idPath, idPath, idvectorMask );
            var idLyr = charIDToTypeID( "Lyr " );
            var idOrdn = charIDToTypeID( "Ordn" );
            var idTrgt = charIDToTypeID( "Trgt" );
            ref1.putEnumerated( idLyr, idOrdn, idTrgt );
        desc2.putReference( idnull, ref1 );
        executeAction( idDlt, desc2, DialogModes.NO );
        }

    function selPath(){
         var idslct = charIDToTypeID( "slct" );
            var desc2 = new ActionDescriptor();
            var idnull = charIDToTypeID( "null" );
                var ref1 = new ActionReference();
                var idPath = charIDToTypeID( "Path" );
                ref1.putName( idPath, "temp" );
            desc2.putReference( idnull, ref1 );
        executeAction( idslct, desc2, DialogModes.NO );
        }

    function mkPath(){
         var idMk = charIDToTypeID( "Mk  " );
            var desc10 = new ActionDescriptor();
            var idnull = charIDToTypeID( "null" );
                var ref3 = new ActionReference();
                var idPath = charIDToTypeID( "Path" );
                ref3.putClass( idPath );
            desc10.putReference( idnull, ref3 );
            var idAt = charIDToTypeID( "At  " );
                var ref4 = new ActionReference();
                var idPath = charIDToTypeID( "Path" );
                var idPath = charIDToTypeID( "Path" );
                var idvectorMask = stringIDToTypeID( "vectorMask" );
                ref4.putEnumerated( idPath, idPath, idvectorMask );
            desc10.putReference( idAt, ref4 );
            var idUsng = charIDToTypeID( "Usng" );
                var ref5 = new ActionReference();
                var idPath = charIDToTypeID( "Path" );
                var idOrdn = charIDToTypeID( "Ordn" );
                var idTrgt = charIDToTypeID( "Trgt" );
                ref5.putEnumerated( idPath, idOrdn, idTrgt );
            desc10.putReference( idUsng, ref5 );
        executeAction( idMk, desc10, DialogModes.NO );
        }

function lineL (ax,ay,bx,by){
    var x = Math.abs (ax-bx);
    var y = Math.abs (ay-by);
    var len = Math.sqrt (Math.pow (x, 2) + Math.pow (y, 2));
    return len
    }

function getAng(ax,ay,bx,by){
    var dx = ax-bx;
    var dy = ay-by;
    var theta = Math.atan2 (dy, dx);
    //theta *= 180/Math.PI
    return theta;
    }

function newPt (x1,y1,rad,ang){
    var newEnd = new Array();
    newEnd[0] = x1 + rad * Math.cos (ang);
    newEnd[1] = y1 + rad * Math.sin (ang);
    return newEnd;
    }

//===============READ/WRITE functions========================================
//=========================================================================
 function readXMLFile(file) {
	if (!file.exists) {
		alert( "Cannot find file: " + deodeURI(file.absoluteURI));
		}
	else{
		file.encoding = "UTF8";
		file.lineFeed = "unix";
		file.open("r", "TEXT", "????");
		var str = file.read();
		file.close();

		return new XML(str);
		};
};

function writeXMLFile(file, xml) {
	if (!(xml instanceof XML)) {
		alert( "Bad XML parameter");
		};
	else{
		file.encoding = "UTF8";
		file.open("w", "TEXT", "????");
		//unicode signature, this is UTF16 but will convert to UTF8 "EF BB BF"
		file.write("\uFEFF");
		file.lineFeed = "unix";
		file.write(xml.toXMLString());
		file.close();
		};
	};
 //=========================================================================
Chuck Uebele
Community Expert

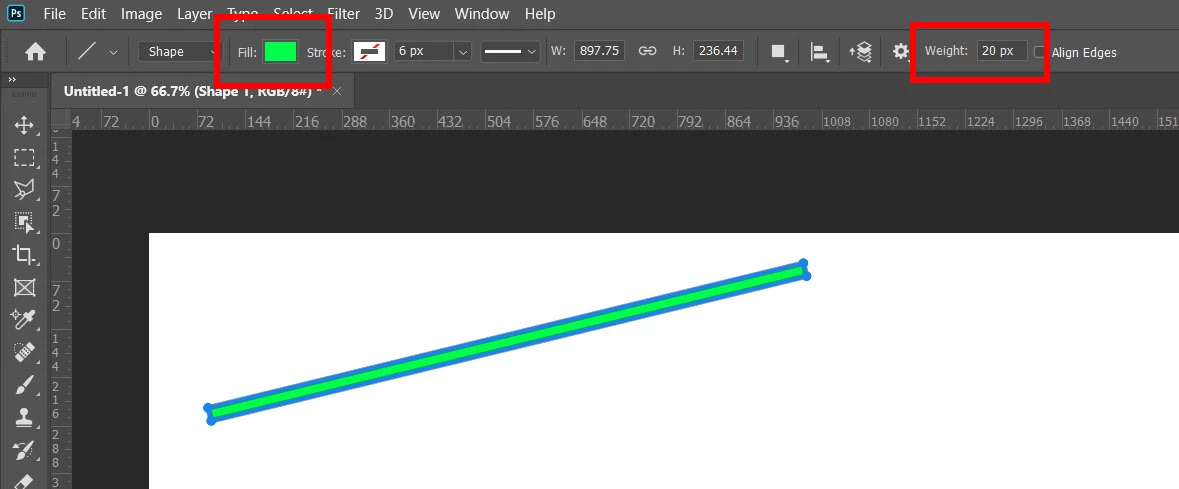

Pretty simple. Just make sure you have a fill and set the thickness of the line.
Sign up

To post, reply, or follow discussions, please sign in with your Adobe ID.

Sign in to Adobe Community

To post, reply, or follow discussions, please sign in with your Adobe ID.

Scanning file for viruses.

This file cannot be downloaded
