Recolor of complex artwork for screen print

  • October 17, 2017
  • 2 replies
  • 890 views

I have been asked to recreate existing artwork, but the original file has vanished. How can this be achieved?

    This topic has been closed for replies.
    Correct answer rob day

    I am unsure how to setup the file for screen print output

    Make sure you talk to the printer before spending much time on this. Screen printing usually does not use halftone screens or process color, so there has to be a spot color separation for each color or transparent ink. Also depending on how the colors separate the trapping can be complex—screen printing needs a larger trap.

    It wouldn't be impossible to do this with Spot Channels in Photoshop, but you really have to know the process. Screen printing is very different than offset, the inks are usually very opaque and you don't necessarily need vector art because the screen fabrics (not halftone screens) are so coarse.

    2 replies

    T
    Test Screen Name
    Legend
    October 17, 2017

    In that case it really has to be redone in Illustrator, not only to get the colours separate, but also to make sure it is all vector. I've never worked with screen printing, hopefully someone can outline either the things that must always be done, or the technical questions you need to answer before starting.

    davescm
    Community Expert
    davescmCommunity Expert
    Community Expert
    October 17, 2017

    If you have access to it, I would do this in Illustrator

    You can use Image trace to convert the image into vector shapes which you can then manipulate resize and recolour if required - all with nice smooth vector edges.

    Section before image trace

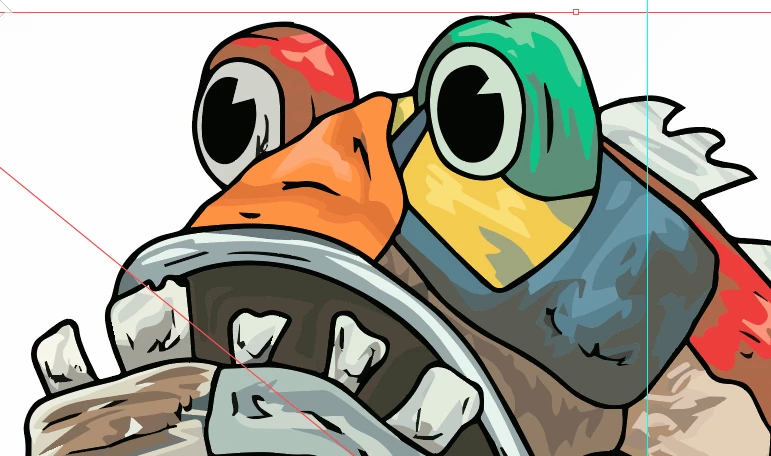

    After image trace - see smoother vector lines:

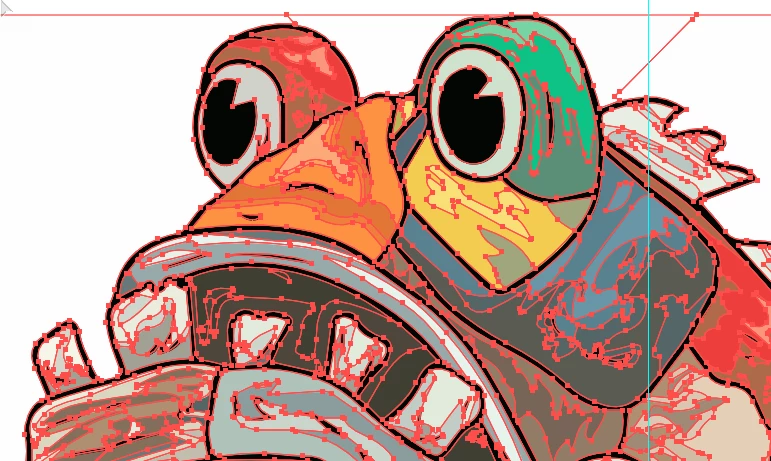

    Showing paths :

    Dave

    Cheerful_strength5DD0
    Cheerful_strength5DD0Author
    Participant
    October 17, 2017

    I do have illustrator. What I do know is the original was created in Photoshop. I am unsure how to setup the file for screen print output

    T
    Test Screen Name
    Legend
    October 17, 2017

    Will you be printing in CMYK, RGB or spot colours? Will there be white ink?
