Participating Frequently

Question

Revisiting Scripting after a long break: Before I start - Brush Pattern Definition

Forum|Forum|3 years ago
August 18, 2022
3 replies
365 views

As above, I have vbs background and have done a lot of scripting about 10 years ago. Of course things have changed a lot but its become pretty hard with enumerated 4 byte etc making code far less logical or readable.

Loved that it was easy stem based language before...and in the meantime have done a lot of python so it seems to have gone backwards

Anyway

I simply want to iterate a number of layers that contain brush samples etc which all still seems to work the same way eg

each layer will be slightly resized to comply with target brush size

but Im having trouble with the following

each layer will then define a new named brush
following code will call the named brush

I searched the script reference and could see no mention of the equivalent menu items ie define brush etc so my question is, how is this now best and most elegantly accomplished?

Cheers

This topic has been closed for replies.

J

jazz-y

Legend

@Image_Engine , install ScriptingListener plug-in it receives notifications about your actions in Photoshop and write them as a code on the desktop.

make("unique brush name");
function make(tilte) {
	var s2t = stringIDToTypeID;

	var descriptor = new ActionDescriptor();
	var reference = new ActionReference();
	var reference2 = new ActionReference();

	reference.putClass( s2t( "brush" ));
	descriptor.putReference( s2t( "target" ), reference );
	reference2.putProperty( s2t( "property" ), s2t( "selection" ));
	reference2.putEnumerated( s2t( "document" ), s2t( "ordinal" ), s2t( "targetEnum" ));
	descriptor.putReference( s2t( "using" ), reference2 );
	descriptor.putString( s2t( "name" ), tilte );
	executeAction( s2t( "make" ), descriptor, DialogModes.NO );
}

select('unique brush name');
function select(title) {
  var s2t = stringIDToTypeID;

  var descriptor = new ActionDescriptor();
  var reference = new ActionReference();

  reference.putName(s2t("brush"), title);
  descriptor.putReference(c2t("null"), reference);
  executeAction(s2t("select"), descriptor, DialogModes.NO);
}

I

Image_EngineAuthor

Participating Frequently

Thanks again

Wow that is great..but many steps backwards for plain coders...it would take quite a while to learn that in any meaningful way.

So how its best to map that via com when (when I looked) the counterparts dont seem to be exposed?

c.pfaffenbichler

Community Expert

I don’t quite understand the process, please post screenshots to illustrate.

And I can only provide advice on Photoshop Scripting in JavaScript, being the platform-independent one of the three options.

I

Image_EngineAuthor

Participating Frequently

@c.pfaffenbichler Isnt python cross platform?

Appreciate your response...:-)

The main thing that Im having trouble with is taking a layer and converting it to custom brush, then accessing the brush in the script to programmatically place instances of that brush

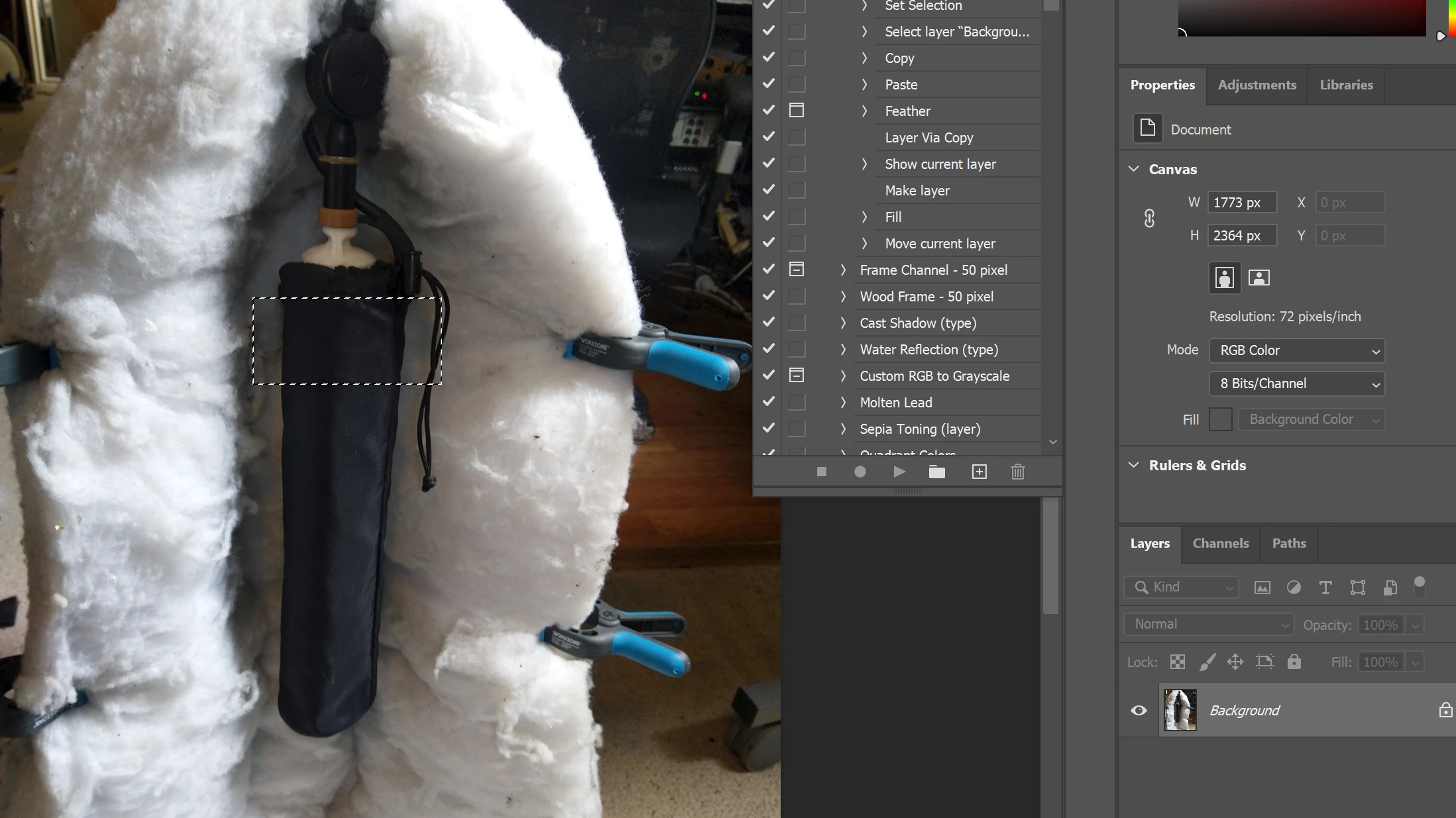

Excuse the pic...

so there will be user input to define an selection area

selection > layer (repeat 24 times)

CODE:

Loop through layers, converting each to a custom brush

the code then iterates through a grid ie X,Y and randomly loads each custom brush, apply transfomations eg mirror, flip and places it on to the target layer

The issues are the granular access to the brush stuff...I cant see it in the script docs

hth

Bojan Živković11378569

Community Expert

I guess @c.pfaffenbichler @jazz-y @r-bin @Stephen Marsh haven't seen this thread so far.
