Ruler tool in millimeters in Photoshop

  • July 31, 2019
  • 2 replies
  • 21869 views

Is there a way to get my ruler tool in photoshop to measure in millimeters instead of pixels? Thanks!!

Message was edited by: Sahil Chawla

      Correct answer jane-e

      Yes, it works!! Thank you so much. I was checking the ruler toll measurements on the bar above the file, where the measures are still in another unit that I suppose it’s in pixels. But looking at your examples I found out that I should check it in the info panel. There the measurements are in millimeters as well as the rulers.

      Happy happy!!!

      Best regards,

      Maria


      Hi Maria,

      Oh, hooray! I’m glad it works. Try checking on unchecking the “Use Measurement Scale” to see if you can make it work in both places. Otherwise, the Info panel will work fine.

      ~ Jane

      2 replies

      jane-e
      Community Expert
      jane-eCommunity Expert
      Community Expert
      July 31, 2019

      Hi Maria,

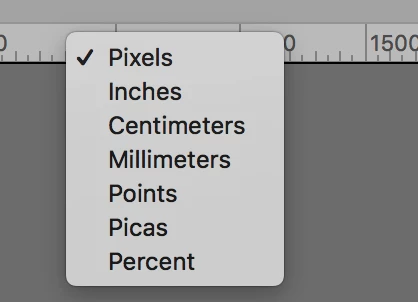

      A second way is to right-click the ruler and select the unit of measurement you prefer.

      ~ Jane

      M
      mariaavecchiAuthor
      Known Participant
      July 31, 2019

      Hi, Jane.

      Thank you for your answer.

      Unfortunately it doesn’t solve the matter. My rulers are set to millimeters (as you suggested) but my ruler tool is set to pixels so it doesn’t help much to measure objects. I cannot set the ruler tool to millimeters…

      Best,

      Maria

      jane-e
      Community Expert
      jane-eCommunity Expert
      Community Expert
      July 31, 2019

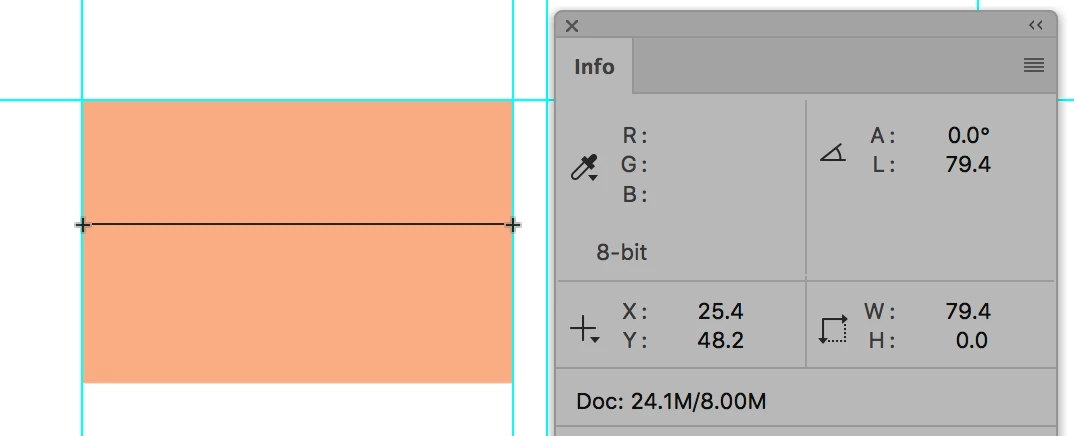

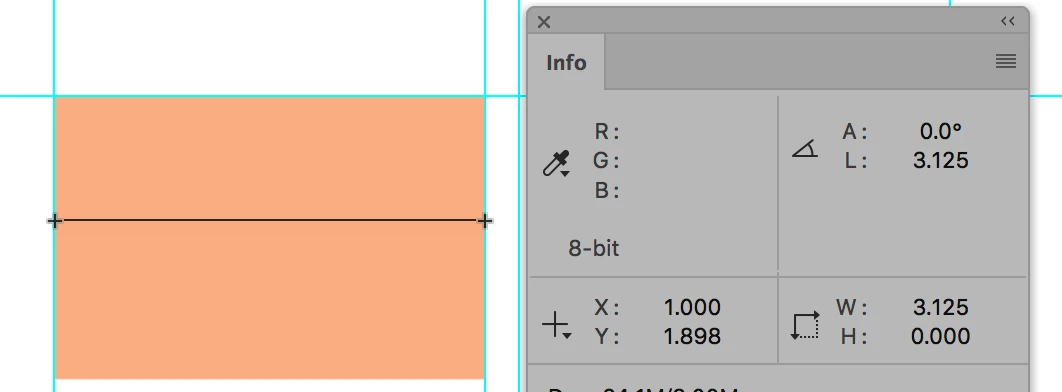

      It's working for me. I didn't change anything here except the ruler measurements. The Length for the first is 79.5 mm and the second is 3.125 inches.

      What exact version of PS do you have and what is your OS?

      Jane

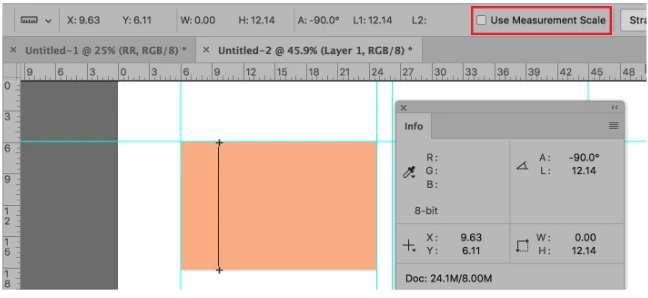

      If you are using the options bar, uncheck Use Measurement Scale.

      Sahil.Chawla
      Adobe Employee
      Sahil.Chawla
      Adobe Employee
      July 31, 2019

      Hi there,

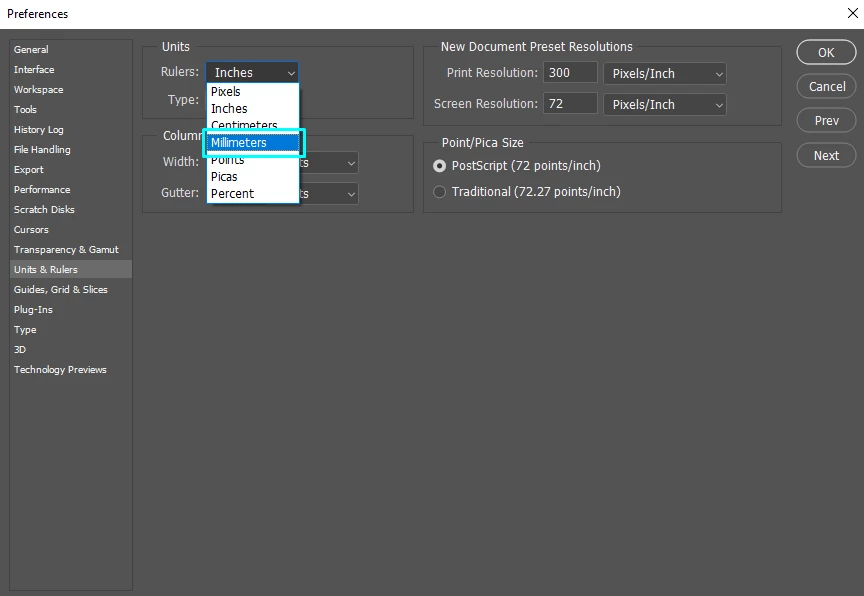

      As you want to change the ruler from inches to Millimeters, please go into Photoshop's Preferences > Unit & Rulers and choose Millimeters from the drop-down menu:

      Regards,
      Sahil

        M
        mariaavecchiAuthor
        Known Participant
        July 31, 2019

        Hi, Sahil.

        Thank you for trying to help me. However, I don’t mean the “rullers”, I mean the “ruller tool” which measures things in Photoshop. I’m working with the rullers set to millimeters (as you suggested), but the ruler tool is in pixels so it doesn’t help much…

        Best,

        Maria
