Script that replaces layers but keeps opacity and blending mode of replaced layer.

Forum|Forum|4 years ago
January 4, 2022
2 replies
1299 views

Hello, I looking for a script that can replace a layer with several other layers but keep the opacity and blending mode of the replaced layers.

Link to PSD file: https://we.tl/t-JKd8v0Jx3B

Example: I want to replace "_ELEMENT_SPECULAR copy" with "SPECULAR PASS" layers.

Each individual "SPECULAR PASS" have different blending mode and opacity, and I want to keep those.

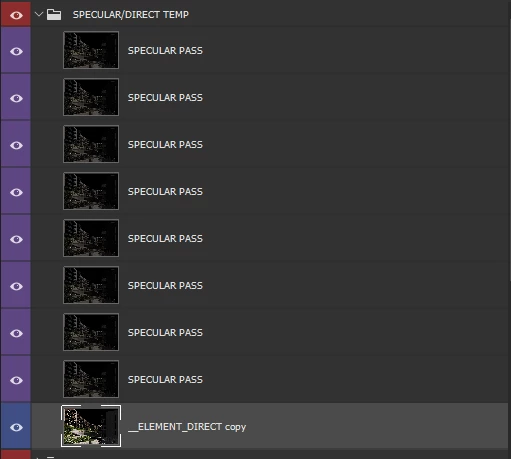

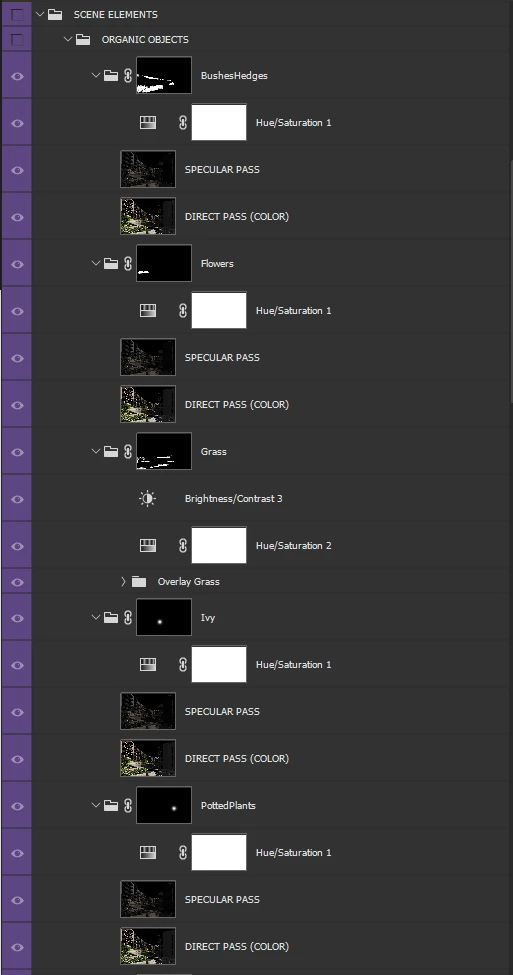

New render passes:

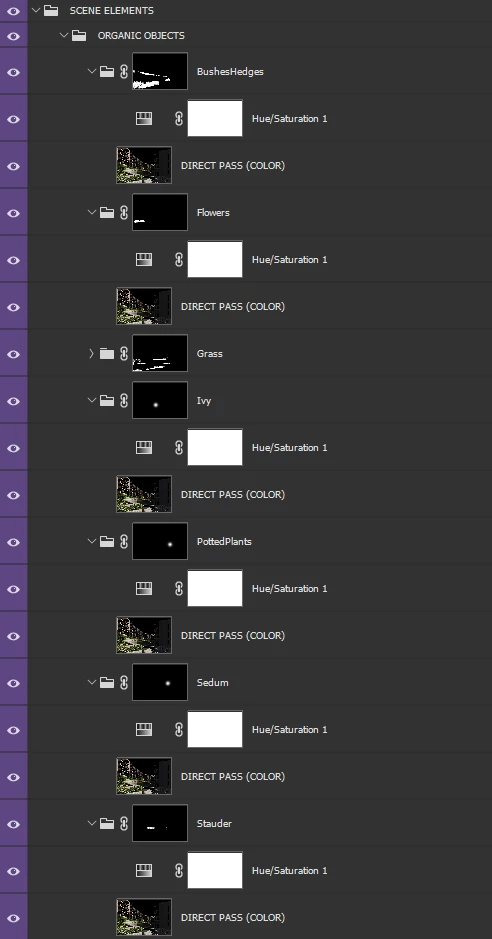

Old render passes:

I appreciate all the help I can get!

Actions and scripting

This topic has been closed for replies.

Correct answer Kukurykus

Select layer to 'replace' others by:

(slctn = (aD = activeDocument)
.selection).selectAll(), slctn.copy()
sp = 'SPECULAR PASS', top = aD.layerSets
lSs = [].slice.call(top.getByName('SCENE ELEMENTS')
.layerSets.getByName('ORGANIC OBJECTS').layerSets)

while(lSs.length) {
	lS = lSs.shift(), lrs = [].slice.call(lS.artLayers)
	while(lrs.length) ((shft = lrs.shift()).name == sp)
	&& (aL = aD.activeLayer = shft, slctn.selectAll(), slctn.clear(),
	aD.paste(), shft != aD.activeLayer && aD.activeLayer.merge())
}

T

Tsu-teyAuthor

Known Participant

Okay, my bad. Seems like I wasn't specific enough.

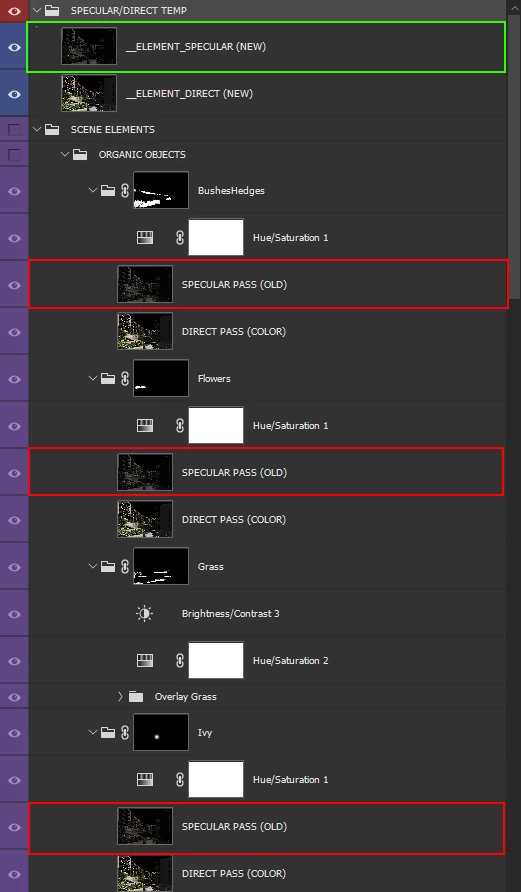

The Green layer called "_ELEMENT_SPECULAR" needs to be replaced with the Red layers called "SPECULAR PASS".
Each Replaced layer needs to contain the following attributes from each individual Red layers.

- Name
- Blending Mode
- Opacity
- Placement

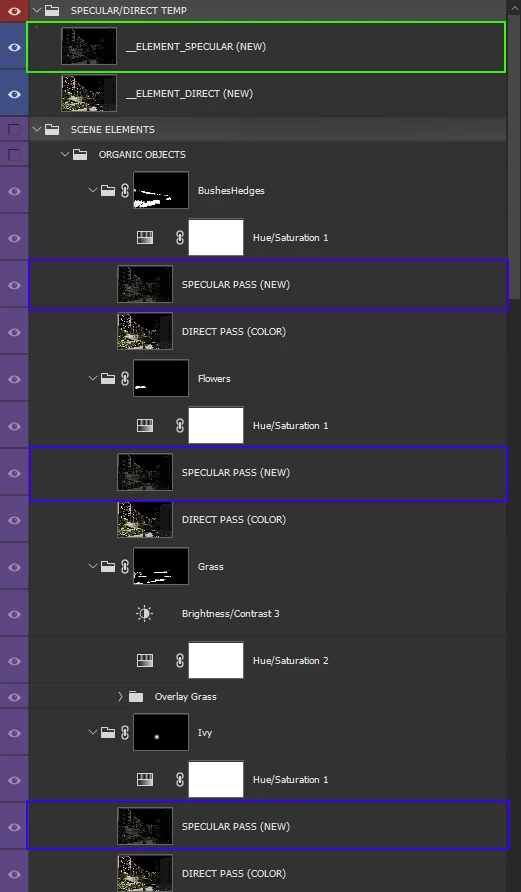

The placement of the New Replaced layer should in the same location as the Old Red layer. As shown in Explanation_02.jpg (See attached).
Preferably the script can replace any layer that is selected but it is also okay to change the name of the layer within the script as I need to use it on "_ELEMENT_DIRECT copy" aswell.

If something is not clear or you need any extra information please let me know. Also use the PSD file in the post for testing.

KukurykusCorrect answer

Legend

Select layer to 'replace' others by:

(slctn = (aD = activeDocument)
.selection).selectAll(), slctn.copy()
sp = 'SPECULAR PASS', top = aD.layerSets
lSs = [].slice.call(top.getByName('SCENE ELEMENTS')
.layerSets.getByName('ORGANIC OBJECTS').layerSets)

while(lSs.length) {
	lS = lSs.shift(), lrs = [].slice.call(lS.artLayers)
	while(lrs.length) ((shft = lrs.shift()).name == sp)
	&& (aL = aD.activeLayer = shft, slctn.selectAll(), slctn.clear(),
	aD.paste(), shft != aD.activeLayer && aD.activeLayer.merge())
}

T

Tsu-teyAuthor

Known Participant

This is works perfectly! Awesome Kukurykus!

Kukurykus

Legend

top = activeDocument.layerSets, lSs = []
.slice.call(top.getByName('SCENE ELEMENTS')
.layerSets.getByName('ORGANIC OBJECTS').layerSets)
top[0].artLayers[0].remove(); while(lSs.length) {
	lS = lSs.shift(), lrs = [].slice.call(lS.artLayers)
	while(lrs.length) (shft = lrs.shift())
	.name == 'SPECULAR PASS'
	&& shft.move(top[0],
	ElementPlacement
	.INSIDE)
}
