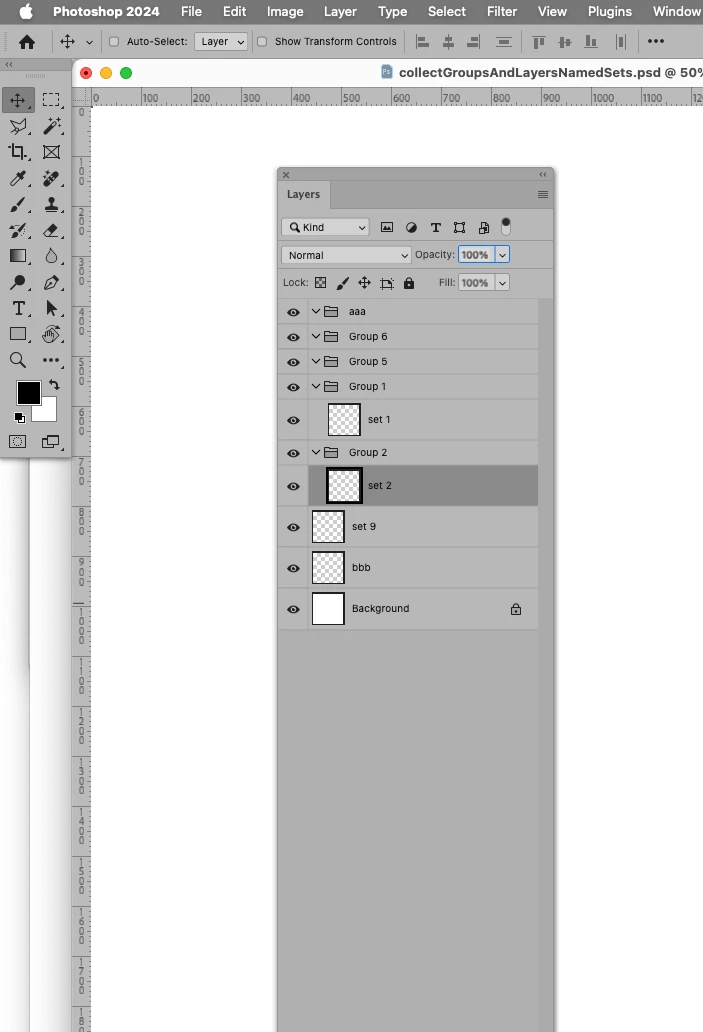

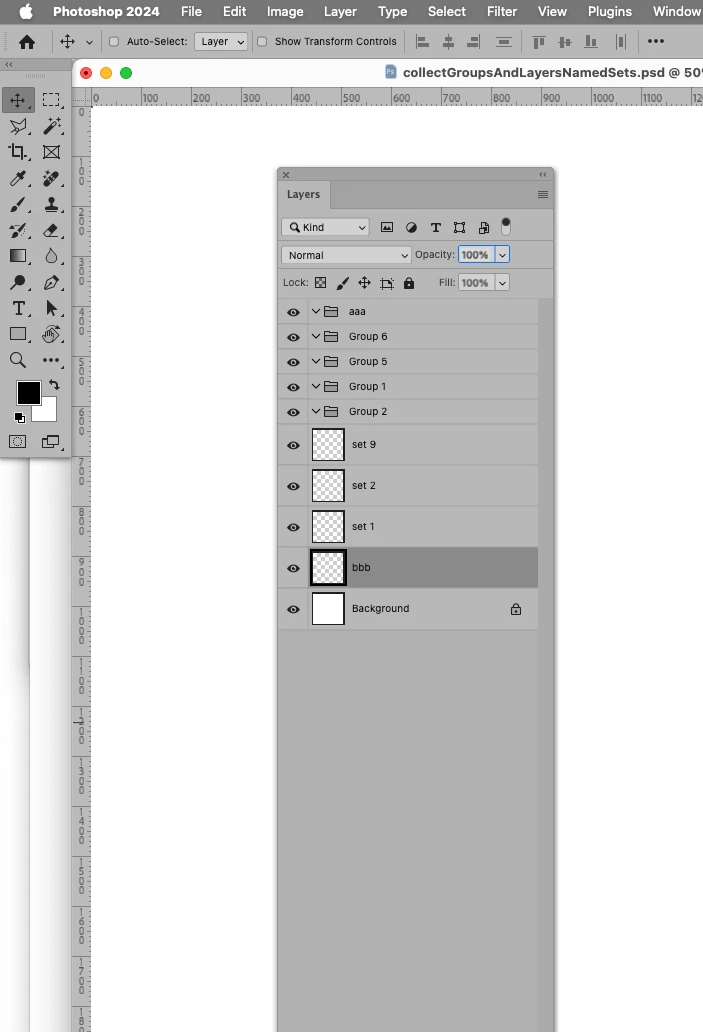

Hello, I have several files to relocate with same format every day as picture below.I need to find a script to move:layer "set 1" into group 1group "set 2" into group 2layer "set 3" into group 3And if the file don't have layer/ group "set 1", "set 2" or "set 3" just ignore it. Thank you in advance!

K

KathyDang

Known Participant

Answered

Script to move a layer/ group into another group

Forum|Forum|2 years ago
March 9, 2024
2 replies
458 views

Hello, I have several files to relocate with same format every day as picture below.

I need to find a script to move:

layer "set 1" into group 1
group "set 2" into group 2
layer "set 3" into group 3

And if the file don't have layer/ group "set 1", "set 2" or "set 3" just ignore it.

Thank you in advance!

Actions and scripting

This topic has been closed for replies.

Correct answer c.pfaffenbichler

Mabe this can help get you started.

It collects two Arrays, one of all the Layers with a name like »group x« and one of the layers with a name like »set x«.

You can then run them against each other to compare the names and process them accordingly.

// 2024, use it at your own risk;
if (app.documents.length > 0) {
var theGroups = collectLayersOfName (/^group \d{1,3}$/i);
var theSets = collectLayersOfName (/^set \d{1,3}$/i);
alert ("layers with »group« in their names\n"+theGroups.join("\n"));
alert ("layers with »set« in their names\n"+theSets.join("\n"));
};
////// collect layers //////
function collectLayersOfName (theRegExp) {
// get number of layers;
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('numberOfLayers'));
ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var applicationDesc = executeActionGet(ref);
var theNumber = applicationDesc.getInteger(stringIDToTypeID("numberOfLayers"));
// process the layers;
var theLayers = new Array;
for (var m = 0; m <= theNumber; m++) {
try {
var ref = new ActionReference();
ref.putIndex( charIDToTypeID( "Lyr " ), m);
var layerDesc = executeActionGet(ref);
var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
var isBackground = layerDesc.getBoolean(stringIDToTypeID("background"));
// if group collect values;
if (layerSet != "layerSectionEnd" /*&& layerSet != "layerSectionStart" && isBackground != true*/) {
var theName = layerDesc.getString(stringIDToTypeID('name'));
var theID = layerDesc.getInteger(stringIDToTypeID('layerID'));
var theIndex = layerDesc.getInteger(stringIDToTypeID('itemIndex'));
var theColor = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("color")));
if (theName.match(theRegExp) != null) {theLayers.push([theName, theIndex, theID, theColor, theName.match(/\d{1,3}$/)])}
};
}
catch (e) {};
};
return theLayers
};

c.pfaffenbichler

Correct answer

Community Expert

Mabe this can help get you started.

It collects two Arrays, one of all the Layers with a name like »group x« and one of the layers with a name like »set x«.

You can then run them against each other to compare the names and process them accordingly.

// 2024, use it at your own risk;
if (app.documents.length > 0) {
var theGroups = collectLayersOfName (/^group \d{1,3}$/i);
var theSets = collectLayersOfName (/^set \d{1,3}$/i);
alert ("layers with »group« in their names\n"+theGroups.join("\n"));
alert ("layers with »set« in their names\n"+theSets.join("\n"));
};
////// collect layers //////
function collectLayersOfName (theRegExp) {
// get number of layers;
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('numberOfLayers'));
ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var applicationDesc = executeActionGet(ref);
var theNumber = applicationDesc.getInteger(stringIDToTypeID("numberOfLayers"));
// process the layers;
var theLayers = new Array;
for (var m = 0; m <= theNumber; m++) {
try {
var ref = new ActionReference();
ref.putIndex( charIDToTypeID( "Lyr " ), m);
var layerDesc = executeActionGet(ref);
var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
var isBackground = layerDesc.getBoolean(stringIDToTypeID("background"));
// if group collect values;
if (layerSet != "layerSectionEnd" /*&& layerSet != "layerSectionStart" && isBackground != true*/) {
var theName = layerDesc.getString(stringIDToTypeID('name'));
var theID = layerDesc.getInteger(stringIDToTypeID('layerID'));
var theIndex = layerDesc.getInteger(stringIDToTypeID('itemIndex'));
var theColor = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("color")));
if (theName.match(theRegExp) != null) {theLayers.push([theName, theIndex, theID, theColor, theName.match(/\d{1,3}$/)])}
};
}
catch (e) {};
};
return theLayers
};

K

KathyDangAuthor

Known Participant

Thank you for your kind!

c.pfaffenbichler

Community Expert

// find matches of layers named »group x« and »set x«;
// move layers »set x« into groups »group x«;
// 2024, use it at your own risk;
if (app.documents.length > 0) {
var theGroups = collectLayersOfName (/^group \d{1,3}$/i, true);
var theSets = collectLayersOfName (/^set \d{1,3}$/i, false);
for (var m = 0; m < theSets.length; m++) {
    var thisLayer = theSets[m];
    for (var n = 0; n < theGroups.length; n++) {
        var thisGroup = theGroups[n];
// if number matches move layer;
        if (thisLayer[4] == thisGroup[4]) {
            var theIndex = getLayerIndex(thisGroup[2]);
            selectLayerByID(thisLayer[2], false);
            moveTo(theIndex);
        }
    }
}
};
////// collect layers //////
function collectLayersOfName (theRegExp, isGroup) {
// get number of layers;
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('numberOfLayers'));
ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var applicationDesc = executeActionGet(ref);
var theNumber = applicationDesc.getInteger(stringIDToTypeID("numberOfLayers"));
// process the layers;
var theLayers = new Array;
for (var m = 0; m <= theNumber; m++) {
try {
var ref = new ActionReference();
ref.putIndex( charIDToTypeID( "Lyr " ), m);
var layerDesc = executeActionGet(ref);
var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
var isBackground = layerDesc.getBoolean(stringIDToTypeID("background"));
// if group collect values;
if (layerSet != "layerSectionEnd" /*&& layerSet != "layerSectionStart" && isBackground != true*/) {
var theName = layerDesc.getString(stringIDToTypeID('name'));
var theID = layerDesc.getInteger(stringIDToTypeID('layerID'));
var theIndex = layerDesc.getInteger(stringIDToTypeID('itemIndex'));
var theColor = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("color")));
if (layerSet == "layerSectionStart" && isGroup == true) {
if (theName.match(theRegExp) != null) {theLayers.push([theName, theIndex, theID, theColor, Number(theName.match(/\d{1,3}$/))])}
};
if (layerSet != "layerSectionStart" && isGroup == false) {
if (theName.match(theRegExp) != null) {theLayers.push([theName, theIndex, theID, theColor, Number(theName.match(/\d{1,3}$/))])}
};
};
}
catch (e) {};
};
return theLayers
};
////// based on code by mike hale, via paul riggott //////
function selectLayerByID(id,add){
try {
add = undefined ? add = false:add
var ref = new ActionReference();
ref.putIdentifier(charIDToTypeID("Lyr "), id);
var desc = new ActionDescriptor();
desc.putReference(charIDToTypeID("null"), ref );
if(add) desc.putEnumerated( stringIDToTypeID( "selectionModifier" ), stringIDToTypeID( "selectionModifierType" ), stringIDToTypeID( "addToSelection" ) );
desc.putBoolean( charIDToTypeID( "MkVs" ), false );
try{
executeAction(charIDToTypeID("slct"), desc, DialogModes.NO );
}catch(e){
alert(e.message);
}
} catch (e) {}
};
////// move layer into group //////
function moveTo(index) {
try {
var desc = new ActionDescriptor();
    var ref = new ActionReference();
    ref.putEnumerated( charIDToTypeID('Lyr '), charIDToTypeID('Ordn'), charIDToTypeID('Trgt') );
desc.putReference( charIDToTypeID('null'), ref );
    var ref = new ActionReference();
    ref.putIndex( charIDToTypeID('Lyr '), index );
desc.putReference( charIDToTypeID('T   '), ref );
desc.putBoolean( charIDToTypeID('Adjs'), false );
desc.putInteger( charIDToTypeID('Vrsn'), 5 );
executeAction( charIDToTypeID('move'), desc, DialogModes.NO );
} catch (e) {}
};
////// by mike hale, via paul riggott //////
function getLayerIndex(theId){
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('itemIndex'));
ref.putIdentifier(charIDToTypeID("Lyr "), theId);
d = executeActionGet(ref);
return (d.getInteger(stringIDToTypeID('itemIndex'))-1);
};

c.pfaffenbichler

Community Expert

This should be possible even with DOM code, so what is giving you problems?
