Shuffle layers positions

  • August 21, 2022
  • 2 replies
  • 1254 views

Hi,

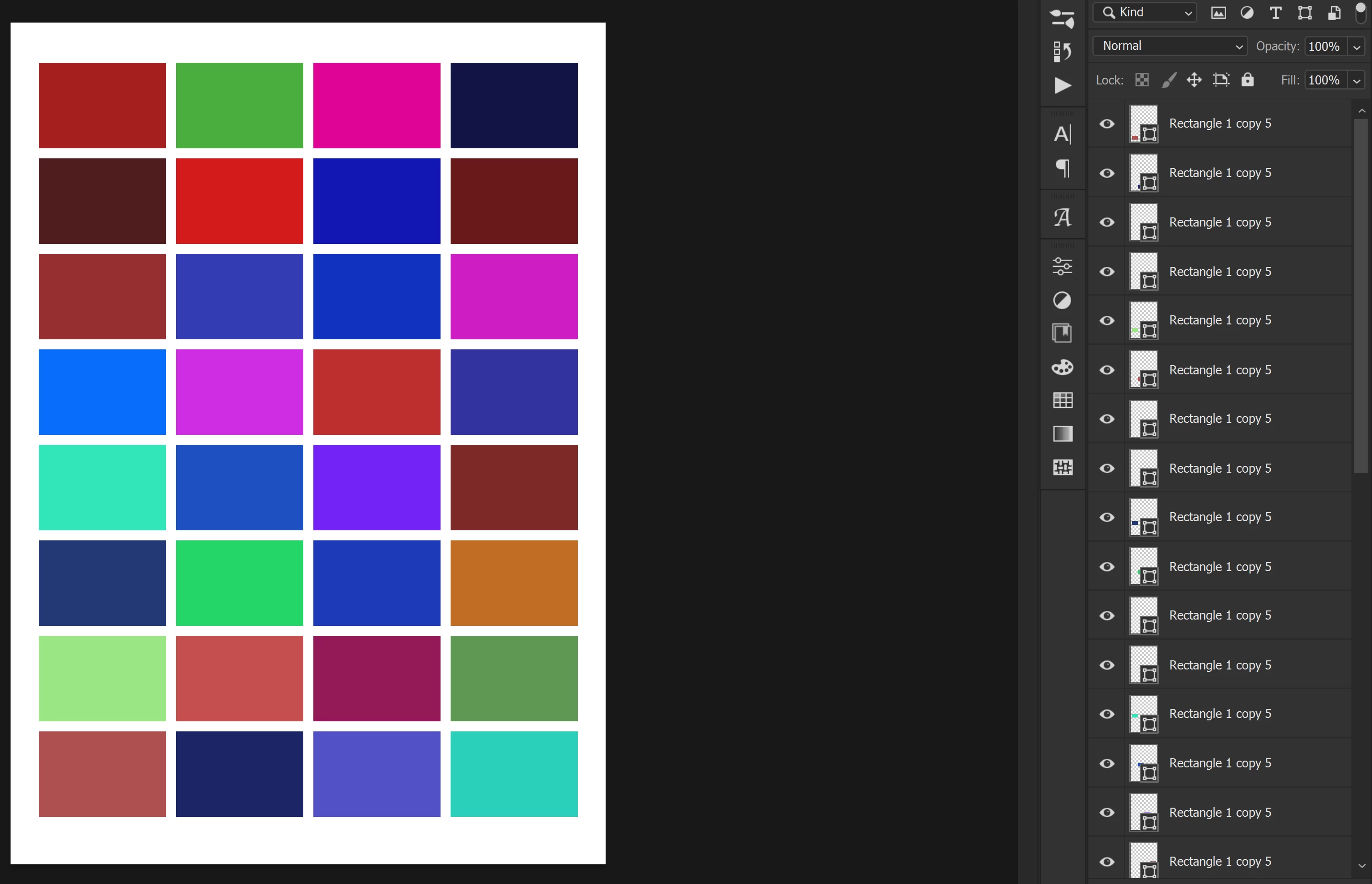

I have a group of layers arranged as shown below.

I need help shuffling these layers so that the rectangles change their positions to get rearranged.



This topic has been closed for replies.
Correct answer Stephen Marsh

They are 22 photos.


So that image of a 4x8 grid structure was just an example, just as the fill layers were just examples of photos?



Does that layout grid structure stay the same then? It is just the 22 photos that are placed into the grid that need to be randomised and the grid layout is static?



I'm thinking of two possible options that don't require custom scripting:



1) Photohshop "Variables" (AKA Data Driven Graphics):


https://helpx.adobe.com/au/photoshop/using/creating-data-driven-graphics.html


Where you would use pixel replacement to swap out the images. Using the RAND formula to randomise the order of the images in the spreadsheet so that they populate randomly in Photoshop.





2) Using one of the late JJMack scripts for creating a Montage:



Either alpha channel based or smart object based, where you would use image names that randomly sort, say by adding a random number prefix to each filename:


https://github.com/MarshySwamp/JJMack-Archive


https://github.com/MarshySwamp/JJMack-Archive/blob/main/PhotoCollageToolkit.zip



2 replies

Legend
August 21, 2022

I was interested in this topic, so, despite the presence of a working solution, I still decided to make a script:



#target photoshop
activeDocument.suspendHistory('Shuffle layers', 'shuffleLayers()');
function shuffleLayers() {
    var doc = new AM('document'),
        lr = new AM('layer');
    if (!doc.hasProperty('selection')) {
        var selectedLayers = doc.getProperty('targetLayersIDs'),
            layers = [];
        for (var i = 0; i < selectedLayers.count; i++) {
            var id = selectedLayers.getReference(i).getIdentifier(),
                bounds = lr.descToObject(lr.getProperty('bounds', id).value);
            layers.push({ id: id, center: { x: bounds.left + (bounds.right - bounds.left) / 2, y: bounds.top + (bounds.bottom - bounds.top) / 2 } });
        }
    }
    do {
        var source = layers.shift(),
            len = layers.length;
        if (!len) break;
        var target = layers.splice((Math.random() * (len - 1)) | 0, 1).shift();
        lr.selectLayers([source.id])
        lr.move(source, target, false)
        lr.selectLayers([target.id])
        lr.move(target, source, true)
        if (layers.length == 1) layers.push(target);
    } while (true)
    var layers = [];
    for (var i = 0; i < selectedLayers.count; i++) layers.push(selectedLayers.getReference(i).getIdentifier());
    lr.selectLayers(layers)
}
function AM(target, order) {
    var s2t = stringIDToTypeID,
        t2s = typeIDToStringID;
    target = target ? s2t(target) : null;
    this.getProperty = function (property, id, idxMode) {
        property = s2t(property);
        (r = new ActionReference()).putProperty(s2t('property'), property);
        id != undefined ? (idxMode ? r.putIndex(target, id) : r.putIdentifier(target, id)) :
            r.putEnumerated(target, s2t('ordinal'), order ? s2t(order) : s2t('targetEnum'));
        return getDescValue(executeActionGet(r), property)
    }
    this.hasProperty = function (property, id, idxMode) {
        property = s2t(property);
        (r = new ActionReference()).putProperty(s2t('property'), property);
        id ? (idxMode ? r.putIndex(target, id) : r.putIdentifier(target, id))
            : r.putEnumerated(target, s2t('ordinal'), order ? s2t(order) : s2t('targetEnum'));
        return executeActionGet(r).hasKey(property)
    }
    this.descToObject = function (d) {
        var o = {}
        for (var i = 0; i < d.count; i++) {
            var k = d.getKey(i)
            o[t2s(k)] = getDescValue(d, k)
        }
        return o
    }
    this.selectLayers = function (list) {
        var r = new ActionReference();
        do { r.putIdentifier(s2t('layer'), list.shift()) } while (list.length);
        (d = new ActionDescriptor()).putReference(s2t('null'), r);
        executeAction(s2t('select'), d, DialogModes.NO);
    }
    this.move = function (source, target, updateCenter) {
        (r = new ActionReference()).putEnumerated(s2t('layer'), s2t('ordinal'), s2t('targetEnum'));
        (d = new ActionDescriptor()).putReference(s2t('null'), r);
        (d1 = new ActionDescriptor()).putUnitDouble(s2t('horizontal'), s2t('pixelsUnit'), target.center.x - source.center.x);
        d1.putUnitDouble(s2t('vertical'), s2t('pixelsUnit'), target.center.y - source.center.y);
        d.putObject(s2t('to'), s2t('offset'), d1);
        executeAction(s2t('move'), d, DialogModes.NO);
        if (updateCenter) {
            source.center.x += target.center.x - source.center.x
            source.center.y += target.center.y - source.center.y
        }
    }
    function getDescValue(d, p) {
        switch (d.getType(p)) {
            case DescValueType.OBJECTTYPE: return { type: t2s(d.getObjectType(p)), value: d.getObjectValue(p) };
            case DescValueType.LISTTYPE: return d.getList(p);
            case DescValueType.REFERENCETYPE: return d.getReference(p);
            case DescValueType.BOOLEANTYPE: return d.getBoolean(p);
            case DescValueType.STRINGTYPE: return d.getString(p);
            case DescValueType.INTEGERTYPE: return d.getInteger(p);
            case DescValueType.LARGEINTEGERTYPE: return d.getLargeInteger(p);
            case DescValueType.DOUBLETYPE: return d.getDouble(p);
            case DescValueType.ALIASTYPE: return d.getPath(p);
            case DescValueType.CLASSTYPE: return d.getClass(p);
            case DescValueType.UNITDOUBLE: return (d.getUnitDoubleValue(p));
            case DescValueType.ENUMERATEDTYPE: return { type: t2s(d.getEnumerationType(p)), value: t2s(d.getEnumerationValue(p)) };
            default: break;
        };
    }
}



Stephen Marsh
Community Expert
Community Expert
August 21, 2022

@Moamen5C23



Rearranged to what?

Participating Frequently
August 21, 2022

I need the rectangles in the canvas to get shuffled (Change their positions randomly).

Stephen Marsh
Community Expert
Community Expert
August 21, 2022

Would changing their colour randomly be an acceptable alternative?
