Difference between <footnote> and using <reference> <note> <label>

  • May 21, 2019
  • 1 reply
  • 3016 views

Using Acrobat, I understand how to tag a footnote using <Reference>, <Note>, and <Lbl> tags based on guidance from hhs.gov.

I've noticed the <Footnote> tag (and others using it). It seems to be simpler. Can someone show or direct me on how to properly tag a footnote using <Footnote>?

This topic has been closed for replies.
Correct answer Bevi Chagnon - PubCom.com

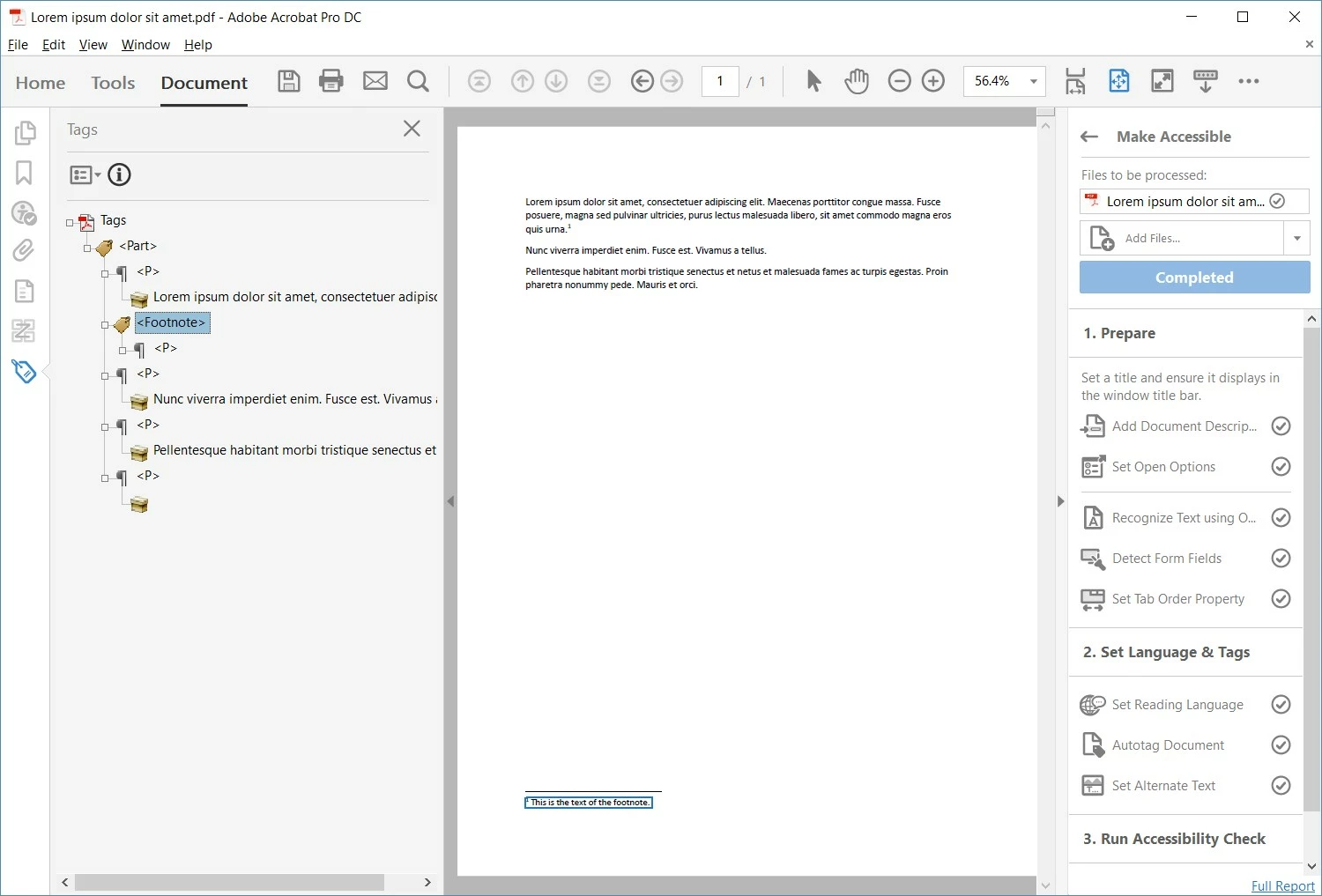

If you make a pdf from word (with generate tags on) and then run the auto wizard for accessibility in pdf it will generate the footnote tag when it auto tags.

I'm having trouble finding documentation on how the <footnote> tag is used and would like to know more.


First, the PDF/UA-1 standards do not have a <Footnote> tag, so if any program is using it, that is an error.

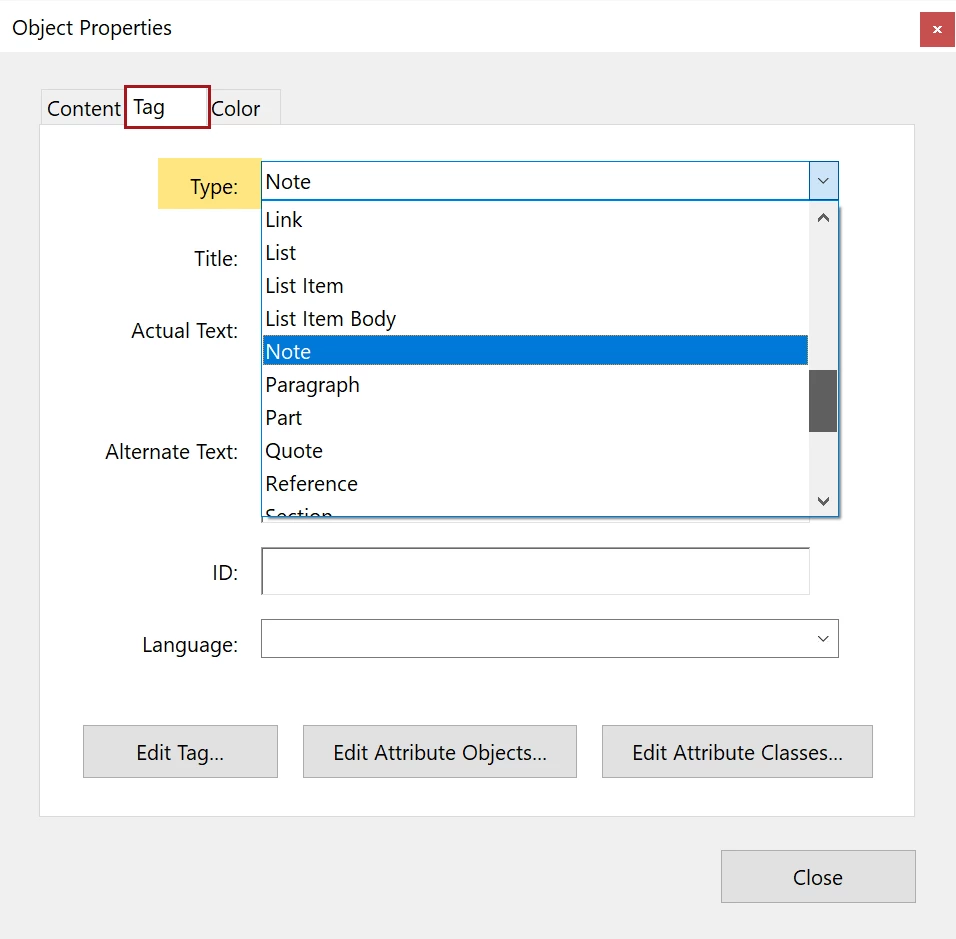

You can discover all of the allowable tags in a PDF by looking at the Properties/Tag of an existing tag:

  1. Open a PDF.
  2. Select a Tag.
  3. Right-Click and select Properties.
  4. The drop-down Type menu lists all of the available tags.

Note that their names are fully spelled out and don't use the required tag name: example, <H1> is shown in the drop-down as Heading 1, but Acrobat puts the correctly spelled tag in the tree.

Now, back to Word...

  • Which version of Word are you using?

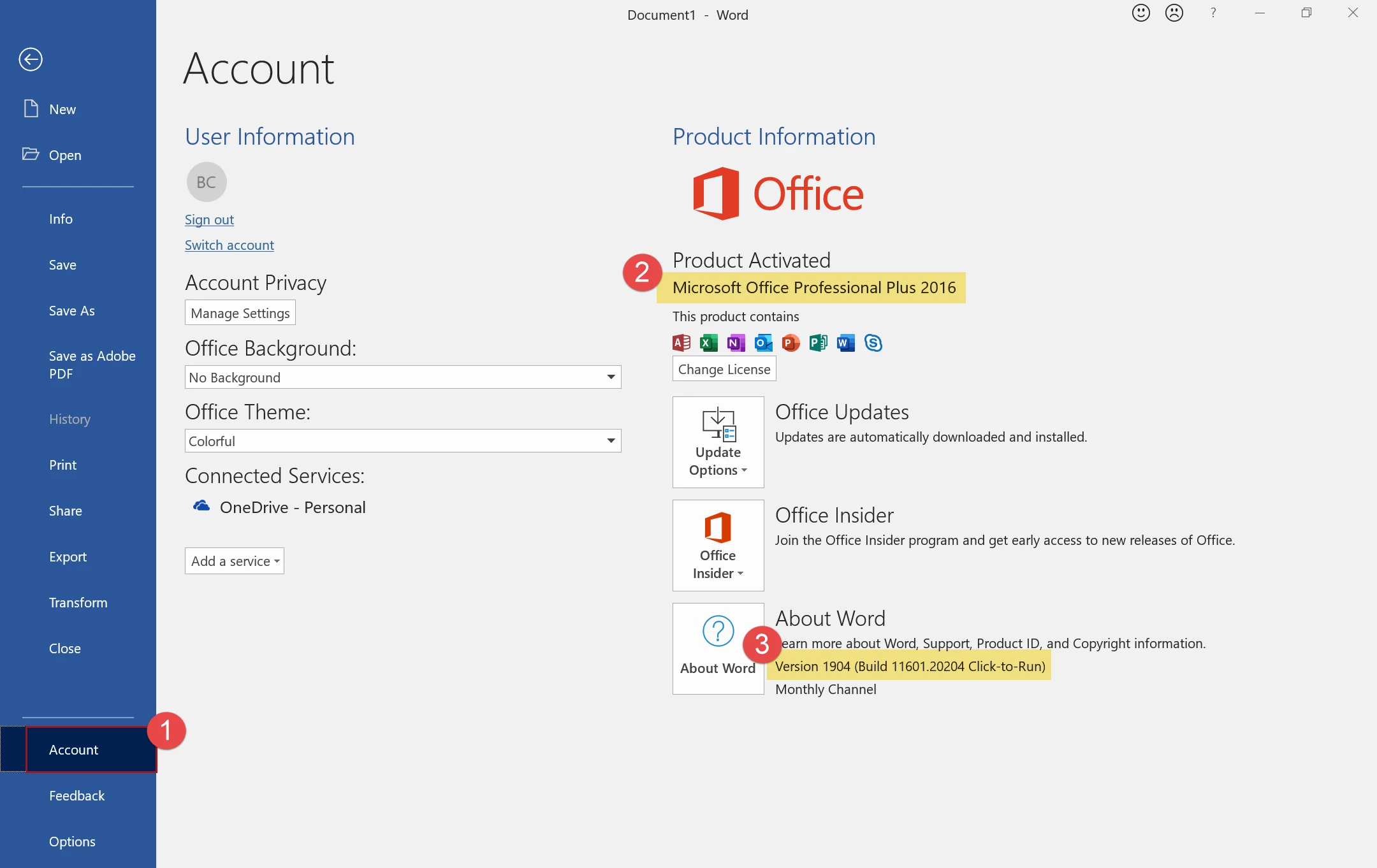

    You can find this under File / Account (see screen capture below)
  • Mac or PC?
  • And how are you exporting/converting the PDF?
    With the Acrobat PDFMaker plug-in (the Acrobat Ribbon) or via MS's File / Save As / PDF utility?

1 reply

Y
yn68_2
Inspiring
May 21, 2019

See if this thread offers any perspective. Note that the conversation goes into the weeds for a good bit of the thread, but the marked answer response and final post by Bevi should be helpful.

J
jeffk25582528Author
Participant
May 22, 2019

Yes, I've seen that but it doesn't address the use of <footnote>. It seems odd that there's a tag that is literally about footnotes but it's not what you use when tagging footnotes.

D
Duff Johnson
Participating Frequently
May 22, 2019

PDF does not define a structure element (tag). Where did you see this?
