Erase Drawing tool does nothing when trying to erase a door in a house drawing - why?

Forum|Forum|3 years ago
April 3, 2022
5 replies
5026 views

On April 3, 2022, I tried using the "Erase Drawing" tool in the Comments tool.

When I drag (holdind down left mouse button) the eraser over the optional door in a drawing in my PDF, it does nothing.

Why does the eraser tool fail to erase?

Windows

This topic has been closed for replies.

Dave Creamer of IDEAS

Community Expert

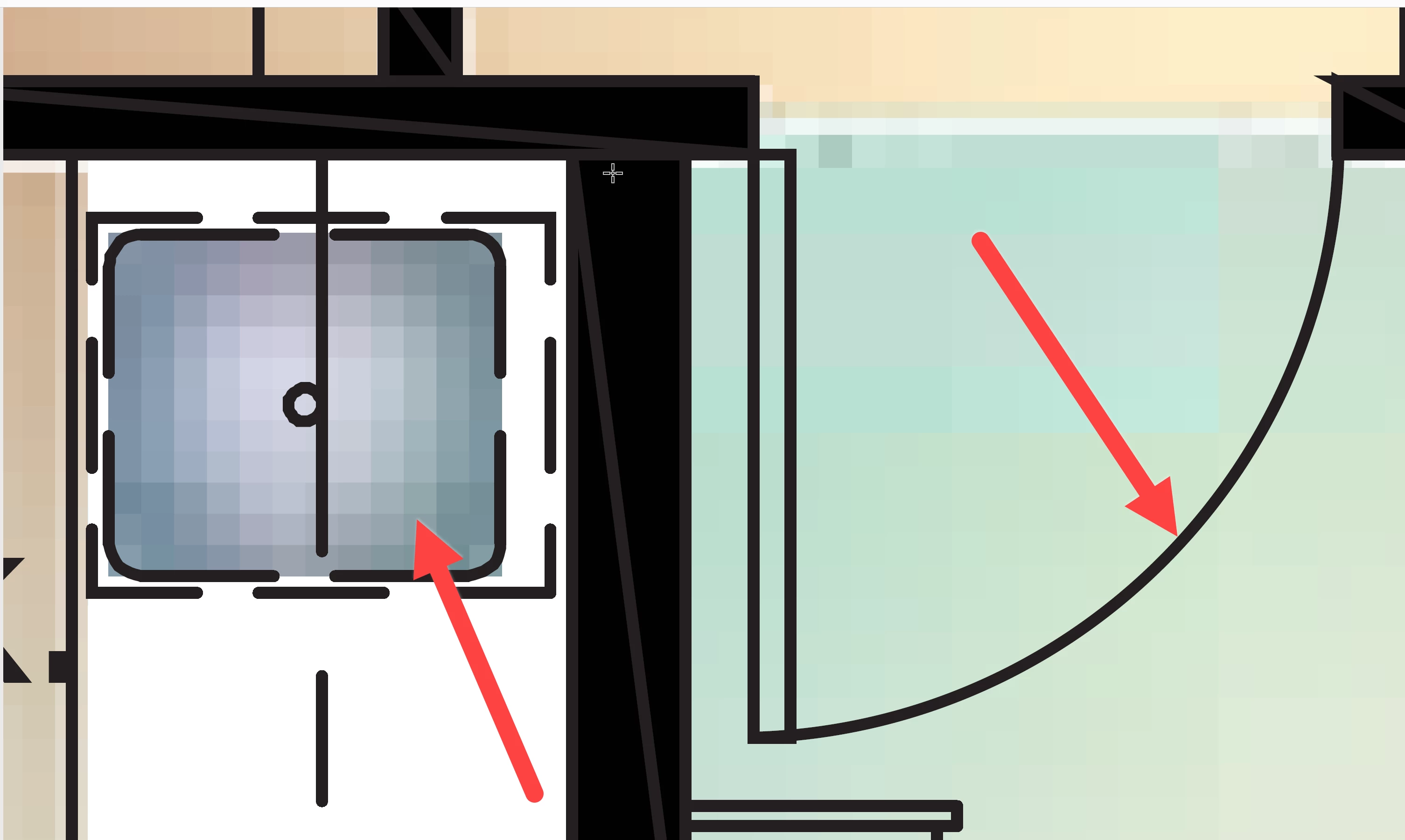

The easiest way to tell a raster (pixel) image from a vector image is to zoom in really large. If you see pixels, it's raster; if you see smooth curves, it vector. There is a bit of both in your PDF:

This PDF was created from Adobe Illustrator. so the best option is to go back to the original Illustrator file. However, I can't tell if the art itself was created in Illustrator or placed into it. Although not recommended, I was able to open the PDF page 3 in Illustrator and delete the door way.

David Creamer: Community Expert (ACI and ACE 1995-2023)

HillspireDC.pdf

Bernd Alheit

Community Expert

Try the redaction tool of Acrobat Pro.

F

Frederick23877130wjl3Author

Participating Frequently

That redaction tool has two unwanted side-effects that make it unsuitable for the task I'm trying to accomplish:

it doesn't just erase the lines, it also leaves a big white splot behind and it removed the thick line I had manually added to show that the door was replaced by a wall.
previously added comment text boxes are now blurry looking. I was hoping

I'm really hoping there is a way to remove, even if it has to be pixel-by-pixel, at high magification, the door and it's even thinner door-swing from the PDF without other unwanted side-effects.
