Measure Tool Setting a custom measure between 2 points

Forum|Forum|3 years ago
November 14, 2022
2 replies
575 views

I have two points on a drawing that I know the length of.

I want to do a custom scale using those 2 points by entering the known measurment so that it will reflect in the measure tool

This topic has been closed for replies.

B

bradley350106951mi1

Participant

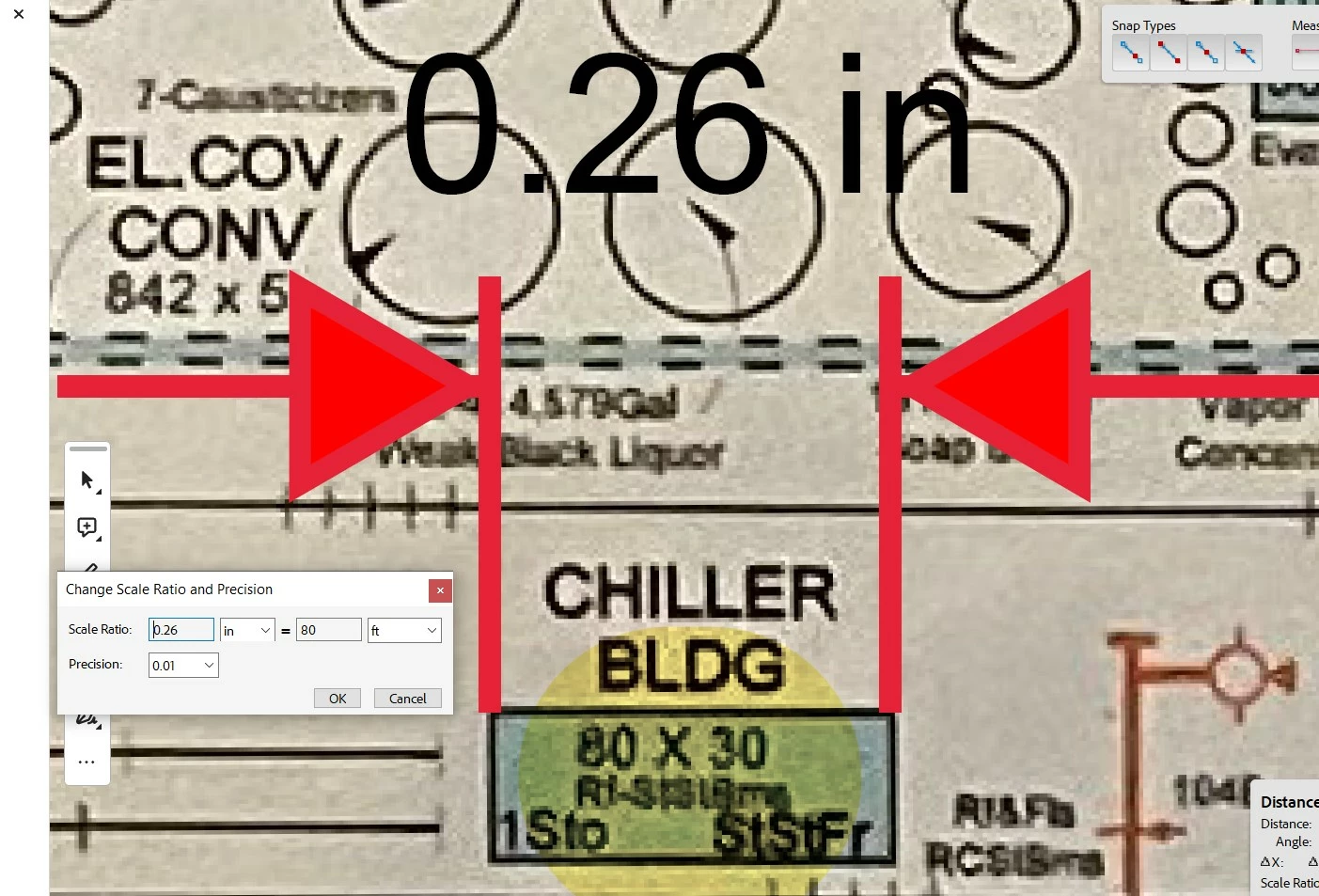

I attached a screen shot of the process in the pic

B

bradley350106951mi1

Participant

I was just looking for the same answer, its a shame no one commented. Bluebeam offers this functionality but i dont see an option for it in Adobe. A work around that i have utilized is measuring the distance between the two points you are talking about with the scale set at 1=1. this will give you what the distance actually is on the image/PDF. you can then use the actual measurement you got vs what is denoted on the plans to derive your scale for the page. Hope this helps!

D

danielk92628305

Participant

Thank you for this! It's so simple and get's it close enough for what I need. I've been getting frustrated trying to figure out a work around on this.
