Please help me with conditional logic - it is breaking my brain

  • July 6, 2022
  • 2 replies
  • 2042 views

Hi there sorry for my ignorance I am very new at this

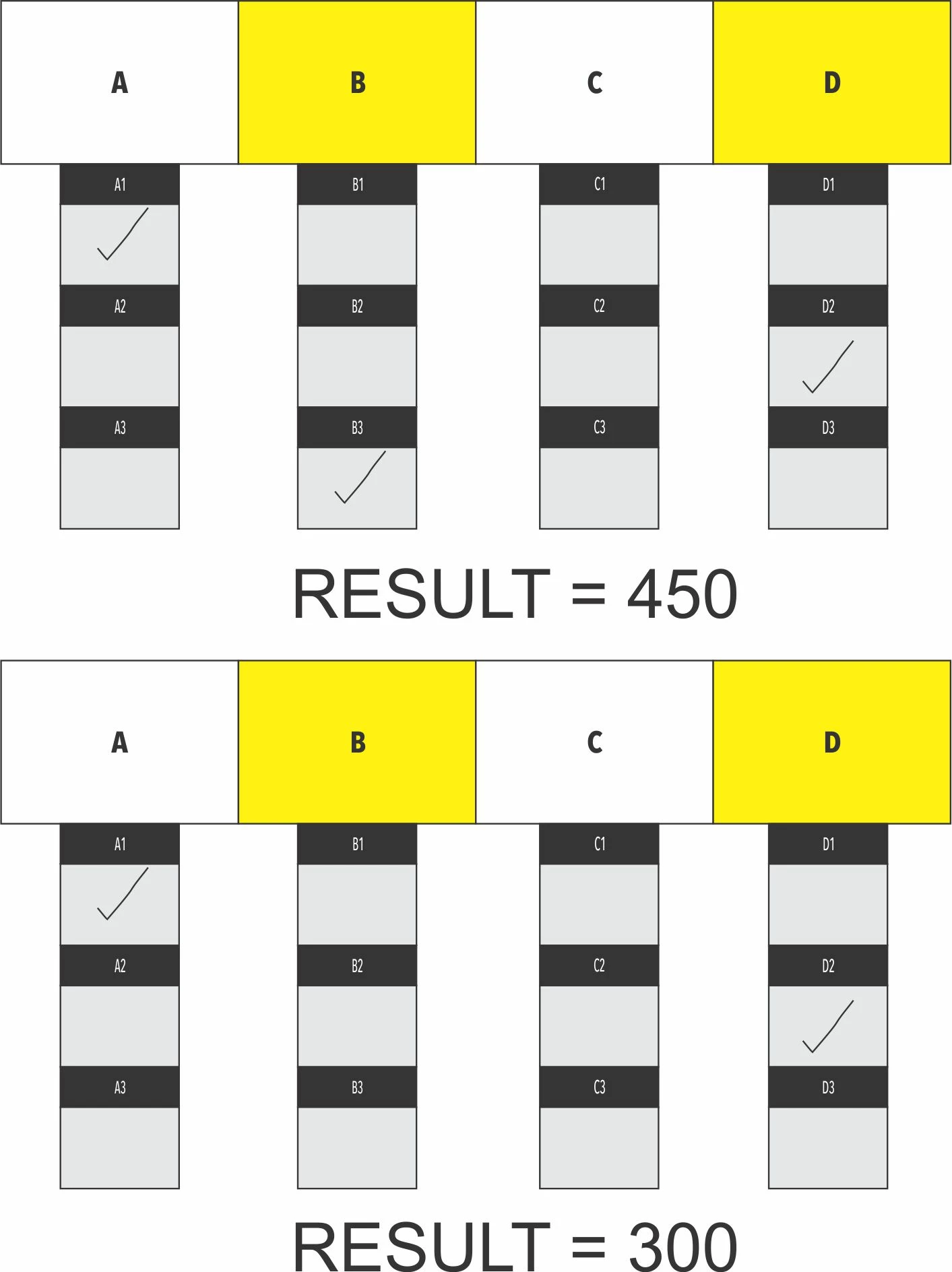

In the attached picture there are 4 columns

Each column has 3 tickboxes



Now I need to teel Acrobat that if any tick is made in Column A it has to add 150 to a field - so if you tick all there in Column A it must still remain 150



The same applies to Column B,C and D



In the end it has to be A+B+C+D= the max value it can be is 150+150+150+150=600



I hope someone can help



Thanks in advance

This topic has been closed for replies.
Correct answer Nesa Nurani

If your checkboxes are named "A1","A2","A3", same for B,C and D, use this as custom calculation script ot text field where you want to show result:

var t1=0,t2=0,t3=0,t4=0;
for(var i=1; i<=3; i++){
if(this.getField("A"+i).valueAsString != "Off")t1 = 150;
if(this.getField("B"+i).valueAsString != "Off")t2 = 150;
if(this.getField("C"+i).valueAsString != "Off")t3 = 150;
if(this.getField("D"+i).valueAsString != "Off")t4 = 150;}
event.value = t1+t2+t3+t4;

2 replies

Nesa Nurani
Community Expert
Nesa NuraniCommunity ExpertCorrect answer
Community Expert
July 6, 2022

If your checkboxes are named "A1","A2","A3", same for B,C and D, use this as custom calculation script ot text field where you want to show result:

var t1=0,t2=0,t3=0,t4=0;
for(var i=1; i<=3; i++){
if(this.getField("A"+i).valueAsString != "Off")t1 = 150;
if(this.getField("B"+i).valueAsString != "Off")t2 = 150;
if(this.getField("C"+i).valueAsString != "Off")t3 = 150;
if(this.getField("D"+i).valueAsString != "Off")t4 = 150;}
event.value = t1+t2+t3+t4;
    P
    Pierre25143665amfwAuthor
    Participating Frequently
    July 7, 2022

    Thank you all for the help



    This worked perfectly

    JR Boulay
    Community Expert
    JR BoulayCommunity Expert
    Community Expert
    July 6, 2022

    Setting a number (150) as export value in checkboxes makes calculations easier.

    To be exclusive, checkboxes must have exactly the same name and a different export value.

    Fortunately it is possible to use the same number written in 4 different ways as an export value so that the checkboxes remain exclusive, for example :
    150
    150.0
    150.00
    150.000

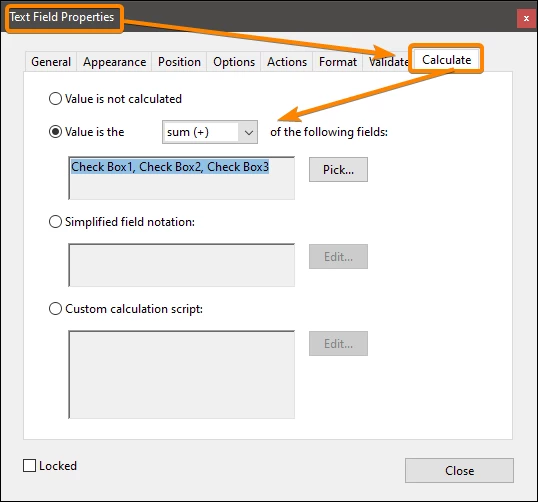

    The result (text) field just has to calculate the sum of the checkboxes.



    Acrobate du PDF, InDesigner et Photoshopographe
    P
    Pierre25143665amfwAuthor
    Participating Frequently
    July 6, 2022

    Thank you for your response



    I did like you said but it tticks the boxes with the same name



    Am I doing something wrong?
