January 19, 2023
Question

Please help - need help with hover over feature

  • January 19, 2023
  • 2 replies
  • 4369 views

Hello all - I am trying to create a task sheet for highschool (highschool teacher)

And I am trying to use Adobe to make an interactive and digital assessment task sheet where students can simply hover over certain key terms and a pop up box with further definitions (and even images would be awesome - like a picture of marine biology for example for the term "marine life")

I have tried everything - I am using windows and if yuo could please see my images attached - I am unable to get rid of the blue box over certain key terms.

This topic has been closed for replies.

2 replies

JR Boulay
Community Expert
JR BoulayCommunity Expert
Community Expert
January 20, 2023

You can do this using layers in InDesign, and add "show/hide layer" actions with Acrobat Pro (since InDesign doesn't provide this action).

Acrobate du PDF, InDesigner et Photoshopographe
Document Geek
Community Expert
Document GeekCommunity Expert
Community Expert
January 19, 2023

Here is aivdeo that descries it: https://www.youtube.com/watch?v=JDyfaZtQRQQ



You need to make two buttons:

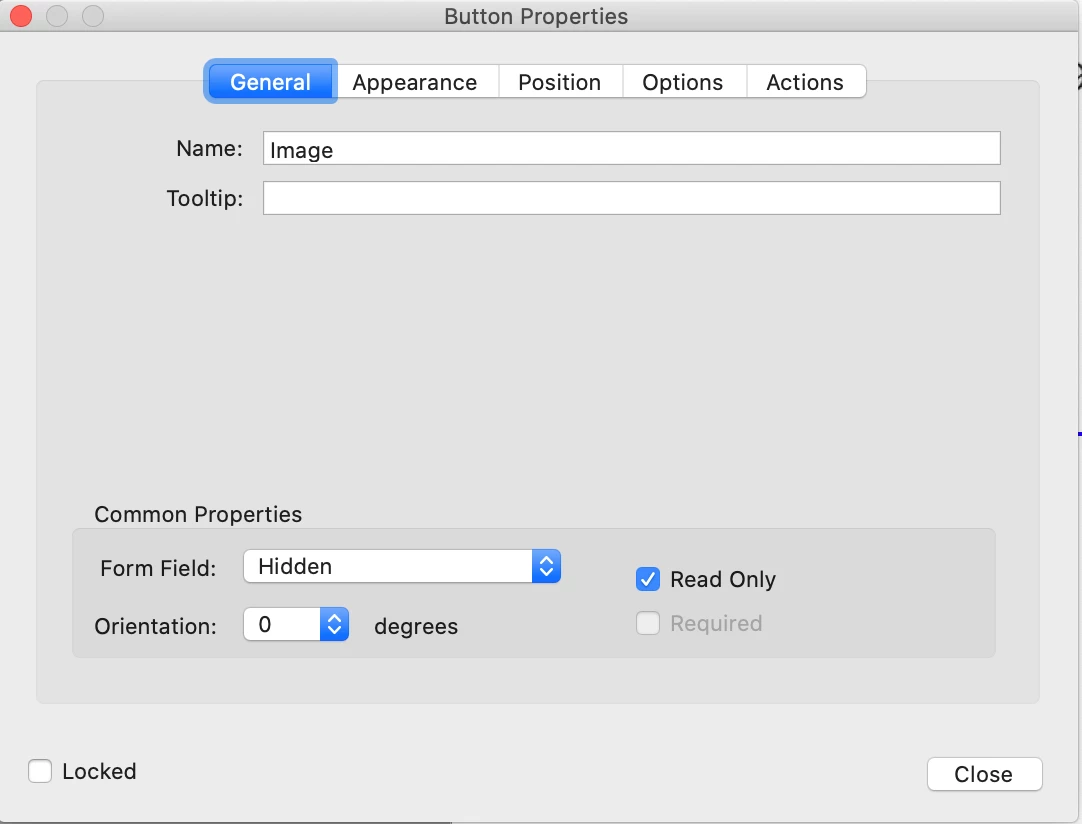

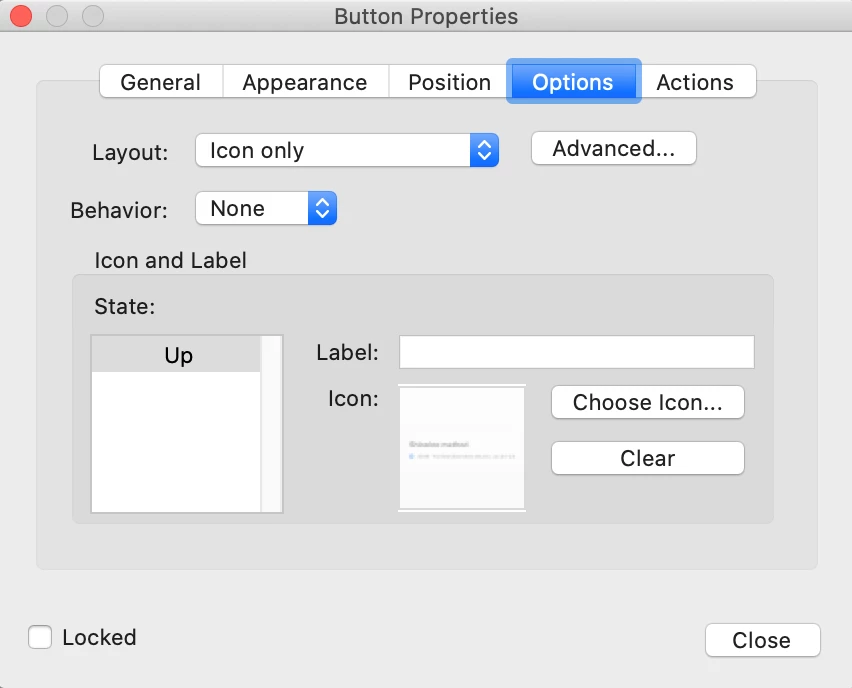

1. The first button will be your image of marine life. Set the borders to none (transparent). Buttons properties > General > hidden and read only. Options> Icon only, themn choose your image of marine life.

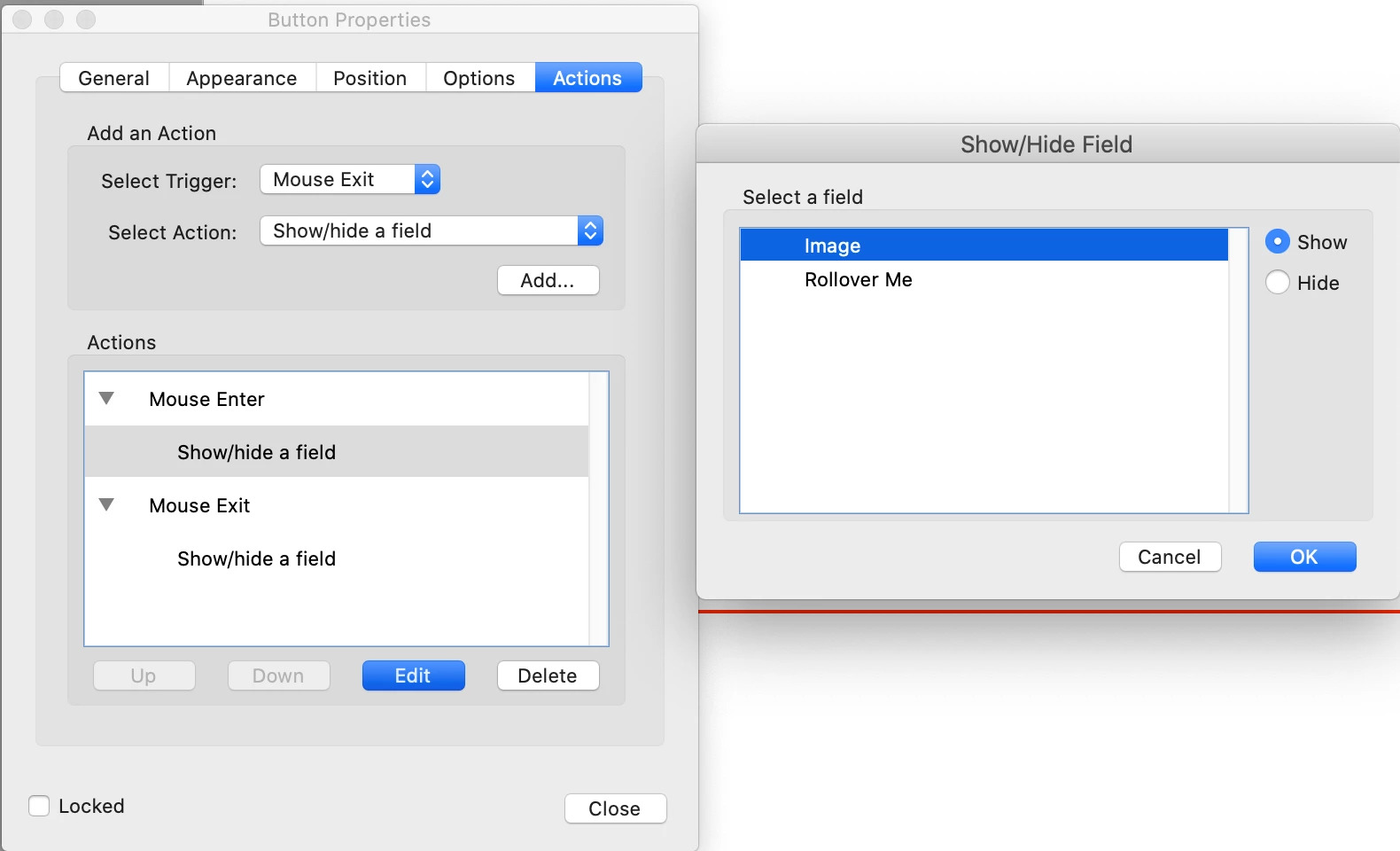

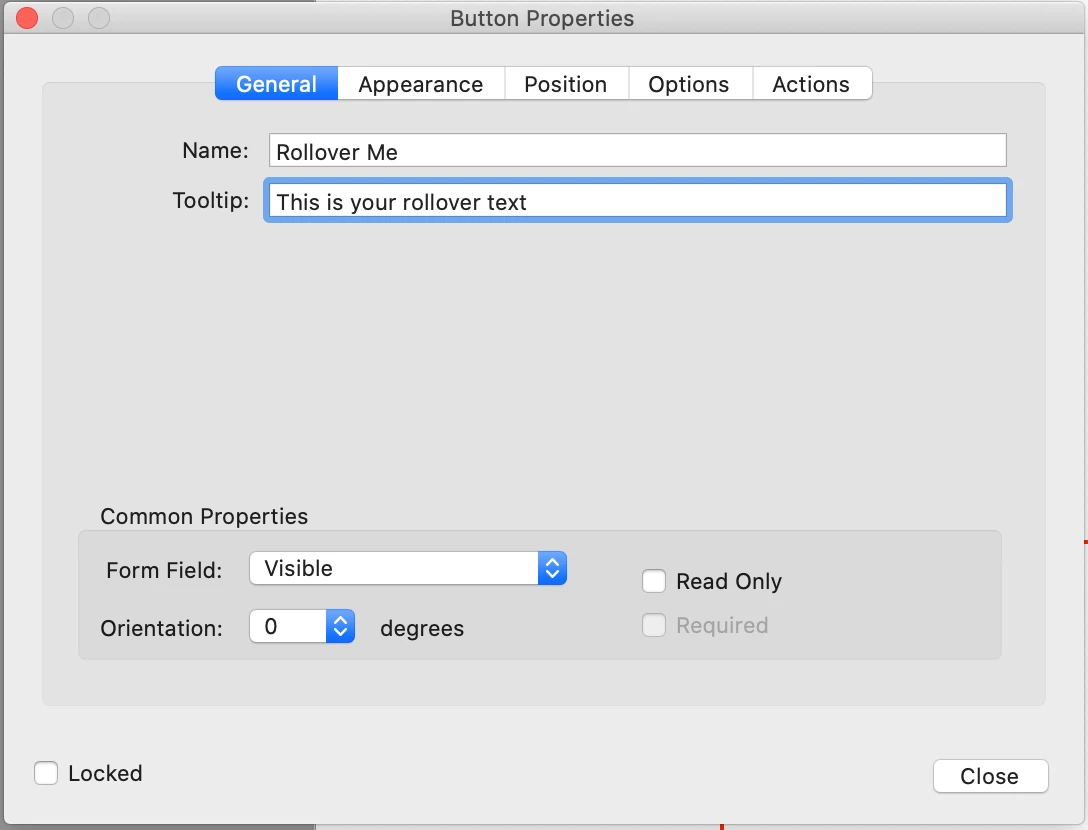

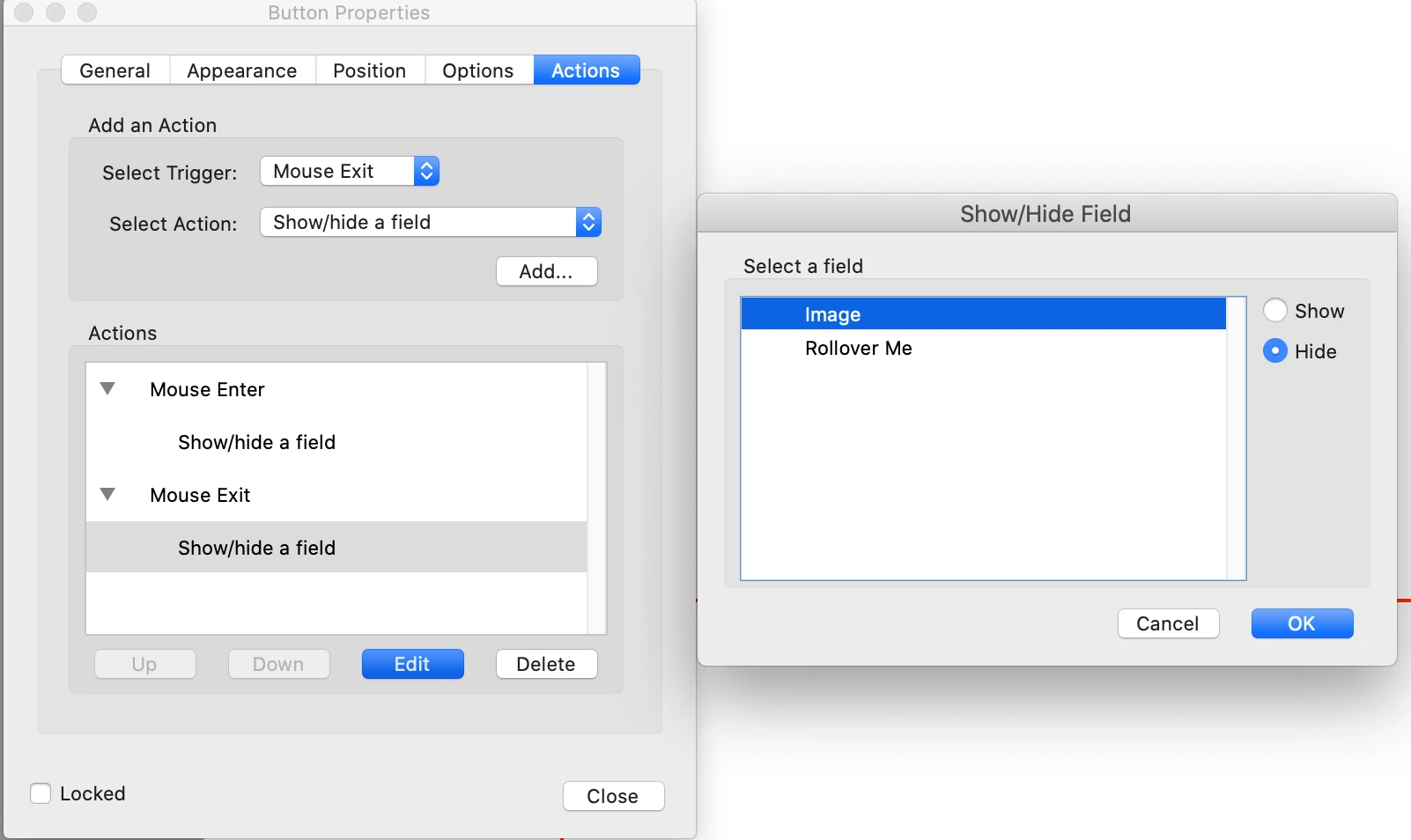

2. Second button is for clicking and rollovering.Add your rollover text in the tooltip. Then add two triggers, one to show the image field when the mouse enters, and the other to hide the image field when the mouse exits.







I have attached a sample file for you.

    J
    Julian28011346zhmdAuthor
    Participant
    January 20, 2023

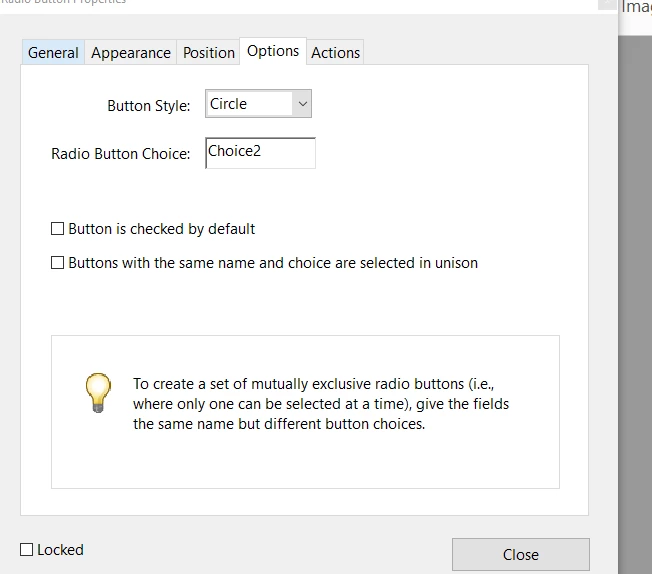

    Thank you Document Geek for your hasty reply. I have had a look at the video link you sent me but my problem is that I dont have the same layout as you or in the video. I am using a windows pc, so i dont know if thats got something to do with it, but as you see friom my screen grab, i dont have that layout in the "options" section where i can select "behaviour" .. so where to from there?

    Thank you

    Document Geek
    Community Expert
    Document GeekCommunity Expert
    Community Expert
    January 20, 2023

    Click on the Circle drop-down and change it to icon only.
