Split the batch into multiple pages according to the red frame

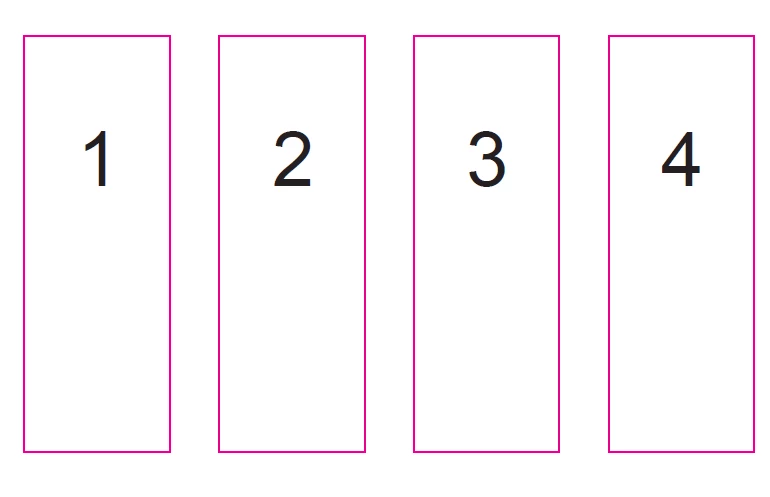

There are multiple red outer frames on a single PDF page. How to split it into multiple pages based on the size of these frames? I know this can be done using ExtendScript with Illustrator, but I want a simpler method that only uses scripts in Adobe Acrobat.





bebarth
bebarthCorrect answer
Community Expert
October 20, 2025

If it's possible for you to add marks to indicate the areas to be cropped, I think it's easier with square-type annotations.
In fact, the difficulty for you will come from the number of areas to indicate in the document, but if they're already drawn, that simplifies things a bit...
I've used this method in the past to crop different text areas in a document and extract them one by one.
This is an answer that certainly won't suit everyone, but it shows a possibility of using in JavaScript.
Here's a script that will do this:

var nbPages=this.numPages;
for (var p=0; p<nbPages; p++) {
	var zones=[];
	var annots=getAnnots({nPage:p});
	if (annots!=null) {
		for (var i=0; i<annots.length; i++) {
			if (annots[i].type=="Square") {
				zones.push(annots[i].rect);
			}
		}
		for (var i=0; i<zones.length-1; i++) {
			this.insertPages({
				nPage: p,
				cPath: this.path,
				nStart: p
			})
		}
		for (var i=0; i<zones.length; i++) {
			this.setPageBoxes({
				cBox: "Crop",
				nStart: p+i,
				rBox: zones[i]
			})
		}
	}
	p+=zones.length;
	nbPages+=zones.length;
}
var annots=getAnnots();
for (var i=0; i<annots.length; i++) {
	if (annots[i].type=="Square") annots[i].destroy();
}
this.saveAs(this.path.replace(/.pdf$/i,"_Cropped.pdf"));

Below, you will find your example on several pages before and after cropping.

@+

3 replies

bebarth
Community Expert
bebarthCommunity ExpertCorrect answer
Community Expert
October 20, 2025

If it's possible for you to add marks to indicate the areas to be cropped, I think it's easier with square-type annotations.
In fact, the difficulty for you will come from the number of areas to indicate in the document, but if they're already drawn, that simplifies things a bit...
I've used this method in the past to crop different text areas in a document and extract them one by one.
This is an answer that certainly won't suit everyone, but it shows a possibility of using in JavaScript.
Here's a script that will do this:

var nbPages=this.numPages;
for (var p=0; p<nbPages; p++) {
	var zones=[];
	var annots=getAnnots({nPage:p});
	if (annots!=null) {
		for (var i=0; i<annots.length; i++) {
			if (annots[i].type=="Square") {
				zones.push(annots[i].rect);
			}
		}
		for (var i=0; i<zones.length-1; i++) {
			this.insertPages({
				nPage: p,
				cPath: this.path,
				nStart: p
			})
		}
		for (var i=0; i<zones.length; i++) {
			this.setPageBoxes({
				cBox: "Crop",
				nStart: p+i,
				rBox: zones[i]
			})
		}
	}
	p+=zones.length;
	nbPages+=zones.length;
}
var annots=getAnnots();
for (var i=0; i<annots.length; i++) {
	if (annots[i].type=="Square") annots[i].destroy();
}
this.saveAs(this.path.replace(/.pdf$/i,"_Cropped.pdf"));

Below, you will find your example on several pages before and after cropping.

@+

Translate
Thom Parker
Community Expert
Community Expert
October 16, 2025

Those rectangles are part of the page content. A script cannot get any information on page graphics.  If the rectangles are a consistent known size, then a script could be written to split the page. But if not, then unless you follow the advice from PDF_AS and add fields or some other type of annotation to mark the location, a scripted solutions is not possible.  This could be done with a plug-in, but it would be tricky and expensive.





Translate
Thom Parker - Software Developer at PDFScriptingUse the Acrobat JavaScript Reference early and often
PDF Automation Station
Community Expert
Community Expert
October 16, 2025

1) Create a form field for each rectangle to get the rect property of each area by running the following script in the console:

this.getField("Text1").rect;

2)  Run a script to crop the page.

3)  Run a script to save the file.

4)  Reverse crop the page and repeat for the next area:

https://pdfautomationstation.substack.com/p/cropping-and-reverse-cropping-pdf
