Why are my scanned documents so blurry?

  • February 20, 2022
  • 2 replies
  • 19545 views

I vainly spent a lot of time on trying to get text of scanned documents look crispy.

For one reason or the other they look blurry.

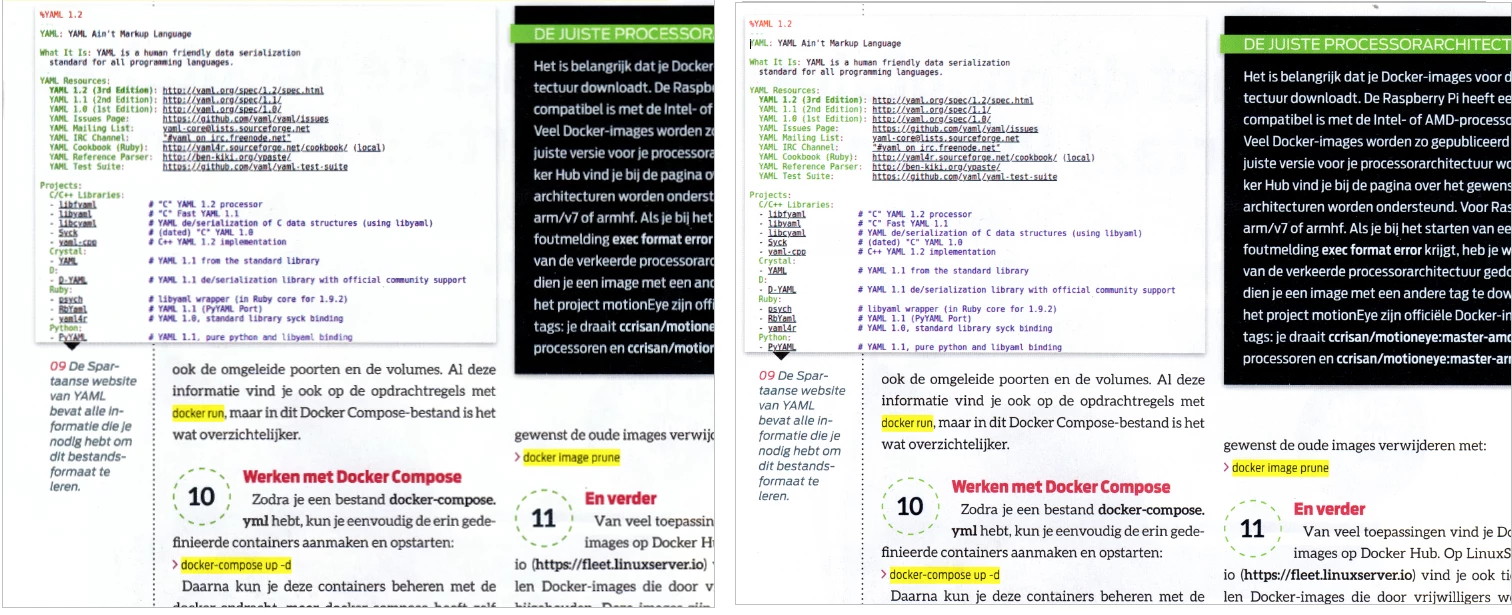

Attached 3 examples.

It is screenshot of text from Word, saved as a PNG file

1. Left is the screenshot opened by a viewer
2. In the middle is that screenshot converted to PDF - r-click convert to PDF - no, or no significant, loss
3. I printed the PNG file, printout looked fine, and then scanned it - result on the right.
View is 100%, scan is 300dpi, document size A4 (210x297mm) scanner Epson 5620



FWIW I have put some screenshots here.



Hope someone has a clue...

Thanks in advance.



    This topic has been closed for replies.
    Correct answer adwul62

    @gary_sc

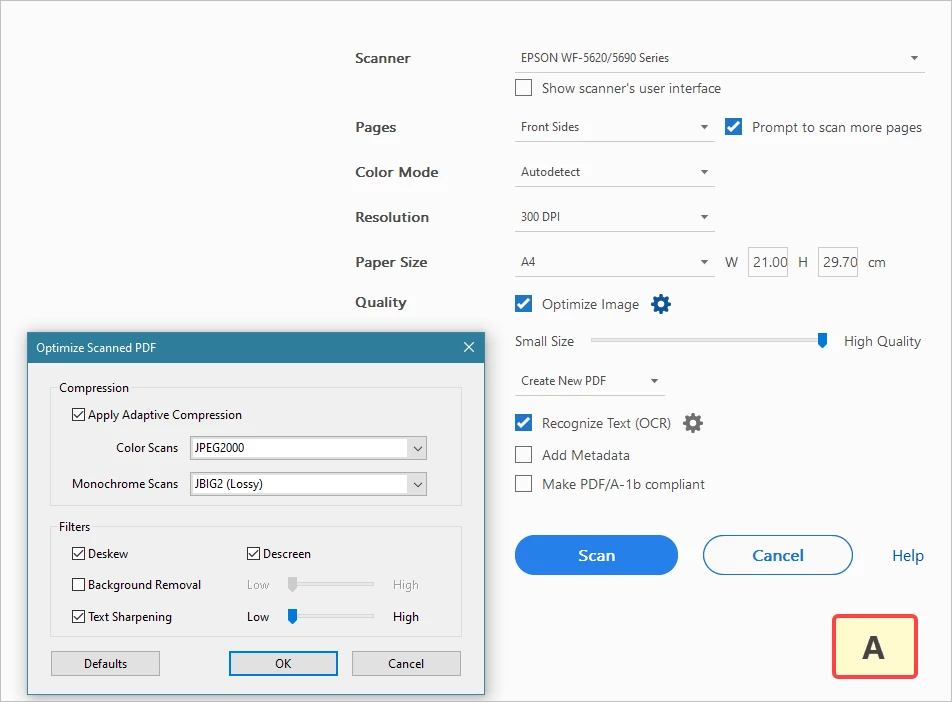

    For your info, the settings I am scanning with are in the 4th attachment. 300dpi. At that point there is 'Exact Search'



     



     

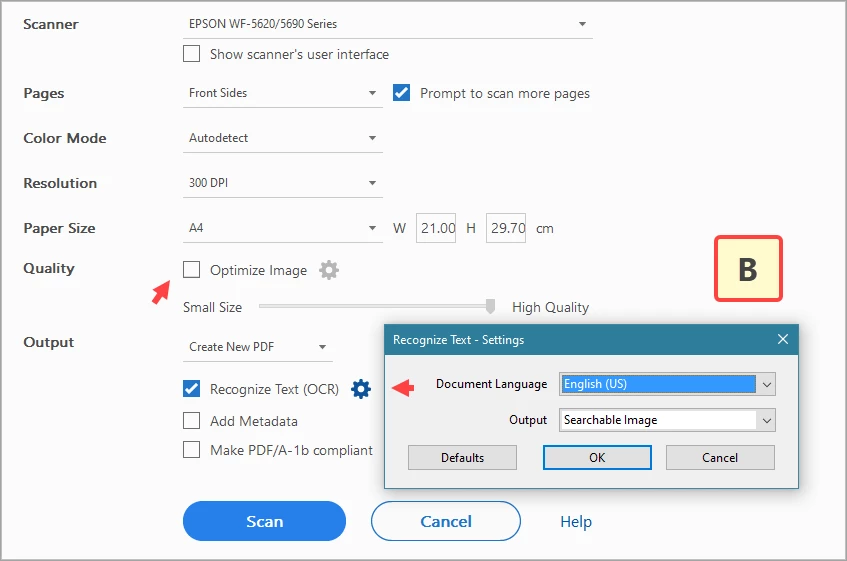

    However, I just found out: I should disable optimize... resulting in a fine scan. 

    have added them as an attachment as I believe they don't come thru when pasting in this thread.
    Pls do check out the attachments.







     

    2 replies

    gary_sc
    Community Expert
    gary_scCommunity Expert
    Community Expert
    February 21, 2022

    Hi Adwul62,



    Quick question for you. First, thanks for showing us your application settings, that helps. However, there was one I did not see. If you go to the Settings in OCR, you can get there one way here (there are several ways to this setting)

    After opening that up, there are three ways to process the content, see below:

    Which of the three ways is your system set to? Whatever it is set to, please try one of the others.



    Also, I noticed that in your 3nd screenshot, you show using PNG format. Please try selecting TIF.



    Lastly, In the last screenshot, there is an option to use the Scanner's software ("Show Scanner's User Interface.") Can you show what the default settings are when that box is checked?



    Thank you,

     



     

    A
    adwul62Author
    Inspiring
    February 22, 2022

    Sorry for the delay. Was busy yesterday.

    I am using Adobe Acrobat Pro 2020 (2020.004.30020) standalone version.
    Also I am following the steps as per  https://helpx.adobe.com/acrobat/using/scan-documents-pdf.html
    This results in a poor quality scan, compared to when scanning the same document to .jpg first and convert the jpg to .pdf
    First scanning to .jpg and subsequently combine those to a .pdf  is a bit of a workaround.

    @gary_sc
    I'll have to go out again now, will do some further testing this afternoon.
    Will get back on this.

    Many thanks for the replies so far.

    Amal.
    Community Manager
    Amal.Community Manager
    Community Manager
    February 21, 2022

    Hi there



    Hope you are doing well and sorry to hear that.



    Would you mind sharing the version of the Acrobat DC you are using? To check the version go to Help > About Acrobat and make sure you have the recent version 21.11.20039. Go to Help > Check for updates and reboot the computer once.



    Also try to create the PDF from the scanner as described here https://helpx.adobe.com/acrobat/using/scan-documents-pdf.html and see if that works for you.



    Also check for any missing/pending updates for scanner driver and firmware and try updating it and check.



    Regards

    Amal
