Can't find it in the JSFL: Apply to pasteboard, Hide editing controls, Bone style

[neonimator]

Hello everyone!

I hope it's okay that the topic includes three points. Still, they all belong to the API.

I am working on a small extension for Adobe Animate and could not find information about the three parameters in the "Animate JS API Documentation" on Github.

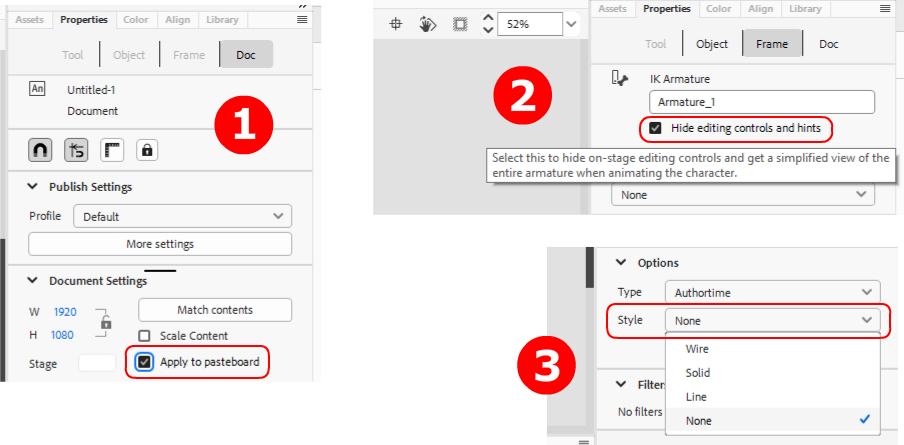

1. Properties > Doc > Document Settings > Apply to pasteboard
2. Properties > Frame > IK Armature > Hide editing controls and hints
3. Properties > Frame > IK Armature > Options > Style > None/Line

The History panel does not display the code of these operations.
Perhaps someone knows how to access these parameters?

[neonimator]

Hello. After creating this post, my IP was blocked on "community.adobe.com ". Login is only possible via VPN. I'm sorry if you wrote in private messages and I don't answer you for a long time.

[kglad]

check your history panel.  you'll find stuff that can't be used has a red x (eg, apply to pasteboard).

[neonimator]

I checked, but hoped that the "red x" could be bypassed through the API.

[kglad]

i don't see anything in the api about pasteboard, https://github.com/AdobeDocs/developers-animatesdk-docs/blob/master/Document_object/document_summary...

[neonimator]

I didn't see it either, but I was hoping I missed something, or the developers have a newer version of the documentation and they will share the secret. Who knows, maybe it will happen)

[kglad]

you could make a request.   to report bugs or ideas or wishes to adobe: for applicable apps, use https://helpx.adobe.com/ie/x-productkb/global/how-to-user-voice.html

for createive cloud assets:

bugs, https://community.adobe.com/t5/adobe-collaboration-experiences/ct-p/ct-adobe-collaboration-experienc...

requests, https://community.adobe.com/t5/adobe-collaboration-experiences/ct-p/ct-adobe-collaboration-experienc...

for others, use https://www.adobe.com/products/wishform.html

if neither show a place to report the issue, just leave it here. that's the best you can do.

[JoãoCésar · Accepted solution]

Hi.

For the pasteboard check, you can run:

fl.getDocumentDOM().pasteboardColorCheck = true;

But unfortunately everything Ik related seems to be handled internally by Animate.

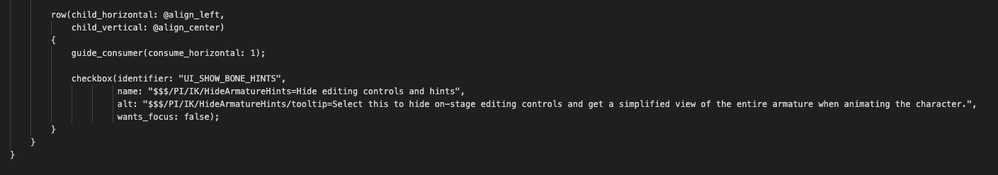

Hide editing controls and hints:

/Applications/<ANIMATE>/<ANIMATE>.app/Contents/Helpers/HeadlessAnimateApp.app/Contents/Resources/eve/piIKFrameHdr.eve

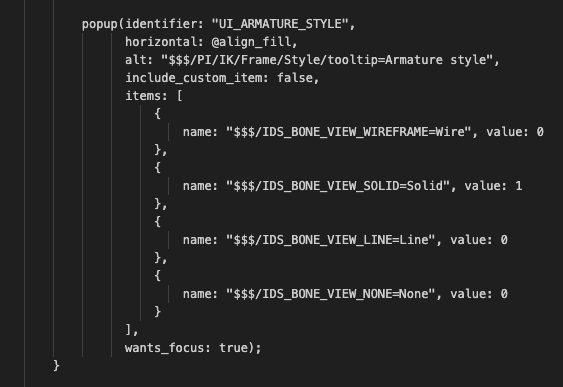

Armature style:

/Applications/<ANIMATE>/<ANIMATE>.app/Contents/Helpers/HeadlessAnimateApp.app/Contents/Resources/eve/piIKFrameOptions.eve

The only references to IK in the JSFL documentation are the layer.animationType, frame.tweenType, and layer.tweenType properties as far as I can tell.

Regards,

JC

[kglad]

@JoãoCésar

do you know an api reference that lists the pasteboardColorCheck property?

[JoãoCésar]

Unfortunately no.

I just used JSFL to iterate over the DOM object to look for this property.

[kglad]

yikes.  that's terrible (to hear).
