Dynamic Text Alignment

[Guest]

Hello everybody.... well my question is ... How I can align a dynamic text loading xml file?

My code on Actionscript and XML is :

XML code:

It load the halls with text only....

<halls>
    <hall>Congress A </hall>
    <hall>Congress B</hall>
    <hall>Congress C</hall>
    <hall></hall>
    <hall></hall>
    <hall></hall>
    <hall></hall>
    <hall></hall>
    <hall></hall>
    <hall></hall>
</halls>

AS code:

var urlLDR:URLLoader=new URLLoader();

urlLDR.addEventListener(Event.COMPLETE,f);

urlLDR.load(new URLRequest("hallsXML.xml"));

function f(e:Event) {

    var xml:XML =new XML(urlLDR.data);

    TXTvHall.text = "";

    for(var i:uint=0;i<xml.hall.length();i++){

        TXTvHall.appendText(xml.hall+"\n");

    }

}

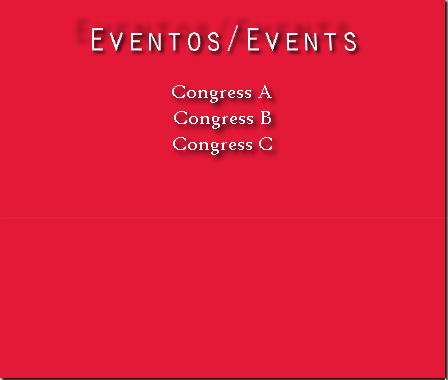

The result of my flash is the next  in the dynamic text... so as you can see it doesnt appear aligned in the center..

How can I do that?

[kglad]

center your textfield and assign its align property to "center".

[Guest]

Not sure what we're supposed to be looking for? Is your text field set to center? In the Properties panel in the Paragraph section you can choose center.

[Guest]

the dynamic is set on center alignment... but the loeaded xml file is not... i mean... if i only have one hall text.. it look like this:

so i want to appear on the middle of the dynamic ....

[Guest]

No idea what you are showing with these images... what is not centered???

[newToAS3]

dmennenoh wrote:

No idea what you are showing with these images... what is not centered???

I think he meant to say "verticaly aligned"... now it's just horizontaly aligned.

I didn't read all the topic but it shouldn't be difficult to do so.

[kglad]

you want vertical alignment?  if so, assign autoSize to "center" and subtract your textfield's height from the display region height and divide that difference by two.  assign your textfield's y property to that quotient.

[Guest]

yes i want vertical alignment... where i need to code... on AS or XML?... and wich will be the code

[kglad]

assign autoSize to "center" and  subtract your textfield's height from the display region height and  divide that difference by two.  assign your textfield's y property to  that quotient.

[Guest]

ok I assigned autoSize to "center" and  subtract text field -dynamic text- height (405.85) from  the display region height (1024) and  divide that difference by two (309.7).  Also i assigned  that quotient to y property.

So I encode like this on my AS file:

var urlLDR:URLLoader=new URLLoader();
urlLDR.addEventListener(Event.COMPLETE,f);
urlLDR.load(new URLRequest("hallsXML.xml"));

function f(e:Event) {

    var xml:XML =new XML(urlLDR.data);
    TXThall.autoSize = "center";
    TXThall.y = 309.7;
    TXThall.text = "";
    for(var i:uint=0;i<xml.hall.length();i++){

        TXTHall.appendText(xml.hall+"\n");
    }

}

but it doesnt work... It just positions the  first event in the 'y' coordinate (309.7) and the others down below not aligned vertically... and always the first event in that y position.

[kglad]

use:

var urlLDR:URLLoader=new URLLoader();
urlLDR.addEventListener(Event.COMPLETE,f);
urlLDR.load(new URLRequest("hallsXML.xml"));

function f(e:Event) {

    var xml:XML =new XML(urlLDR.data);
    TXThall.autoSize = "center";
    TXThall.text = "";
    for(var i:uint=0;i<xml.hall.length();i++){

        TXTHall.appendText(xml.hall+"\n");
    }

TXThall.y=(TXTHall.height-stage.stageHeight)/2;

}

[Guest]

OK... I copy and paste as same you wrote... and its not showing nothing....

any ideas??

[Guest]

kglad made a booboo...

TXThall.y=(TXTHall.height-stage.stageHeight)/2;

That line should be:

TXThall.y=Math.floor((stage.stageHeight - TXTHall.textHeight) / 2);

I like to use Math.floor to round to an integer so you don't put text on a fractional pixel - which can make it blurry. I also like to use textHeight on text fields just to be sure you don't use any extra white space in the field.

[Guest]

I change that line but is the same result....

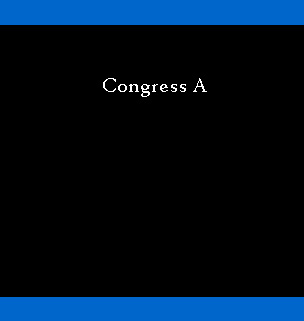

If I have one event it look like this:

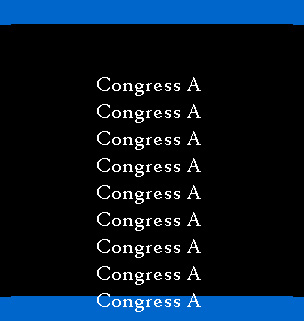

and if I fill all events look like this:

as you can see it doesnt align vertical....its the same alignment on the two images.... here is my code again...

var urlLDR:URLLoader=new URLLoader();
urlLDR.addEventListener(Event.COMPLETE,f);
urlLDR.load(new URLRequest("hallsXML.xml"));

function f(e:Event) {

    var xml:XML =new XML(urlLDR.data);
    TXThall.autoSize = "center";
    TXThall.text = "";
    for(var i:uint=0;i<xml.hall.length();i++){

        TXThall.appendText(xml.hall+"\n");
    }

TXThall.y= Math.floor((stage.stageHeight - TXThasll.textHeight) / 2);

}

My page size of the project is 768 * 1024 and the position & size of the dynamic text is X: 384.0    Y: 332.5  W: 664.0    H: 405.9...

I dont know if it helps that data....

Thanks for responding and I hope you can help me figure out this...
