How do I specify a semi-transparent text box in Framemaker?

Community Beginner ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

I'd like to create a semi-transparent text box so that the background image subtly shows through the text box without affecting overall readability of the text.

I read an older forum post that indicates it cannot be done, however, I'm hoping that is not the case now.  When I look at the Help related to Text Frame Properties > Fill, it looks like I might be able to use Tint to get a transparent effect, but that doesn't seem to work (I must have misunderstood).

Please advise.

Thanks

Lynn

TOPICS
Formatting and numbering

Views

1.7K

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

I think you might find this thread helpful, and while it is almost 5 years old, as far as I know it is still correct.

Transparency in FrameMaker 11

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Basically, FM is not the tool for this sort of opacity. Whenever I've needed to do it, I've pre-composed as much as necessary in Illustrator.

But there is a way to hack it FM. Frame Art vector objects can be transparent, and can be scaled to arbitrarily small sizes. A grid of small white objects could be created, kept on a Reference Page, copied and placed behind text, and scaled as needed. Relative opacity would be determined by stroke weight. This is a transparent white point cloud.

I just tried it with a grid of tiny white circles. Performance is not great, but it works. A semi-random grid of near point-size single non-overlapping lines at random angles might be ideal (dithered), as it would avoid most of the risk of aliasing and have the least performance impact. If I had an on-going need for such a thing, I'd be tempted to use a spreadsheet to generate the object as MIF, otherwise it's a huge amount of effort.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Thanks Bob. I'm not familiar with Frame Art. I'm also not familiar with the MIF workaround. I've worked with MIFs to perform find-and-replace sweeps of parameters in the code related to graphic changes. I've never created anything new in MIF.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

re: I'm not familiar with Frame Art.

That's the data structures that the FM graphics tools generate.

re: I'm also not familiar with the MIF workaround.

It's not a workaround - it's more of a thought experiment, where the basic function works, but practical implementation might not.

re: I've worked with MIFs to perform find-and-replace sweeps of parameters in the code related to graphic changes. I've never created anything new in MIF.

I have used a spreadsheet to generate long complex Bills of Materials tables with embedded markers, callout numbers and descriptor via an API call. I have not used this hack to generate FrameArt.

If we imagine that the data object we need on the Reference Page is a 300 dpi 8x10in white point cloud, it would need a grid of over 7 million dithered short white vectors, each of the general form:

<PolyLine

   <Unique 998295>

   <Pen 0>

   <PenWidth  0.1 pt>

   <Separation 1>

   <ObColor `White'>

   <HeadCap Square>

   <TailCap Square>

   <NumPoints 2>

   <Point  0.999" 0.999">

   <Point  1.998" 1.998">

  > # end of PolyLine

7 million incrementing slightly different <Point coordinates would have to be generated by a program. It might even break a spreadsheet just due to size.

However generated, it would end up being a 2 Gbyte MIF and when saved as .fm would add perhaps tens of MB to any FM file that hosted it. Performance might be glacial, even when viewing via PDF.

On reflection, some embedded Postscript looks more practical. That I've never had to do.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Thanks for the link. I think the short answer here is "No". Too bad.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Yes, I agree.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

To be clear (for anyone searching for the same thing) -- you can't create a semi-transparent text frame/text box in Framemaker. Looks like there are some creative alternatives, but no built-in support.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Mar 12, 2017 Mar 12, 2017

Copy link to clipboard

Copied

Lynn,

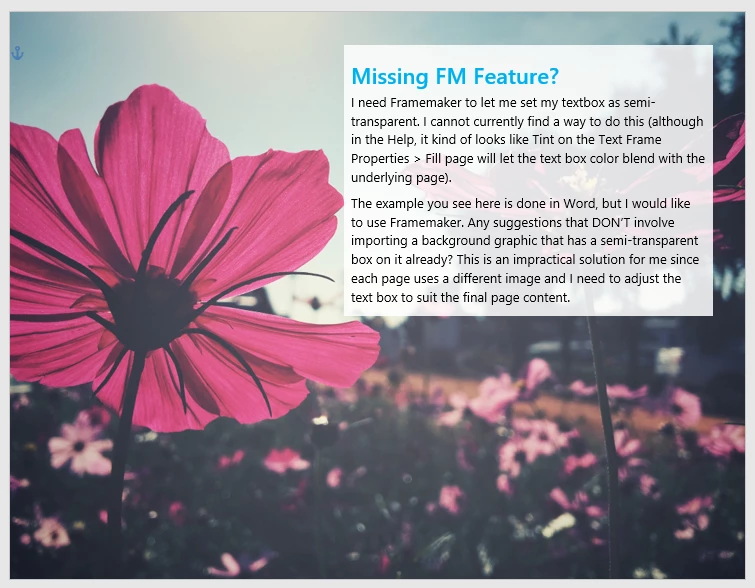

Paraphrasing: To be clear, one CAN create the appearance of a semi-transparent text-box/frame in FrameMaker [in PDF output]. From your initial post, I believe that you were trying to create something like this:


This can be done a bit more easily than I initially thought and with scripting, could be quite an easy to use feature. The key is to use an EPS file to import the transparency frame, resize it to the same dimensions/location of the text frame and ensure that it is stacked between the image and the text frame.

If anyone is interested, I will create a detailed write-up of this technique.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Mar 13, 2017 Mar 13, 2017

Copy link to clipboard

Copied

re: If anyone is interested, I will create a detailed write-up of this technique.

I'll take you up on that. The normal trick (for clipping path in EPS) of setting Pen and Fill to None doesn't work.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Mar 13, 2017 Mar 13, 2017

Copy link to clipboard

Copied

OK Bob,

I'll write it up and post it in the Forum Documents section. I'm exploring a few more options that can be done, like Blend modes.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Apr 17, 2017 Apr 17, 2017

Copy link to clipboard

Copied

LATEST

A tutorial on creating live transparency in PDFs with any version of FM has been posted in the Documents section:

How to create live transparency in PDFs using FrameMaker

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Unfortunately, Fm will recognize transparency within a placed graphic, but not transparency relative to other FrameMaker objects.

Thus, this .ai file with no background behind the 2 rectangles (one white, 50% transparency, one green, 50% transparency) shows like this when placed in FrameMaker:

Screenshot 2017-03-09 16.16.13.png

and shows up like this when saved as PDF. The image is transparent relative to itself, but not relative to the background in FrameMaker.

Screenshot 2017-03-09 16.21.43.png

I'll leave it to ArnisG​ to grumble about the fact that the background doesn't render properly in the imported graphic frame.

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Enthusiast ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Lynn,

I have used a PostScript Code text frame in FrameMaker many years ago for some long-forgotten special effects. If you are printing to PDF or a PostScript printer there are all sorts of things that can be done. The only problem is that you only get to see the results in the output.

Postscript can handle transparency, so by editing the PostScript code you can achieve the results that you want. I think this is something that could be automated with ExtendScript...

Ian

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Mar 09, 2017 Mar 09, 2017

Copy link to clipboard

Copied

Technically speaking, postscript is still an opaque colour model. However, there now is a pdfmark operator that allows Distiller to create transparency from postscript in PDF versions 1.6 (Acrobat 7.0) and greater. This is the SetTransparency pdfmark. So, using postscript text frames in FM does allow one to sneak in the transparency effect, but one has to also manually enable the transparency in the PDF joboptions file [this is not accessible through the Distiller edit interface] by setting "  /AllowTransparency true".

In the example below, I've created a postscript text frame in the Aframe with the image. The postscript code specifies a green rectangle with a 50% transparent orange rectangle partly covering it. Note the image part in the orange rectangle.

As a production tool having the transparent box contain your text, it's really not a practical thing. You would have to postscript code the size of each of your transparent text frames and then overlay the actual FM text frame to fit.

Conclusion: for a special effect, transparency effects can [now] be done in FM. However, from a maintenance and production point of view, it's a total PITA!


P.S. I haven't explored using pre-defined EPS files with fixed-size semi-transparent rectangular areas to match various text-frame sizes. This could make things a bit easier, but it would still be PITA for non-geeks.
