blurry lines when exporting to svg

  • June 17, 2021
  • 4 replies
  • 2817 views

I am a drawin a shematic illustration that are going to be imported to a control system as a svg file. The picture looks good exept the pipes they gets blurry and pixelated when I export them to svg. I am drawing them as a line and then ad thick line with a gradient color. How can I fix the lines so they wont get so blurry and ugly?

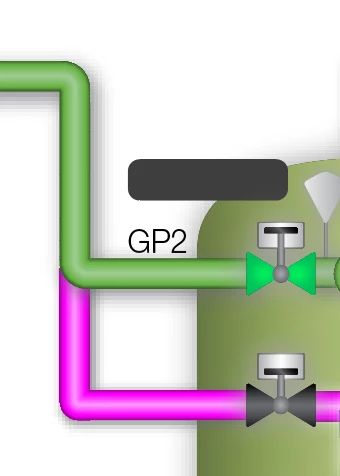

First picutre is a screenshot from illustrator

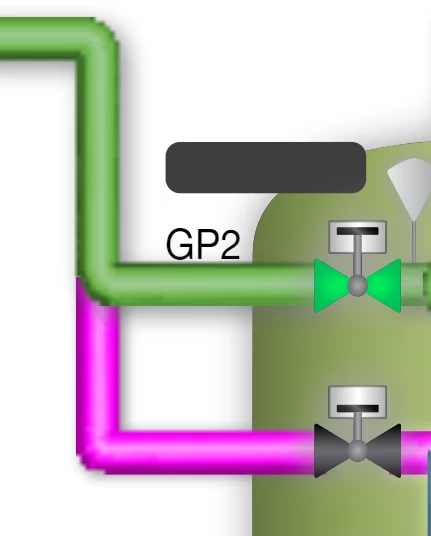

the last picutre is a screen shot from when the svg is opend, I tried open it both through browsers and inkscape.

This topic has been closed for replies.

4 replies

C
christer.b.ProCAuthor
Participant
June 18, 2021

Thanks for the responds, I been testing my way through today, and got a god results of making pipe parts out of boxes. straights, different angles and so on. Put a graident on them to look good. So now I cna build a complete system out of pipe parts.

John Mensinger
Community Expert
John MensingerCommunity Expert
Community Expert
June 17, 2021

Another option could be to just Expand those objects in (a copy of) the file before exporting to SVG.

Ton Frederiks
Community Expert
Ton FrederiksCommunity Expert
Community Expert
June 17, 2021

You could try to use an Artwork brush.

Create a rectangle filled with a back > white > black gradient, 90 degrees.

Choose Object > Expand and set the number of objects.

Create an Artwork brush from the result and set the colorization method to tints.

Use the brush on your lines.

Monika Gause
Community Expert
Monika GauseCommunity Expert
Community Expert
June 17, 2021

SVG doesn't support gradients accross strokes.

You have to read the SVG specifications about what SVG supports and then come up with a design that works. Possibly without a gradient like this.



Maybe you can achieve it with an SVG filter.
