Cannot turn off Cap on 3D object in Illustrator

Participant ,
Mar 26, 2023 Mar 26, 2023

Copy link to clipboard

Copied

I am trying to create a hollow circular band in Illustrator 27.3.1. I’m on a Mac, OS 12.6.3

Seems simple enough:
1. I created a rectangle.

  1. In the 3d and Materials panel, I clicked on Revolve and set it at 360º. Now I’ve got a nice solid disk. So far, so good.
  2. But when I click on the Cap setting that indicates “Turn cap off for hollow appearance” nothing happens. Still looks like a solid disk instead of the hollow band look I am going for.



Am I doing something wrong?

TOPICS
Draw and design

Views

368

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Community Expert , Mar 26, 2023 Mar 26, 2023

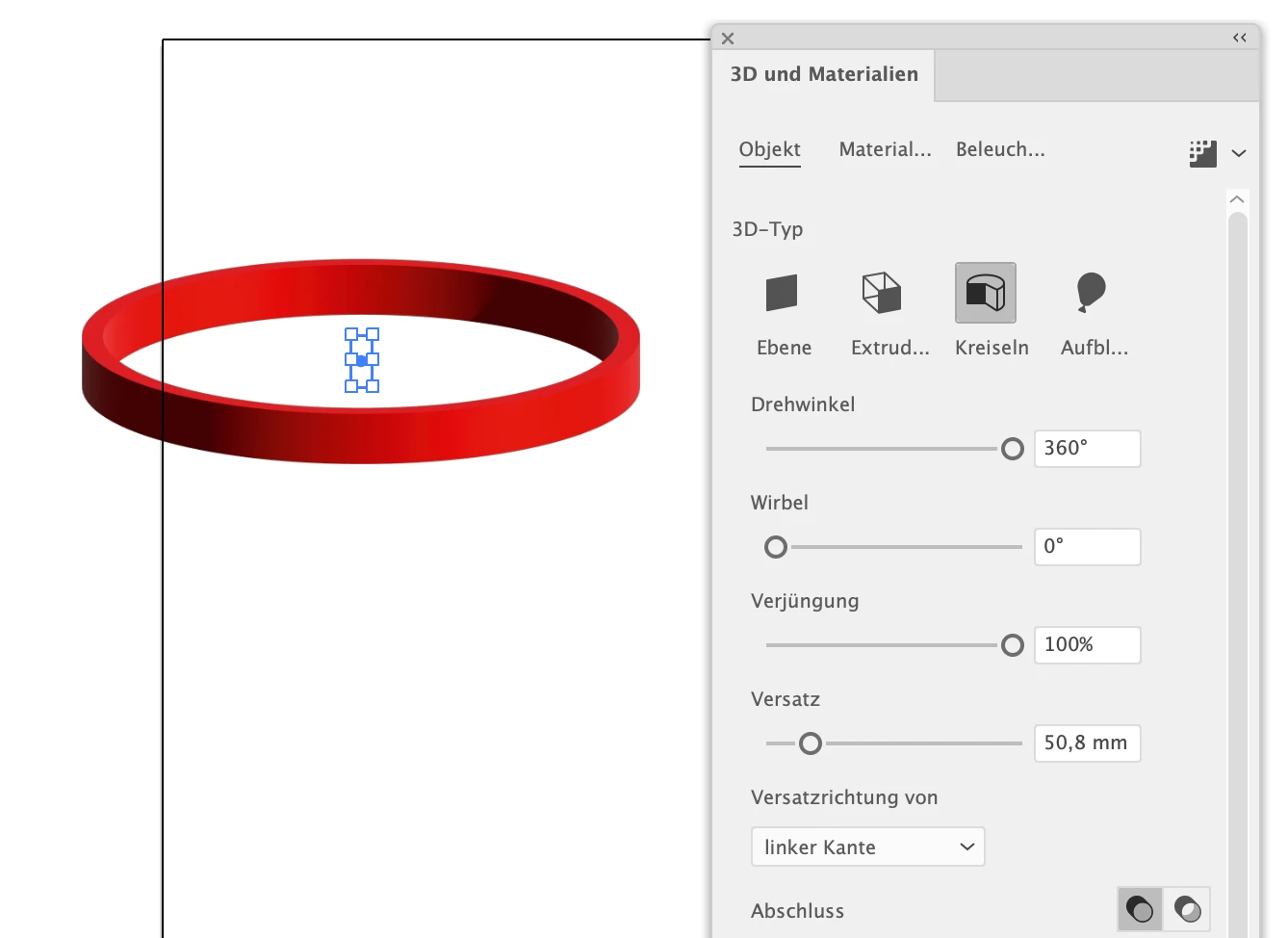

To create a band, use the offset:
