Convert mesh to normal paths

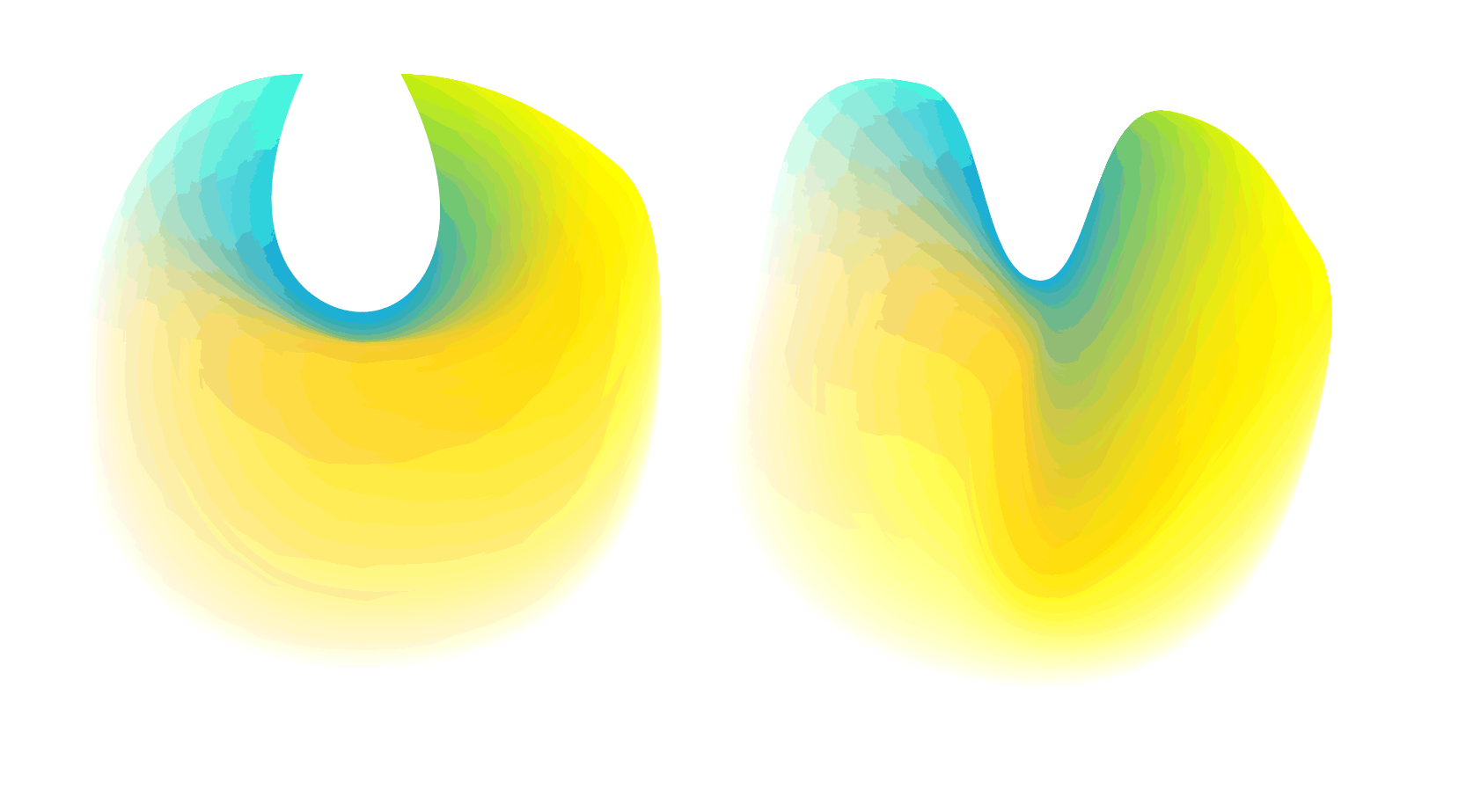

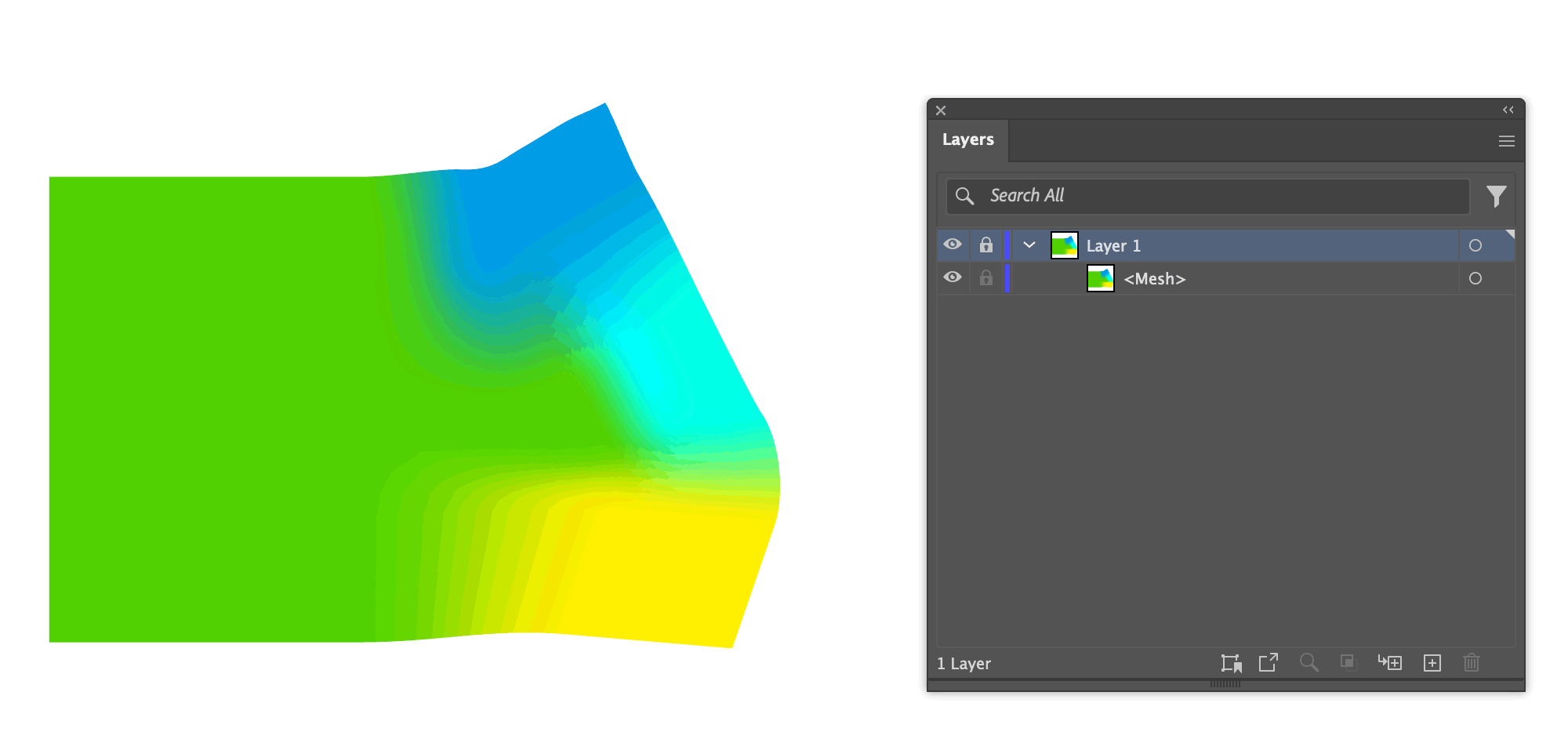

Hi @chadulus2, I've written a script that works with the idea I mentioned earlier—saving as an Illustrator version 8 file. It works because it reads the plain text coordinates directly from the saved file and then draws them into the document. Each patch of the mesh is a path item.

Give it a try and let me know if it helps in your case.

- Mark

/**
 * @file Draw Geometry Of MeshItems.js
 *
 * Will add a path item for each patch
 * of each mesh item in the document.
 *
 * Note: document must be saved before
 * running script.
 *
 * @author m1b
 * @version 2025-10-18
 * @discussion https://community.adobe.com/t5/illustrator-discussions/greyed-out-script/m-p/15545562
 */
(function () {

    var settings = {
        drawAsPatches: false,
        layerName: 'meshes',
        showUI: true,
    };

    if (0 === app.documents.length)
        return alert('Please open a document and try again.');

    var doc = app.activeDocument;

    if (!doc.saved)
        return alert('Please save document and try again.');

    if (settings.showUI) {

        var result = ui(settings);

        if (2 === result)
            // user cancelled
            return;

    }

    // how to draw the mesh geometry
    settings.drawMesh = settings.drawAsPatches ? drawMeshAsPatches : drawMeshAsGridLines;

    // save temp document as AI version 8 (plain text)
    var original = doc.fullName;
    var so = new IllustratorSaveOptions();
    so.compatibility = Compatibility.ILLUSTRATOR8;
    so.compressed = true;
    var tempFile = File(Folder.temp + '/tmp.ai');
    doc.saveAs(tempFile, so);
    doc.close();

    // restore original document
    app.open(original);
    doc = app.activeDocument;

    // read the mesh coords
    var meshes = readMeshData(tempFile);

    // draw the meshes as path items
    var pathItems = [];

    // get a safe layer to draw to
    var layer = getThing(doc, 'name', settings.layerName) || doc.layers.add();
    layer.name = settings.layerName;
    layer.visible = true;
    layer.locked = false;

    // draw the meshes
    for (var i = 0; i < meshes.length; i++) {

        var group = layer.groupItems.add();
        group.name = 'mesh ' + (i + 1);

        pathItems = pathItems.concat(settings.drawMesh(group, meshes[i]));

    }

    if (0 === pathItems.length)
        alert('No mesh items found in document.');

})();

/**
 * Extract MeshItem coordinates from an Illustrator v8 file.
 * Will return an array containing mesh data for each mesh found.
 * @author m1b
 * @version 2025-10-18
 * @param {File} file - the file to read.
 * @returns {Array<Array<patch>>} - the mesh data objects.
 */
function readMeshData(file) {

    const MATCH_PATCH_START = /%_\[([^\]]+)\] \/P X#/;
    const MATCH_PATCH_END = /%_\/E X#/;
    const MATCH_PATCH_COORDS = /%_\[([^\]]+)\] \/N X#/;

    if (!file.exists)
        return;

    file.open('r');

    var meshes = [];
    var mesh;
    var patch;
    var line;
    var match;
    var coords;

    while (!file.eof) {

        line = file.readln();
        match = line.match(MATCH_PATCH_START);

        if (
            null !== match
            && 2 === match.length
        ) {
            // start new patch
            patch = { name: match[1], rowIndex: -1, columnIndex: -1, points: [] };

            var parts = patch.name.split(' ');

            if (2 !== parts.length)
                continue;

            patch.rowIndex = Number(parts[0]);
            patch.columnIndex = Number(parts[1]);

            if (
                isNaN(patch.rowIndex)
                || isNaN(patch.columnIndex)
            )
                continue;

            if (
                0 === patch.rowIndex
                && 0 === patch.columnIndex
            ) {
                // start new mesh
                mesh = [];
                meshes.push(mesh);
            }

            mesh.push(patch);
            continue;

        }

        if (!patch)
            // nothing
            continue;

        var match = line.match(MATCH_PATCH_COORDS);

        if (
            null === match
            || 2 > match.length
        ) {

            if (MATCH_PATCH_END.test(line))
                // end of patch
                patch = undefined;

            // part of a patch, but not geometry;
            continue;

        }

        var coords = match[1].split(' ');
        // start new point
        var numbers = [];

        for (var i = 0; i < coords.length; i++) {
            numbers.push(Number(coords[i]));
        }

        var len = numbers.length;

        patch.points.push({
            anchor: [numbers[len - 8], numbers[len - 7]],
            leftDirection: [numbers[len - 3], numbers[len - 2]],
            rightDirection: [numbers[len - 6], numbers[len - 5]],
        });

    }

    return meshes;

};

/**
 * Draws mesh patches.
 * @author m1b
 * @version 2025-10-18
 * @param {Document|Layer|GroupItem} container - the location of the new path items.
 * @param {Object} patches - patch objects { name:"", points:[] }.
 * @returns {Array<PathItem>}
 */
function drawMeshAsPatches(container, patches) {

    if (!container.hasOwnProperty('pathItems'))
        throw new Error('drawMesh: bad `container` supplied.');

    var pathItems = [];

    for (var i = 0; i < patches.length; i++) {

        var patch = patches[i];
        var pathItem = drawPath(container, patch.points, patch.name);
        pathItem.closed = true;
        pathItems.push(pathItem);

    }

    return pathItems;

};

/**
 * Draw mesh grid lines (rows and columns).
 * @author m1b
 * @version 2025-10-18
 * @param {Document|Layer|GroupItem} [container] - the container to draw in.
 * @param {Array<Object>} patches - array of patches {name: points:}.
 * @returns {Array<PathItem>}
 */
function drawMeshAsGridLines(container, patches) {

    var map = [];
    var maxRow = 0;
    var maxCol = 0;

    // parse patch names
    for (var i = 0; i < patches.length; i++) {

        var p = patches[i];

        if (!map[p.rowIndex])
            map[p.rowIndex] = [];

        map[p.rowIndex][p.columnIndex] = p;

        if (p.rowIndex > maxRow)
            maxRow = p.rowIndex;

        if (p.columnIndex > maxCol)
            maxCol = p.columnIndex;

    }

    var rowCount = maxRow + 1;
    var columnCount = maxCol + 1;

    // draw the lines
    var pathItems = [];
    var linePts = [];

    /* ------------------ *
     *  HORIZONTAL LINES  *
     * ------------------ */

    for (var r = 0; r < rowCount; r++) {

        for (var c = 0; c < columnCount; c++) {

            var patch = map[r][c];

            if (!linePts[c]) {
                linePts[c] = [];
            }

            if (!linePts[c + 1]) {
                linePts[c + 1] = [];
            }

            if (0 === c) {

                // right side of patch
                if (0 === r)
                    linePts[c][r] = {
                        anchor: patch.points[0].anchor,
                        leftDirection: patch.points[0].leftDirection,
                        rightDirection: patch.points[0].rightDirection,
                        pointType: PointType.CORNER,
                    };

                else
                    // fix join
                    linePts[c][r].rightDirection = patch.points[0].rightDirection;

                linePts[c][r + 1] = {
                    anchor: patch.points[1].anchor,
                    leftDirection: patch.points[1].leftDirection,
                    rightDirection: patch.points[1].rightDirection,
                    pointType: PointType.CORNER,
                };

            }

            // left side of patch
            if (0 === r)
                linePts[c + 1][r] = {
                    anchor: patch.points[3].anchor,
                    leftDirection: patch.points[3].rightDirection,
                    rightDirection: patch.points[3].leftDirection,
                    pointType: PointType.CORNER,
                };

            else
                // fix join
                linePts[c + 1][r].rightDirection = patch.points[3].leftDirection;

            linePts[c + 1][r + 1] = {
                anchor: patch.points[2].anchor,
                leftDirection: patch.points[2].rightDirection,
                rightDirection: patch.points[2].leftDirection,
                pointType: PointType.CORNER,
            };

        }

    }

    // draw horizontal lines
    for (var i = 0; i < linePts.length; i++)
        pathItems.push(drawPath(container, linePts[i], 'row ' + (i + 1)));


    /* ----------------- *
     *  VERTICAL LINES   *
     * ----------------- */
    var linePts = [];

    for (var c = 0; c < columnCount; c++) {

        for (var r = 0; r < rowCount; r++) {

            var patch = map[r][c];

            if (!linePts[r]) {
                linePts[r] = [];
            }

            if (!linePts[r + 1]) {
                linePts[r + 1] = [];
            }

            if (0 === r) {

                // bottom edge of patch
                if (0 === c)

                    linePts[r][c] = {
                        anchor: patch.points[0].anchor,
                        leftDirection: patch.points[0].rightDirection,
                        rightDirection: patch.points[0].leftDirection,
                        pointType: PointType.CORNER,
                    };

                else
                    // fix join
                    linePts[r][c].rightDirection = patch.points[0].leftDirection;

                linePts[r][c + 1] = {
                    anchor: patch.points[3].anchor,
                    leftDirection: patch.points[3].rightDirection,
                    rightDirection: patch.points[3].leftDirection,
                    pointType: PointType.CORNER,
                };

            }

            // top edge of patch
            if (0 === c)

                linePts[r + 1][c] = {
                    anchor: patch.points[1].anchor,
                    leftDirection: patch.points[1].leftDirection,
                    rightDirection: patch.points[1].rightDirection,
                    pointType: PointType.CORNER,
                };

            else
                // fix join
                linePts[r + 1][c].rightDirection = patch.points[1].rightDirection;

            linePts[r + 1][c + 1] = {
                anchor: patch.points[2].anchor,
                leftDirection: patch.points[2].leftDirection,
                rightDirection: patch.points[2].rightDirection,
                pointType: PointType.CORNER,
            };

        }

    }

    // draw vertical lines
    for (var i = 0; i < linePts.length; i++)
        pathItems.push(drawPath(container, linePts[i], 'column ' + (i + 1)));

    return pathItems;

};

/**
 * Draws a path of `points`;
 * @author m1b
 * @version 2025-10-18
 * @param {Document|Layer|GroupItem} [container] - the container to draw in.
 * @param {Array<PathPoints>} points - an array of points {anchor: leftDirection: rightDirection: pointType?:}.
 * @param {String} [name] - the path item name (default: none).
 * @returns {PathItem}
 */
function drawPath(container, points, name) {

    var path = newEmptyPathItem(container, name);

    for (var i = 0; i < points.length; i++) {

        var p = path.pathPoints.add();

        p.anchor = points[i].anchor;
        p.leftDirection = points[i].leftDirection;
        p.rightDirection = points[i].rightDirection;
        p.pointType = points.pointType || PointType.CORNER;

    }

    return path;

};

/**
 * Returns a new empty path item.
 * @author m1b
 * @version 2025-10-16
 * @param {Document|Layer|GroupItem} container - the location of the new path items.
 * @param {String} [name] - the name of the item (default: none).
 * @returns {PathItem}
 */
function newEmptyPathItem(container, name) {
    var item = container.pathItems.add();
    item.name = name || '';
    item.filled = false;
    item.stroked = true;
    return item;
};

/**
 * Returns a thing with matching property.
 * If `key` is undefined, evaluate the object itself.
 * @author m1b
 * @version 2024-04-21
 * @param {Array|Collection} things - the things to look through.
 * @param {String} [key] - the property name (default: undefined).
 * @param {*} value - the value to match.
 */
function getThing(things, key, value) {

    for (var i = 0, obj; i < things.length; i++)
        if ((undefined == key ? things[i] : things[i][key]) == value)
            return things[i];

};

/**
 * User interface for this script. Will update the `settings` object.
 * @author m1b
 * @version 2025-10-18
 * @param {Object} settings - the script settings.
 * @returns {1|2}
 */
function ui(settings) {

    var w = new Window("dialog { text:'Draw MeshItem Geometry' }");

    var group = w.add('group {orientation:"column", alignment:["fill","fill"], alignChildren:["left","fill"], margins:[10,10,10,10] }');

    var radioButtons = group.add('group {orientation:"row", margins:[10,10,10,10] }'),
        asPatchesRadio = radioButtons.add('radiobutton {text:"Draw mesh as patches"}'),
        asLinesRadio = radioButtons.add('radiobutton {text:"Draw mesh as lines"}');

    var bottomUI = w.add('group {orientation:"row", alignment:["fill","top"], margins: [0,20,0,0] }'),
        buttons = bottomUI.add('group {orientation:"row", alignment:["right","top"], alignChildren:"right" }'),
        cancelButton = buttons.add('button', undefined, 'Cancel', { name: 'cancel' }),
        drawButton = buttons.add('button', undefined, 'Draw', { name: 'ok' });

    (settings.drawAsPatches ? asPatchesRadio : asLinesRadio).value = true;

    drawButton.onClick = function () {
        settings.drawAsPatches = asPatchesRadio.value;
        w.close(1);
    };

    w.center();
    return w.show();

};

Edit 2025-10-18: added capability to draw geometry as grid lines, as well as patches.
