Fill to edge, stroke on inside, overprint

Engaged ,
Sep 25, 2017 Sep 25, 2017

Hello,

I noticed that when the stroke of an object is set to overprint, if the stroke is aligned to the inside of the object, then the fill of the object does not go all the way to the edge of the object. The fill stops halfway under the stroke (so half the stroke is on the fill, half the stroke has nothing under it). I was expecting the fill to go to the edge of the object and the stroke to be entirely on top of the fill.

Is this standard behaviour? Is there a simple way to achieve what I was expecting?

Thanks. This is for CS4.

901
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Community Expert , Sep 25, 2017 Sep 25, 2017

I would use the Offset Path effect on the stroke.

Translate
Adobe
Community Expert ,
Sep 25, 2017 Sep 25, 2017

I would use the Offset Path effect on the stroke.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Engaged ,
Sep 25, 2017 Sep 25, 2017

Hi Monika,

Great tip. Works as expected. Given your response and SJRiegel's, am I to say that what I observed in my original post is not how it "should" behave and that the correct behaviour should be what I expected to happen?

SJRiegel. Thanks. I didn't try what you suggested but it might work too, though I think Monika's workaround is more to the point as it keeps the overprint restricted to the stroke without any additional elements.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Engaged ,
Sep 25, 2017 Sep 25, 2017

Or perhaps it serves the purpose of trapping, but I would expect settings for trapping to be defined separately.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 25, 2017 Sep 25, 2017
LATEST

I don't know how it "should" behave, but maybe this feature has been smuggled into Illustrator by some weird workaround and you're just seeing the result of this.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Sep 25, 2017 Sep 25, 2017

I see the same in CC2017.

I was able to get what I think you want by moving the fill above the stroke, and setting the fill to overprint (instead of the stroke). If you need to avoid having the fill overprint objects underneath, you can add a non-overprinting white fill beneath the stroke.

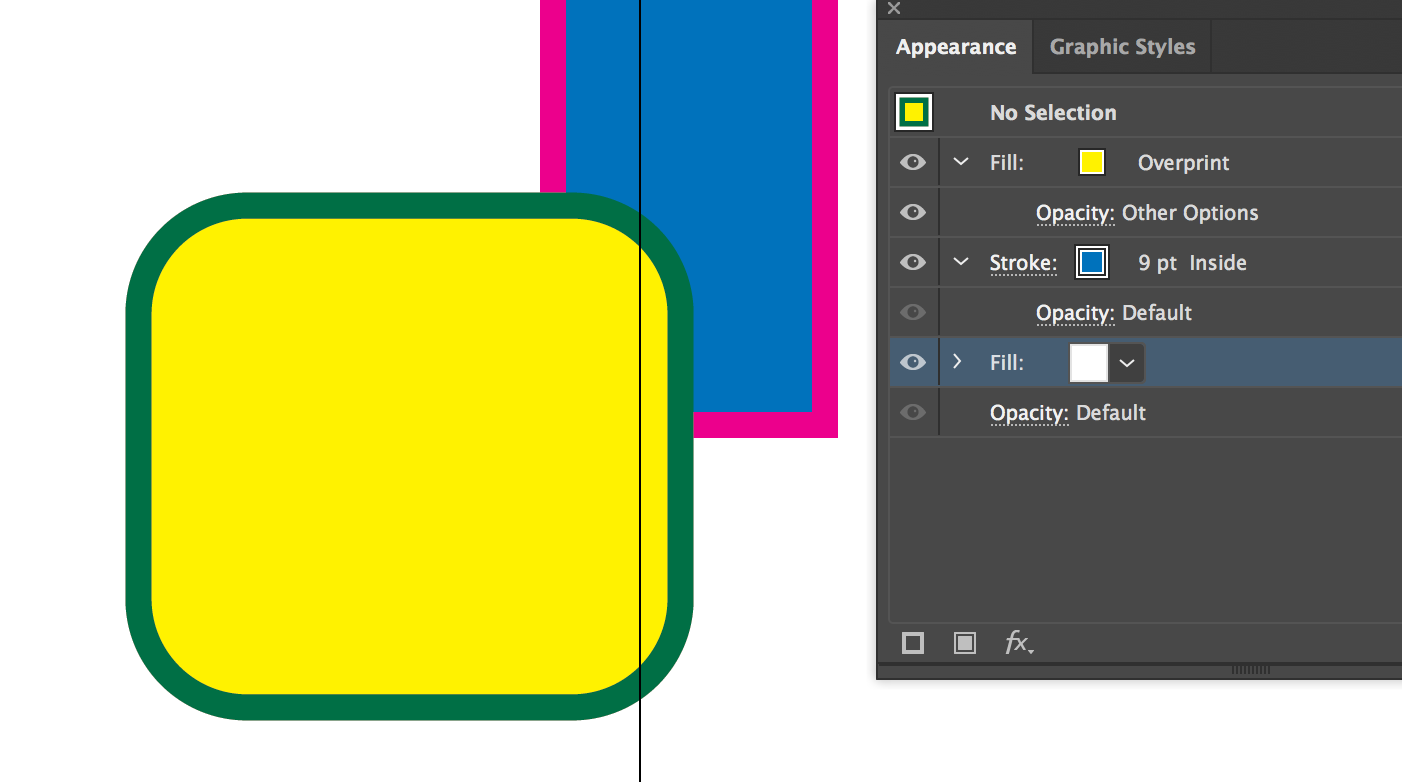

(blue stroke, yellow fill set to overprint, and moved above the stroke, white fill under the stroke)
