With many thanks to CarlosCanto!
Cronos's Pastebin - Pastebin.com
Introducing: Insert Page Numbers v 2
#target illustrator
//#targetengine main
// script.name = insertPageNumbers_v2.jsx; // works with CS4 & CS5
// script description = Inserts page numbers (or any other text) to all artboards in the active document;
// script.required = at least one open document
// script.parent = CarlosCanto // 5/25/12;
// script.elegant = false;
// script.updates = added options to insert Date, Time, Full File Name, & File Name;
// added a button to clear previous entered data;
// dialog stays open, to be able to input data in multiple locations
// only one layer is created on multiple runs
// Notes: The script creates a new layer (Page Numbers) then adds a text frame per Artboard that act as footer or header text.
// Its primary function is to insert Page Numbers, but it could be used to insert any other kind of information.
if (app.documents.length > 0) // continue if there's at leat one document open
{
// start building User Interface

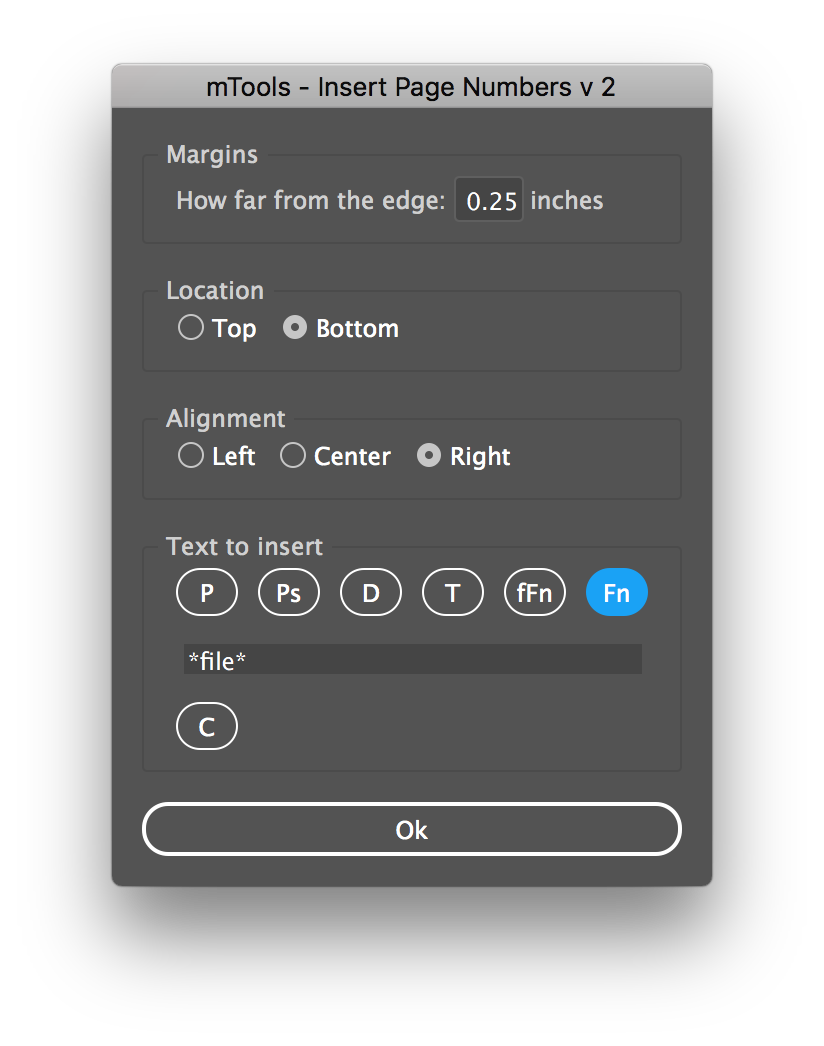

var win = new Window("dialog","mTools - Insert Page Numbers v 2");
var panelMargins = win.add("panel", undefined, "Margins");
var lblMargins = panelMargins.add("statictext",undefined,"How far from the edge:");
var txtMargins = panelMargins.add("edittext",undefined, 0.25);
var lblUnits = panelMargins.add("statictext",undefined,"inches");
var panelLocation = win.add("panel", undefined, "Location");
var radTop = panelLocation.add("radiobutton",undefined,"Top");
var radBottom = panelLocation.add("radiobutton",undefined, "Bottom");
var panelAlignment = win.add("panel", undefined, "Alignment");
var radLeft = panelAlignment.add("radiobutton",undefined,"Left");
var radCenter = panelAlignment.add("radiobutton",undefined, "Center");
var radRight = panelAlignment.add("radiobutton",undefined, "Right");
var panelFooter = win.add("panel", undefined, "Text to insert");
var grpPages = panelFooter.add("group");
var btnPage = grpPages.add("button",undefined,"P");
var btnPages = grpPages.add("button",undefined,"Ps");
var btnDate = grpPages.add("button",undefined,"D");
var btnTime = grpPages.add("button", undefined, "T");
var btnFullName = grpPages.add("button", undefined, "fFn");
var btnFile = grpPages.add("button", undefined, "Fn");
var txtFooter = panelFooter.add("edittext"); //,undefined, "[Type text to insert here]");
var btnClear = panelFooter.add("button", undefined, "C");
btnPage.size = btnPages.size = btnDate.size = btnTime.size = btnFullName.size = btnFile.size = btnClear.size = [31,24]; // on Mac [31, 21] = round buttons, [31,24] = square buttons
var btnOk = win.add("button", undefined, "Ok");
radRight.value = radBottom.value = true;
win.alignChildren = panelFooter.alignChildren = "fill";
btnClear.alignment = "left";
panelMargins.spacing = 3;
panelMargins.orientation = panelLocation.orientation = panelAlignment.orientation = "row";
win.helpTip = "\u00A9 2012 Carlos Canto";
btnOk.helpTip = "Press Esc to Close";
btnPage.helpTip = "Adds *page* keyword, it represents a single page";
btnPages.helpTip = "Adds *pages* keyword, it represents total number of pages";
btnDate.helpTip = "Adds *date* keyword, it represents today's date";
btnTime.helpTip = "Adds *time* keyword, it represents current time";
btnFullName.helpTip = "Adds *fname* keyword, it represents Full File Name (including path)";
btnFile.helpTip = "Adds *file* keyword, it represents File Name";
btnClear.helpTip = "Clears input text area";
txtFooter.helpTip = "Type \r\t'Page *page* of *pages*' \rto get \r\t'Page 1 of 3' \rfor example";
//-----------------------------------------------------------------------------------------
// text place holder by Jongware / Marc Autret
var wgx = win.graphics;
var grayPen = wgx.newPen(wgx.PenType.SOLID_COLOR,[.67,.67,.67], 1);
txtFooter.onDraw = function(/*DrawState*/)
{
var gx = this.graphics;
gx.drawOSControl();
this.text || this.active || gx.drawString("[Type text to insert here] Press Esc to close", grayPen, 0, 0);
};
//-----------------------------------------------------------------------------------------
btnOk.onClick = function(){
if (txtFooter.text != "")
doSomething(); // call main function
//win.close(); // close when done
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnClear.onClick = function(){
txtFooter.text = ""; // call main function
//win.close(); // close when done
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnPage.onClick = function(){
footer("*page*");
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnPages.onClick = function(){
footer("*pages*");
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnDate.onClick = function(){
footer("*date*");
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnTime.onClick = function(){
footer("*time*");
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnFullName.onClick = function(){
footer("*fname*");
}
//-----------------------------------------------------------------------------------------
//-----------------------------------------------------------------------------------------
btnFile.onClick = function(){
footer("*file*");
}
//-----------------------------------------------------------------------------------------
win.center();
win.show();
//-----------------------------------------------------------------------------------------
function footer (page) //
{
txtFooter.text = txtFooter.text + page;
}
function doSomething()
{
//alert("I'm doing something");
var idoc = app.activeDocument;
try {
var ilayer = idoc.layers["Page Numbers"];
} catch(e) {
var ilayer = idoc.layers.add();
ilayer.name = "Page Numbers";
}
var pages = idoc.artboards.length; // number of artboards
var datee = getdate ();
var timee = gettime ();
var fname = idoc.path == '' ? "Full Name: <unsaved document>" : idoc.fullName;
var file = idoc.name;
var footerPages = (txtFooter.text).replace("*pages*",pages);
//$.writeln(msg);
footerPages = footerPages.replace("*pages*",pages); // replace the "*pages*" keyword with the actual number fo pages (artboards)
footerPages = footerPages.replace("*date*",datee);
footerPages = footerPages.replace("*time*",timee);
footerPages = footerPages.replace("*fname*",fname);
footerPages = footerPages.replace("*file*",file);
var margins = Number(txtMargins.text)*72; // get margins in points
//$.writeln(margins);
for (i = 0; i<idoc.artboards.length; i++) // loop thru all artboards, and add input text from UI
{
footerPage = footerPages.replace("*page*",i+1); // replace "*page*" keyword with the actual page Number
var itext = ilayer.textFrames.add();
itext.contents = footerPage; //"page 1 of 1";
var fontSize = itext.textRange.characterAttributes.size;
var activeAB = idoc.artboards;
var iartBounds = activeAB.artboardRect;
var ableft = iartBounds[0]+margins;
var abtop = iartBounds[1]-margins;
var abright = iartBounds[2]-margins;
var abbottom = iartBounds[3]+margins+fontSize;
var abcenter = ableft+(abright-ableft)/2;
if (radRight.value == true)
{
//var msg = "right";
itext.left = abright;
itext.textRange.paragraphAttributes.justification = Justification.RIGHT;
}
else if (radCenter.value == true)
{
//var msg = "center";
itext.left = abcenter;
itext.textRange.paragraphAttributes.justification = Justification.CENTER;
}
else
{
//var msg = "Left";
itext.left = ableft;
itext.textRange.paragraphAttributes.justification = Justification.LEFT;
}
if (radTop.value == true)
{
//var msg = "top";
itext.top = abtop;
}
else
{
//var msg = "bottom";
itext.top = abbottom;
}
} // end for loop thru all artboards
app.redraw();
} // end function doSomething();
}
else
{
alert ("there's no open documents");
}
function getdate() {
var date = new(Date);
var m = date.getMonth()+1;
var d = date.getDate();
var y = date.getFullYear();
var datemdy = m+"/"+d+"/"+y;
return datemdy;
//alert(date);
//alert(m+"/"+d+"/"+y);
}
function gettime() {
var time = new(Date);
var hours = time.getHours();
var minutes = time.getMinutes();
if (minutes < 10){
minutes = "0" + minutes
}
if(hours > 11){
ampm = "PM";
} else {
ampm = "AM";
}
var curtime = hours + ":" + minutes + " " + ampm;
return curtime;
}
P.S. Press the escape key to cancel the script GUI once you have applied the text to all artboards.
…
