-- Javascript/illustrator [change rounded rectangle corner radius]

New Here ,
Jun 15, 2022 Jun 15, 2022

Copy link to clipboard

Copied

Can someone help me to change the radius of a pageItem with Javascript. I can change the width of a rounded rectangle but not the radius. If the width of an item gets smaller the radius is automatically adjusted what I don't want. So I want control over the radius.



selectedLayer.pageItems[0].width = 30;

selectedLayer.pageItem[0].radius = 10 doesn't work

Anyone?
TOPICS
Scripting

Views

121

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Advisor ,
Jun 15, 2022 Jun 15, 2022

Copy link to clipboard

Copied

Is this what you mean by radius?


Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Jun 16, 2022 Jun 16, 2022

Copy link to clipboard

Copied

Yes

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Advocate ,
Jun 15, 2022 Jun 15, 2022

Copy link to clipboard

Copied

Bonjour,

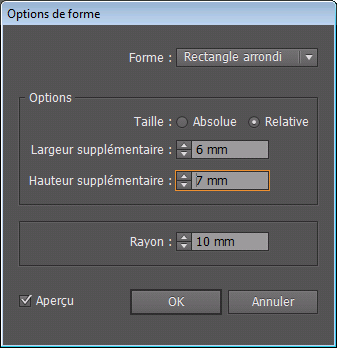

Appliquer l'effet Convertir en Rectangle arrondi
