Reflect Tool Problem

Forum|Forum|7 years ago
August 19, 2018
5 replies
1217 views

I'm making a mascot design in Illustrator CS6 and I've made 1 half of then mascot and I was intending to reflect it with the reflect tool but when I do reflect it, it has a small gap in between the 2 reflected halves which makes a line going all the way down my work. I've made sure the middle of the mascot is completely straight but it still has the same problem. Does anyone know a fix?

Discussion successfully moved from Adobe Creative Cloud to Illustrator by moderator.

reflect tool

This topic has been closed for replies.

Correct answer lil Brit

Thanks to using a bunch of different methods you guys have suggested me I have finally been able to remove the line going down the middle of my work.

Thanks again, Nathaniel.

lil BritAuthorCorrect answer

Participant

Thanks to using a bunch of different methods you guys have suggested me I have finally been able to remove the line going down the middle of my work.

Thanks again, Nathaniel.

jane-e

Community Expert

Which methods worked, Nathanial?

rcraighead

Legend

Turn off "Anti-alias" in preferences and the line will go away. It will not print. Have you tried exporting as PNG or JPG? Does it still appear? If so expand and join the two sides.

Ares Hovhannesyan

Community Expert

Align to pixel grid also take out white line. You can find it on the right of control panel

Seamlessly align your artwork with the pixel grid...

Ares Hovhannesyan

Community Expert

Is this happened with simple shapes also?

Monika Gause

Community Expert

It's pretty normal that this also happens with simple shapes. It depends on their exact position in the pixel grid and it depends on zoom factor.

To check if it's caused by actual misalignment of objects, you will need to open Preferences > General and turn off antialiasing.

Two simple rectangles, perfectly aligned:

Monika Gause

Community Expert

This might just be a screen rendering issue.

When the design is finalized use pathfinder or live paint or shapbuilder tool to combine the two halves and then the line should be gone.

jane-e

Community Expert

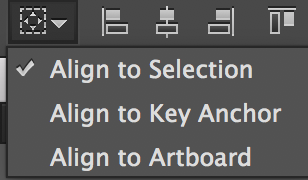

First: align the anchor points to make sure they are exactly lined up. Select them with the Direct Selection tool.

Second: Deselect, then select with the Selection tool. Click once on the Reflect tool. Hold down Option (Alt) + Click an anchor point to reflect exactly on that anchor point.

Also, make sure Smart Guides are on.

lil BritAuthor

Participant

I've made sure they are and I've done the reflect part but still the same result.

jane-e

Community Expert

Have you selected each pair of shapes and joined them into one shape with Cmd(Ctrl)+J or Object > Path > Join? This will work if they are open shapes, not closed shapes.
