Vector artwork printing as bitmap

Community Beginner ,
Jul 18, 2023 Jul 18, 2023

Copy link to clipboard

Copied

Dear all,



I have a Brother HL1212W Mono Laser Printer and I am trying to print some vector artwork from Adobe Illustrator 27.2. However, the prints are being output as bitmap by the printer:




The artwork comprises of a spot colour and I have also tried it as 100% Black (K), but it prints as above.



In the print settings (Advanced), when I uncheck the 'Print as Bitmap' option, the checkbox is visibly unchecked



Screenshot 2023-07-18 at 10.15.57.png

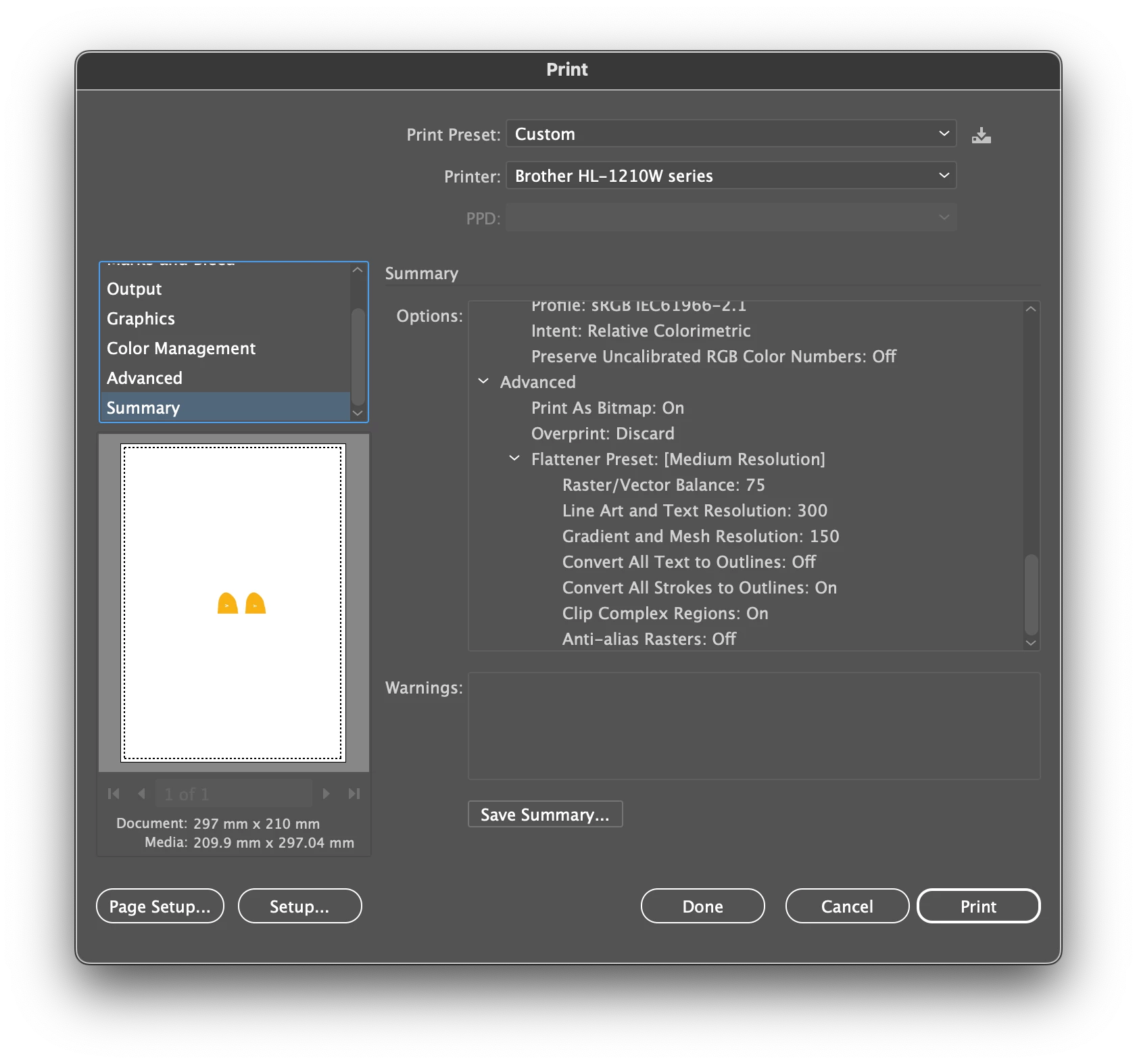

However, when I go to the print summary, the 'Print as Bitmap' option is showing as being activated:



Screenshot 2023-07-18 at 10.16.21.png

When going back to the Advanced print settings the 'Print as Bitmap' option is still unchecked, but for some reason Illustrator sends the artwork to the printer with the 'Print as Bitmap' option selected as per the print summary.

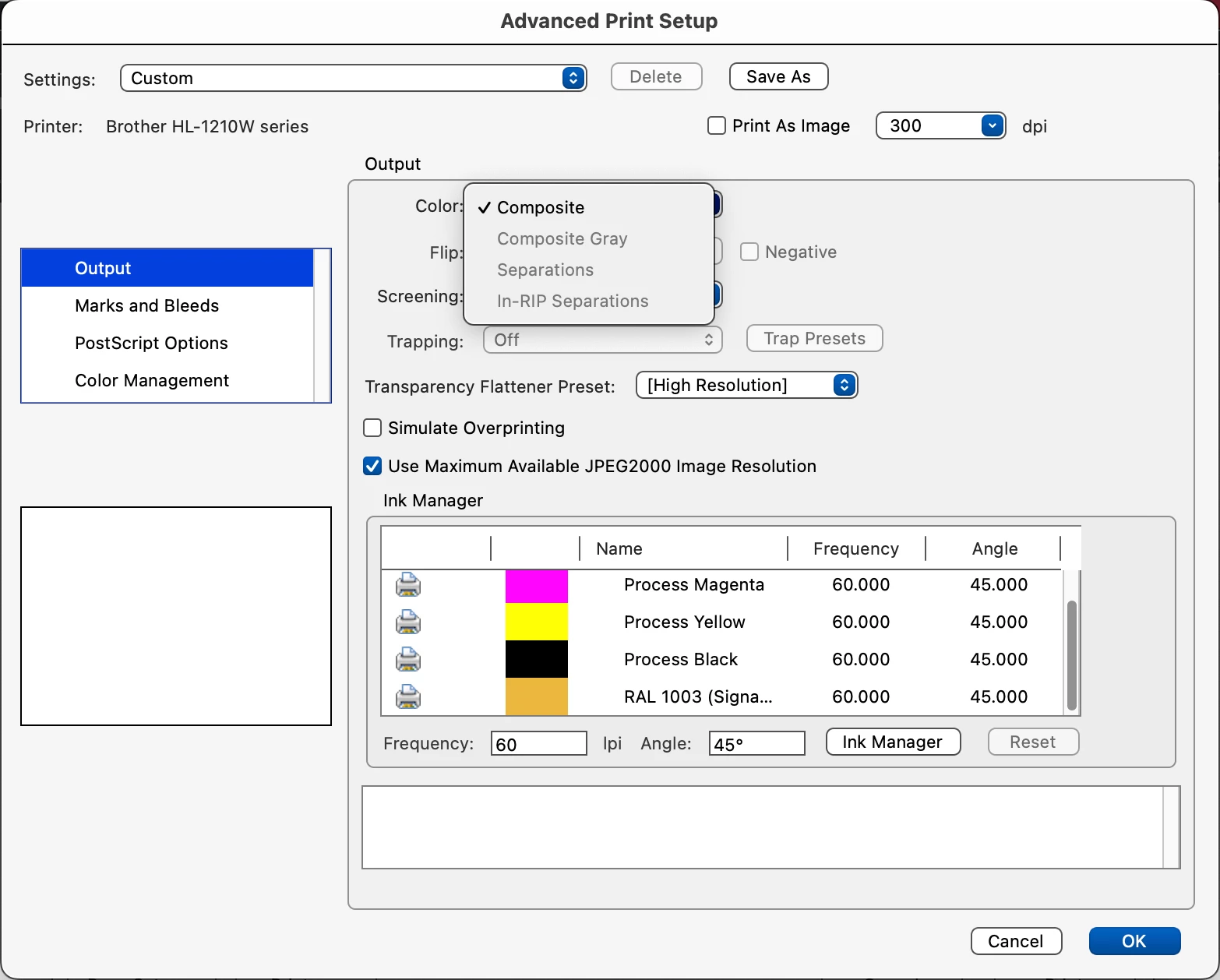

I have saved the artwork as a pdf file and then tried to print that, but the artwork still prints as a bitmap. I tried to access some of the printing options in the pdf to see if I could access the separations section, but anything other than composite is not accessible:



Screenshot 2023-07-18 at 10.31.58.png



I simply cannot work out how to print to the printer while retaining the vector/Postscript quality instead of converting to bitmap.



Any help would be appreciated.





TOPICS
Print and publish

Views

446

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Community Expert , Jul 18, 2023 Jul 18, 2023

For that you need to print separations. Your printer driver needs to support that. In the print dialog go to "Output" and there you can select to print separations. If it's not there, then your printer driver doesn't support it.
