Wrapping objects around other objects.

Explorer ,
Apr 01, 2018 Apr 01, 2018

Copy link to clipboard

Copied

I have been trying to figure out how to do this for the longest time.  I usually just break down and do the project in Photoshop, but I am determined to figure out how to do this in Illustrator.

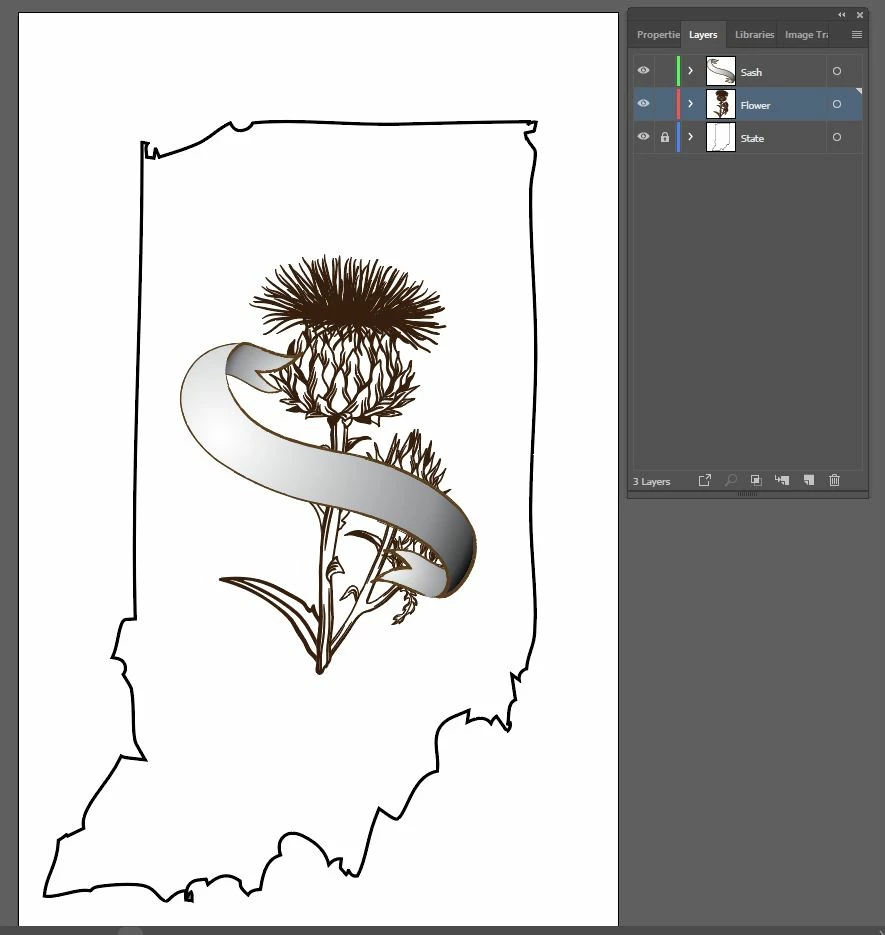

Below you will see a screen shot of my Illustrator project.  What I want to do is make that sash look like it is wrapped around the thistle plant.  So those edges should be behind the plant while the middle section is on top.

I've been googling but nothing is coming up for "object wraps around another object illustrator."  The only thing that comes up pertains to text.  I hope someone can help me figure out what this is called AND how to do it.

PS I am by no means proficient with Illustrator.  I have never really understood Compound Paths or Clipping Masks... in Photoshop or Illustrator.


Thank you for your help.

Kim

Views

9.4K

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

New Here , Mar 06, 2024 Mar 06, 2024

I found this thread in 2024, and it was helpful in manually doing some wrapping on a logo concept I'm working on.

However, for anyone else finding it who also doesn't know, if you're using a new version of Illustrator, there's a tool called "intertwine" that makes this much much easier! At least with paths. I'm not sure about raster objects. Here's a short video that helped get me started. Intertwine will make these tasks much easier going forward.
