Can I make two text boxes two columns?

Advocate ,
Nov 02, 2016 Nov 02, 2016

Is there a way for me to take two text boxes that already have text in them and convert them into one text box with two columns?

Thanks

514
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 02, 2016 Nov 02, 2016

Not directly, but you can turn the first one into a two-column text box, then link the two. The text from the second box should then be pulled into the first one. You can use a column break to control which text the second column starts with. Second box can then be deleted.

All that being said, it would probably be easier to cut-and-paste the text from the second box into the first one.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 02, 2016 Nov 02, 2016

Not in any elegant way.

  1. Click the out-port of the first frame, then click in side the second frame to thread them; first-to-second.
  2. Delete one of them. (Now all the text is in a single frame.)
  3. Use the Text Frame Options dialog to set the frame to 2 columns.
  4. Resize and relocate as desired to position the 2 columns.
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Nov 02, 2016 Nov 02, 2016

Yes! … and it's very simple!

The only thing to know is the gutter size between the 2 text frames!

Capture d’écran 2016-11-02 à 21.26.55.png

Select the 2 frames:

Capture d’écran 2016-11-02 à 21.27.14.png

… fusion them:

Capture d’écran 2016-11-02 à 21.27.56.png

… convert into "rectangle":

Capture d’écran 2016-11-02 à 21.49.12.png

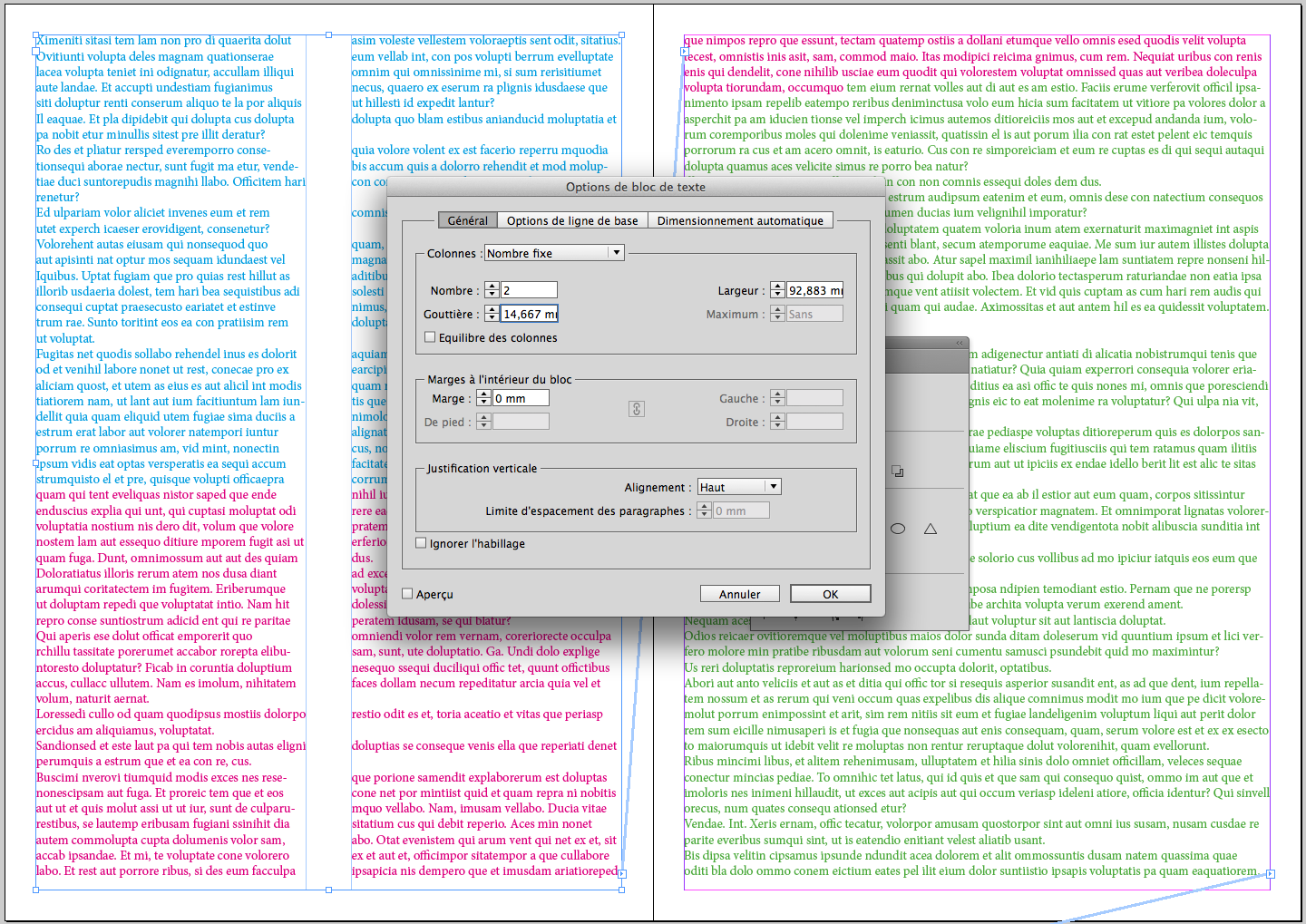

… and change the frame option: 2 col. and gutter size (see above):

Capture d’écran 2016-11-02 à 21.28.17.png

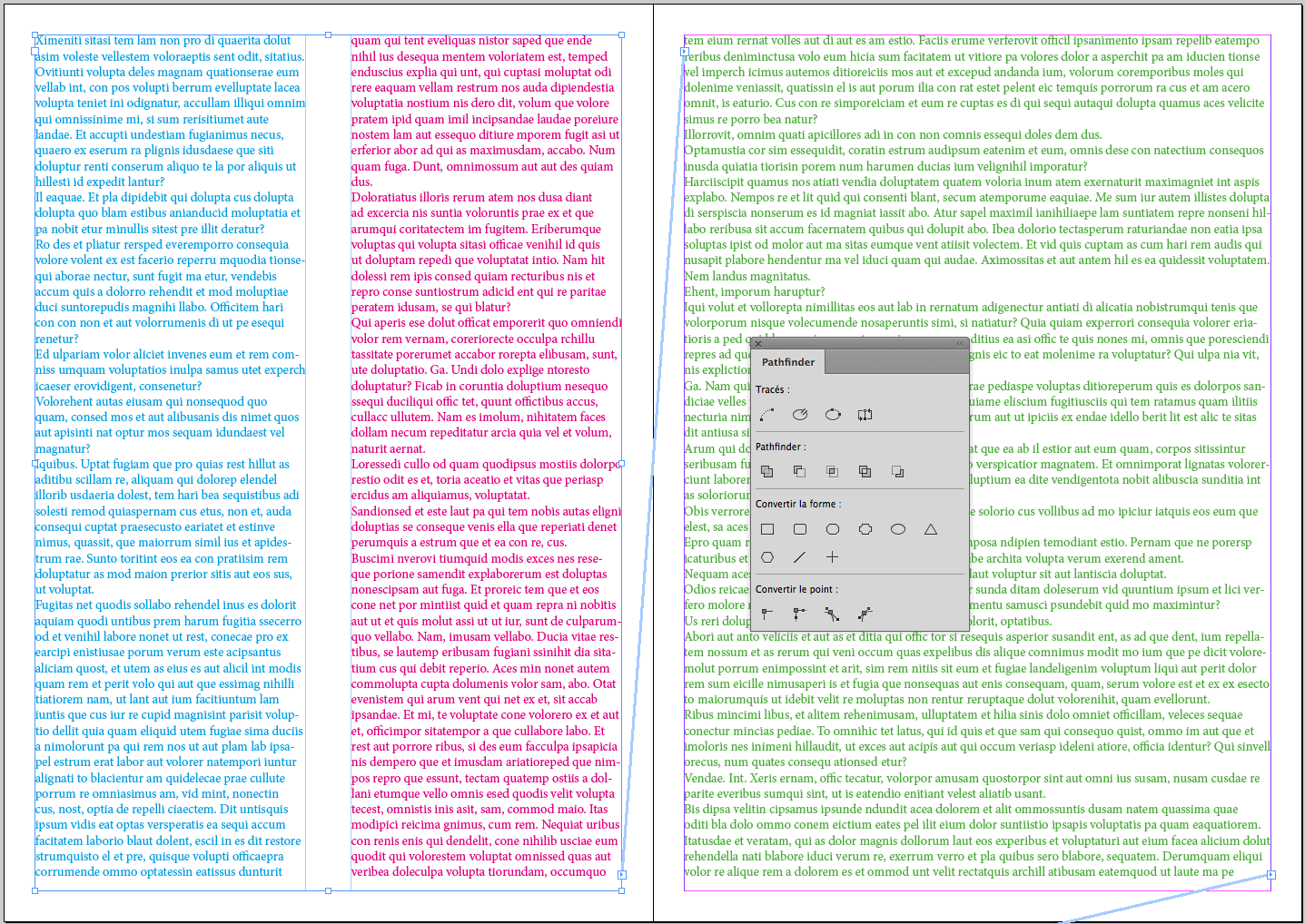

Done!

Capture d’écran 2016-11-02 à 21.28.28.png

If indépendant frames, first thread them with Text Stitch!

(^/)

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
LEGEND ,
Nov 02, 2016 Nov 02, 2016
LATEST

… But if you are as lazy as me, just select the 2 text boxes and do it in one click!

app.doScript(main, ScriptLanguage.JAVASCRIPT, [], UndoModes.ENTIRE_SCRIPT, "Convert 2 Text Frames to 1 With 2 Columns! …");

function main ()

{

if (app.selection.length == 2)

    {

        a = app.selection[0];

        b = app.selection[1];

        if (a instanceof TextFrame && b instanceof TextFrame)

            {

                if (a.geometricBounds[0] > b.geometricBounds[0])

                    {

                        a = app.selection[1];

                        b = app.selection[0];

                    } else

                        if (a.geometricBounds[0] == b.geometricBounds[0] && a.geometricBounds[1] > b.geometricBounds[1])

                            {

                                a = app.selection[1];

                                b = app.selection[0];

                            }

                        if (a.nextTextFrame == null && b.previousTextFrame == null)

                                a.nextTextFrame = b;

            }

    }

a = app.selection[0];

b = app.selection[1];

var gB_a = a.geometricBounds;

var gB_b = b.geometricBounds;

b.remove();

var gutter = (gB_b[1] - gB_a[3]).toFixed(2);

a.geometricBounds = [gB_a[0], gB_a[1], gB_a[2], gB_b[3]];

a.textFramePreferences.textColumnCount = 2;

a.textFramePreferences.textColumnGutter = gutter;

}

// ___ (^/) ___

Based on an original code written 6 years ago [march 2010] by Jongware and shared here:

http://indesignsecrets.com/topic/is-there-a-script-to-combine-selected-frames-as-threaded-text-40

Thanks [Jongware]

(^/)
