Objects on master layer visible in spread, but not in layer panel

New Here ,
Nov 11, 2021 Nov 11, 2021

Hello all!



I am having a small issue with my files. Our old art director set our files up and I can't seem to figure out the issue. The objects all exist in out master pages, as shown below. But in the spreads we create, the objects may be visible in the spread, but I cannot see them in the layers panel. I'll add some images for example.



Master page:

Timothy5FE3_2-1636655705964.pngexpand image





In the first spread:

Timothy5FE3_3-1636655736052.pngexpand image





Is there a way to get all layers and objects in layers to show by default in the spread?

TOPICS
How to
297
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 11, 2021 Nov 11, 2021
quote

Is there a way to get all layers and objects in layers to show by default in the spread?



I don't think so. As far as I can tell, what you're seeing there is the default (and only) behavior. With the Parent page selected, each object on it is available as a sublayer (because they're available to select). When the document page is active, those objects are not available, and do not present as sublayers on that page.





Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Nov 11, 2021 Nov 11, 2021

Is there a way to make that present on sublayers on the chosen page? It would make things much easier.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 11, 2021 Nov 11, 2021

No. If you need to change them, you need to visit the parent page and change it there. And please note that it will change on all pages that the parent is applied to.



Correct me if I'm wrong but it sounds like you're a fairly recent convert from Quark.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 11, 2021 Nov 11, 2021

Hi @Timothy5FE3, If you override the masterpage items on the pages they will become page items and show in the Layers panel when the spread is active—you could select a range of pages in the Pages panel and choose Override all Master/Parent Page Items:



The A-Master spread active:

Screen Shot 5.pngexpand image

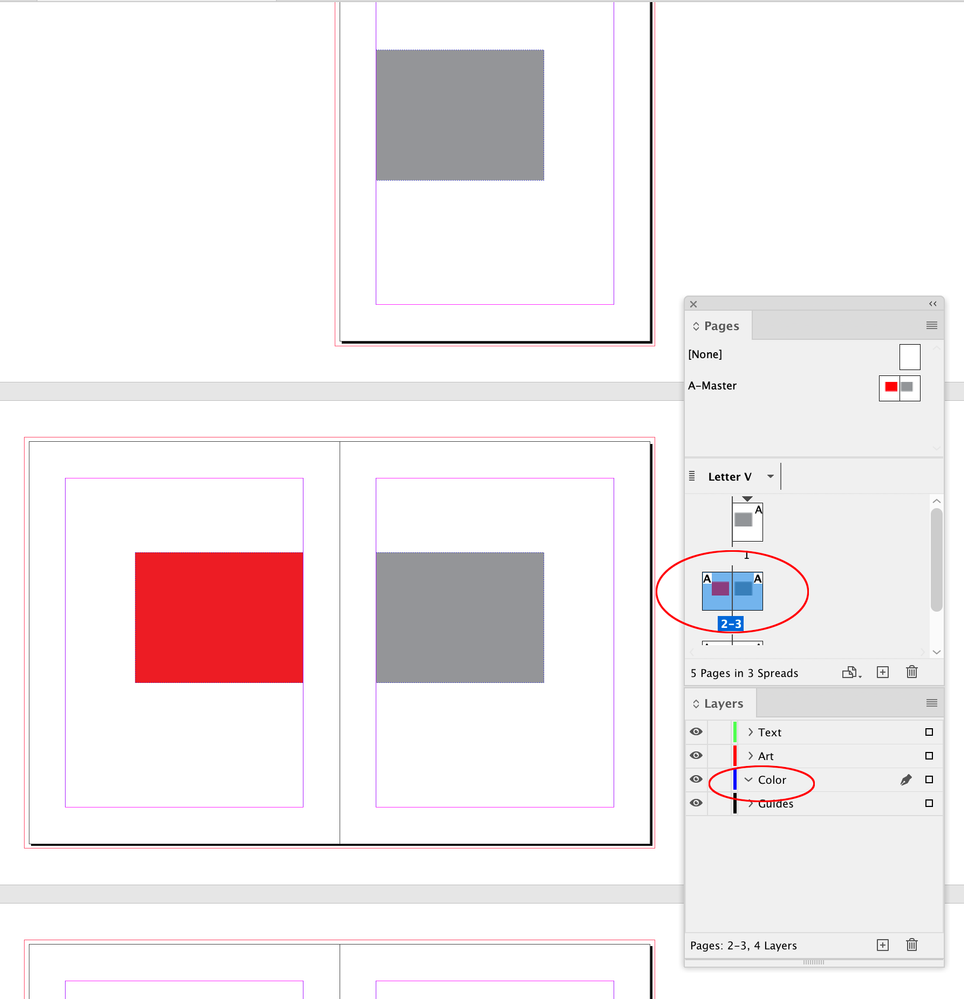

Pages 2-3 active with no overrides



Screen Shot 6.pngexpand image

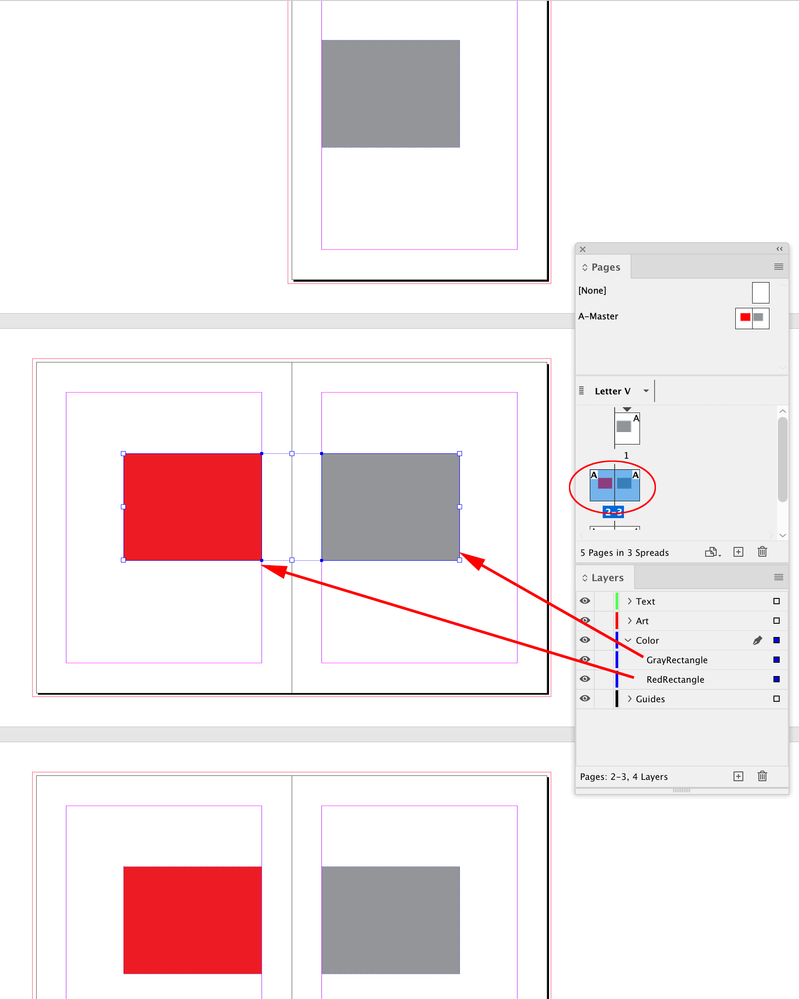

Page 2-3 after overrides (the Master/Parent Page items converted into Page Items)



Screen Shot 7.pngexpand image





Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Guide ,
Nov 11, 2021 Nov 11, 2021

We may view the purpose of Master/Parent pages differenly, but I like to place items on the Parent Pages when I want them to appear on the document pages as they are on the Parent pages. If you want to edit them on the document pages, you could override them as Rob has suggested, but if you need to change something that is common to many pages, changing it on the Parent is the easiest, and any changes you have made to overridden Parent items on the document page won't respond to those edits on the Parent page. For example, move an item on a document page, and it will stop responding to movement on the Parent page. The same goes for geometry, fill, stroke, rotation, etc. And if you insert an odd number of pages before an overridden item's page, the parent will be reapplied, and you will have all of the parent items, plus the overridden ones.

I like to set it and forget it, but maybe that's just me. If it works for you, use it in good health.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 12, 2021 Nov 12, 2021
LATEST

I suppose that the parent pages are based on other parent pages and inherit these objects from there.
