Turn columns into separate text frames

New Here ,
Apr 17, 2022 Apr 17, 2022

Hi,

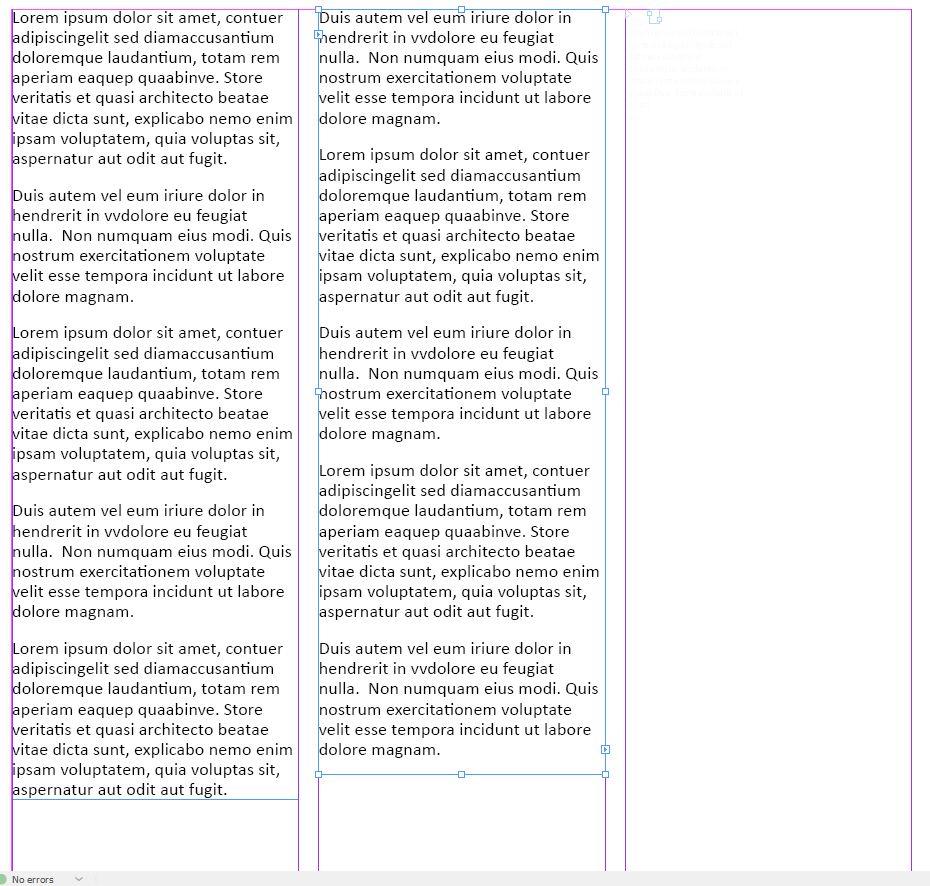

I have a question about text frames in InDesign. It should probably be easily solvable, but for some reason, I can't seem to find the solution. I am working with a template that uses multiple columns and threading text. Now I want to split the columns into separate text frames, so I can change the height of each column individually. Is there an easy way to do this? I added a picture of how it looks now. Screenshot 2022-04-17 131328.jpg

TOPICS
How to
1.3K
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 17, 2022 Apr 17, 2022

Unfortunately, there is no way to automatically split a multiple columns frame into multiple one column frames. You have to do it manully : resize the existing frame, create 2 other frames then thread them. Maybe a script exists, but I don't know it.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 17, 2022 Apr 17, 2022

You could use a frame with a stroke/fill of none with text wrap to force the text to move to another column.

David Creamer: Community Expert (ACI and ACE 1995-2023)
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 17, 2022 Apr 17, 2022

No need to spilt the text columns at all. What you want to do is change your layout to three individual (but still threaded) text frames of 1 column, as opposed to one text frame that has 3 columns in it.

If your page doesn't currnetly have column guides, add them.

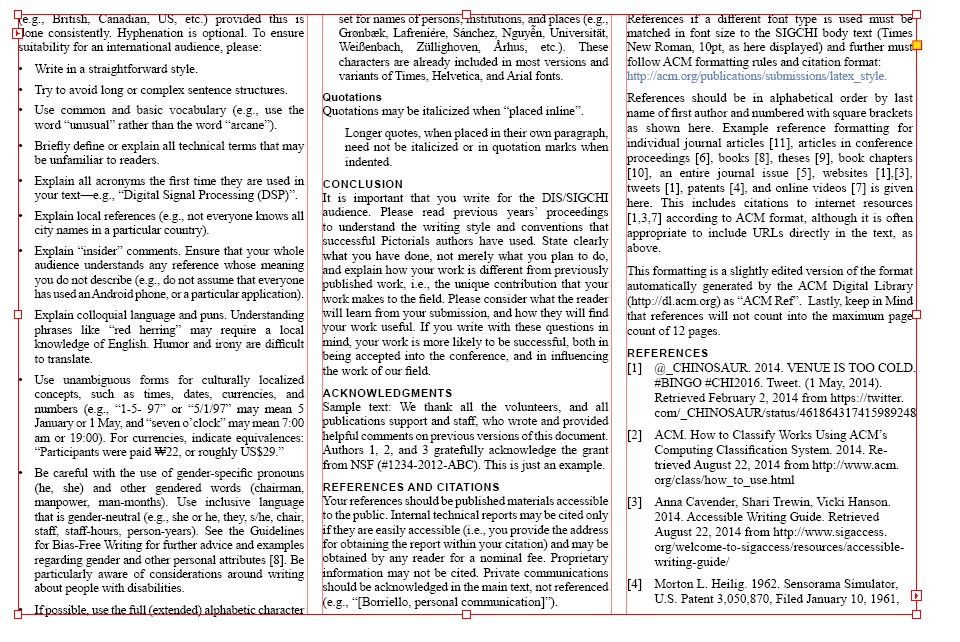

Screen Shot 2022-04-17 at 1.05.31 PM.png

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 17, 2022 Apr 17, 2022

The easiest way is to do it by hand.

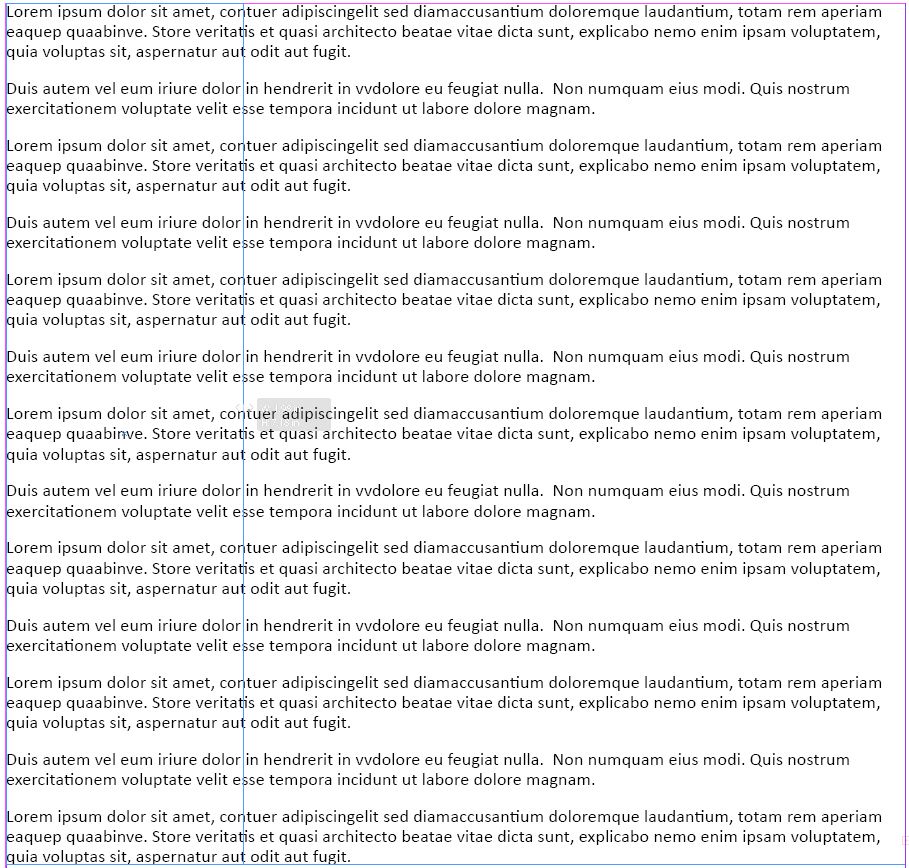

  • 1b.jpgFirst, Get your Selection/Arrow tool. Select your three-column block of text. Go to the Control Panel at the top of the document window and change the number of columns from three to one, as shown at right.

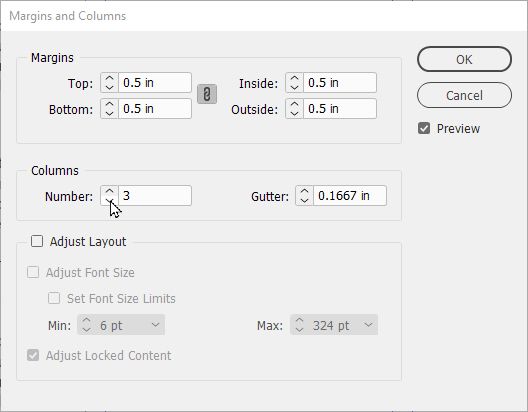

  • 1d.jpgSecond, select the Layout>Margin and Columns menu command to open the dialog box. Move down to the Columns: edit box and change it to 3, then click the OK button. This will make it easier for you to line up the columns and size the width equally.






  • Third, move the right side margin for the text to the right edge of the first column. Since you've already set your column guides, sizing them will be easy. Release the mouse button to create your first separate, but linked, text frame.






  •  Fourth, click in the bubble with the red + sign in the lower-right quarter of the first column. Click on it to pick up the Text Place Gun with your cursor. move the cursor to the upper-left of the second column, then hold down the left mouse button to drag down and to the right to create a second text frame the size of the first one in the second column. Click in the red + sign in the lower-right quarter of the second column, and repeat the process.



After that, you can line up the bottom of each column to line up as you wish.



Hope this helps,



Randy







Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 18, 2022 Apr 18, 2022
LATEST

There's a script to do this

https://creativepro.com/convert-multicolumn-text-frames-to-individual-frames-script/



----------------------



The manual way



Select all the text (CTRL A or CMD A)

Cut it

Delete the 1 frame



Layout>Margins and Columns

Add the amount of columns you need (if not already setup)



Draw a text frame in the first column

Paste in your text



You now have 1 column text frame

Click the overset text red plus at the bottom

Shift click the top left of the next empty column



And it will autoflow the next columns,
