Auto detect square shape and perspective warp

  • March 12, 2024
  • 2 replies
  • 1223 views

I am here desiring to tap into the brilliant minds who are aware of all the new and cool possibilities of AI, Photoshop, and scripting. 🤓



I don't know if this is possible, but those who do not ask for help will never learn something new, right? So here goes 😄



Situation

Thousands of photos contain the same wooden box and an object inside and outside, but they are not all taken from the same angle.



Aim 1

- Autodetect the edges of the wooden box

- Perspective Warp to make it a straight and square box



Aim 2

- Place these photos into a template as smart layers

- Resize the photo to make the wooden box 400x400px

- Distribute layers on a grid



The end result would be a collage of a group of my photos in a grid of wooden boxes of the same size and shape. Without me spending hours and hours doing this all manually 🤯



Thanks in advance for your time!

    This topic has been closed for replies.
    Correct answer c.pfaffenbichler

    The script works perfectly! However, I am unable to get it to work as a loop without the error message 😕😕

    In light of your feedback regarding the lack of examples etc, I have created a new post (to avoid the Ai request confusing other future people with the desire to loop an action) and added an example set, the action and scripts in there. See This post


    I edited the code, please try that. (edit: Sorry, I hadn’t thought through the process.)

    The Action itself should only open, edit, save, close the Smart Object, the rest should be handled with a while-clause and stop once it hits a non-Smart Object.

    2 replies

    c.pfaffenbichler
    Community Expert
    c.pfaffenbichlerCommunity Expert
    Community Expert
    March 13, 2024

    A while back I posted a Script that can be used to transform a Smart Object with a four-point-vector-mask so that it results in a rectangular shape.

    Esther Netherlands
    Esther NetherlandsAuthor
    Inspiring
    March 13, 2024

    Interesting, thanks for sharing!! I will read it later today



    Currently trying to find a fix for the repeating of an action. Photoshop keeps showing

    Could not complete the Play command because the action is already playing.



    I am not a scripter; I can read scripts and I am just very obsessed with fixing things with search, try, fail, search again, fail, ask, try something else, etc. But coming up short on able to fix it.



    Basically after the first smart layer is warped correctly, it should restart the same action, but it gave the error. I tried to make a 2nd action, hoping it would close the 1st and, at the end of the 2nd, go back to the first. Creating a loop until the last layer and there is no pixel layer found, making the action go to the resize script.



    See below the screenshot of the action and steps. Any idea's 🙏



    Esther Netherlands
    Esther NetherlandsAuthor
    Inspiring
    March 14, 2024

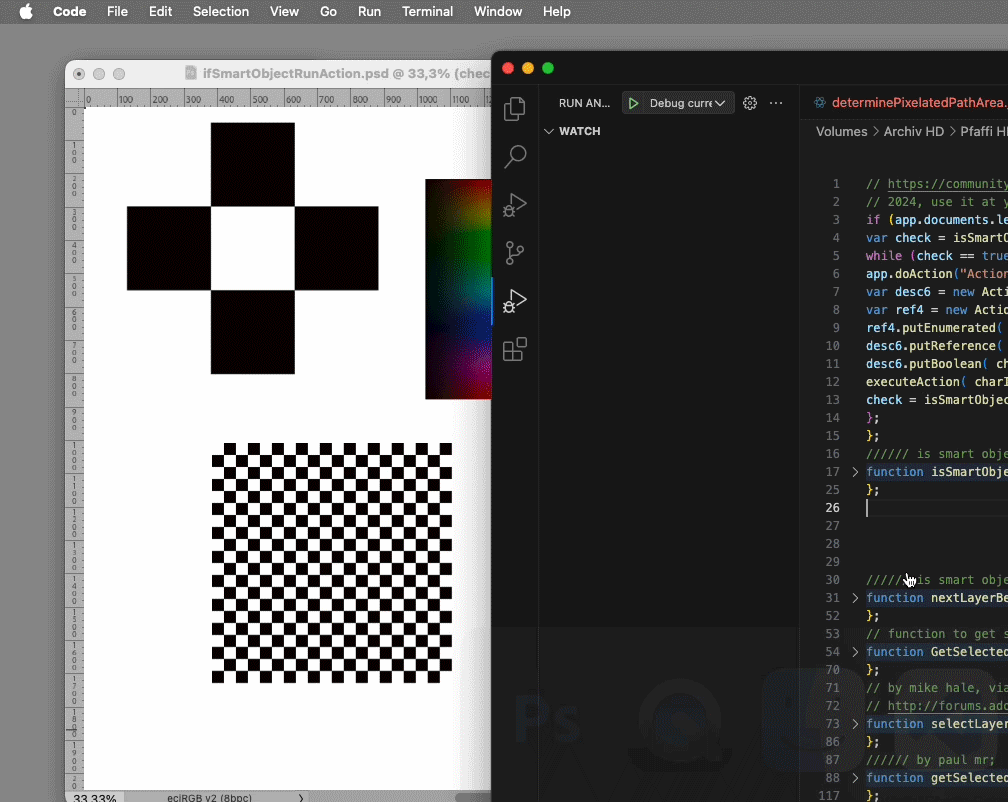

    This would run the Action »Action 22« from »Set 1« if the selected Layer is a Smart Object, then selects the next Layer below.

    You would need to amend the names and the Action itself.



    // 2024, use it at your own risk;
if (app.documents.length > 0) {
var check = isSmartObject();
while (check == true) {
app.doAction("Action 22", "Set 1")
var desc6 = new ActionDescriptor();
var ref4 = new ActionReference();
ref4.putEnumerated( charIDToTypeID( "Lyr " ), charIDToTypeID( "Ordn" ), charIDToTypeID( "Bckw" ) );
desc6.putReference( charIDToTypeID( "null" ), ref4 );
desc6.putBoolean( charIDToTypeID( "MkVs" ), false );
executeAction( charIDToTypeID( "slct" ), desc6, DialogModes.NO );
check = isSmartObject();
};
};
////// is smart object //////
function isSmartObject (theId) {
var ref = new ActionReference();
ref.putProperty (stringIDToTypeID ("property"), stringIDToTypeID ("smartObject"));
if (theId) {ref.putIdentifier( charIDToTypeID("Lyr "), theId )}
else {ref.putEnumerated( charIDToTypeID( "Lyr " ), charIDToTypeID( "Ordn" ), charIDToTypeID( "Trgt" ))};
var layerDesc = executeActionGet(ref);
var isSmartObject = layerDesc.hasKey(stringIDToTypeID("smartObject"));
return isSmartObject
};






    The script works perfectly! However, I am unable to get it to work as a loop without the error message 😕😕

    In light of your feedback regarding the lack of examples etc, I have created a new post (to avoid the Ai request confusing other future people with the desire to loop an action) and added an example set, the action and scripts in there. See This post

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      March 12, 2024

      Please post a few samples (as they are and the intended result).



      I expect semi-automation is possbile (creating a four point path manually and running the rest automatically) but I doubt full automation in Photoshop is plausible at current.

      Maybe you should search beyond Photoshop, though.

      Esther Netherlands
      Esther NetherlandsAuthor
      Inspiring
      March 13, 2024

      Thanks for responding so quickly! Unfortunately, I can not share the images as there are also people on there, and the regulations and privacy prevent me from showing them.



      Yeah, I also doubt my Aim 1 exists, but I figured I would ask. Aim 2 I already have kind of roughly automated with actions, etc, but it needs tweaking, which I wanted to do in the case Aim 1 was going to change the setup.



      The puzzle is the existing action for me to solve/ I want to solve, which is that a set of steps are repeated repeatedly, depending on the number of photos. Currently I am adding the steps 50 times to make sure there are enough. Looking for a 1 set that I can rerun automatically and based on a condition (no more layers) it will stop. Any ideas for that?

      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      March 13, 2024

      A Script could easily iterate through the Layers in a file or the open files or offer a file selection dialog … but I it seems pointless trying to assist without meaningful information.

      Please post requested sample images or layered image (feel free to black out sensitive areas, so long as the »square« remains recognizable) already.
