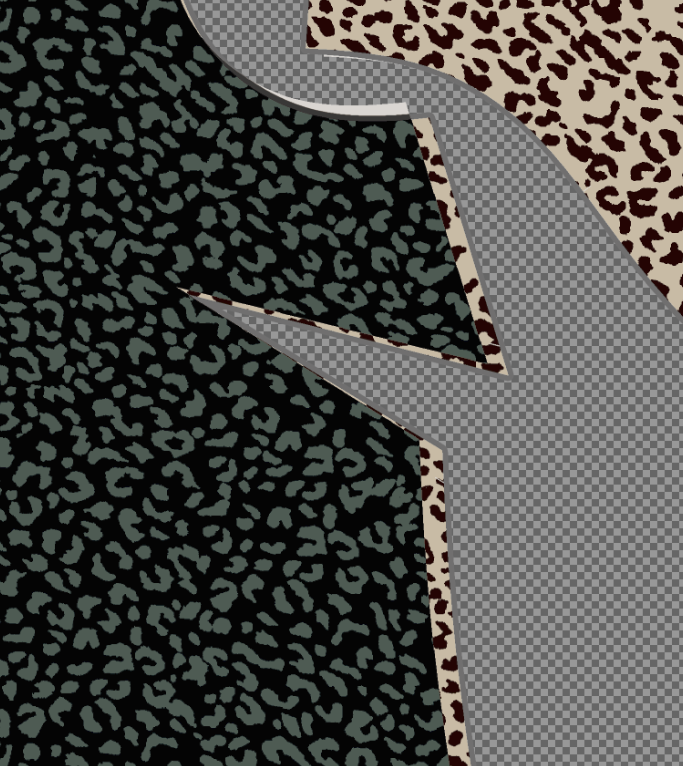

Your files have large linear dimensions. The most time-consuming operations are the selection expand operation (used when dividing a gray layer into fragments) and layer transformation operations (used to determine the optimal position of a figure and at the final stage of alignment). It is impossible to get rid of them. Changing the remaining commands will have an insignificant effect on the overall performance.
I added the constant SCALE = 0.25 to the code - this is the scale value by which the document is temporarily reduced in the process of calculating the parameters necessary for moving layers, that is, 25% of the original (in step 3, the document returns to its original state, and all coefficients are divided by the scale value). You can change this value, the smaller it is, the faster the script works (but the positioning accuracy is lower due to rounding errors), the larger it is, the higher the accuracy (1 is 100%, there is no point in setting it higher than one)
Code updated 2025-08-14 (3)
#target photoshop
const EXPAND_BY = 20, // expand selection from the opacity mask to minimize errors when separating objects
WXHAccuracy = 100, // multiplier for converting WxH to integer (affects rounding accuracy)
WXHTolerance = 0.15, // deviation from the proportion value, below which objects are still compared
SCALE = 0.25;
var apl = new AM('application'),
doc = new AM('document'),
lr = new AM('layer'),
pth = new AM('path');
if (apl.getProperty('numberOfDocuments')) {
var hst = activeDocument.activeHistoryState,
layers = [], deltas = [];
doc.setGlobalFxState(false);
try {
activeDocument.suspendHistory('Checking layers', 'main(1)');
if (layers.frames.length == layers.objects.length) activeDocument.suspendHistory('Find optimal position', 'main(2)');
activeDocument.activeHistoryState = hst;
activeDocument.suspendHistory('Align layers', 'main(3)');
} catch (e) { activeDocument.activeHistoryState = hst; alert(e) }
doc.setGlobalFxState(true);
function main(step) {
switch (step) {
case 1: doForcedProgress('Step 1/3: Get initial bounds of layers', 'step1()'); break;
case 2: doForcedProgress('Step 2/3: Find optimal position for layers', 'step2()'); break;
case 3: doForcedProgress('Step 3/3: Align layers', 'step3()'); break;
}
function step1() {
layers = findLayers();
doc.setScale(SCALE * 100);
if (layers.frames.length) {
changeProgressText('Step 1/3: Preparing to split gray shapes')
layers.frames = grayFramesToLayers(layers.frames);
if (layers.frames.length == layers.objects.length) {
var docRes = doc.getProperty('resolution');
for (var i = 0; i < layers.objects.length; i++) {
lr.selectLayer(layers.objects[i].id)
layers.objects[i] = describeLayer(layers.objects[i].id, doc.getProperty('width') * docRes / 72, doc.getProperty('height') * docRes / 72)
}
} else throw new Error('The number of gray shapes found does not match the number of objects found!')
} else throw new Error('No shape layers found!')
}
function step2() {
var result = alignLayers(layers.frames, layers.objects);
for (var i = 0; i < result.length; i++) {
changeProgressText('Step 2/3: Find optimal position for layers ' + Math.round(((i + 1) / result.length) * 100) + '%')
deltas.push({ layer: result[i], transform: checkOrientation(result[i]) })
};
}
function step3() {
for (var i = 0; i < deltas.length; i++) {
lr.selectLayer(deltas[i].layer.id)
changeProgressText('Step 3/3: Align layer: ' + lr.getProperty('name', deltas[i].layer.id))
lr.transform(deltas[i].transform, deltas[i].layer.center[0] / SCALE, deltas[i].layer.center[1] / SCALE)
lr.move(deltas[i].layer.dX / SCALE, deltas[i].layer.dY / SCALE)
};
}
}
}
function findLayers() {
var layers = getLayersCollection(),
result = {};
result.frames = [];
result.objects = [];
for (a in layers) {
changeProgressText('Step 1/3: Get initial bounds of layers ' + Math.round((parseInt(a) + 1) / (layers.length) * 100) + '%')
if (layers[a].length) {
lr.selectLayer(layers[a].id)
lr.merge();
var id = lr.getProperty('layerID');
lr.setVisiblity(id, 'hide')
result.objects.push({ id: id })
} else result.frames.push({ id: layers[a].id })
}
return result;
}
function getLayersCollection() {
var doc = new AM('document'),
lr = new AM('layer'),
indexFrom = doc.getProperty('hasBackgroundLayer') ? 0 : 1,
indexTo = doc.getProperty('numberOfLayers');
return layersCollection(indexFrom, indexTo)
function layersCollection(from, to, parentItem, group) {
parentItem = parentItem ? parentItem : [];
for (var i = from; i <= to; i++) {
var layerSection = lr.getProperty('layerSection', i, true);
if (layerSection == 'layerSectionEnd') {
i = layersCollection(i + 1, to, [], parentItem)
continue;
}
if (lr.getProperty('background', i, true)) continue;
var properties = {};
properties.id = lr.getProperty('layerID', i, true);
if (layerSection == 'layerSectionStart') {
for (o in properties) { parentItem[o] = properties[o] }
group.push(parentItem);
return i;
} else {
parentItem.push(properties)
}
}
return parentItem
}
}
function alignLayers(a, b) {
var result = [];
do {
var cur = b.shift(),
target = findNearest(cur, a);
lr.selectLayer(cur.id);
lr.move((target.center[0] - cur.center[0]) - cur.offsetX, (target.center[1] - cur.center[1]) - cur.offsetY)
result.push({ id: cur.id, bounds: target.bounds, dX: target.center[0] - cur.center[0], dY: target.center[1] - cur.center[1], center: cur.center, targetId: target.id })
} while (b.length)
return result;
}
function findNearest(a, b) {
var dist = [];
for (var i = 0; i < b.length; i++) {
if (b[i].found) continue;
if (Math.abs(b[i].WxH - a.WxH) > WXHTolerance) continue;
dist.push({ i: i, dist: Math.abs(b[i].square - a.square) });
}
if (!dist.length) throw new Error('Pair for layer ' + lr.getProperty('name', a.id) + ' not found!');
dist.sort(function (a, b) { return a.dist > b.dist ? 1 : -1 })
b[dist[0].i].found = true;
return b[dist[0].i];
}
function checkOrientation(o) {
var transformMatrices = [[100, -100], [-100, 100], [100, -100], [-100, 100]],
transform = [[100, -100], [-100, -100], [-100, 100], [100, 100]],
result = [];
lr.selectLayer(o.id, true)
lr.setBlendingMode('blendSubtraction');
for (var i = 0; i < transformMatrices.length; i++) result.push(findDifference(o, transformMatrices[i], transform[i]));
lr.delete(o.id);
lr.delete(o.targetId);
result.sort(function (a, b) { return a[0] > b[0] ? 1 : -1 })
return result[0][1]
function findDifference(o, transformMatrices, transform) {
lr.removeSelection()
lr.transform(transformMatrices)
lr.selectLayer(o.targetId)
lr.selectTransparency()
var c = getAverageColor(doc.getProperty('histogram'))
lr.selectLayer(o.id, true)
return [c, transform]
}
}
function grayFramesToLayers(l) {
var result = [];
for (var a in l) isolateLayers(l[a].id, lr.getProperty('name', l[a].id), result)
return result;
function isolateLayers(id, title, result) {
lr.selectLayer(id)
lr.selectTransparency();
lr.expandSelection(EXPAND_BY * SCALE);
pth.workPathFromSelection(1);
var pathComponents = (pth.getProperty('pathContents')).getList(stringIDToTypeID('pathComponents'));
if (pathComponents.count > 1) {
for (var i = pathComponents.count - 1; i >= 0; i--) {
changeProgressText('Step 1/3: Split gray shapes to layers ' + Math.round((pathComponents.count - 1 - i) / (pathComponents.count - 1) * 100) + '%')
pth.workPathFromDesc(pathComponents.getObjectValue(i));
pth.selectionFromWorkPath();
lr.selectLayer(id)
if (lr.layerViaCut()) { result.push(describeLayer(lr.getProperty('layerID'))) }
}
pth.delete();
} else { result.push(describeLayer(id)) }
}
}
function describeLayer(id, docW, docH) {
var o = {},
bounds = lr.descToObject(lr.getProperty('boundsNoEffects', id));
o.id = id;
o.width = bounds.right - bounds.left
o.heigth = bounds.bottom - bounds.top
o.bounds = bounds
o.center = [bounds.left + o.width / 2, bounds.top + o.heigth / 2]
o.found = false;
if (docW && docH) {
o.offsetX = o.bounds.left < 0 ? 0 - (o.bounds.left) : (o.bounds.right > docW ? docW - (o.bounds.right) : 0);
o.offsetY = o.bounds.top < 0 ? 0 - (o.bounds.top) : (o.bounds.bottom > docH ? docH - (o.bounds.bottom) : 0);
if (o.offsetX != 0 || o.offsetY != 0) lr.move(o.offsetX, o.offsetY, 0, 0)
}
lr.selectTransparency()
o.square = countPixels(doc.getProperty('histogram'))
o.WxH = Math.round((o.width / o.heigth) * WXHAccuracy) / WXHAccuracy
return o
}
function getAverageColor(h) {
var n = p = 0;
for (var i = 0; i < h.count; i++) {
n += h.getInteger(i)
p += h.getInteger(i) * i
}
return p / n
}
function countPixels(h) {
var s = 0;
for (var i = 0; i < h.count; i++) {
s += h.getInteger(i)
}
return s
}
function AM(target) {
var s2t = stringIDToTypeID,
t2s = typeIDToStringID;
target = s2t(target)
this.getProperty = function (property, id, idxMode) {
property = s2t(property);
(r = new ActionReference()).putProperty(s2t('property'), property);
id ? (idxMode ? r.putIndex(target, id) : r.putIdentifier(target, id))
: r.putEnumerated(target, s2t('ordinal'), s2t('targetEnum'));
return getDescValue(executeActionGet(r), property)
}
this.hasProperty = function (property, id, idxMode) {
property = s2t(property);
(r = new ActionReference()).putProperty(s2t('property'), property);
id ? (idxMode ? r.putIndex(target, id) : r.putIdentifier(target, id))
: r.putEnumerated(target, s2t('ordinal'), s2t('targetEnum'));
return executeActionGet(r).hasKey(property)
}
this.descToObject = function (d) {
var o = {};
for (var i = 0; i < d.count; i++) {
var k = d.getKey(i)
o[t2s(k)] = getDescValue(d, k)
}
return o
}
this.selectLayer = function (id, mode) {
(r = new ActionReference()).putIdentifier(s2t('layer'), id);
(d = new ActionDescriptor()).putReference(s2t('null'), r);
d.putBoolean(s2t('makeVisible'), mode ? mode : false)
executeAction(s2t('select'), d, DialogModes.NO);
}
this.selectTransparency = function () {
(r = new ActionReference()).putProperty(s2t('channel'), s2t('selection'));
(d = new ActionDescriptor()).putReference(s2t('null'), r);
r1 = new ActionReference();
r1.putEnumerated(s2t('channel'), s2t('channel'), s2t('transparencyEnum'));
d.putReference(s2t('to'), r1);
executeAction(s2t('set'), d, DialogModes.NO);
}
this.layerViaCut = function () {
try {
executeAction(s2t("copyToLayer"), d, DialogModes.NO);
} catch (e) { return false }
return true;
}
this.expandSelection = function (pixels) {
(d = new ActionDescriptor()).putUnitDouble(s2t("by"), s2t("pixelsUnit"), pixels);
d.putBoolean(s2t("selectionModifyEffectAtCanvasBounds"), false);
executeAction(s2t("expand"), d, DialogModes.NO);
}
this.removeSelection = function () {
(r = new ActionReference()).putProperty(s2t('channel'), s2t('selection'));
(d = new ActionDescriptor()).putReference(s2t('null'), r);
d.putEnumerated(s2t('to'), s2t('ordinal'), s2t('none'));
executeAction(s2t('set'), d, DialogModes.NO);
}
this.workPathFromSelection = function (tolerance) {
(r = new ActionReference()).putClass(s2t("path"));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
(r1 = new ActionReference()).putProperty(s2t("selectionClass"), s2t("selection"));
d.putReference(s2t("from"), r1);
d.putUnitDouble(s2t("tolerance"), s2t("pixelsUnit"), tolerance);
executeAction(s2t("make"), d, DialogModes.NO);
}
this.selectionFromWorkPath = function () {
(r = new ActionReference()).putProperty(s2t("channel"), s2t("selection"));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
(r1 = new ActionReference()).putProperty(s2t("path"), s2t("workPath"));
d.putReference(s2t("to"), r1);
executeAction(s2t("set"), d, DialogModes.NO);
}
this.workPathFromDesc = function (desc) {
(r = new ActionReference()).putProperty(s2t('path'), s2t('workPath'));
(d = new ActionDescriptor()).putReference(s2t('target'), r);
(l = new ActionList).putObject(s2t('pathComponent'), desc);
d.putList(s2t('to'), l);
executeAction(s2t('set'), d, DialogModes.NO);
}
this.merge = function () {
executeAction(s2t("mergeLayers"), new ActionDescriptor(), DialogModes.NO);
}
this.delete = function (id) {
var r = new ActionReference();
if (id) r.putIdentifier(target, id) else r.putEnumerated(target, s2t('ordinal'), s2t('targetEnum'));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
executeAction(s2t("delete"), d, DialogModes.NO);
}
this.move = function (dX, dY) {
(r = new ActionReference()).putEnumerated(s2t("layer"), s2t("ordinal"), s2t("targetEnum"));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
(d1 = new ActionDescriptor()).putUnitDouble(s2t("horizontal"), s2t("pixelsUnit"), dX);
d1.putUnitDouble(s2t("vertical"), s2t("pixelsUnit"), dY);
d.putObject(s2t("to"), s2t("offset"), d1);
executeAction(s2t("move"), d, DialogModes.NO);
}
this.setBlendingMode = function (mode) {
(r = new ActionReference()).putEnumerated(s2t("layer"), s2t("ordinal"), s2t("targetEnum"));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
(d1 = new ActionDescriptor()).putEnumerated(s2t("mode"), s2t("blendMode"), s2t(mode));
d.putObject(s2t("to"), s2t("layer"), d1);
executeAction(s2t("set"), d, DialogModes.NO);
}
this.transform = function (transform, dX, dY) {
(r = new ActionReference()).putEnumerated(s2t("layer"), s2t("ordinal"), s2t("targetEnum"));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
if (dX != undefined) {
d.putEnumerated(s2t("freeTransformCenterState"), s2t("quadCenterState"), s2t("QCSIndependent"));
(d1 = new ActionDescriptor()).putUnitDouble(s2t("horizontal"), s2t("pixelsUnit"), dX);
d1.putUnitDouble(s2t("vertical"), s2t("pixelsUnit"), dY);
d.putObject(s2t("position"), charIDToTypeID("Pnt "), d1);
(d2 = new ActionDescriptor()).putUnitDouble(s2t("horizontal"), s2t("pixelsUnit"), 0);
d2.putUnitDouble(s2t("vertical"), s2t("pixelsUnit"), 0);
d.putObject(s2t("offset"), s2t("offset"), d2);
} else {
d.putEnumerated(s2t("freeTransformCenterState"), s2t("quadCenterState"), s2t("QCSAverage"));
}
d.putUnitDouble(s2t("width"), s2t("percentUnit"), transform[0]);
d.putUnitDouble(s2t("height"), s2t("percentUnit"), transform[1]);
d.putBoolean(s2t("linked"), true);
d.putEnumerated(s2t("interpolation"), s2t("interpolationType"), s2t("bicubic"));
executeAction(s2t("transform"), d, DialogModes.NO);
}
this.setScale = function (width) {
(d = new ActionDescriptor()).putUnitDouble(s2t("width"), s2t("percentUnit"), width);
d.putBoolean(s2t("scaleStyles"), true);
d.putBoolean(s2t("constrainProportions"), true);
d.putEnumerated(s2t("interpolation"), s2t("interpolationType"), s2t("bicubicSharper"));
executeAction(s2t("imageSize"), d, DialogModes.NO);
}
this.setGlobalFxState = function (layerFXVisible) {
(r = new ActionReference()).putProperty(s2t("property"), s2t("layerFXVisible"));
r.putEnumerated(s2t("document"), s2t("ordinal"), s2t("targetEnum"));
(d = new ActionDescriptor()).putReference(s2t("null"), r);
(d1 = new ActionDescriptor()).putBoolean(s2t("layerFXVisible"), layerFXVisible);
d.putObject(s2t("to"), s2t("layerFXVisible"), d1);
executeAction(s2t("set"), d, DialogModes.NO);
}
this.setVisiblity = function (id, mode) {
(r = new ActionReference()).putIdentifier(s2t('layer'), id);
(d = new ActionDescriptor()).putReference(s2t('target'), r);
executeAction(s2t(mode), d, DialogModes.NO);
}
function getDescValue(d, p) {
switch (d.getType(p)) {
case DescValueType.OBJECTTYPE: return (d.getObjectValue(p));
case DescValueType.LISTTYPE: return d.getList(p);
case DescValueType.REFERENCETYPE: return d.getReference(p);
case DescValueType.BOOLEANTYPE: return d.getBoolean(p);
case DescValueType.STRINGTYPE: return d.getString(p);
case DescValueType.INTEGERTYPE: return d.getInteger(p);
case DescValueType.LARGEINTEGERTYPE: return d.getLargeInteger(p);
case DescValueType.DOUBLETYPE: return d.getDouble(p);
case DescValueType.ALIASTYPE: return d.getPath(p);
case DescValueType.CLASSTYPE: return d.getClass(p);
case DescValueType.UNITDOUBLE: return (d.getUnitDoubleValue(p));
case DescValueType.ENUMERATEDTYPE: return t2s(d.getEnumerationValue(p));
default: break;
};
}
}
1 Correct answer
39
Replies
AdChoices
