Pen tool Create Mask not working Photoshop

  • July 10, 2023
  • 3 replies
  • 741 views

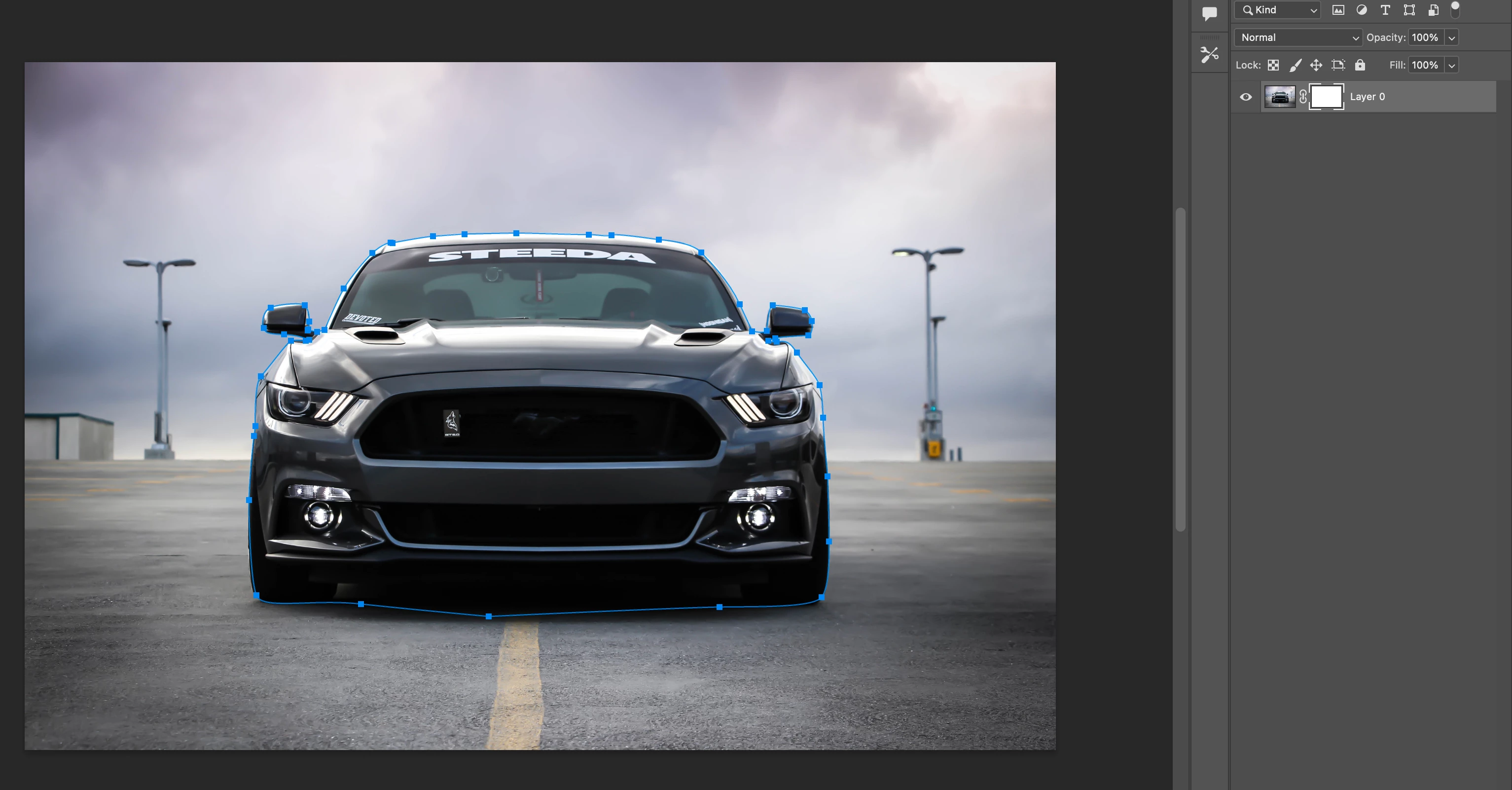

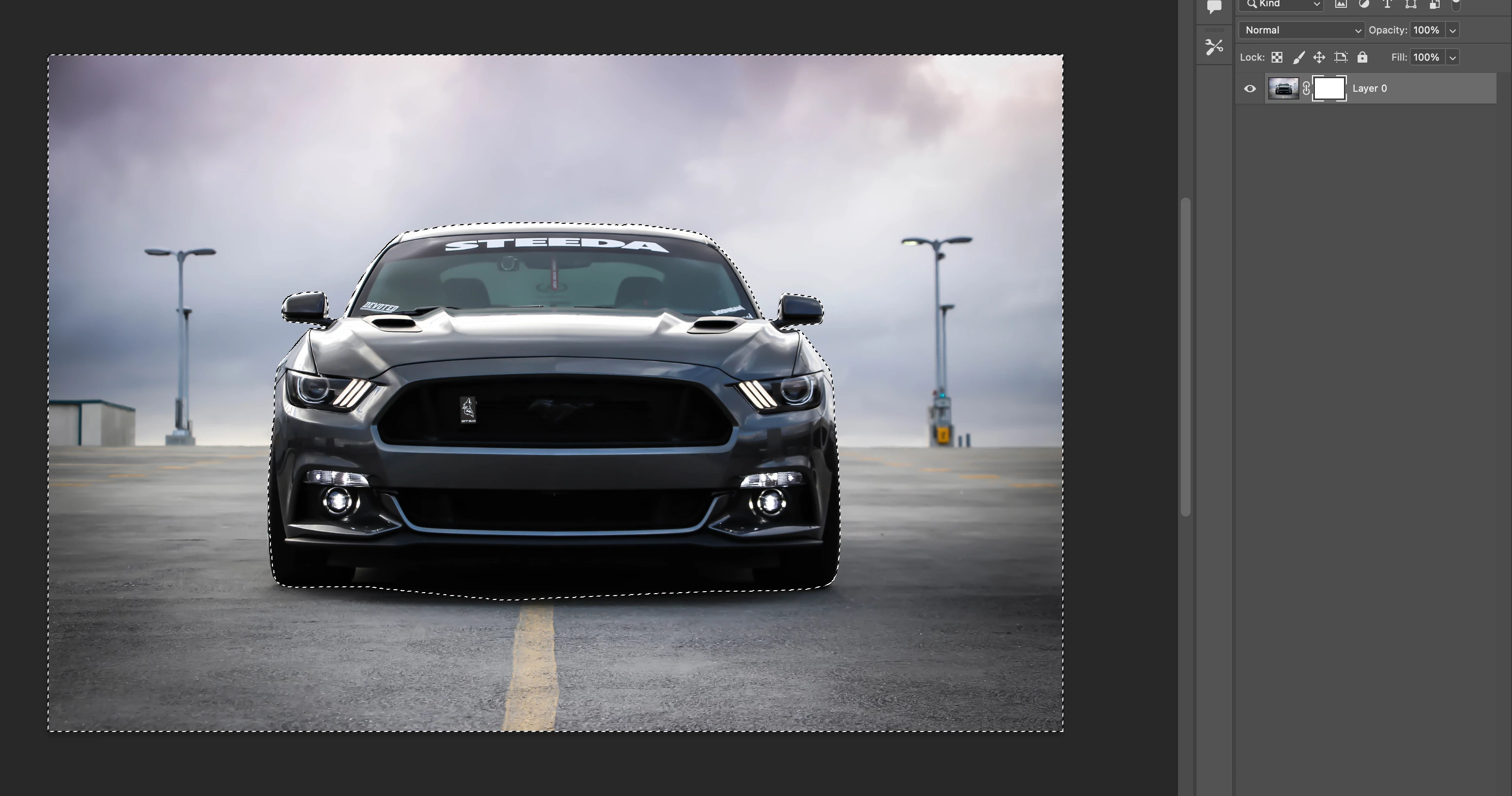

I want to make a path with my pen tool then turn it into a "make selection" with my prefered subject of the photo. But instead it "makes a selection" of my subject and selects the entire artboard as well.

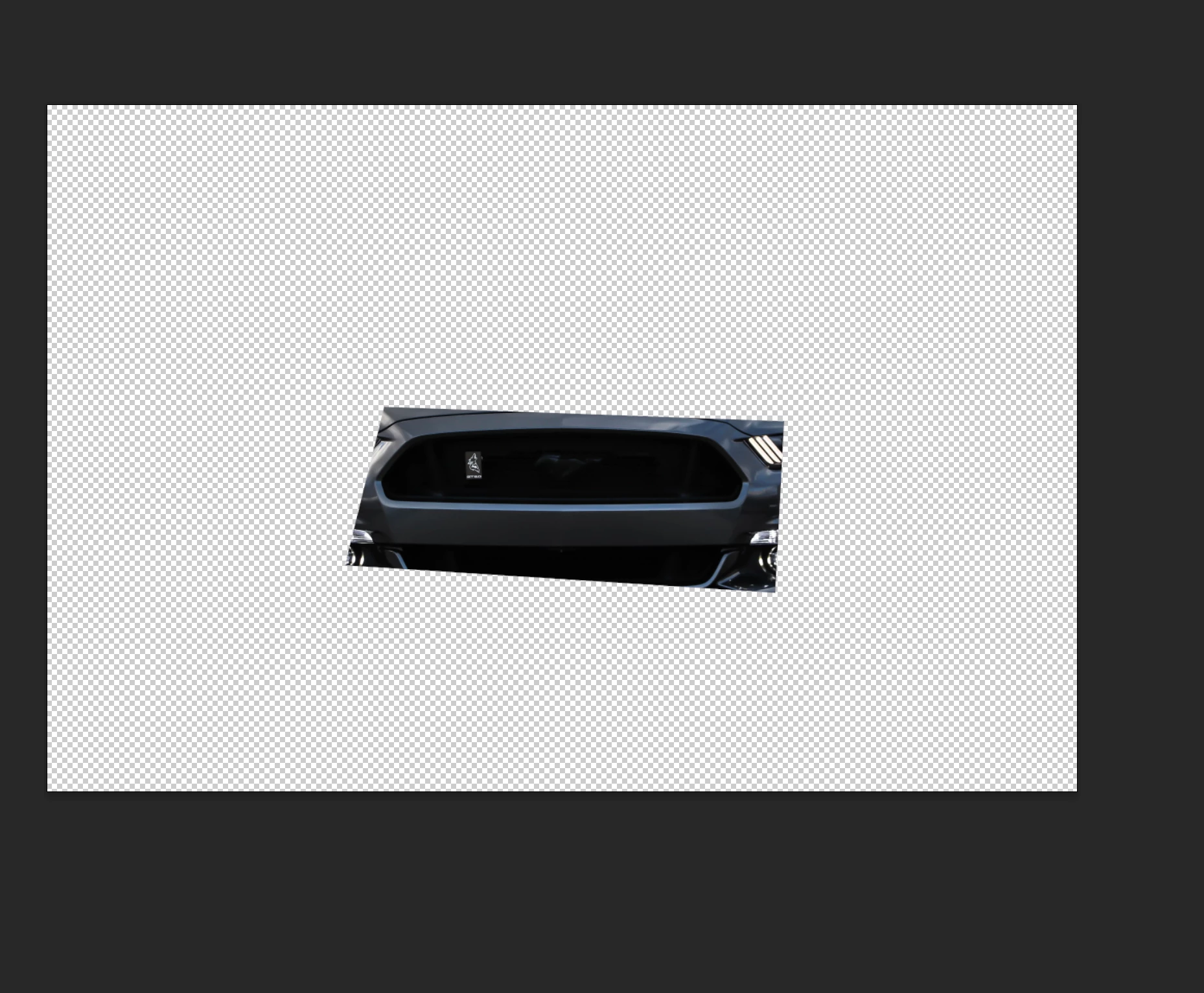

This causes issues when toggling between black/white inside a mask.



Please someone help, I have re-installed photoshop and my work essentials. I'm not sure what changed (using MAC)



currently using version 24.4.1 , same issue with the newest version of 24.6







    This topic has been closed for replies.
    Correct answer JonasRogne
    1. You can choose the path operation of a path freely. E.g. if it should add or subtract. Usually you want it to "Exclude Overlapping Shapes", but you likely have your set to Subtract (so it selects everything except what is inside the path).

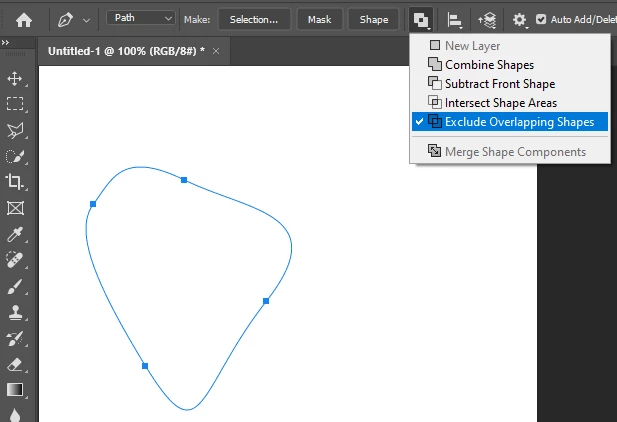

    Setting while using the Pen Tool:

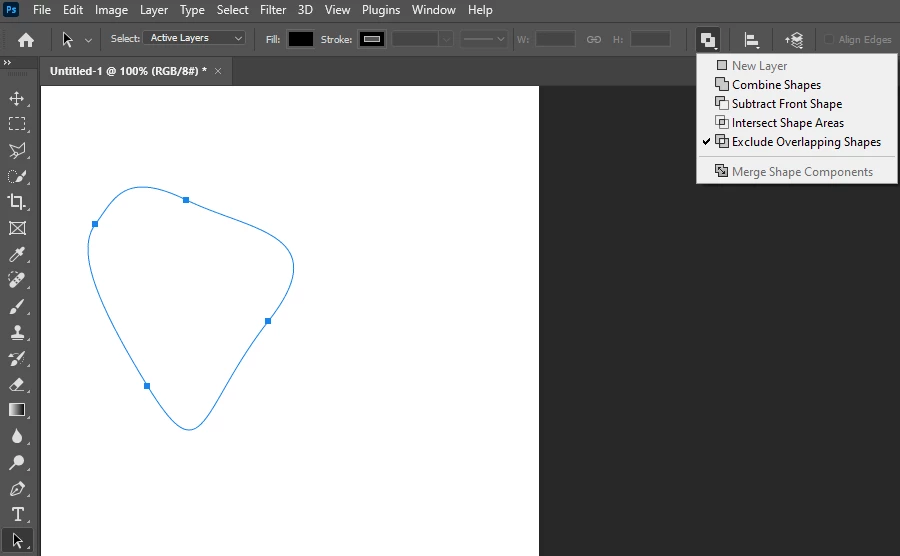

    Setting while having Path Selection Tool active:





    That said, I want to point out some basic tips:

    1. You normally should not be make a selection from your path, but rather a vector mask. That way the path remains editable while being used as a mask. Use Layer > Vector Mask > Current Path... or Ctrl/Cmd-click the mask button in the layers panel.
    2. If you have a selection and it is inverted, go to Select > Inverse.
    3. If your have a layer mask and it is inverted, use Image > Adjustments > Invert, or just use the Invert button in the Properties panel.
    4. If an existing path in your vector mask is set to e.g. subtract instead of exclude, select the path with the direct selection tool, and set it to the correct operation on the options bar (add).

    3 replies

    J
    Community Expert
    JonasRogneCommunity ExpertCorrect answer
    Community Expert
    July 10, 2023
    1. You can choose the path operation of a path freely. E.g. if it should add or subtract. Usually you want it to "Exclude Overlapping Shapes", but you likely have your set to Subtract (so it selects everything except what is inside the path).



    Setting while using the Pen Tool:



    Setting while having Path Selection Tool active:





    That said, I want to point out some basic tips:

    1. You normally should not be make a selection from your path, but rather a vector mask. That way the path remains editable while being used as a mask. Use Layer > Vector Mask > Current Path... or Ctrl/Cmd-click the mask button in the layers panel.
    2. If you have a selection and it is inverted, go to Select > Inverse.
    3. If your have a layer mask and it is inverted, use Image > Adjustments > Invert, or just use the Invert button in the Properties panel.
    4. If an existing path in your vector mask is set to e.g. subtract instead of exclude, select the path with the direct selection tool, and set it to the correct operation on the options bar (add).
      c.pfaffenbichler
      Community Expert
      c.pfaffenbichlerCommunity Expert
      Community Expert
      July 10, 2023

      Could you please post screenshots with the pertinent Panels (Toolbar, Layers, Paths, Options Bar, …) visible?

        Bojan Živković11378569
        Community Expert
        Bojan Živković11378569Community Expert
        Community Expert
        July 10, 2023

        When using the Pen tool take a look in Options bar and choose Combine Shapes from Path operations as explained in the screenshot below (drop down menu).



          I
          isaacs90288273Author
          Participant
          July 10, 2023

          Thanks so much!
