Help request for substancePainter texture channel UV premultiplied

Community Beginner ,
Jul 15, 2022 Jul 15, 2022

Copy link to clipboard

Copied

  For our own asset pipeline construction, we need to use SP's custom channel as a data map. The custom shader then reads the texture as the basis for rendering. Textures are generated by the texture generator created by SD. Reference file: temporaryPlan.spp, see Shader: Toon.glsl, as shown.




  Render the final result correctly






  Layer settings

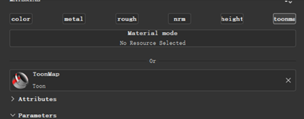

  Cartoon Map User Channel

  SP defaults to premultiplied UVs and expands the channel map, which causes the data map to not read as expected, as shown. Reference file: bad.spp, as shown.






  render result






  Data channel error due to premultiplied UVs

  Because the relevant settings were not found, and the related API could not close the texture premultiplication and expansion for a certain channel. So try to use another auxiliary patch with fully unwrapped UVs to solve the problem.






  Hope, whether the official can provide relevant solutions. Or increase the corresponding settings of the channel. Or provide APIs that can control related functions.

  demo file

https://drive.google.com/file/d/1-9xalr7fYIiOfxXotG1I8yWjKgGbmuMm/view?usp=sharing





Bug Unresolved
TOPICS
Bugs & Crashes

Views

68

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
1 Comment
Adobe Employee ,
Jul 19, 2022 Jul 19, 2022

Copy link to clipboard

Copied

LATEST

Hi,

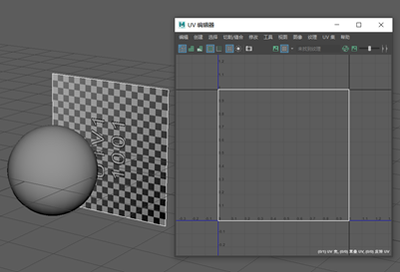

Unfortunately, reading outside the UV space isn't possible for now as we're applying padding to your texture.You could keep the square in your scene while editing.
Thank you,
Kind Regards,
Geoffroy SC
