How to combine UV tiles/texture sets into one texture?

Hi,

Wondering how to combine UV tiles into one texture? Currently there's 4 UV tiles or 4 texture sets, so when the textures export there's like 16 textures. So in Unity I can't add that many textures to the 1 material on a mesh.



I'm just trying to figure out how to export 1 albedo, 1 normal, 1 roughness etc. I tried the baking button but when I tried exporting again there's still 16 textures.



Cheers!

    Meilleure réponse par sw2349600

    Thank you, I've sent you a message.


    Ah nevermind. Ok I see now, I included a UV map in blender in a material and in SP it created just 1 UV tile. I was just thinking that I could just do it all in SP but this time I unchecked Auto Unwrap and it worked. Please disregard my file I sent you 🙂 Cheers.

    2 commentaires

    E
    edgr_first
    Participant
    October 13, 2024

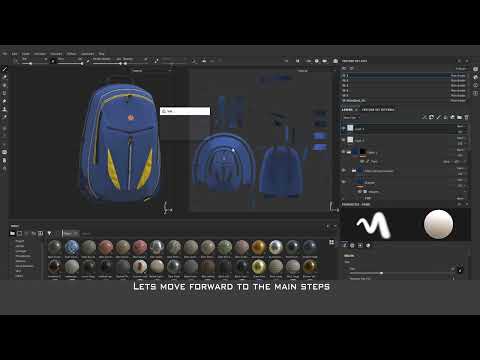

    I think combining the exported textures in photoshop is the simplest solution for now. Here is the link to the tutorial.

    https://youtu.be/F9w3CQMPjtw

      Cyril Dellenbach
      Community Manager
      Cyril DellenbachCommunity Manager
      Community Manager
      May 11, 2023

      Hi @sw2349600,



      Thanks for the question.



      The baking has nothing to do with Texture sets or UV Tiles, so don't worry about this feature for now.



      The Tiles can't be merged together inside Substance 3D Painter, this has to be set up when you create the project.



      A Texture set is defined by a Material ID. Each time Substance 3D Painter finds a new Material ID, it will create a new texture set. If Substance Painter creates 4 texture sets, most likely the mesh has 4 different Material ID.



      May I suggest you to check in your 3D software that your mesh has only one material applied and that all the UVs are packed in only one UV map?



      Keep me posted.



      Cyril Dellenbach (Micro) | QA Support Artist | Adobe
      F
      FPChris
      Participant
      January 24, 2024

      It really should be a simple checkbox on export especially on models when you KNOW there wouldn't be a conflict.

        Cyril Dellenbach
        Community Manager
        Cyril DellenbachCommunity Manager
        Community Manager
        January 24, 2024

        I agree that would be nice, and could ease specific workflows. However, may I ask you why you would need such a feature? This would help us understand the user need.



        Regards,

        Cyril Dellenbach (Micro) | QA Support Artist | Adobe
