Substance Painter Baking Corner Help

New Here ,
Apr 14, 2022 Apr 14, 2022

Copy link to clipboard

Copied

Hi



I need help with substance painter baking.

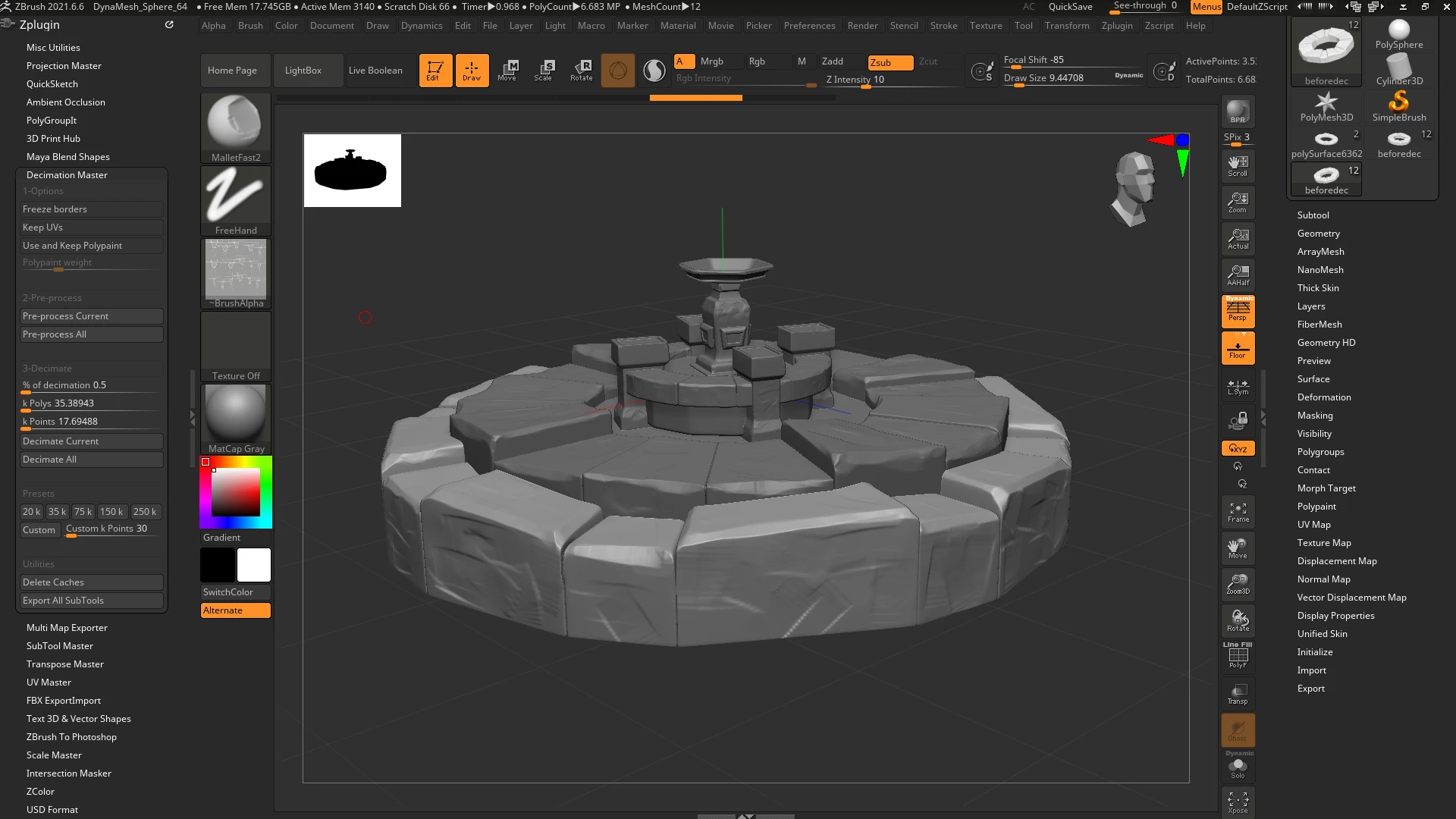

For example: I model a low poly cube in Maya with supporting edge loops to make a defined edge. I then take this to zBrush and use sculpting brushes like Trim Dynamic and hPolish to create a nice edge / worn out corner.

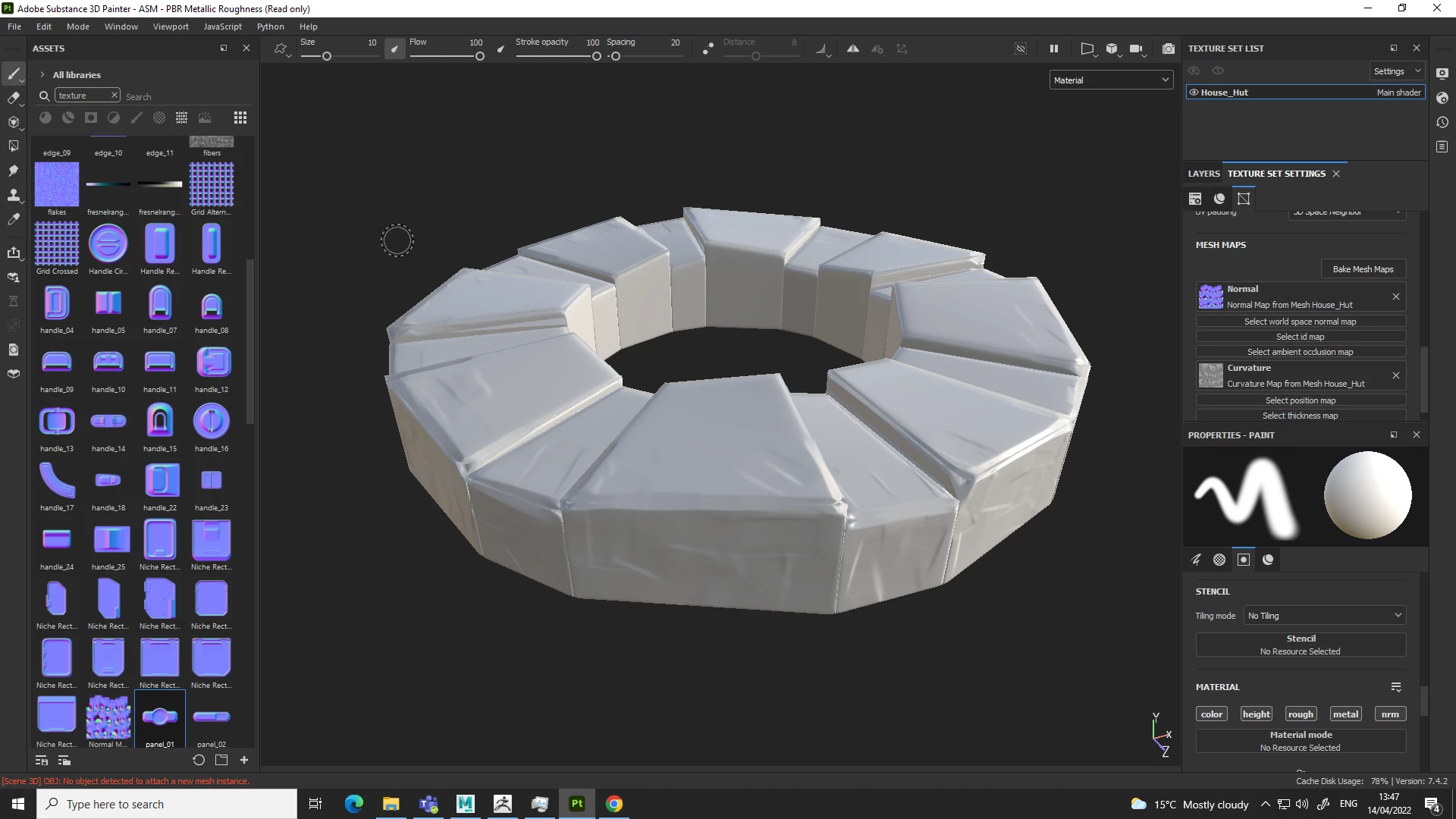

When baking the high poly to low poly in Painter, the corners of the low poly cube stay at a cube and does not dispalce or deform to the zbrush model.



I'll attach pics here to help/







TOPICS
Baking

Views

50

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Employee ,
Apr 14, 2022 Apr 14, 2022

Copy link to clipboard

Copied

Hi,

I'm not sure what your issue is? Your normal map can't change the shape of your mesh.

Would you be so kind as to give more details on what you're expecting and doing, please?

Thank you,

Kind Regards,

Geoffroy SC

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Apr 14, 2022 Apr 14, 2022

Copy link to clipboard

Copied

LATEST

As Geoffroy says, normals only simulate surface detail in shading, the actual edges and corners remain in the same place. This will be particularly evident when viewing straight edges and sharp corners.

Try starting with the high poly sculpted mesh and use that to produce a low poly mesh by decimation (in Maya Mesh -Reduce). That way you are more likely to keep enough polygons to make your corners closer to the high poly version.



Dave
