paragraph set boxTextPos [0, 0] doesn't work

Forum|Forum|1 year ago
June 4, 2024
3 replies
459 views

Hi,

I'm using AE 24.4.1 , and created a project with a single composition and a single paragraph text, to do scripting tests.

When running the following script, the value doesn't update if "pos = [0, 0]"

var txt = layer.sourceText.value;
var pos = [0, 0];
txt.boxTextPos = pos;
layer.sourceText.setValue(txt);

If pos[0] is not null, or pos[1] is not null, the position updates.

The bug seems to occur only with [0, 0].

Scripting

D

Douglas_Waterfall

Adobe Employee

It is old code because I can see the history - this behavior existed at least as far back as May 2021.

I remember the bug about negative positions - that was failing on validation and I changed that back in November 2023.

This is just a bug that affects setting the boxTextPos by Scripting - it has nothing to do with the other ways in which the position can be set.

Just to keep our terms tidy - this is NOT about setting the position of a paragraph, it is setting the position of the box (container) for the containing paragraph(s).

Your workaround is to make sure that if both x and y pos are zero, that you will have to change one of them ever slo slightly to be non-zero.

Douglas Waterfall

After Effects Engineering

A

aescripter7Author

Participating Frequently

Why do you think it's old code ? Are there other ways to do the same thing ?

The use case is to control the position of the paragraph programmatically.

In fact I just found out there are 2 ways to create text layers, regular text layers (just a click with the text tool), and paragraphs (click + holding) and that they behave differently on the anchor point management.

Controlling the anchor point of a regular text layer is accessible with the help of sourceRectAtTime().

For the Paragraph, I figured out there was not only the anchorPoint but another data which could be seen as a (2nd/sub-)anchor point (boxTextPos).

I was searching ways to move programmatically this anchorPoint, and found boxTextPos here https://ae-scripting.docsforadobe.dev/text/textdocument.html#textdocument-boxtextpos .

In AE 23.6.2, I couldn't set boxTextPos with negative components ([-1, -1] = crash), but when we create a paragraph layer, the anchor is by default with negative components ([-250, -50] for example).

It was fixed since, in AE 24.4.1 negative and positive values do work, but doesn't work with [0, 0].

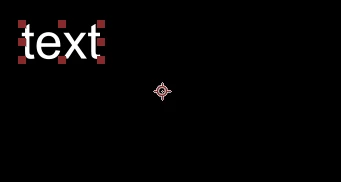

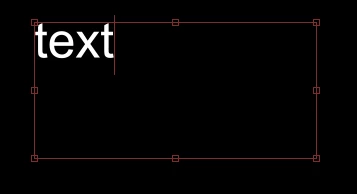

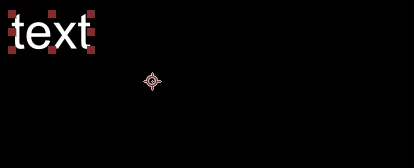

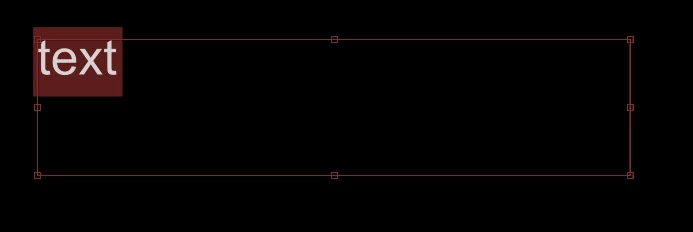

Visual example:
