Imported Illustrator artwork outside composition bounds becomes transparent in After Effects

Forum|Forum|1 month ago
January 30, 2026
5 replies
113 views

When I open an Illustrator (.ai) file in After Effects (Import → Composition), any artwork that sits outside the composition frame is automatically turned transparent/alpha-clipped. I intentionally leave a margin around elements in Illustrator so that when they move the edges don’t show seams — but After Effects is making those outer areas transparent, which causes visible gaps during animation.

Steps to reproduce

Create artwork in Illustrator that extends beyond the intended comp size (leave a margin around the visible area).
Save as .ai and import into After Effects as Composition.
Open the composition: artwork outside the comp frame appears transparent (alpha) instead of preserved.

Expected behavior
Artwork outside the comp bounds should remain opaque (preserved) so the margin stays visible when elements move.

Question
Is there a setting or recommended import workflow to prevent After Effects from automatically making those outer areas transparent? Any workaround or explanation of why AE clips those areas would be appreciated.

R

Rick Gerard

Community Expert

Hope that helps.

R

Rick Gerard

Community Expert

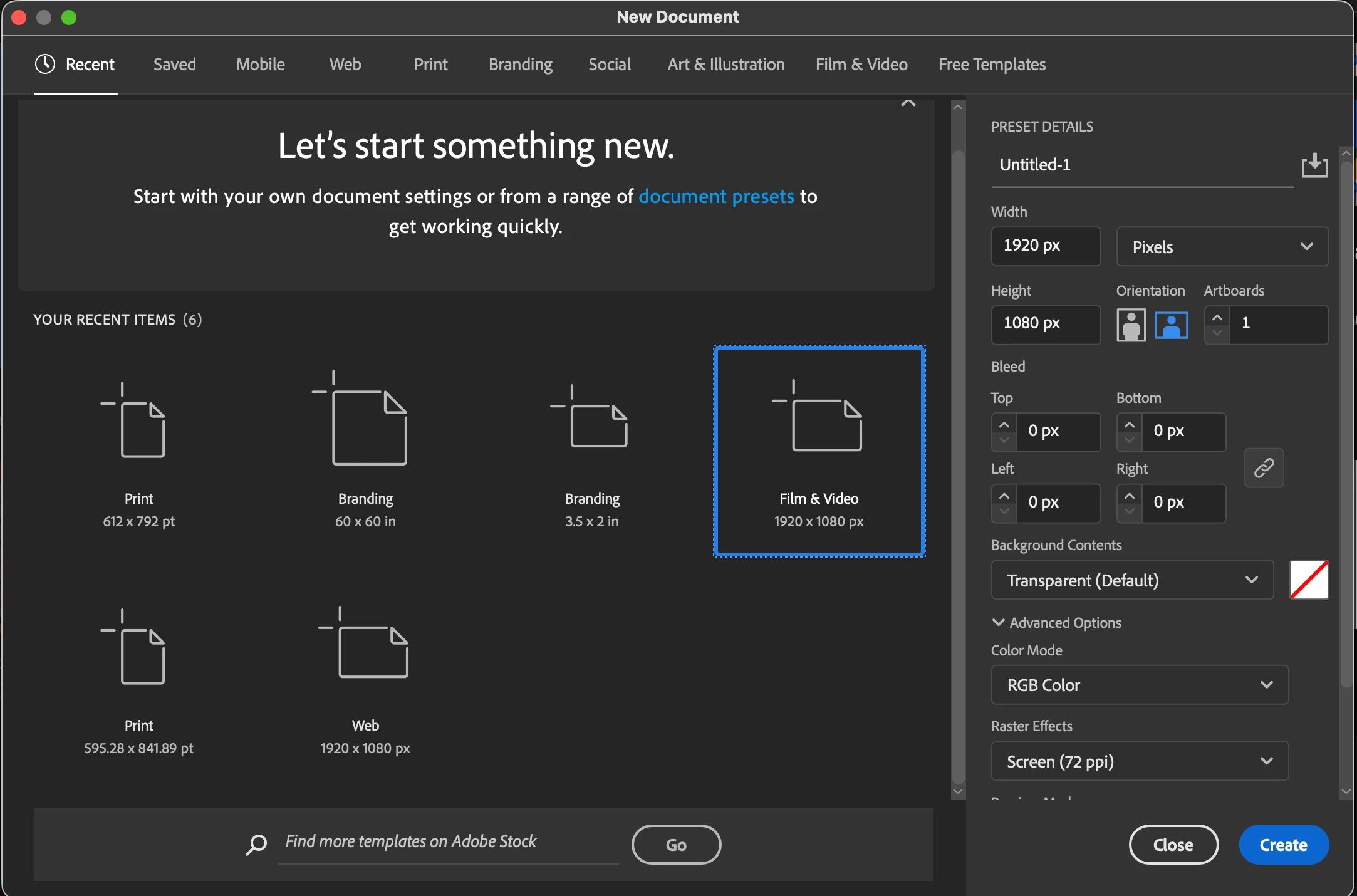

The problem with your AI file is that you only have one Comp-sized artboard. If you use the Create New feature in Illustrator and pick film and video you’ll get two Artboards. One will be comp-sized, the other will be huge.

I double-clicked the second artboard to show both, and created a shape outside the first.

Import as a composition, and you will avoid the cropped at the edge of the comp problem when you only have one artboard. That is all there is to it, and it has been a feature since importing as a composition became an option.

I’ve uploaded a file. Give it a try.

ToolfarmJP

Community Expert

Have you already tried to update your graphic card driver?

thepixelsmith

Community Expert

It’s not an error they are reporting. The request is for a change in the Illustrator importing feature and how it works.

thepixelsmith

Community Expert

This isn't actually a feature request.

thepixelsmith

Community Expert

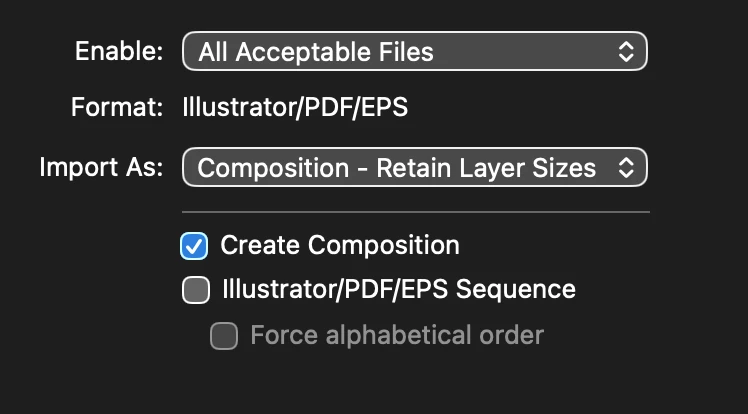

Did you use Import as Composition setting or the Composition - Retain Layer Sizes option?
The Retain Layer sizes import choice will respect objects outside the bounding box.

But theres a limitation to this.

Your illustrator file needs to be made with two art boards in the same physical place. The first art boards sets the import dimensions while the second insures that any artwork that is outside the primary art board doesn’t get clipped.

This is the way all of Illustrator’s Video Presets have always been constructed.

YuK1_WorksAuthor

Inspiring

Hmm, yes.
I was already aware of that “larger artboard” workaround. But honestly, it feels pretty forced and unnecessarily cumbersome.

If this is the officially recommended workflow for interoperability between Adobe’s own products, it seems unreasonable to require users to rely on such a non-obvious setup.
That’s exactly why I posted this as a feature request.
I was hoping After Effects could handle this case more gracefully and preserve the artwork correctly without needing a hacky artboard configuration.

thepixelsmith

Community Expert

It’s not a workaround. It’s the way the feature is designed to work.

Maybe someone on the development team can explain why the feature works the say it does, but I would assume it is because of the fact they are completely different programs with very different roles and rules for how their features work.
