Known Participant

Question

Pass argument to event.target.buttonImportIcon()

Forum|Forum|5 years ago
September 2, 2020
10 replies
1854 views

Hi. I'm trying to import an image into an image field on a form by passing an argument. The argument is the fully qualified path + file. I saw the following short script in a post and I am trying to tweak it to make it work ...

var a =this.getField ("Hidden Text").valueAsString;

var b =this.getField ("Application Images(Screenshots)").valueAsString;

event.target.buttonImportIcon(a+b);

I have also tried to hard code the argument, and the field will not accept the image.

[ event.target.buttonImportIcon("/C/myPath/Image1.jpg"); ]

I get nothing ... Any suggestions would be much appreciated. Thanks!!

Acrobat SDK and JavaScript

This topic has been closed for replies.

R

richardn41953489Author

Known Participant

Your approach is alot simpler than what I was working on. LOL! I got everything but the leading"/" and the ":".

Works great ... Thanks Thom!

----------------------------------

this.getField("fileStringParsed").value = newString;

var str = this.getField("FileString").value;

var wordArray = str.split("\\");

var wordIndex = wordArray.length - 1;

str = "";

for (i=0; i < wordIndex; i++) {

str += wordArray[i] + "/";

}

this.getField("fileStringParsed").value = str + wordArray[wordIndex];

R

richardn41953489Author

Known Participant

Thanks. Sounds like a clean approach. If you have any good quick references or samples, it would be appreciated.

Next hurdle will be parsing:

"C:\Users\Me\Documents\F1\F2\Images\Image_1.JPG"

to

"/C/Users/Me/Documents/F1/F2/Images/Image_1.JPG"

If you can point me to any tools / methods / utilities, I would greatly appreciate that as well. Thanks try67!

Thom Parker

Community Expert

Here's an article on using the Response Box

https://acrobatusers.com/tutorials/popup_windows_part2/

And you should look it up in the Acrobat JavaScript Reference.

Use a regular expression replace to do an easy conversion, based on the path always being a full windows path.

var strDIPath = "/" + strPlatPath.replace(/\:?\\/g,"/");

Thom Parker - Software Developer at PDFScriptingUse the Acrobat JavaScript Reference early and often

R

richardn41953489Author

Known Participant

Thanks Thom. Easy implementation. I'm almost satisfied with the functionality.

Is there a way to force an acceptText() type method on the paste into cRtn to eliminate the additional click? Then I would like to hide/disable the [OK] button.

R

richardn41953489Author

Known Participant

Thanks try67. This is only going to be executed on my console. It worked.

R

richardn41953489Author

Known Participant

Sorry try67. Understand your "paste" comment. Thanks. Gonna look at using a text field to paste to and possibly invoke the Import.

try67

Community Expert

You can also use an app.response() window to prompt the user to paste the copied text, and then you'll be able to use it in the rest of your code. That way you can do it all from the button field.

R

richardn41953489Author

Known Participant

Thanks Bernd, and of course Thom. That worked. Didn't see that at first.

Nesa ... "ImportIcon" worked. "GetIcon" not in this scenario.

R

richardn41953489Author

Known Participant

This is where I want to get (big picture) ... clearly beyond just javascript/acrobat ...

Want to copy the fully qualified path/file from windows explorer to clipboard, with minimal effort (one or two clicks?)

Execute [mouse up] script on the image field to accept the clipboard contents to a variable and then use button(Import/Get)Icon() to populate the field. Thanks!

I

try67

Community Expert

You can't use a script to paste anything, neither image nor text. It has to be done manually by the user.

R

richardn41953489Author

Known Participant

Thanks for the quick reply! Turned on menu privileges. Did not work. Also tried turning off global security policy ... NG.

Bernd Alheit

Community Expert

Read the reply of Thom Parker.

Nesa Nurani

Community Expert

Hi, have you consider a workaround instead of buttonImportIcon to use buttonGetIcon() , with hidden button field?

Thom Parker

Community Expert

If you want to pass a path parameter to the import function, then the user has to do something to create trust. For example, adding the PDF to the set of trusted documents in enhanced security, or installing a folder level script.

Thom Parker - Software Developer at PDFScriptingUse the Acrobat JavaScript Reference early and often

try67

Community Expert

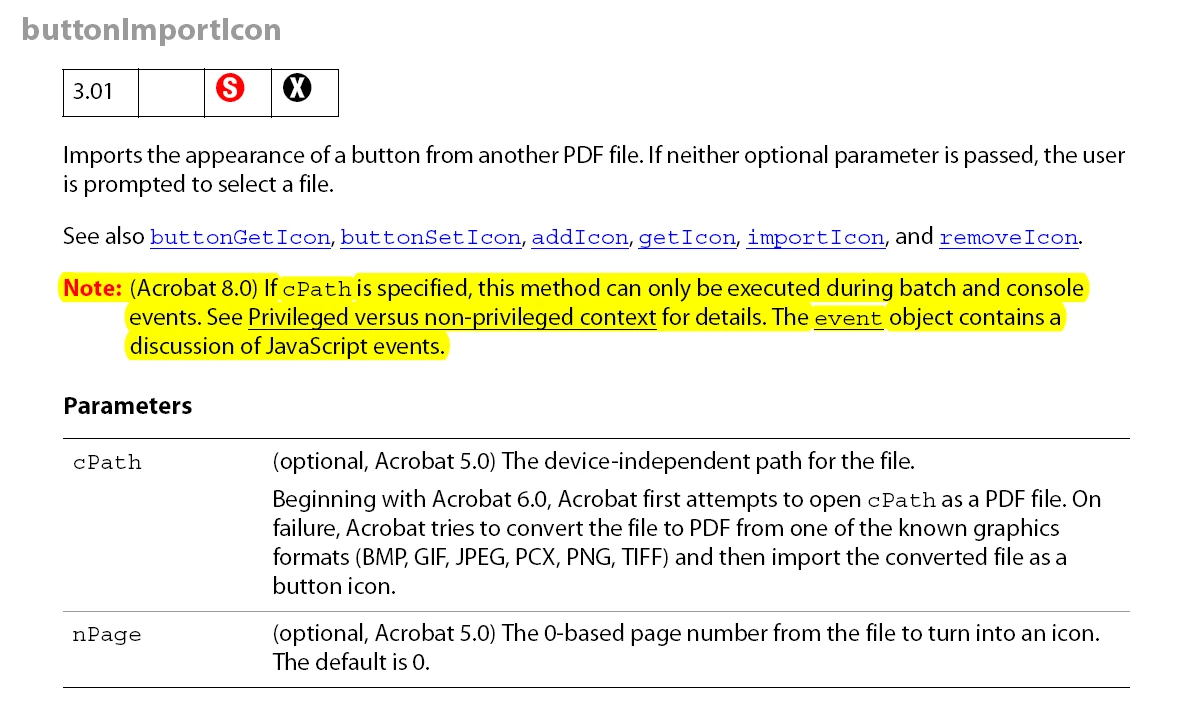

Read the highlighted part carefully:
