Material under Glass in Designer

  • January 6, 2022
  • 4 replies
  • 1765 views

Hi, I recently posted to the Painter community about a question I had with glass and how the material under it can be seen through glass. (Solved: Re: Material under glass in Painter - Adobe Support Community - 12617183). I want to create a material which is a combination of glass and metal. the top layer is glass and the bottom layer is metal. Looking at it directly, the glass is a see through and the metal underneath the glass can be seen. This is my aim.

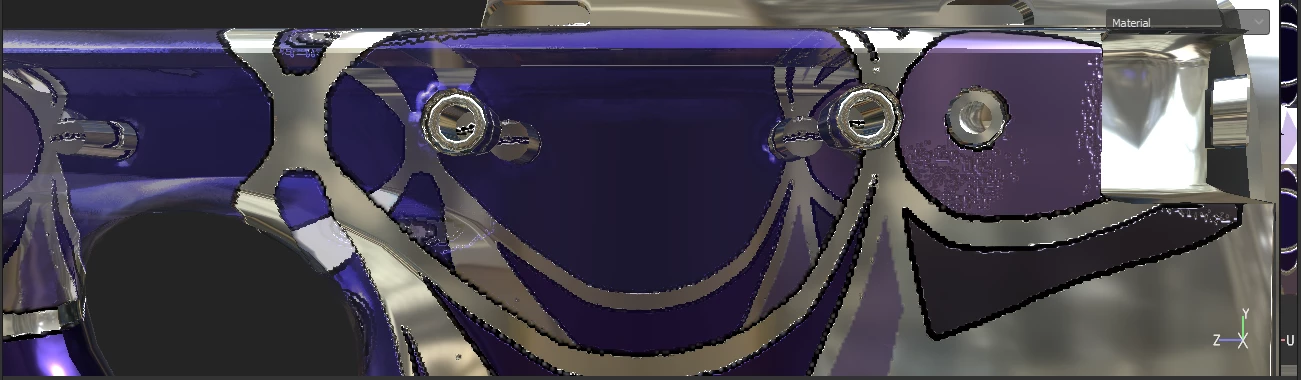

I am not able to achieve this as the opacity is decreased, the material underneath is not visible, as shown in img: op decreased. I have included a refernce to show what I am trying to achieve as shown in AIM. The center region of the table in which the glass overlaps the wooden base. This is what I am trying to achive as a material.

This topic has been closed for replies.
Correct answer Luca Giarrizzo

Hello @Thoma55,



As another user suggested in the thread you linked, the ideal solution is to have a separate meshes for the glass and metal layers, which dedicated shaders and textures.



If that is not possible, you may use a clear coat effect to simulate a translucent layer being applied on top of the metal. This effect can be used with the Parallax displacement technique for great results. This is a technique commonly used in the automotive industry to render car paint, which has paint flakes covered by a smooth coating.

 



This effect requires a shader which supports it. In Designer, the Adobe Standard Material and Metallic Roughness - Coated shaders can be used. I recommend the former for the best consistency across Substance 3D applications.

You can switch shaders in the 3D View by opening its Materials menu and opening a material submenu (e.g. 'Default').

You can create a Substance graph with the Metallic Roughness - Coated template.



 I hope this is helpful!



Best regards.



4 replies

G
Gf tero30255984fzvh
Participant
June 14, 2023

Please hapl me

Luca Giarrizzo
Community Manager
Luca GiarrizzoCommunity Manager
Community Manager
June 14, 2023

Hello,



Please describe your issue, and I will be happy to help!



Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe
G
Gf tero30255984fzvh
Participant
June 14, 2023

Please help me later jaldi

Luca Giarrizzo
Community Manager
Luca GiarrizzoCommunity ManagerCorrect answer
Community Manager
January 6, 2022

Hello @Thoma55,



As another user suggested in the thread you linked, the ideal solution is to have a separate meshes for the glass and metal layers, which dedicated shaders and textures.



If that is not possible, you may use a clear coat effect to simulate a translucent layer being applied on top of the metal. This effect can be used with the Parallax displacement technique for great results. This is a technique commonly used in the automotive industry to render car paint, which has paint flakes covered by a smooth coating.

 



This effect requires a shader which supports it. In Designer, the Adobe Standard Material and Metallic Roughness - Coated shaders can be used. I recommend the former for the best consistency across Substance 3D applications.

You can switch shaders in the 3D View by opening its Materials menu and opening a material submenu (e.g. 'Default').

You can create a Substance graph with the Metallic Roughness - Coated template.



 I hope this is helpful!



Best regards.



Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe
    T
    Thoma55Author
    Participating Frequently
    January 19, 2022

    Hello,



    Thank you. I tired the clear coat and it worked amazingly. Is there any way I can add some height to the clearcoat to make it look like glass using normal maps. Im not looking for great lengths but like 5 mm thickness. I hope that is achievable using normal maps.

    Luca Giarrizzo
    Community Manager
    Luca GiarrizzoCommunity Manager
    Community Manager
    January 20, 2022

    Hello,



    I am glad the clear coat effect works for you!

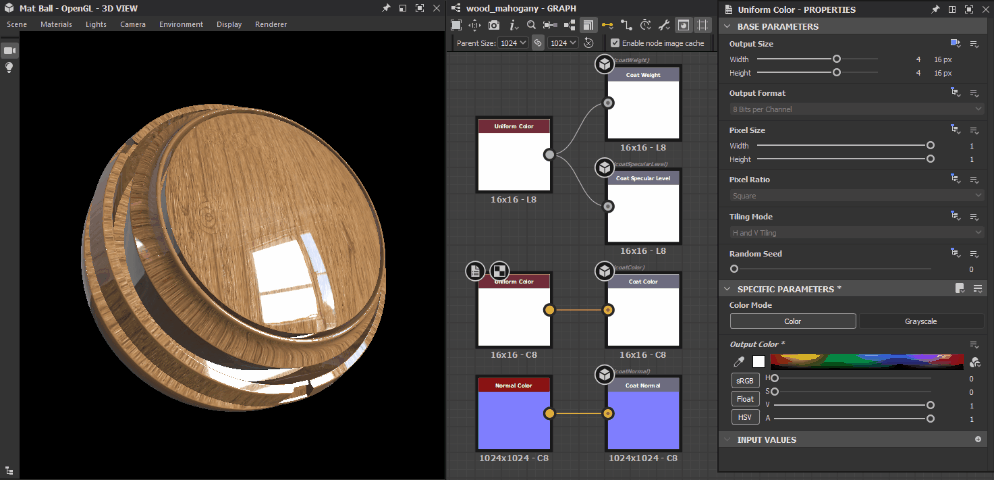

    You can use the Parallax displacement technique to fake some thickness on top of the mesh by lowering the maximum value of the Height map. I have attached a video demonstration with a simple setup to this message.



    When using displacement, use the Height scale parameter in the material properties to set the overall intensity of the displacement effect. You can find this in 3D View > Materials > Default > Edit then in the Properties panel Height > Scale.

    You can learn more about displacement in the 3D View here in our documentation.



    Best regards.



    Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe
    T
    Thoma55Author
    Participating Frequently
    January 6, 2022

    Thank you in advance for your help and time.
