3D Camera Not Showing DOF

10 replies
16555 views
Translate

Have different Layers in different positions in Z space, have DOF on, Aperture is cranked to 1000, Point of interest is in a different position than the objects, F-Stop is at .1. Does anyone have any suggestions? I saw something about collapsed transformations but when I go into 3D mode there isn't an option to turn the option off.

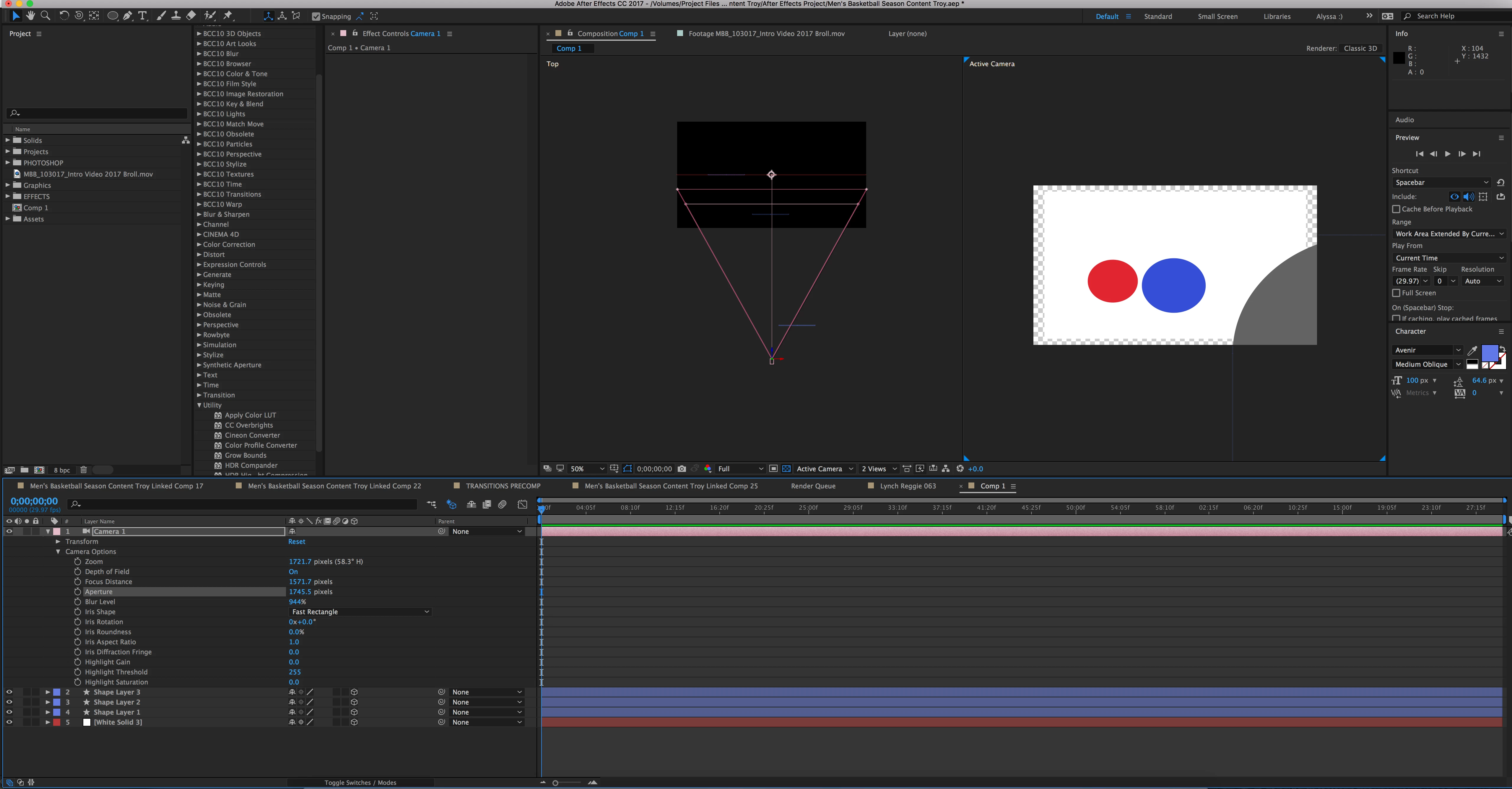

Any ideas anyone? I'll send screen shots if requested

MyleniumCorrect answer

Legend

Without actual system and version info nobody can tell you much, but off the bat there is two thinkable scnearios:

a) You are using CC 2018 and your GPU acceleration is not working right

b) You have enabled Draft 3D, which never renders advanced effects

Check those things. For anything else you have to provide better information, which of course could include screenshots.

Mylenium

R

Rishi3027514460ps

Participant

thankyou so much.......

Translate

S

saeidt53279147

Participating Frequently

Solved : Just Play With Focus Distance Value.

Translate

Bduruman

Participant

On point Thanks!

Draft 3D Cost me several Hours. Not any longer. Great tip!

Translate

R

Rick Gerard

Community Expert

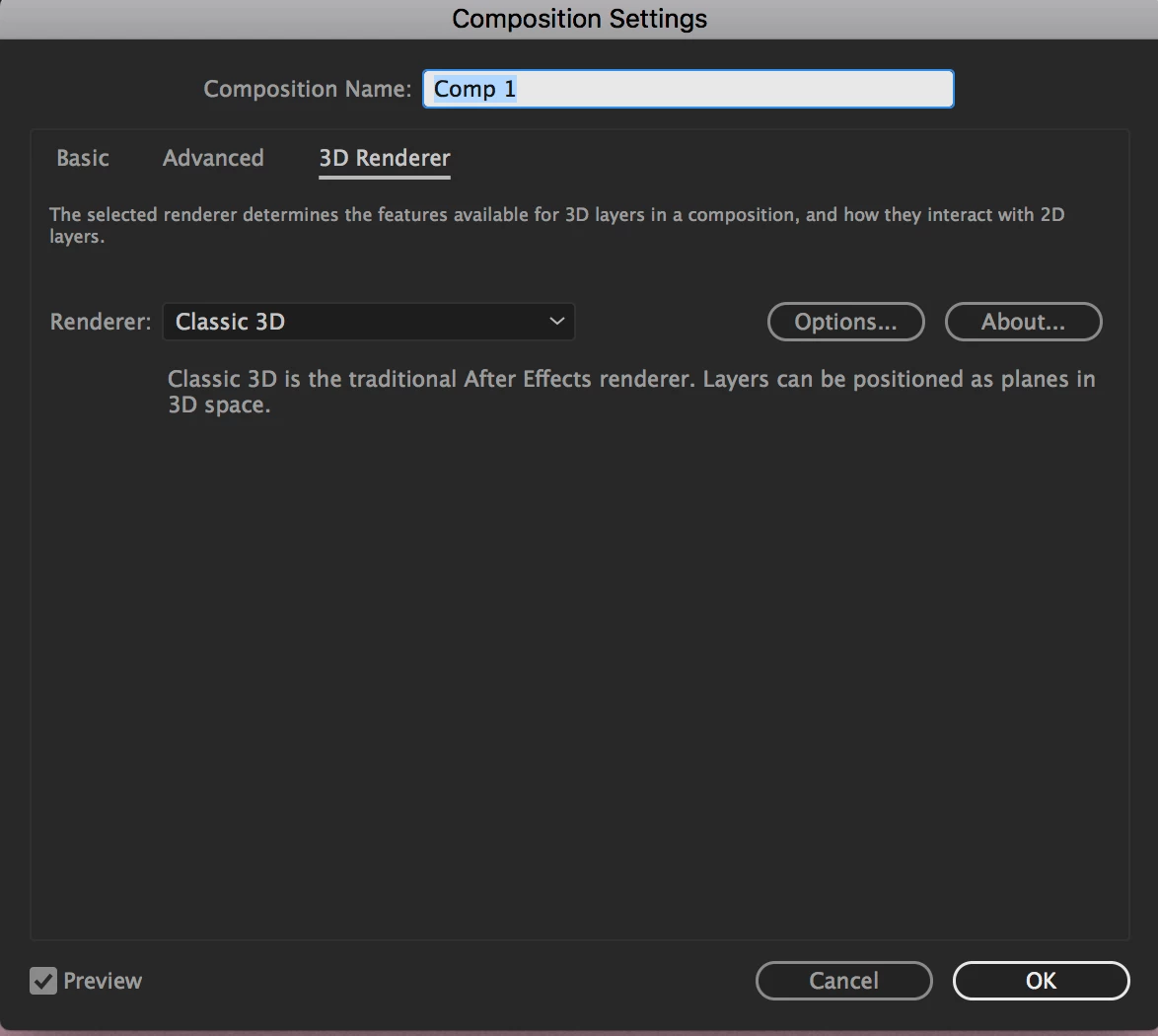

If you have the rendering engine set to Classic 3D, check the upper right corner of the Comp Panel, and depth of field is not working make sure Active Camera view is enabled, check the preview options at the bottom of the comp panel and check the timeline settings to make sure Draft is not turned on.

If you are using the C4D rendering engine then carefully check the notes that show up when you choose that option. DoF is not supported. You have to fake it.
