After Effects Graph Editor Problem

  • August 5, 2019
  • 3 replies
  • 31152 views

Hi! I'v been looking for the an answer to my problem for hours and can't seam to figure it out. I would really appreciate your help!

I want to tweak the easing speed in which a shape moves using graph editor but all i get it the curves for x and y position. If I add an easy ease to the shape, these two curves (green and red) transform into S shapes. But if i try to edit the handles of these curves, the position of the shape changes and not the speed in which the shape moves. I just want to affect the acceleration of the shape not the path in which it moves. Many tutorials show a grey curve which can be edited to change the acceleration but it won't show on my AE.

Thanks in advance!

    This topic has been closed for replies.
    Correct answer Martin_Ritter

    Just don't separate the dimension and make sure, you selected the speed graph, not value graph.

    *Martin

    3 replies

    S
    stevec17767941
    Participant
    October 4, 2020

    where is the speed graph?

    R
    Community Expert
    Rick GerardCommunity Expert
    Community Expert
    October 5, 2020

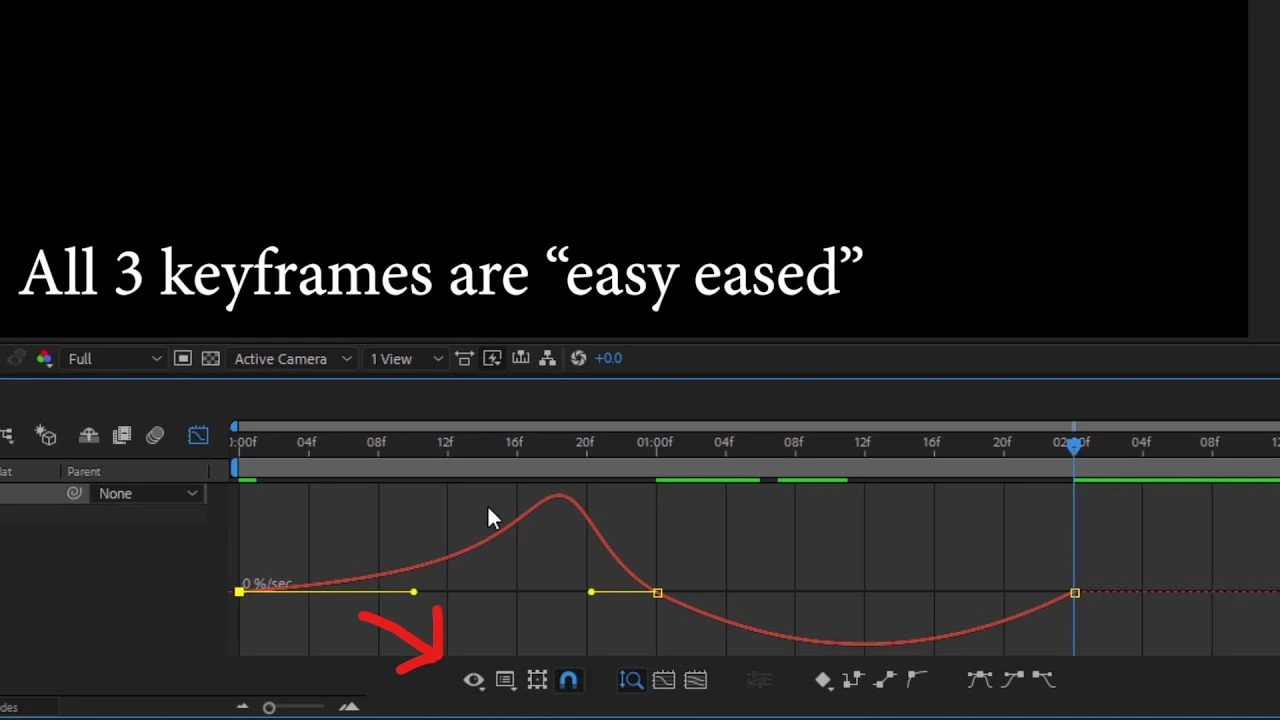

    Maybe this tutorial will help you find and edit the graph editor. Any time you see colored lines you are looking at the Value Graph. The speed graph is always a light gray line. The choice is made using the icons at the bottom of the graph editor or by right clicking as demonstrated here:

    This is the second time I have shared this video in the last 5 minutes.

      J
      jesseheinilaAuthor
      Participating Frequently
      August 5, 2019

      To specify all tutorials I have watched and read have just one curve when pressing the graph editor, ether grey or red one and they are able to edit the handles of said curve and affect the ease, but I have two curves even before dividing the dimensions and when i edit these curves it only affects the positioning of the shape.

      Martin_Ritter
      Martin_RitterCorrect answer
      Legend
      August 5, 2019

      Just don't separate the dimension and make sure, you selected the speed graph, not value graph.

      *Martin

        J
        jesseheinilaAuthor
        Participating Frequently
        August 5, 2019

        Thank you! I think I was too tired/frustrated to figure it out, this helped!

        Martin_Ritter
        Martin_Ritter
        Legend
        August 5, 2019

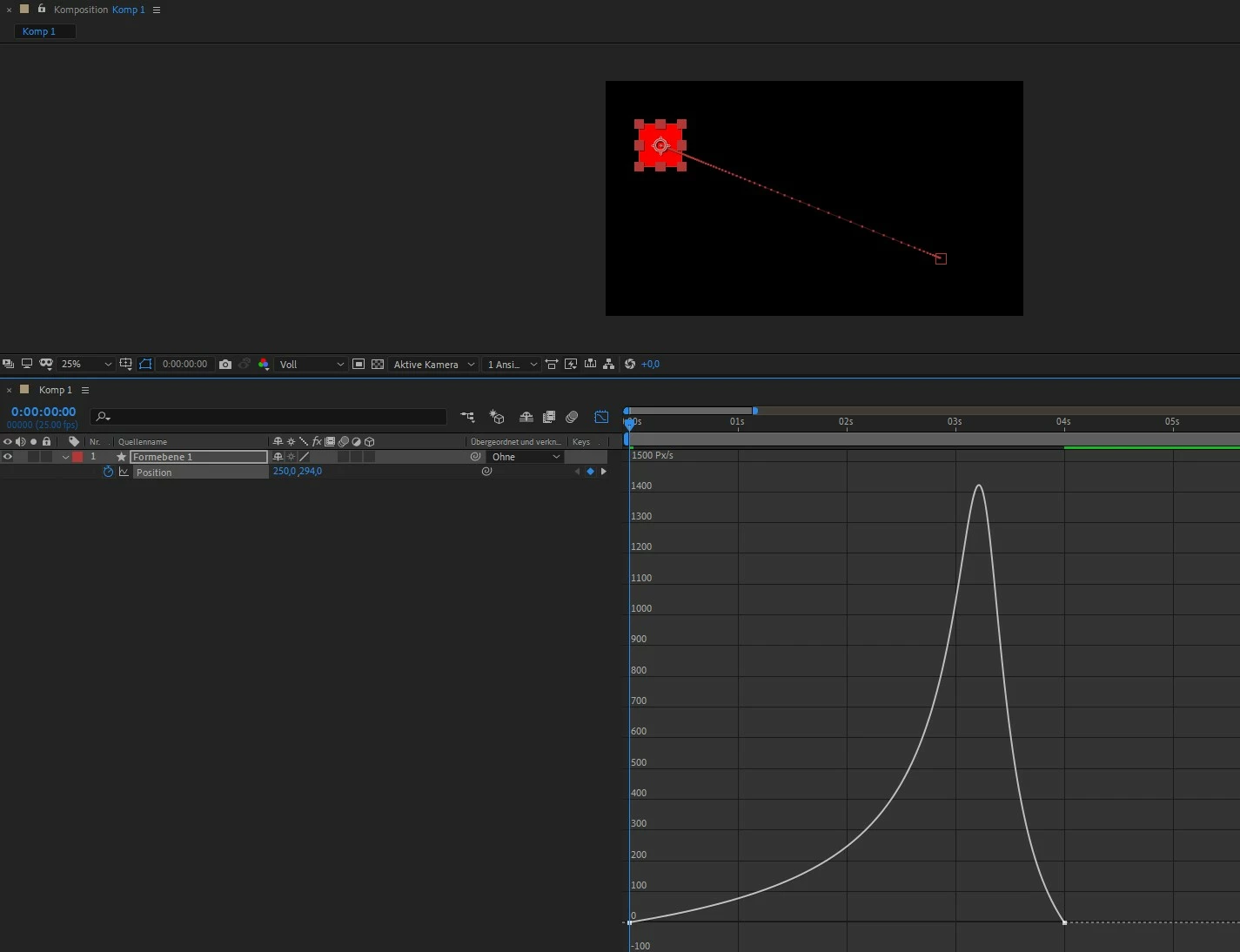

        There are two graphs in the editor. You are on the value graph, but you need the speed/velocity graph.

        Klick on the eye and switch to the other one.

        *Martin

        J
        jesseheinilaAuthor
        Participating Frequently
        August 5, 2019

        Thanks for the replay! Still doesn't work tho. If i change the mode to speed graph the two curves just change to a slope but again if i pull on the handles to edit the curves, it only changes the shape of the path of the shape, not the acceleration in which the shape moves.

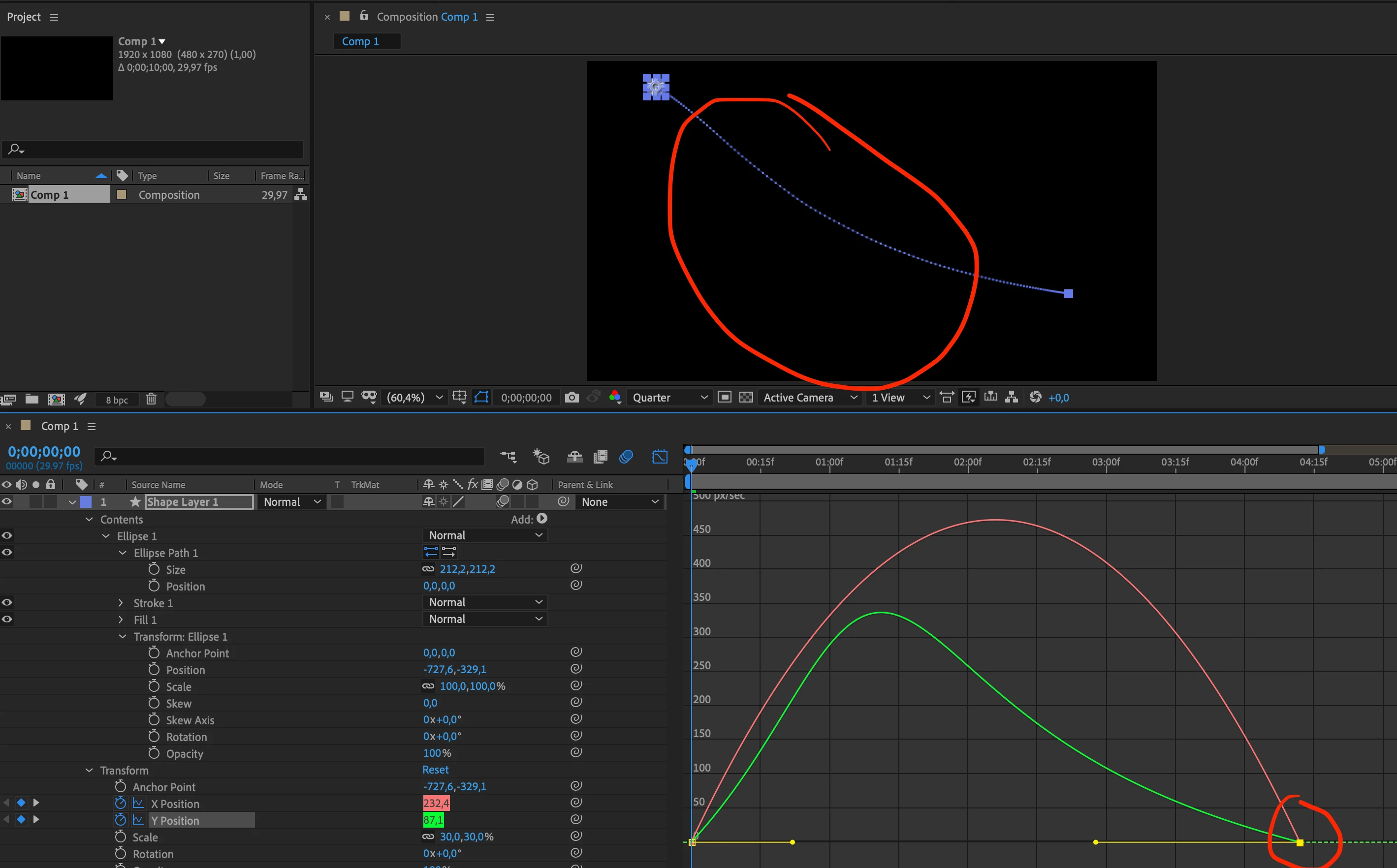

        In this screen shot you can see that I'm in the speed graph and i moved the handle and instead of changing the acceleration, it just makes the path of the shape curved.

        These two curves seam to only be for the position and not the speed..

        Martin_Ritter
        Martin_Ritter
        Legend
        August 5, 2019

        I also see that you have separate the dimensions (x and y individually) and in this scenario, it's only logical that the curve slopes.

        You can make both graphs the exact same, or more easy, don't separate the dimensions.

        The ease is working, btw. If you have a close look to the path, you see little dots which gets more narrow at the start and the end of the path.

        *Martin
